Zinc-Plated Eye Bolt M12 DIN 580 – C15 Steel
Leave feedback on the product

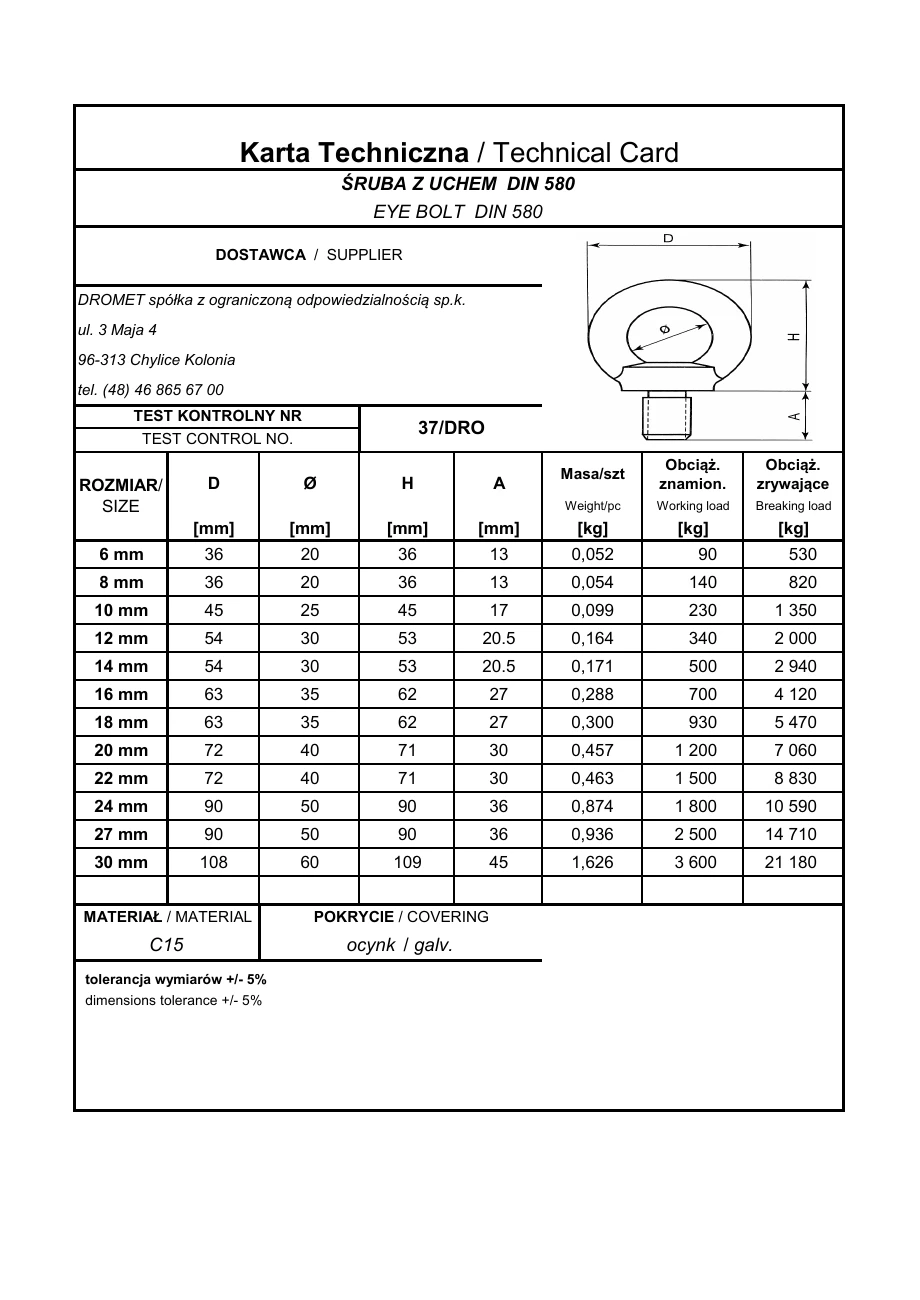

Dromet M12 DIN 580 eye bolt made of C15 steel, zinc-plated. Outer eye diameter 54 mm, inner diameter 30 mm, height 53 mm, thread length 20.5 mm. Rated load 340 kg, breaking
Product code: 002-202
Description

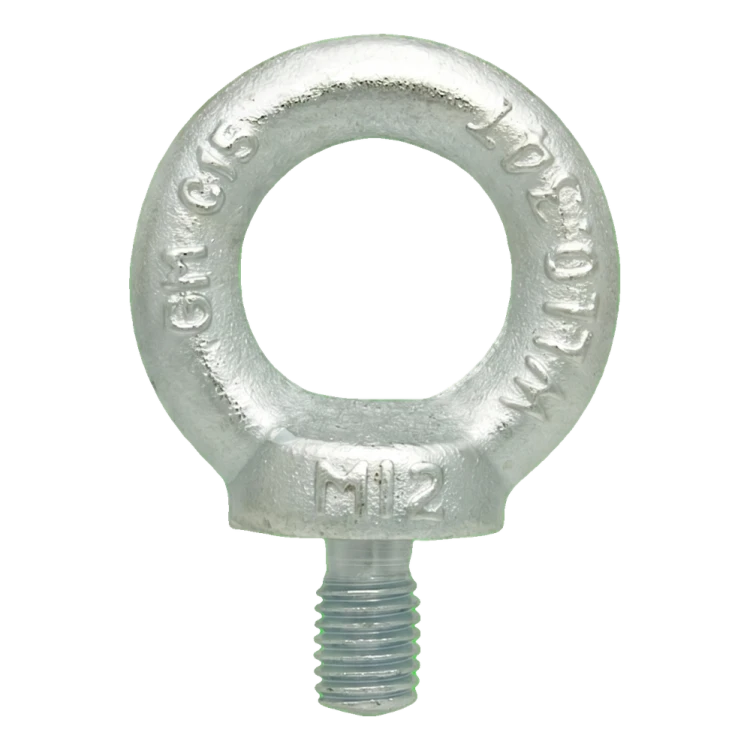

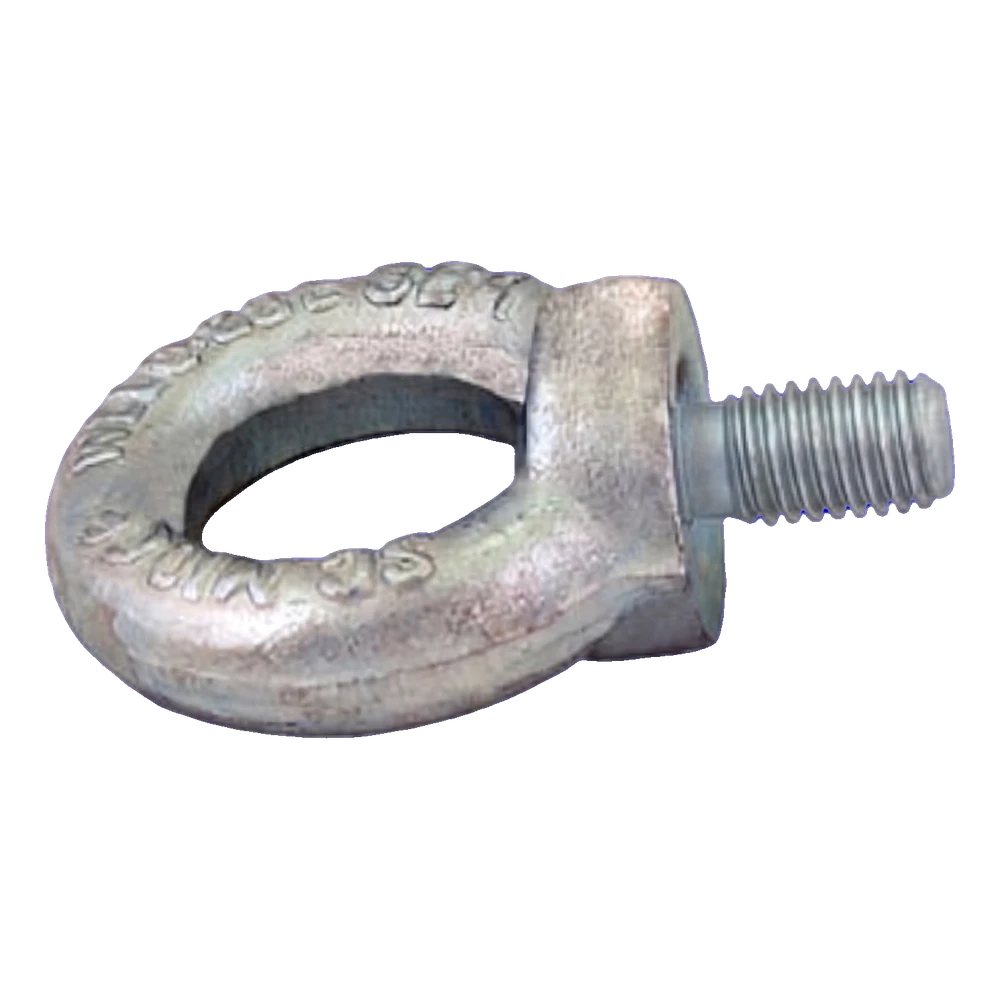

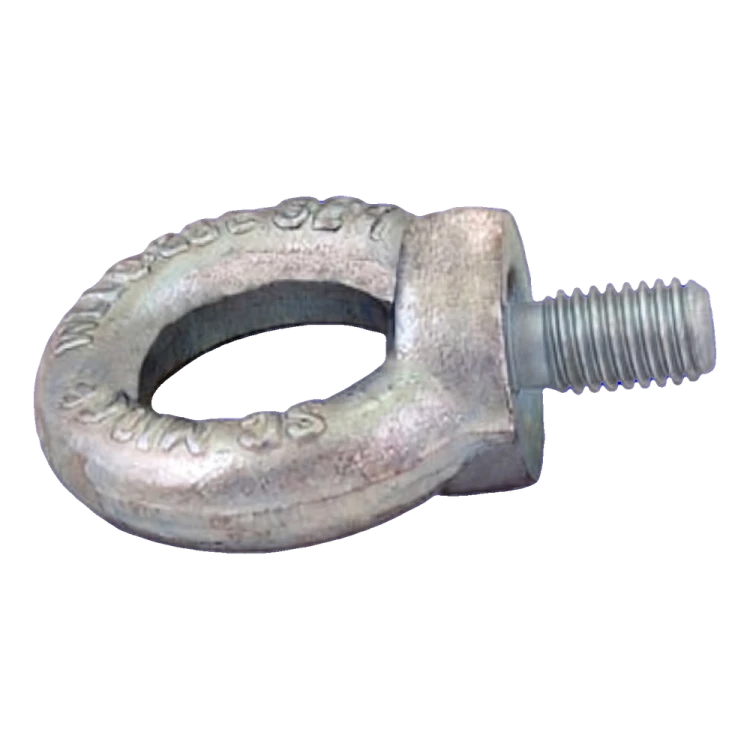

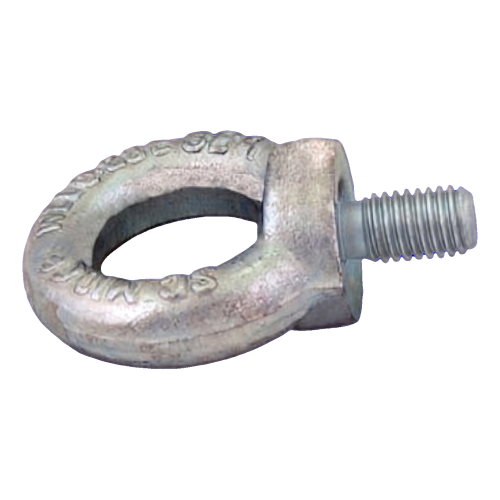

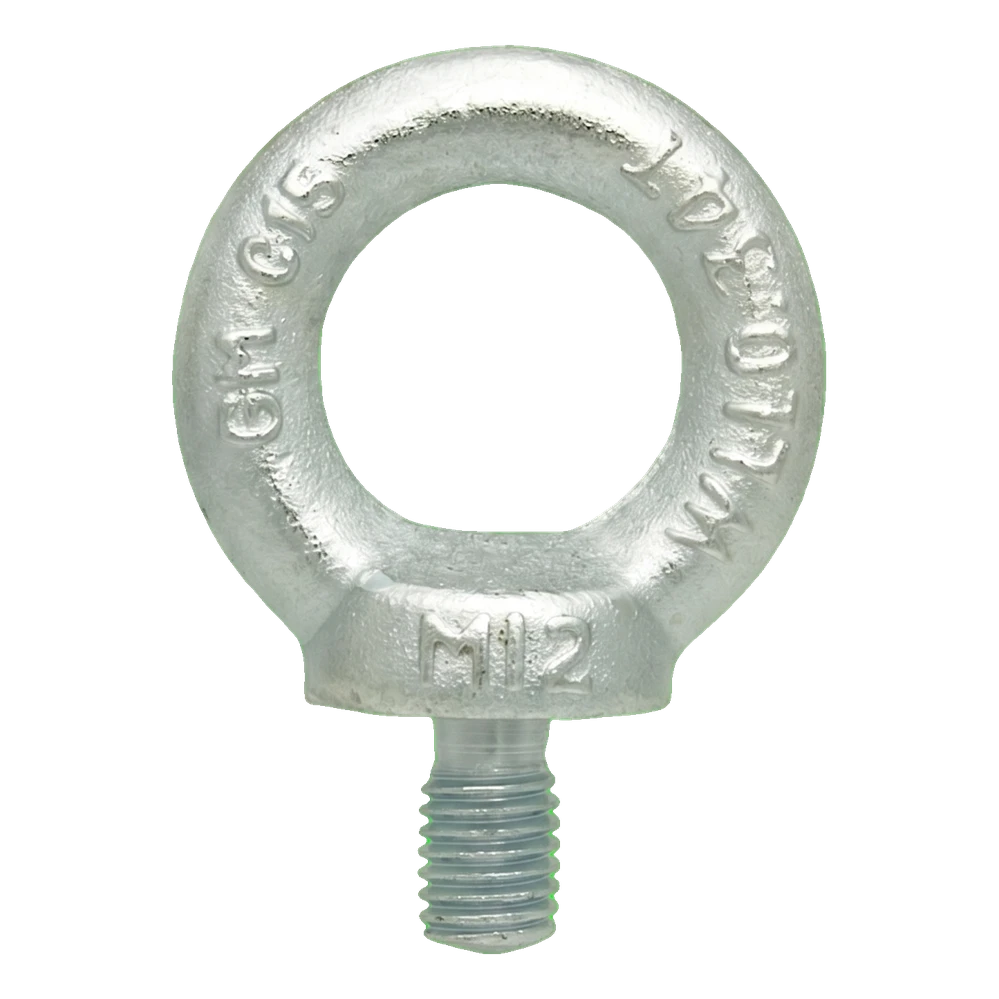

M12 DIN 580 Eye Bolt
The M12 DIN 580 eye bolt by Dromet is a professional piece of hardware used in rope and chain systems. The zinc-plated surface provides effective corrosion protection, so the bolt performs well both indoors and outdoors — when installing guy lines, slings or support structures. The design, compliant with the DIN 580 standard, guarantees full dimensional repeatability and trouble-free compatibility with other standardised hardware available on the European market. The product is sold individually, allowing you to order exactly the quantity your particular project requires.
Applications and advantages
- Anchor point for steel wire ropes, chains and slings in industrial and construction installations
- The zinc-plated coating protects against corrosion, allowing use outside buildings — including when installing support structures and guy lines
- Compliance with the DIN 580 standard makes it easier to select compatible nuts, washers and slings
- The M12 metric thread ensures a secure and stable bolted connection with structural components
- Sold individually — flexible ordering of exactly the quantity you need
