Yale MP522 – hydraulic door closer, brown
Leave feedback on the product
Yale MP522 door closer, hydraulic, with scissor arm, brown. Aluminium body: length 180 mm, height 44 mm, depth 65 mm. Mounting hole spacing 165x19 mm, arm 45 mm. Weight 2.5 kg. 2 adjustment valves: closing speed and latching action. For internal doors and light external doors
Product code: 001-938
Description

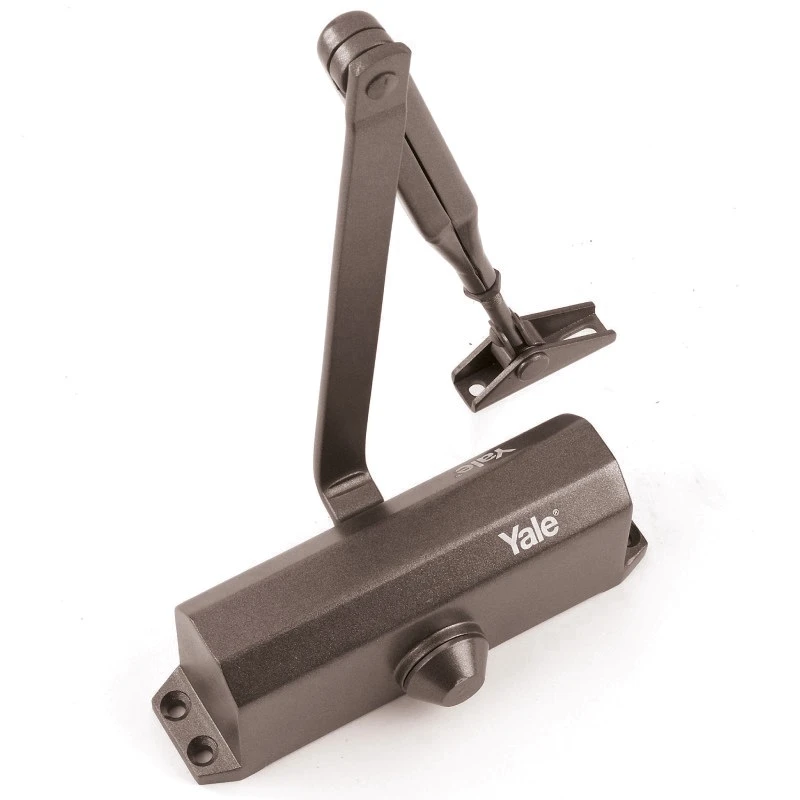

Yale MP522 – hydraulic door closer, brown
The Yale MP522 is a compact hydraulic door closer designed for internal doors and light external doors. Thanks to a proven hydraulic mechanism with adjustable closing speed, it ensures quiet and controlled closing of the door leaf, extending the lifespan of hinges, locks and seals.
The body is made of aluminium in brown, blending discreetly with wooden and metal frames. The door closer is equipped with two independent adjustment valves (marked on the housing with numbers 1 and 2), allowing precise fine-tuning of the closing speed and latching action force. Installation is carried out using a scissor arm — standard mounting on the door leaf, with the option of reverse installation on the frame.

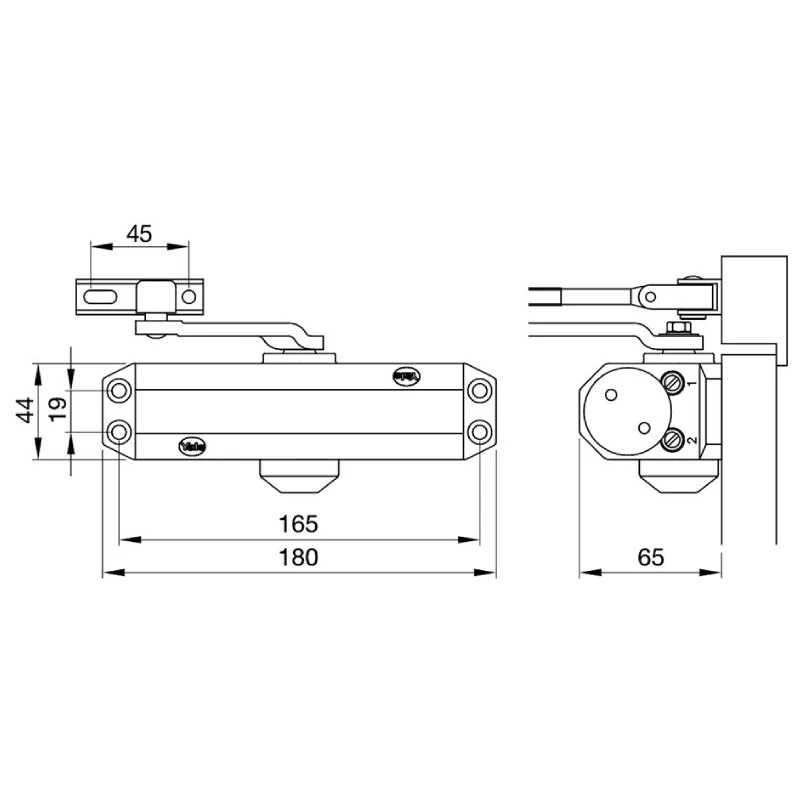

Dimensions and installation data
- Body length: 180 mm
- Body height: 44 mm
- Body depth: 65 mm
- Body mounting hole spacing (horizontal): 165 mm
- Body mounting hole spacing (vertical): 19 mm
- Arm mounting hole spacing: 45 mm
Technical specification
- Manufacturer: Yale
- Model: MP522
- Type: hydraulic door closer with scissor arm
- Colour: brown
- Weight: 2.5 kg
- Adjustment: 2 valves – closing speed and latching action
- EAN: 5906749657565
Benefits for the installer
- Quick installation – compact housing and clear mounting template reduce installation time
- Versatility – can be mounted on the door leaf or frame, for both right- and left-handed doors
- Easy adjustment – two externally accessible valves allow ongoing fine-tuning without disassembly
- Durability – hydraulic mechanism resistant to intensive use in commercial premises
