Wire rope grip for steel ropes, galvanised, 16 mm – DIN 741 equivalent
Leave feedback on the product
Wire rope grip for 16 mm steel ropes, galvanised, DIN 741 equivalent. M12 thread, height 54 mm, body width 29 mm, weight 0.184 kg. U-bolt and nuts made of C15 steel, cast iron body. Suitable for indoor and outdoor use.
Product code: 002-558
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Wire rope clip
- Diameter 16
- Thread type M12
Description
Wire rope grip for steel ropes, galvanised, 16 mm – DIN 741 equivalent

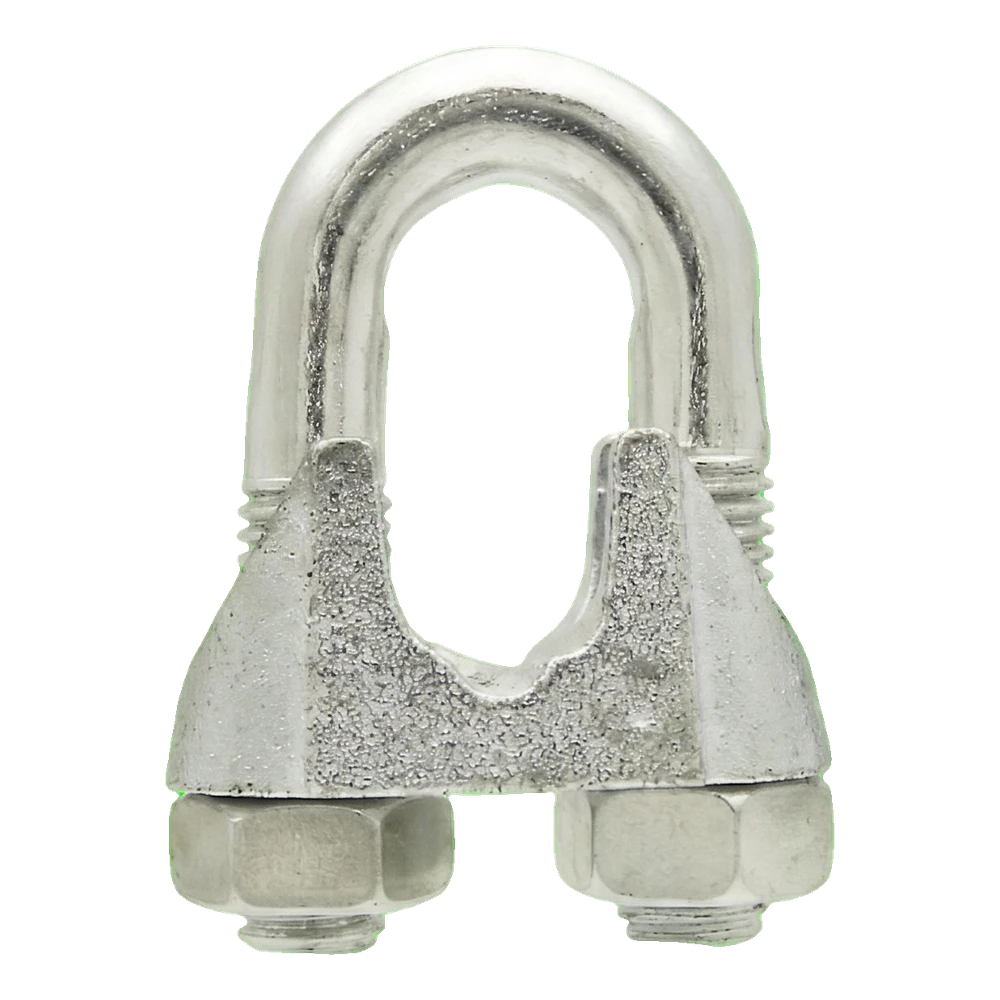

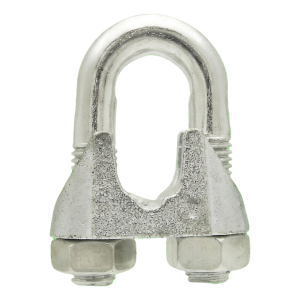

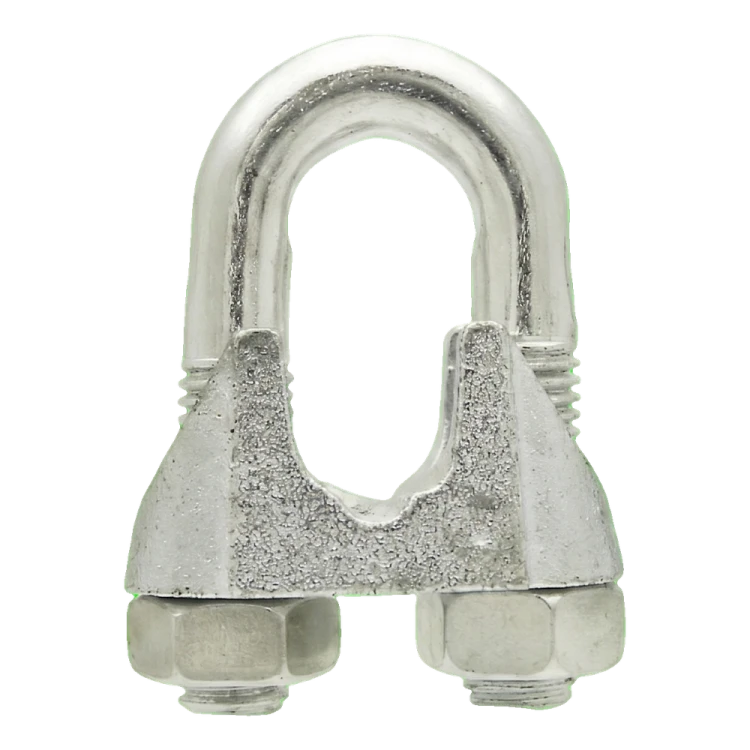

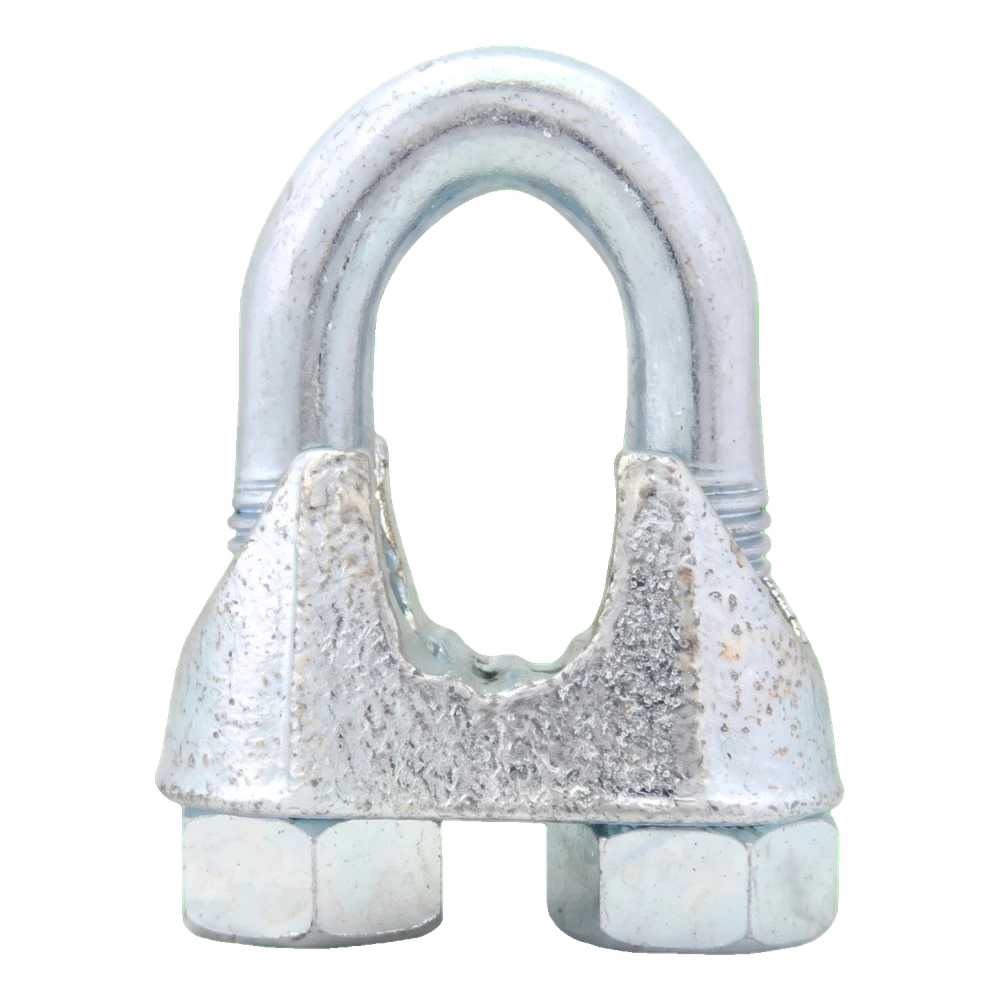

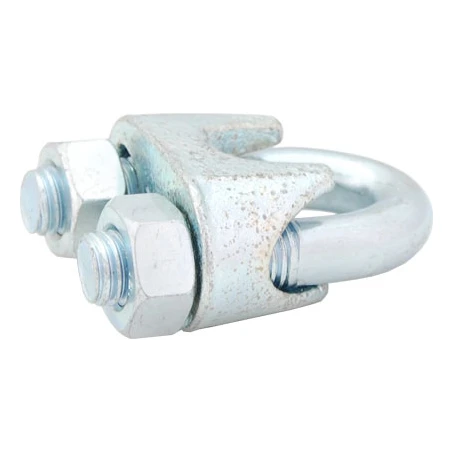

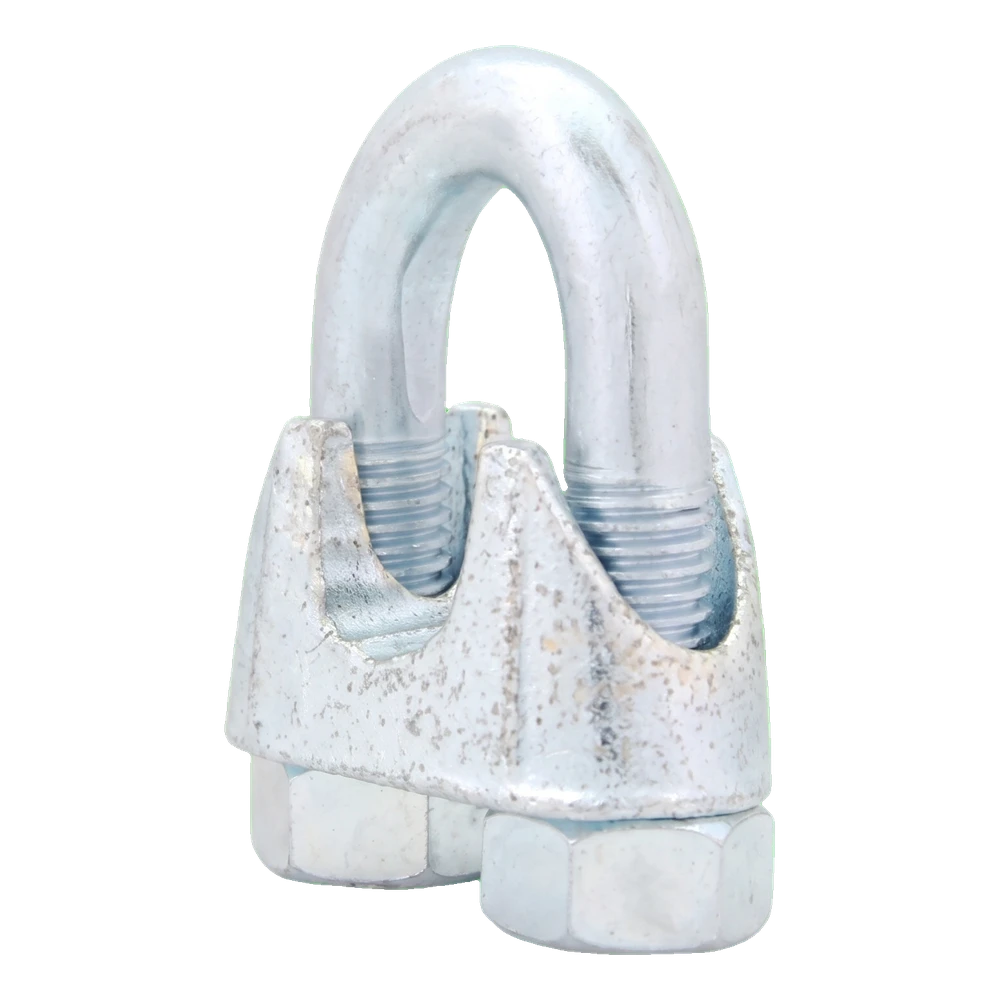

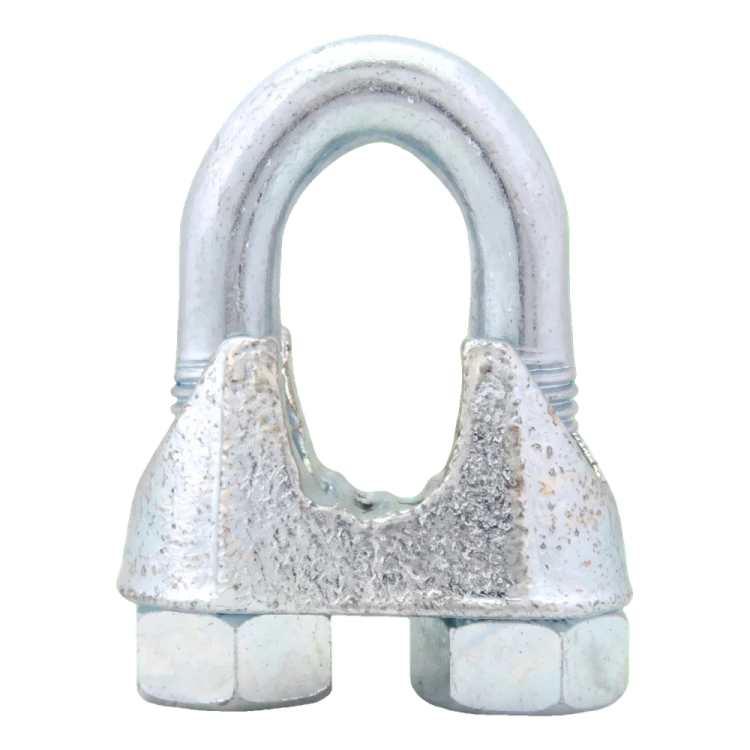

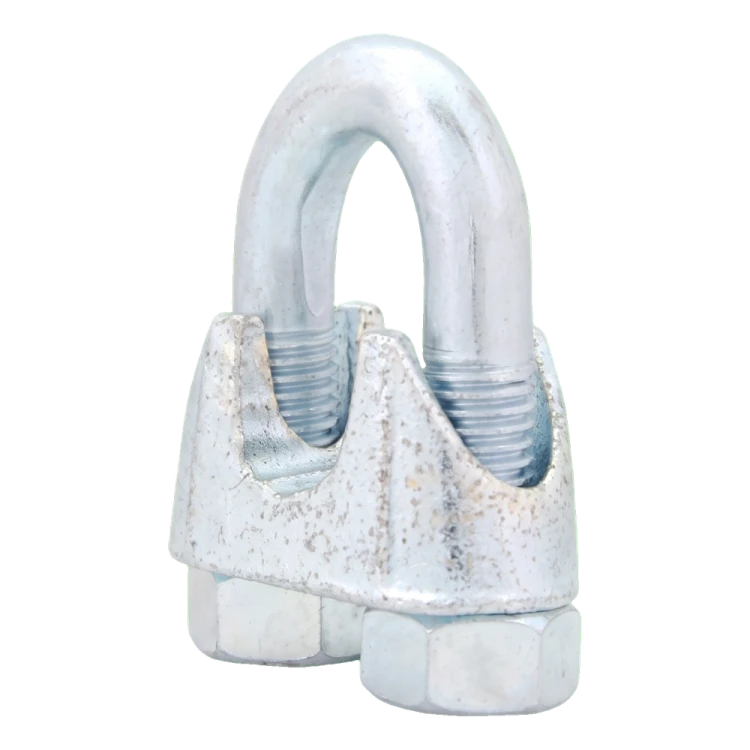

DIN 741 wire rope grip designed for permanent clamping of steel wire ropes with a diameter of 16 mm. The design consists of a U-shaped bolt, a cast iron body and two clamping nuts. The galvanised coating provides corrosion resistance, making the grip suitable for use both inside buildings and outdoors. The manufacturer provides precise installation guidelines on the minimum number of grips per loop and their spacing, which makes it possible to achieve a secure and safe rope connection in line with the requirements of the standard. Sold per piece, which makes it easy to put together orders for projects of different sizes.
Advantages of the wire rope grip
- Secure fastening of steel wire ropes — design compliant with the DIN 741 standard
- C15 steel U-bolt and cast iron body ensure durability and load capacity
- Galvanised coating protects against corrosion in demanding weather conditions
- Installation with standard tools, with no need for specialist equipment
- The manufacturer supplies detailed installation guidelines for a safe loop configuration

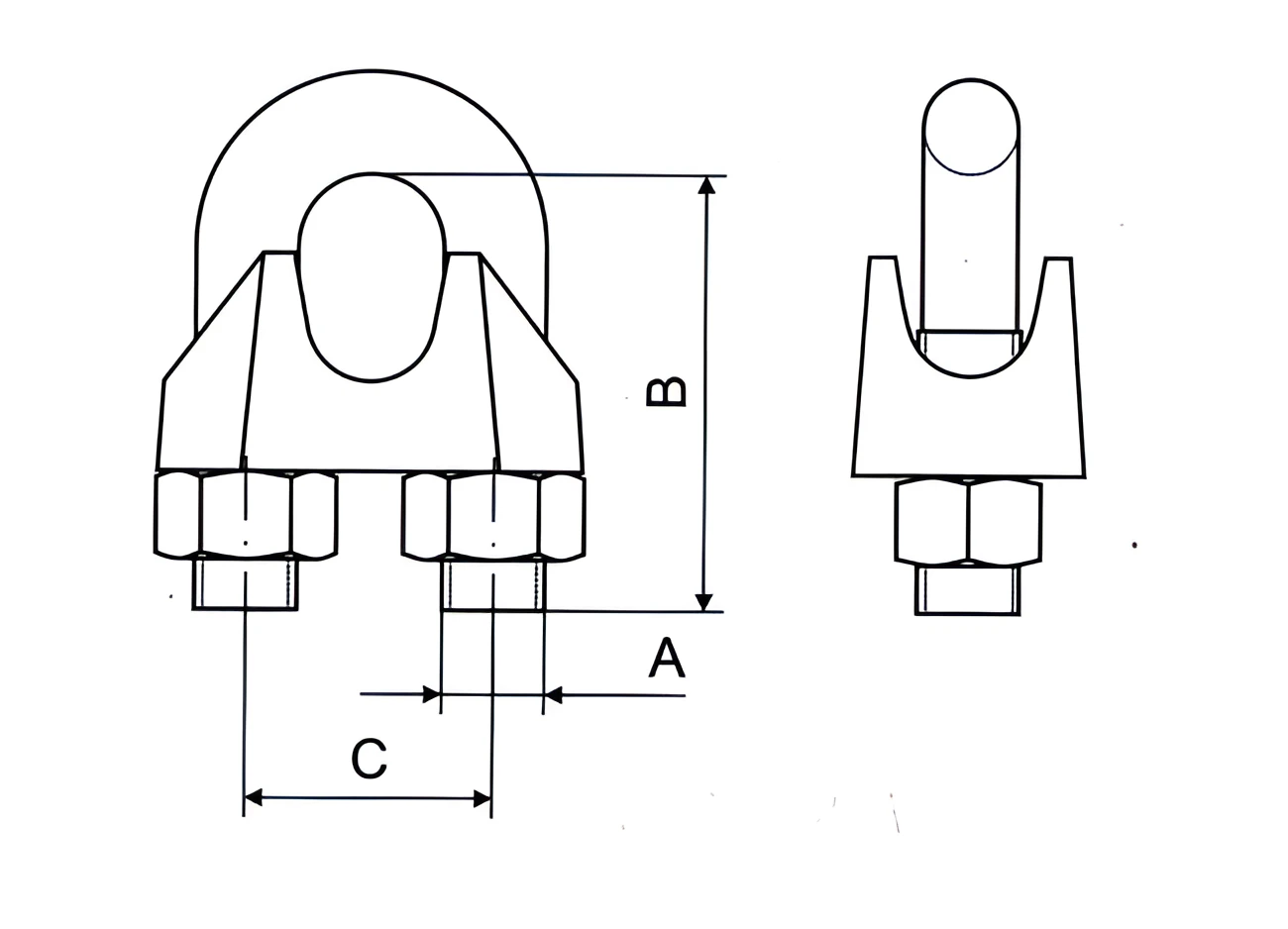

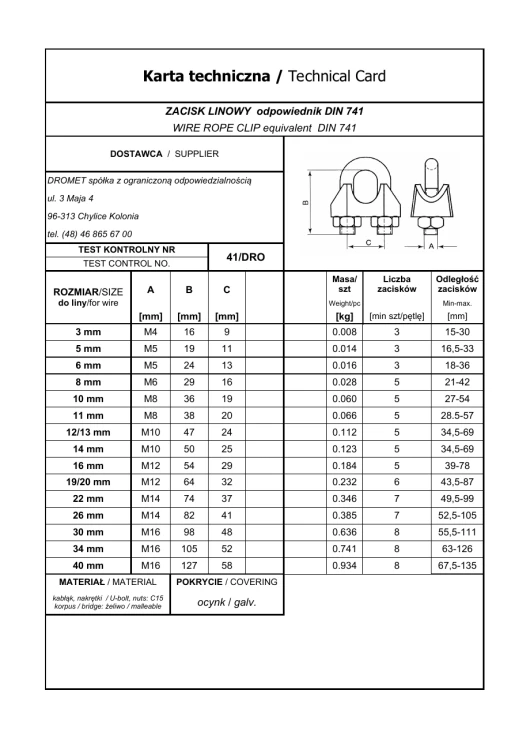

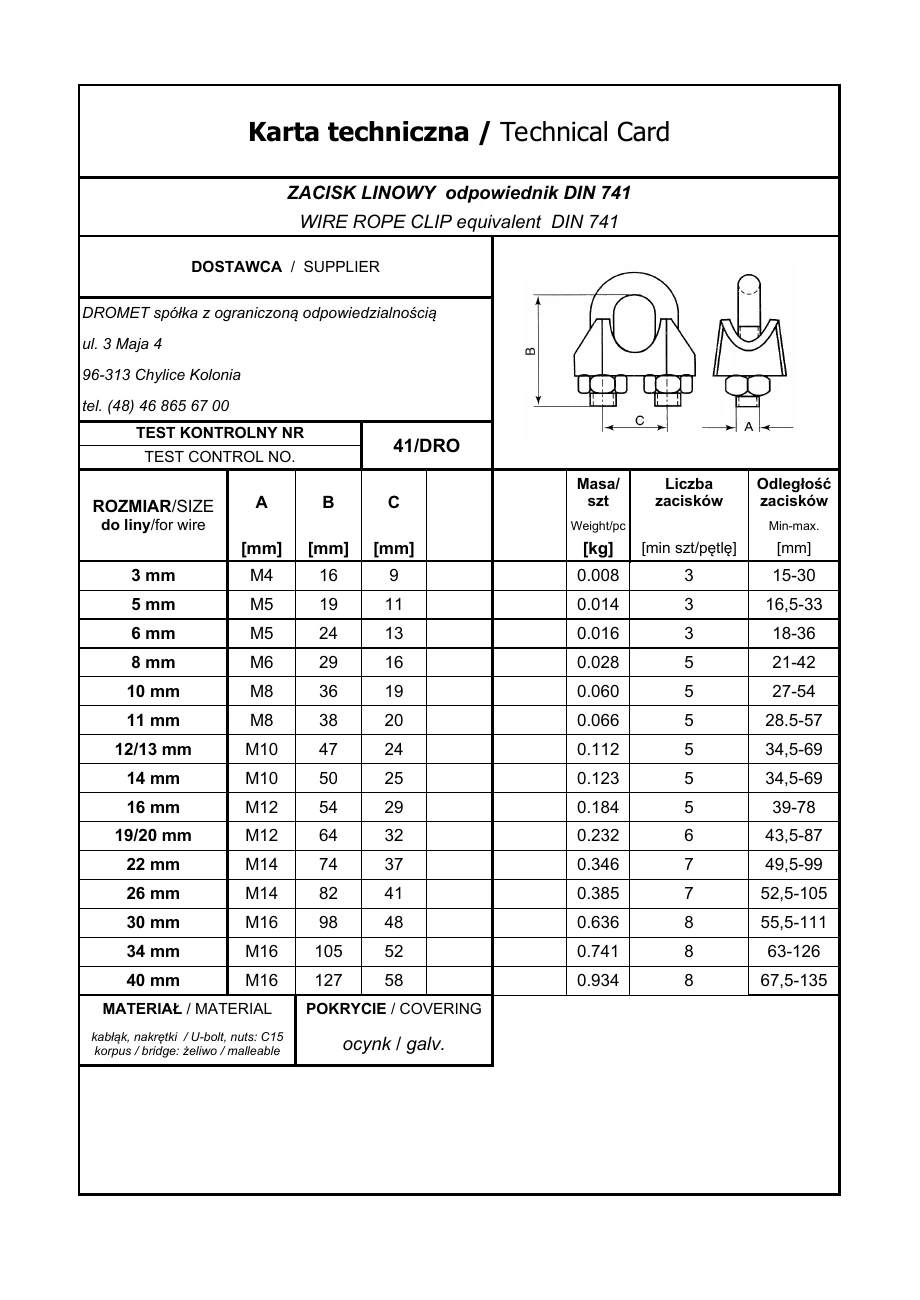

The dimensions of the grip are marked with the symbols A (thread), B (height) and C (body width), in line with the standard dimensioning convention used in the manufacturer's technical data sheet. The grip is installed by placing the U-bolt over the rope, fitting the body and tightening both nuts with a spanner.
