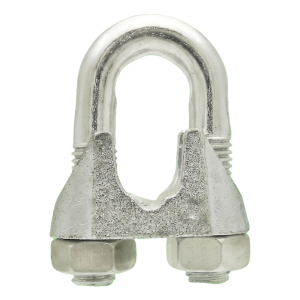

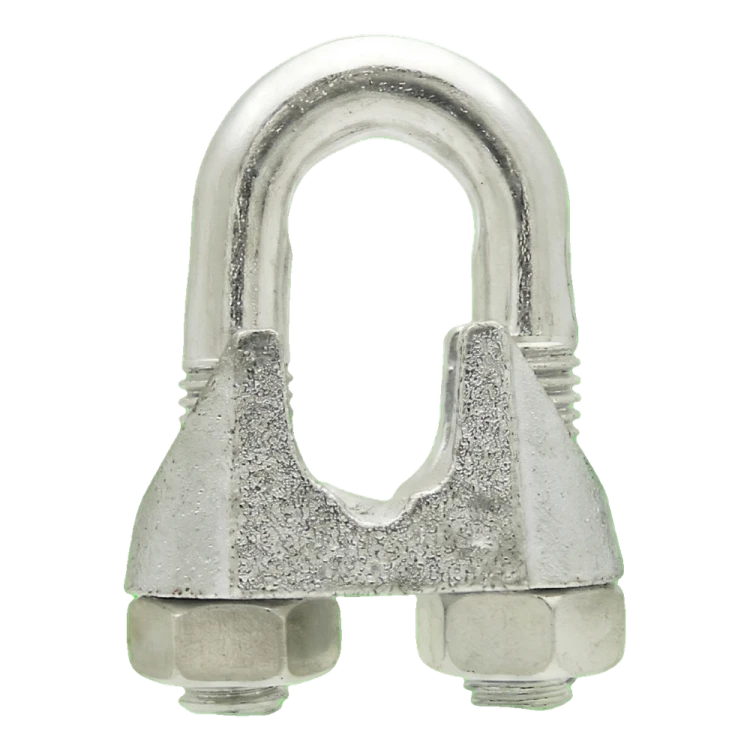

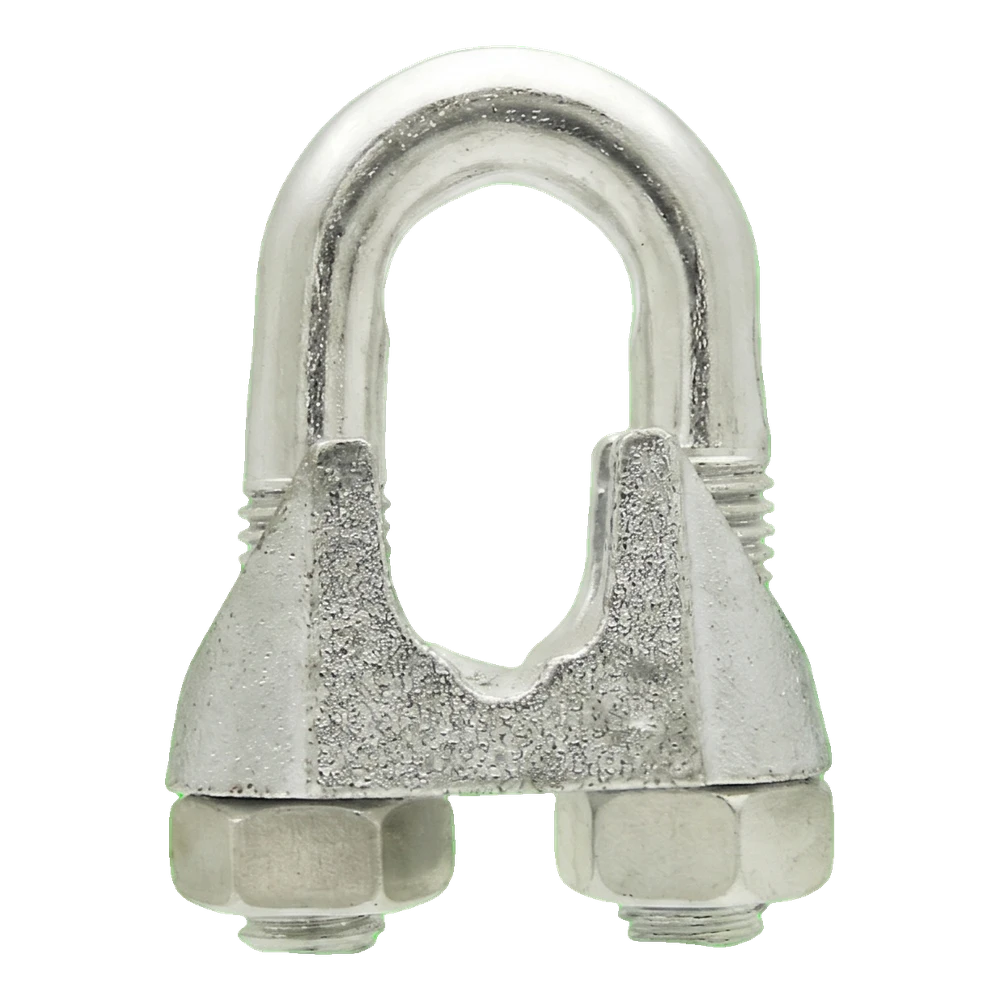

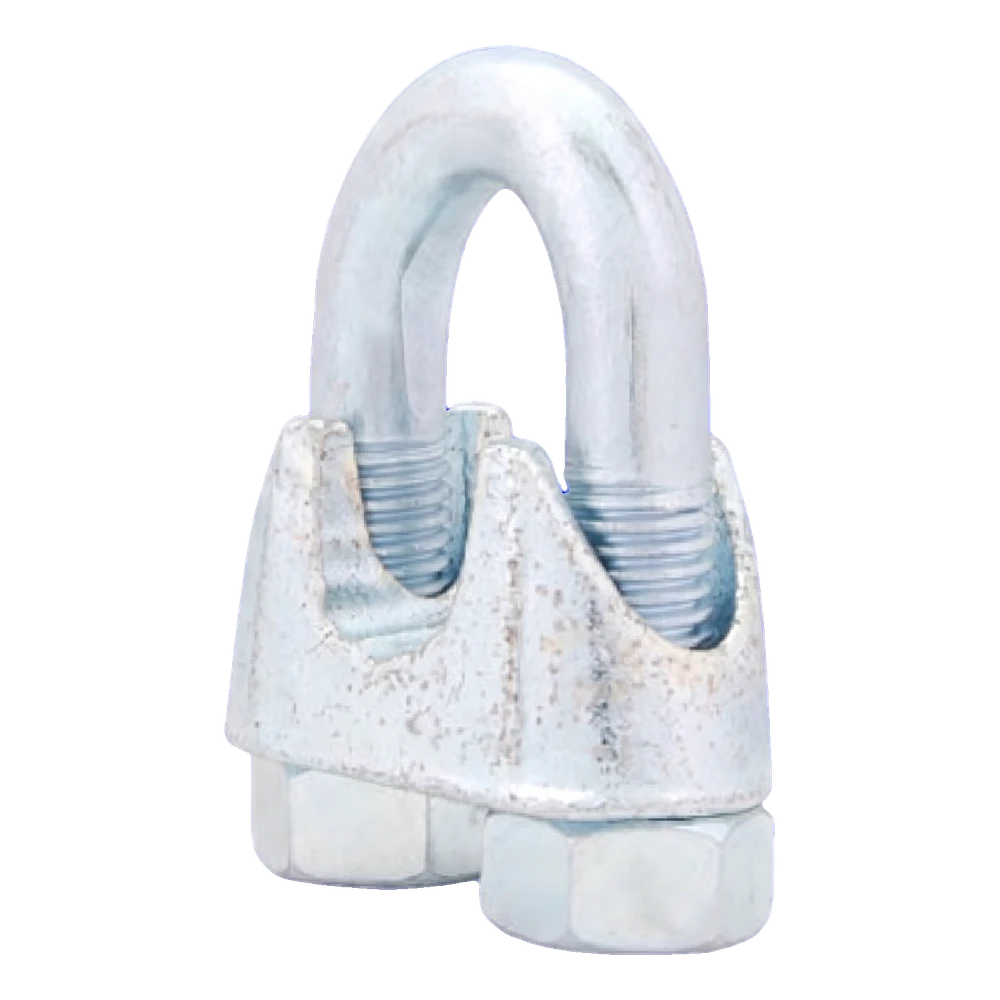

Wire rope grip for steel ropes, galvanised, 10 mm – DIN 741 equivalent
Leave feedback on the product

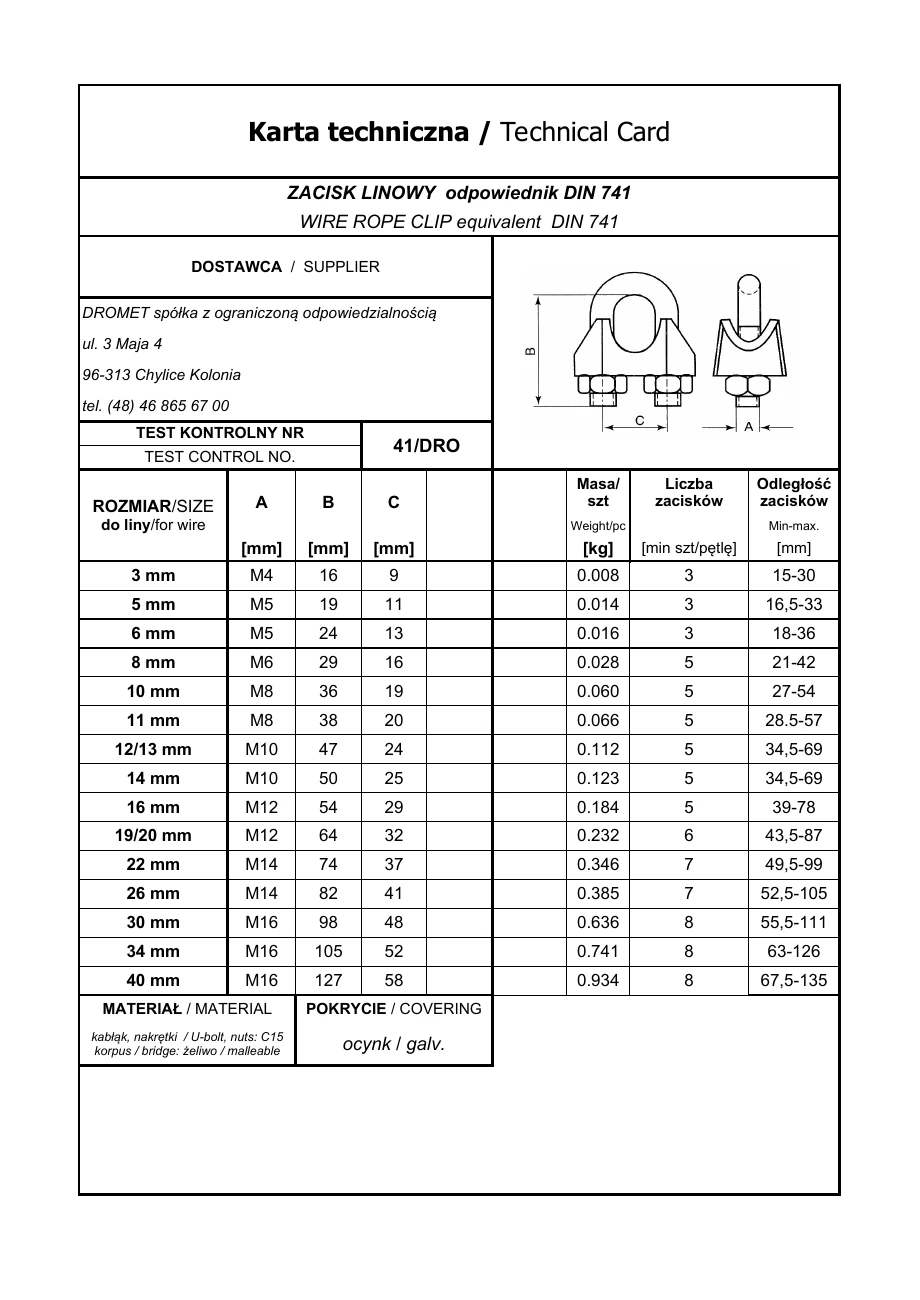

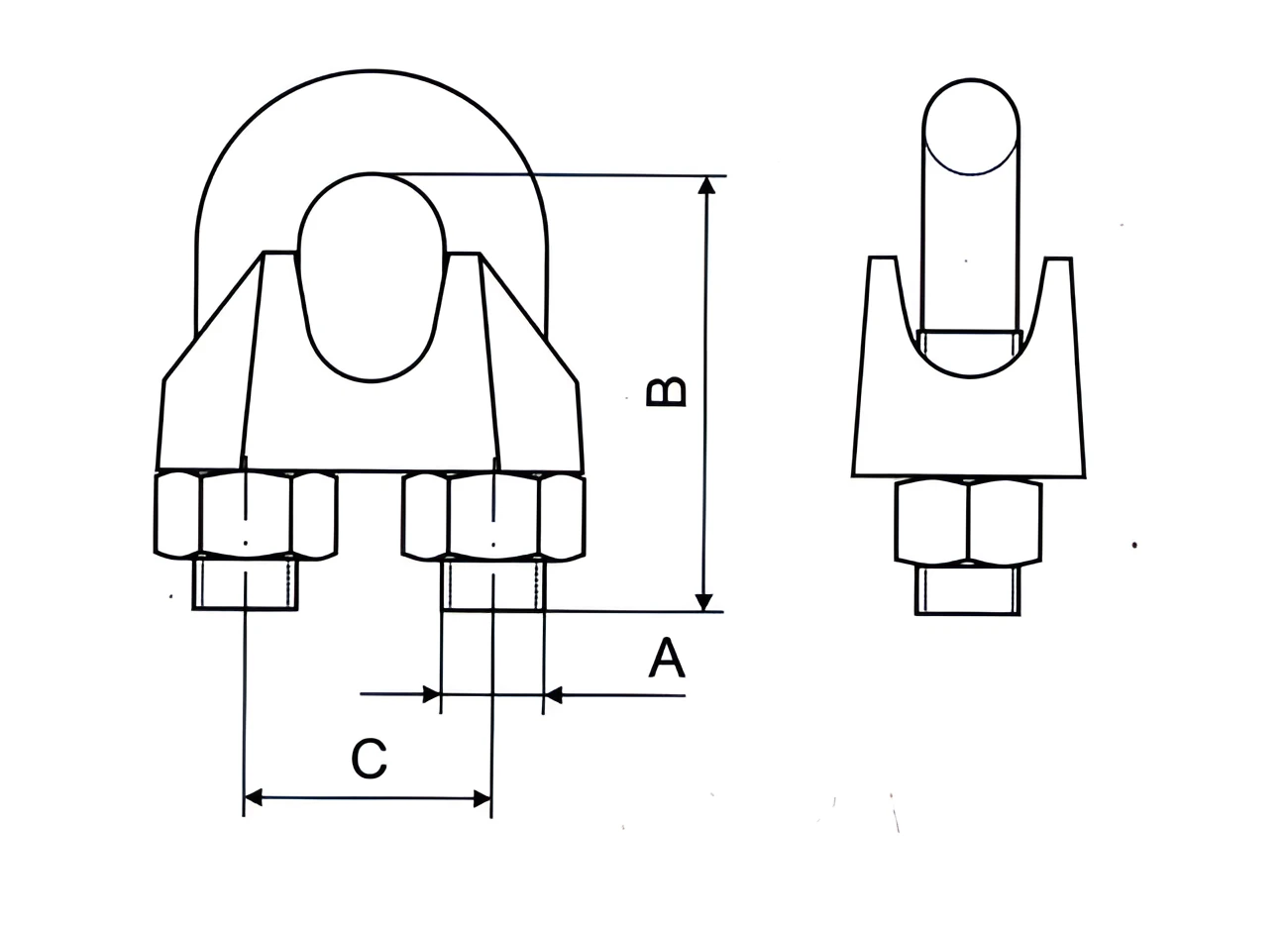

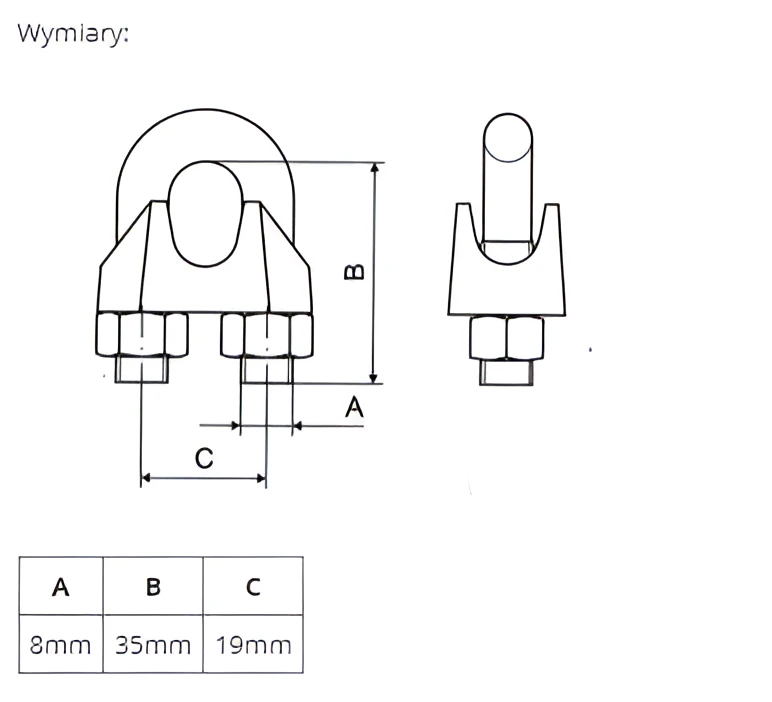

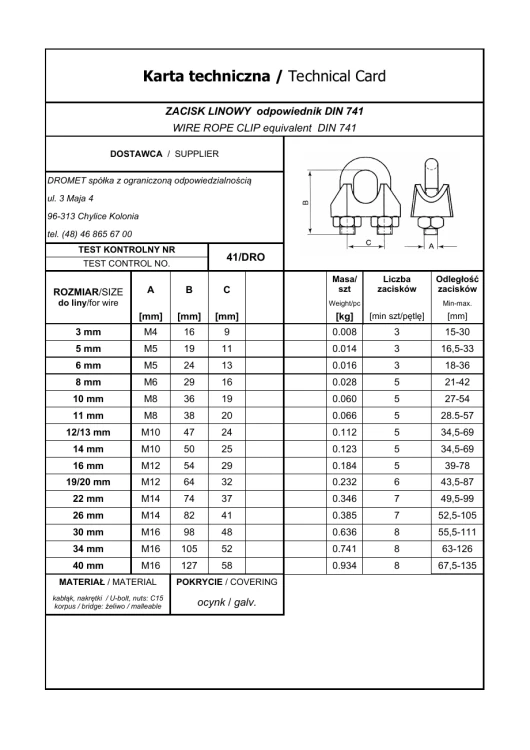

Wire rope grip for 10 mm steel wire ropes, galvanised, compliant with DIN 741. U-bolt and M8 nuts made of C15 steel, body made of cast iron. Dimensions: height 35 mm, body width 19 mm. Weight 0.060 kg. Spacing between grips 27–54 mm.
Product code: 002-555
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Wire rope clip
- Diameter 10
- Thread type M8
Description
Wire rope grip for steel ropes, galvanised, 10 mm – DIN 741 equivalent

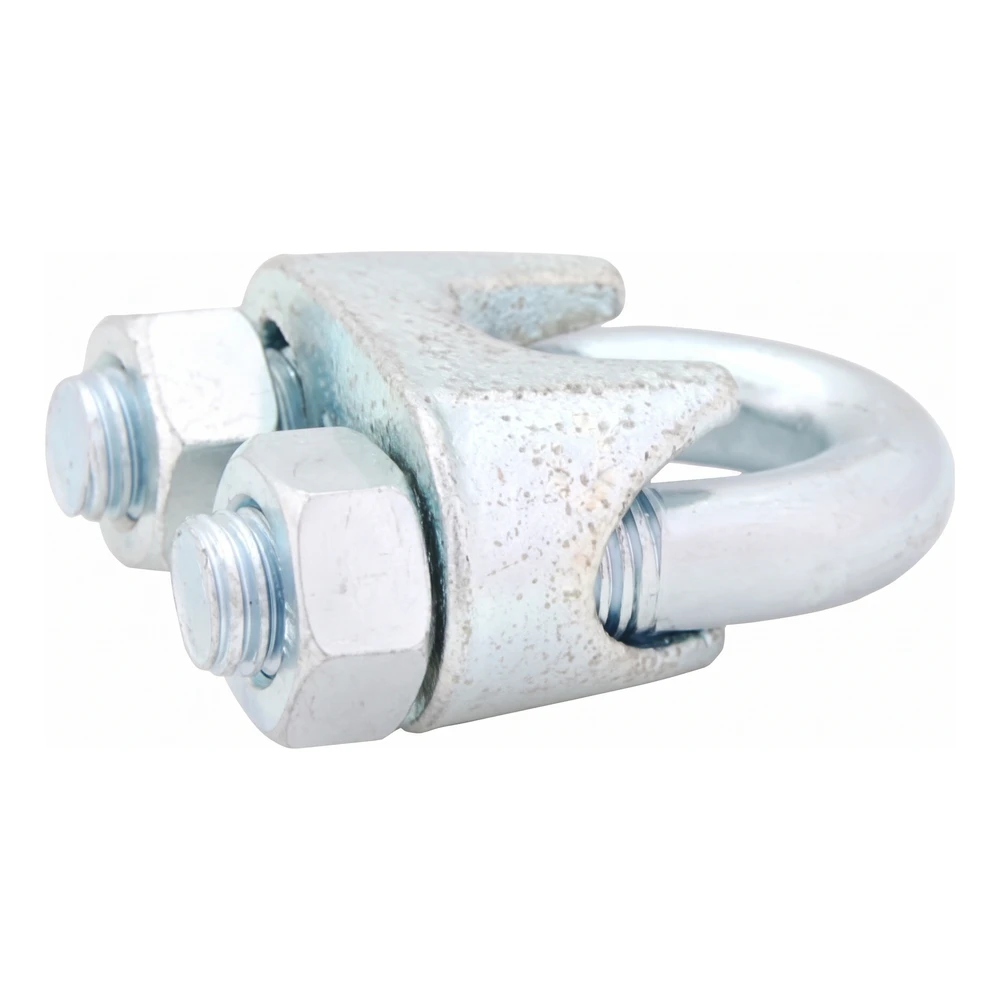

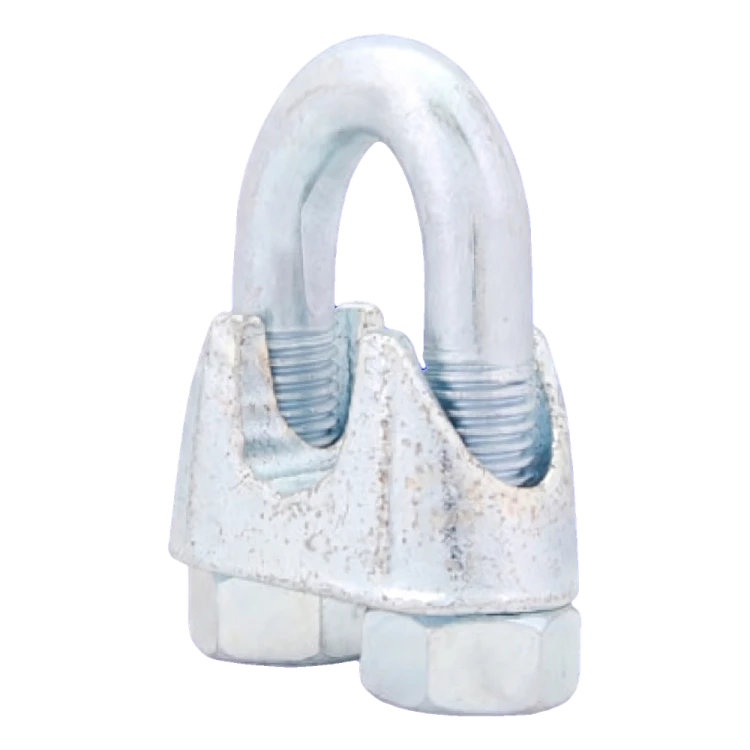

DIN 741 wire rope grip for steel wire ropes with a diameter of 10 mm, manufactured by the company. The component consists of a U-bolt made of C15 steel, a cast iron body and two nuts with an M8 thread, which ensure even clamping of the rope in the grip groove. The galvanised coating protects the grip against corrosion, making it suitable for use both in production halls and outdoors. The design compliant with the DIN 741 standard guarantees repeatable dimensions and a reliable connection when correctly installed.
Features and applications
- Designed for forming loops and terminations on steel wire ropes with a diameter of 10 mm
- Three-part construction (U-bolt, body, nuts) allows quick installation without specialist tools
- Galvanised surface provides corrosion protection in outdoor conditions
- Used in guy-wire installations, steel structure fixings, suspended systems and load securing
- Sold individually — allows you to order exactly the number of pieces you need
