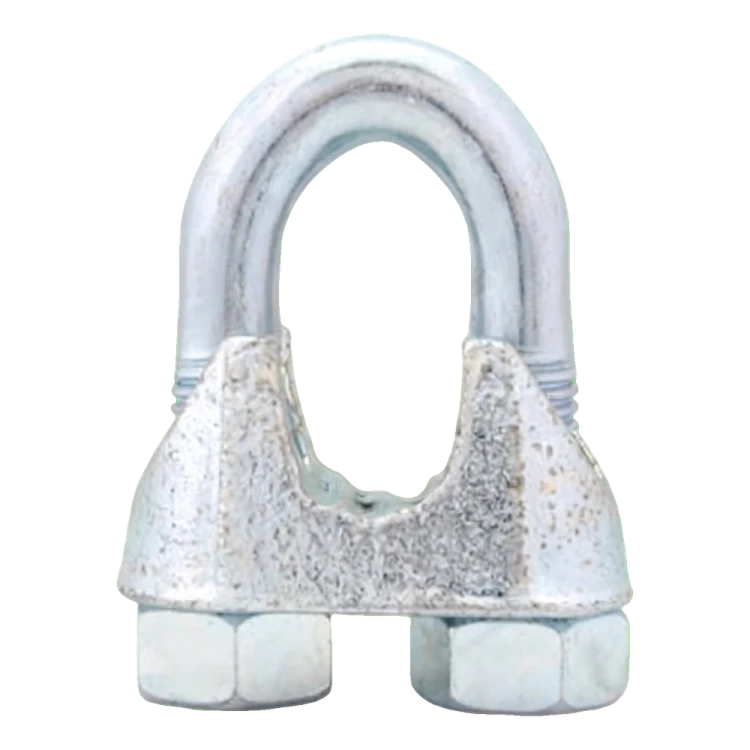

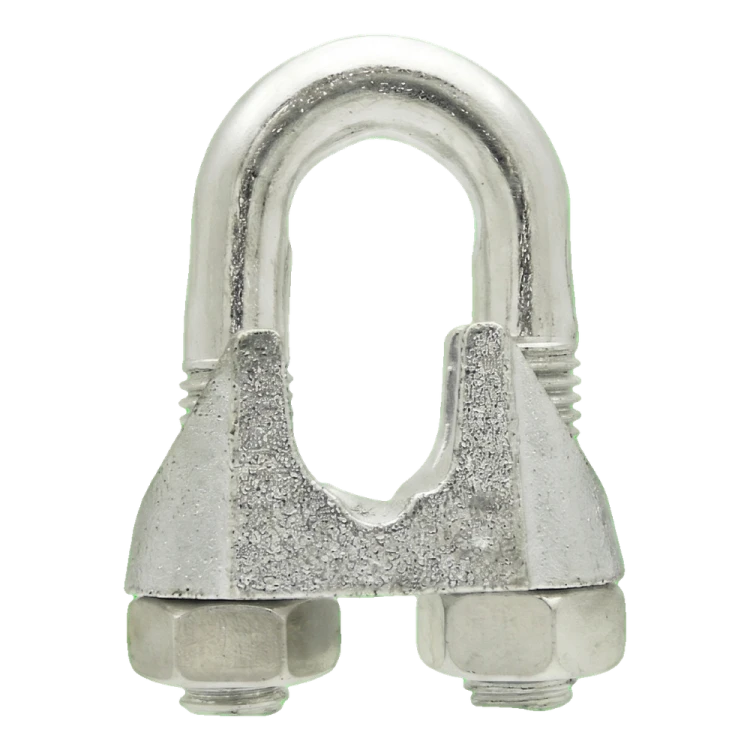

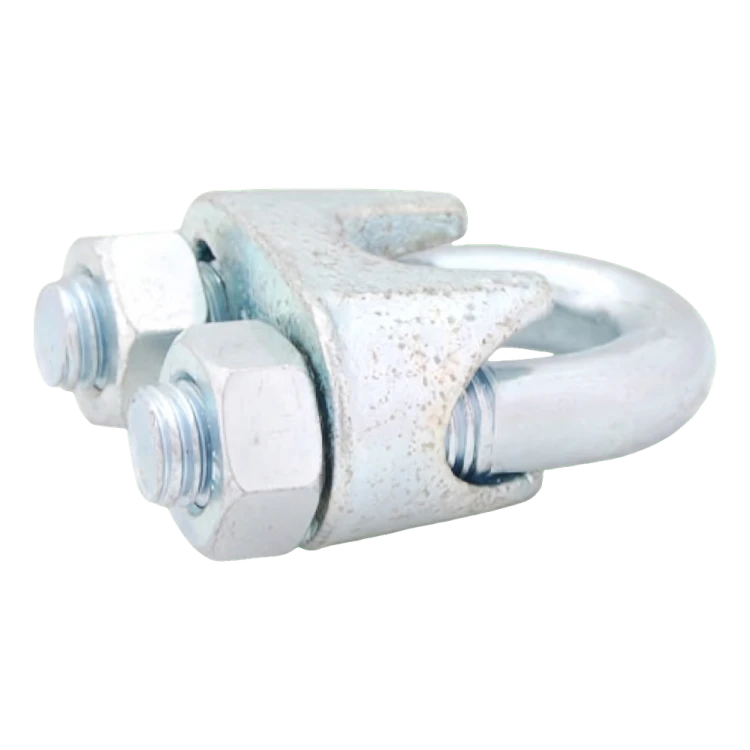

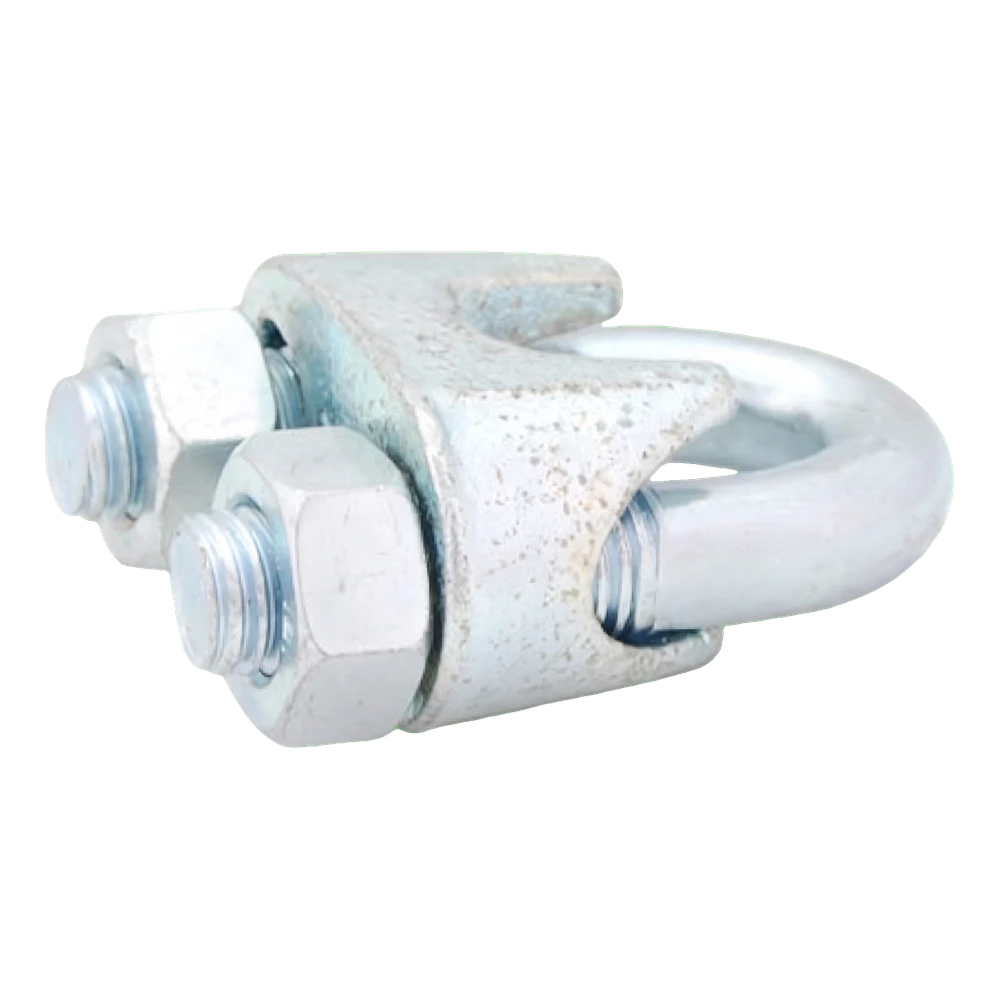

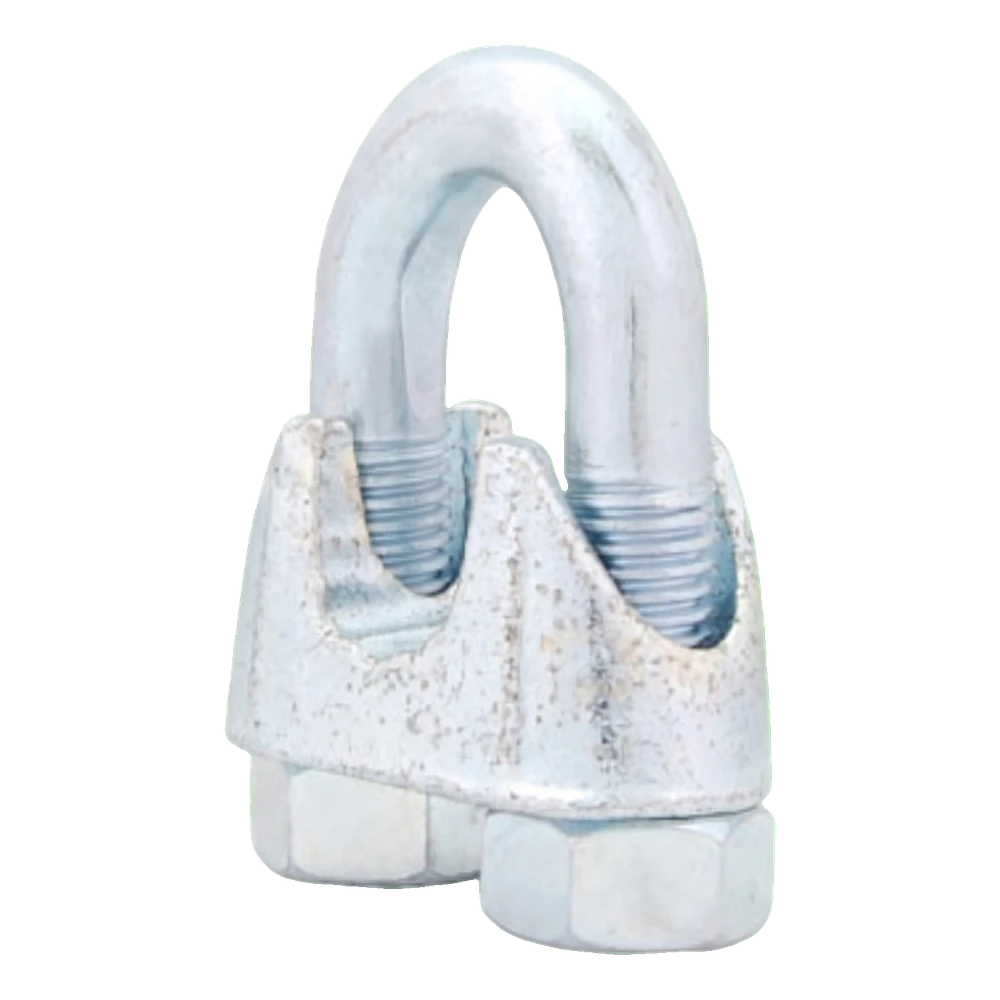

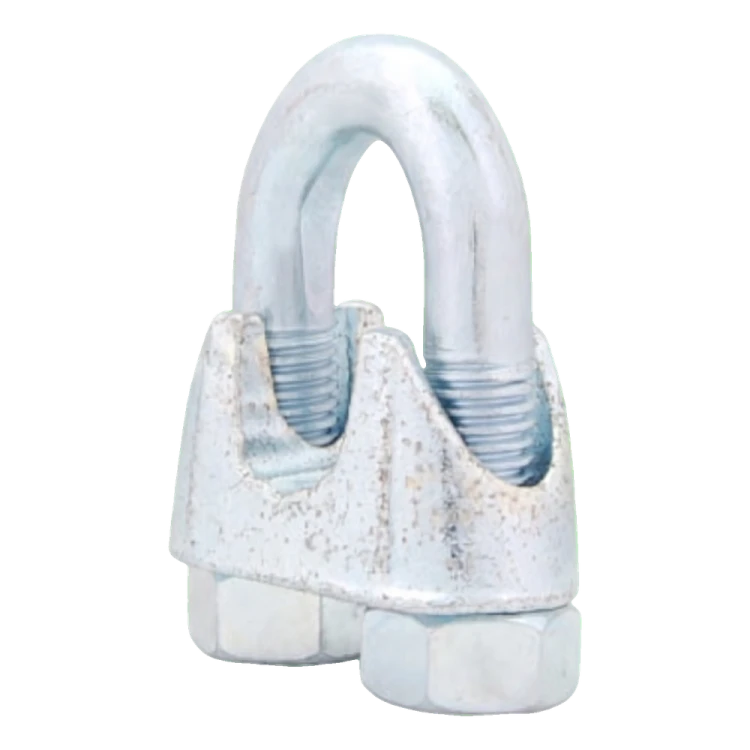

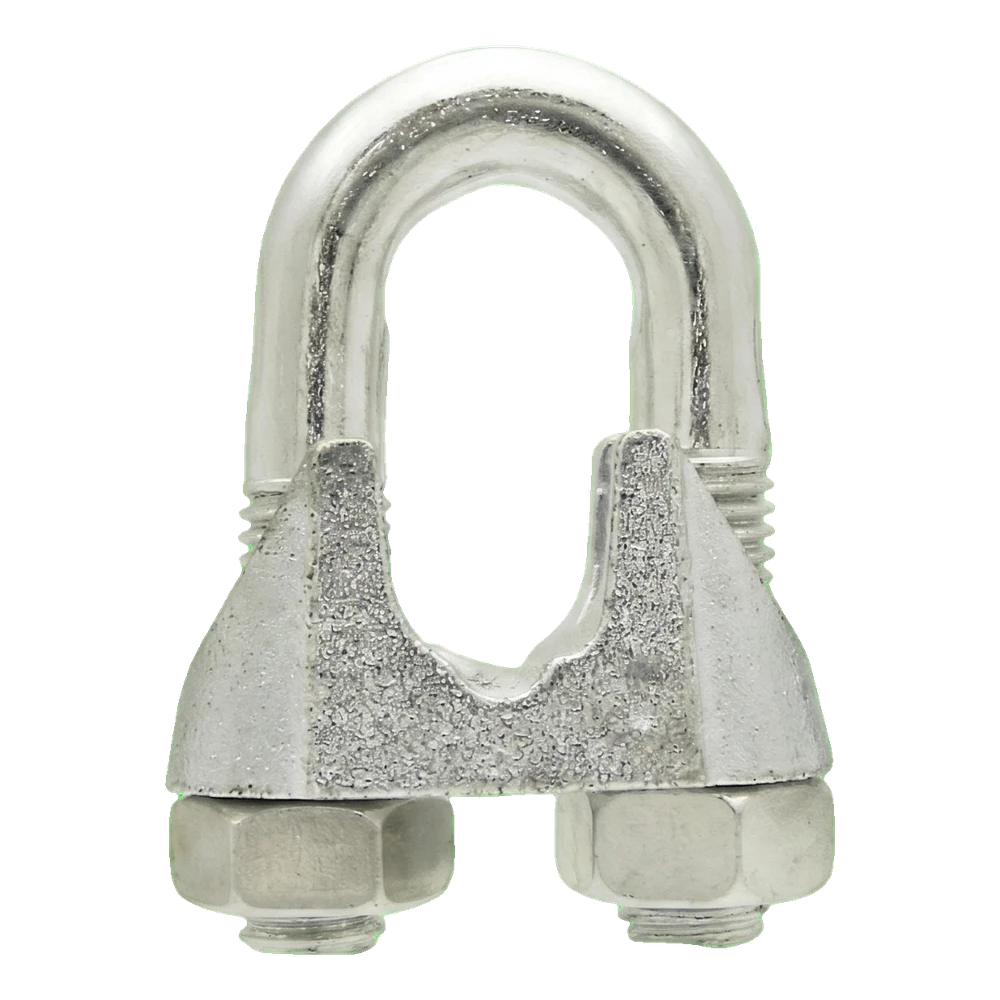

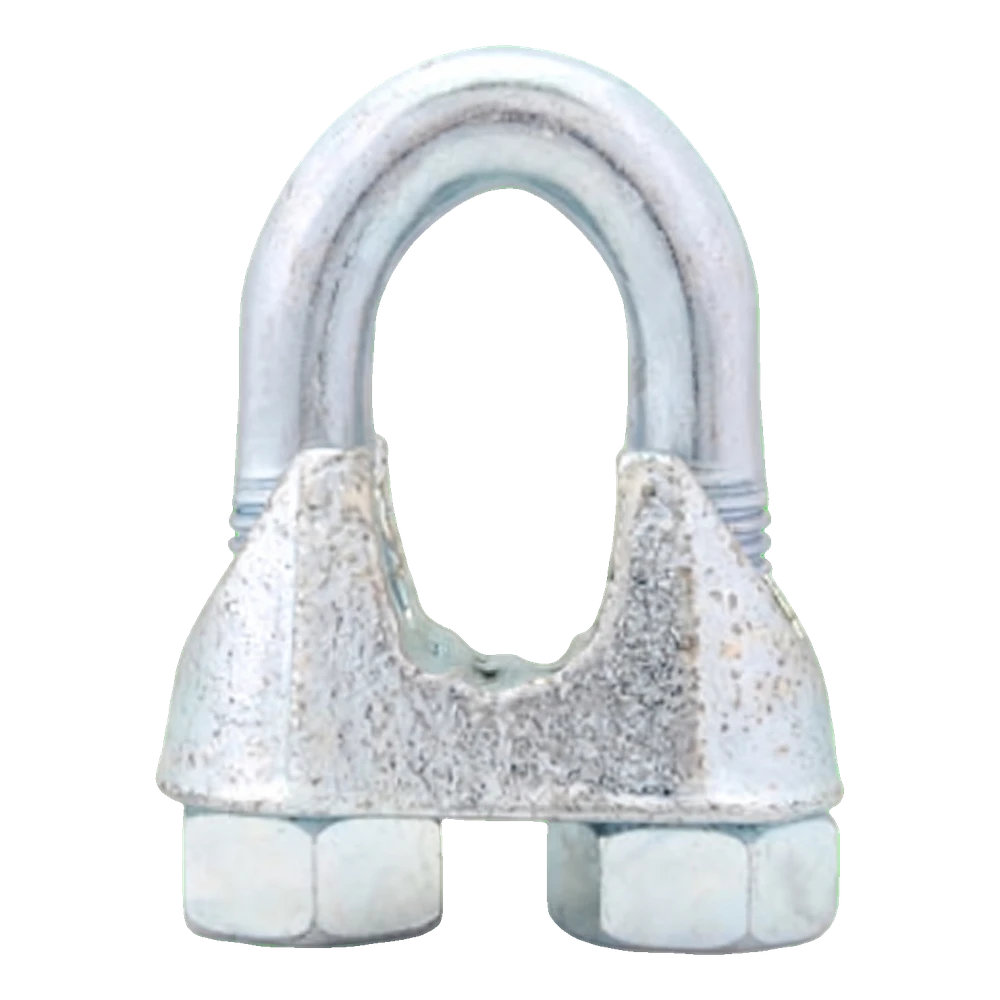

Wire rope grip 11 mm, galvanised – DIN 741 equivalent
Leave feedback on the product
Wire rope grip for 11 mm steel wire ropes, galvanised, equivalent to DIN 741. M8 thread, dimensions B 38 mm and C 20 mm, weight 0.066 kg. U-bolt and nuts made of C15 steel, body made of cast iron. Distance between grips 28.5–57 mm, minimum of 5 grips per loop recommended.
Product code: 002-556
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Wire rope clip
- Diameter 11
- Thread type M8
Description
Wire rope grip 11 mm, galvanised – DIN 741 equivalent
DIN 741 wire rope grip designed for forming permanent loops at the ends of steel wire ropes with a diameter of 11 mm. This product is ideal wherever a reliable rope connection is required – in guying installations, mounting structures, safety systems and lifting equipment. The two-bolt U-bolt design ensures even clamping pressure and a secure connection, while the compact build allows installation even in confined spaces. The product is sold individually – you order exactly as many pieces as your project requires.
Wire rope grip features
- U-bolt design compliant with DIN 741 – a proven standard in rope fittings
- Galvanised coating protects against corrosion during outdoor use
- Two-bolt clamping ensures even pressure on the rope and a secure connection
- Compact dimensions make installation easier, even in confined spaces
- Sold individually (1 pc) – you order exactly as many as you need

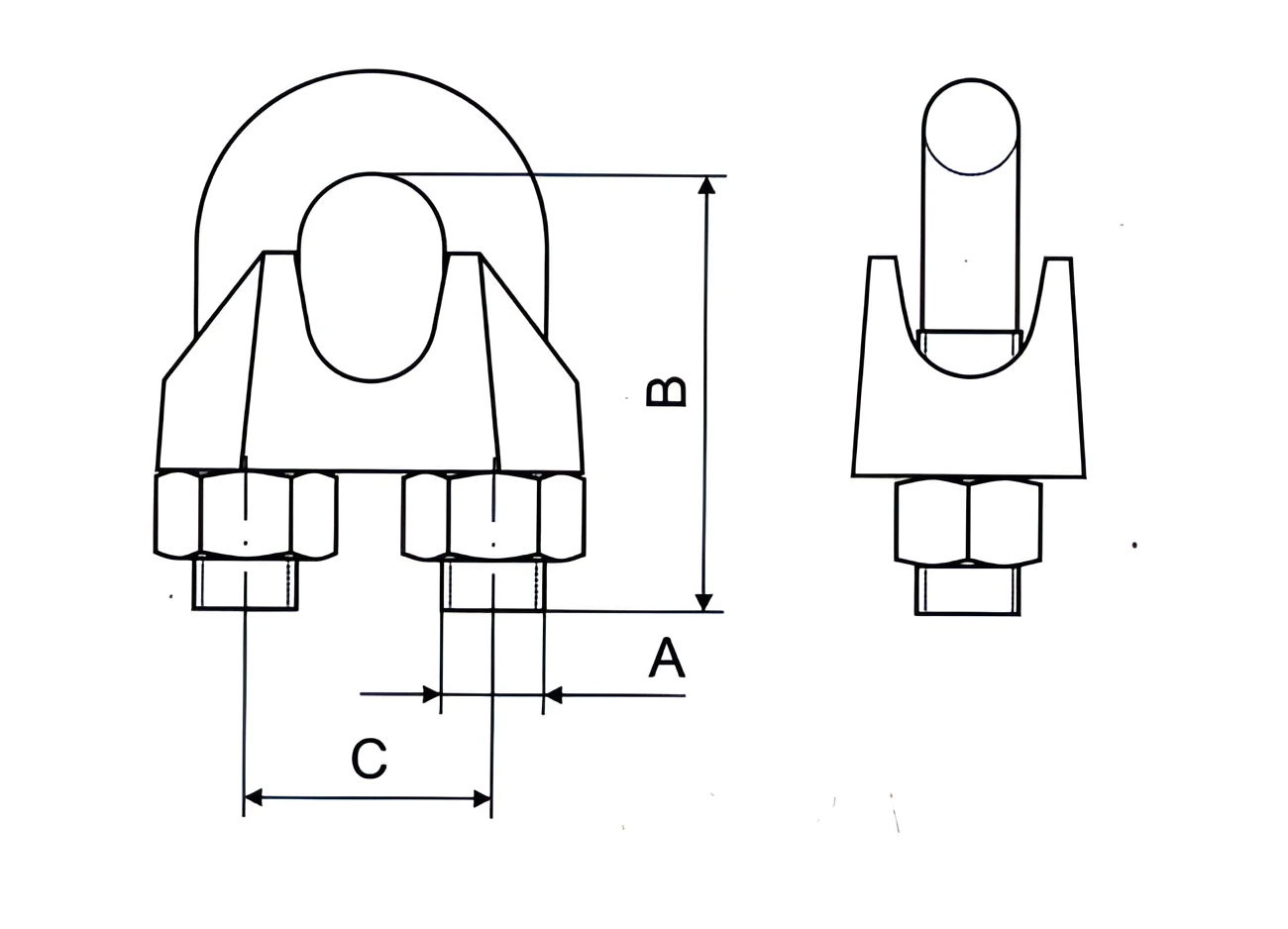

The dimensions of the wire rope grip are marked with letters in accordance with the technical drawing: A corresponds to the thread of the clamping bolts, B is the overall height of the grip, and C is the body width. This dimensional system is consistent with the manufacturer's data sheet and makes it easier to match the grip to a specific rope diameter.

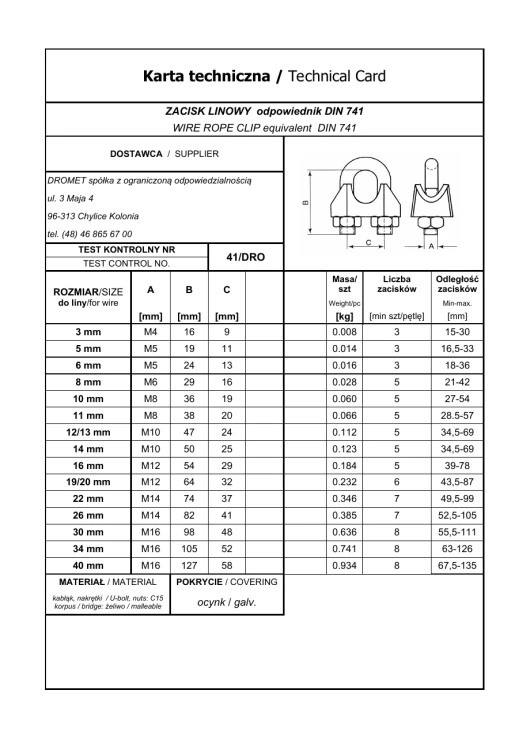

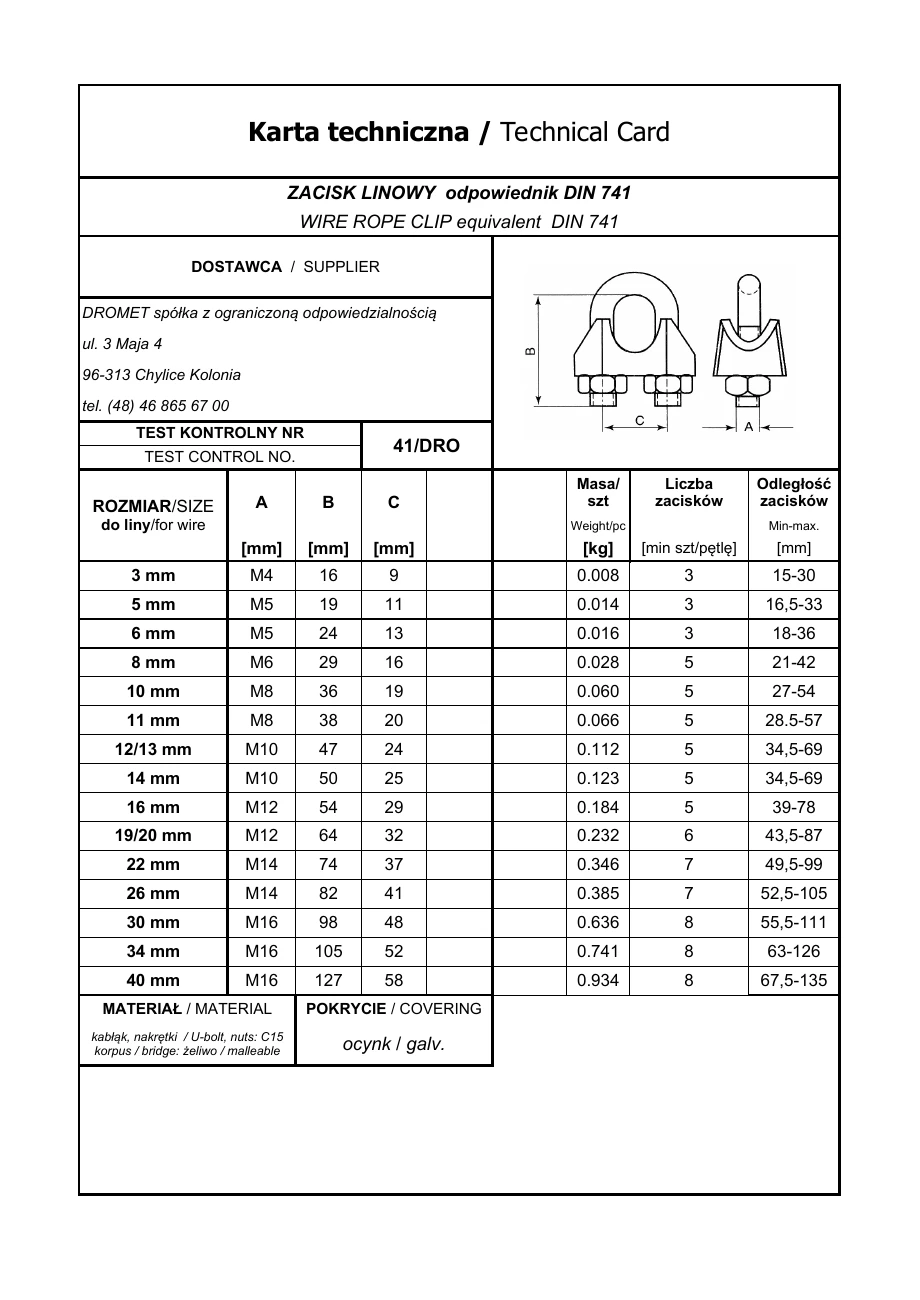

The manufacturer's data sheet (control no. 41/DRO) presents the full range of DIN 741 wire rope grips – for ropes from 3 mm to 40 mm in diameter, making it easier to choose the right size for your project.
