Winter grade chemical anchor resin 400 ml – installation down to −20 °C, styrene-free

Go to Product feedback

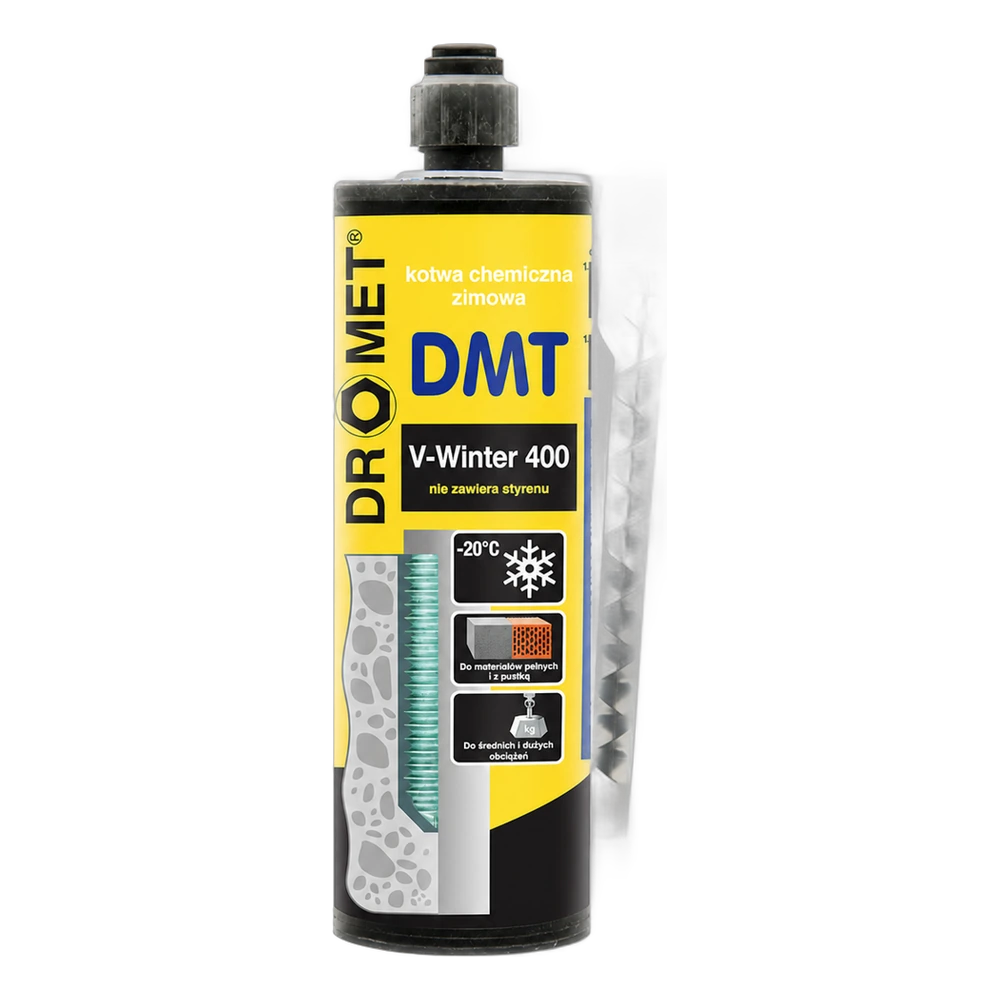

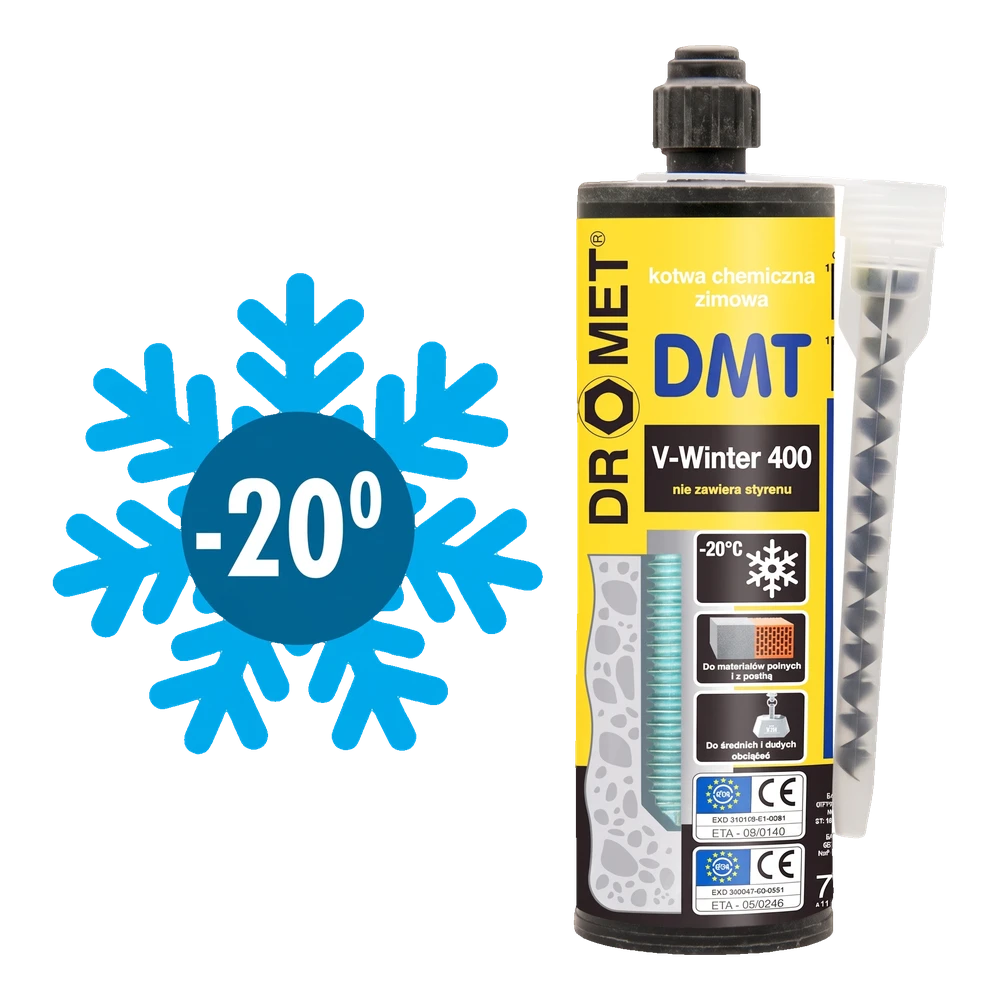

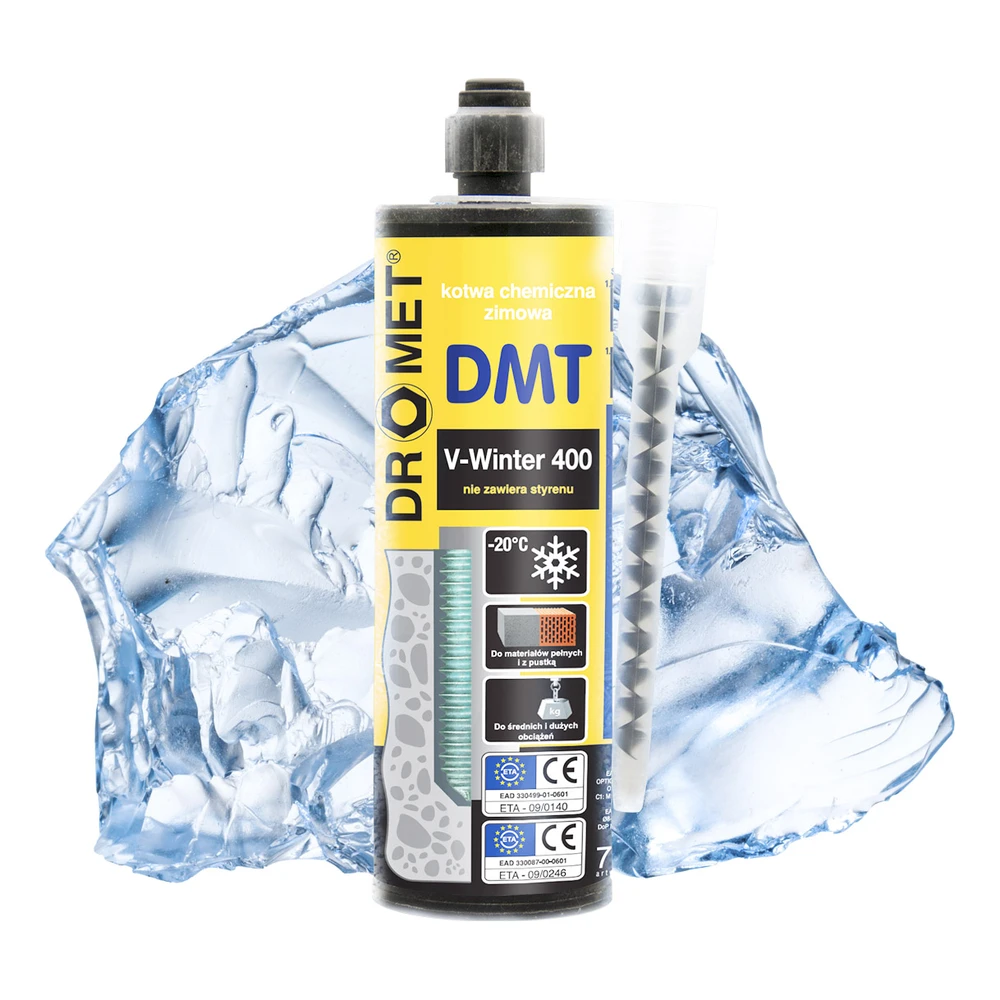

BCR V-PLUS winter chemical resin (V-Winter 400), 400 ml cartridge, weight 0.800 kg. Styrene-free, VOC emission class A+. Min. base material temperature −20°C. ETA-09/0140 and ETA-09/0246 approvals. For solid and hollow materials, M8–M30 threads.

Go to full description
with VAT without VAT
Price €15.37
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Winter grade chemical anchor resin · 400 ml

Resin for anchoring M8–M30 threaded rods in a 400 ml cartridge; installation at substrate temperatures down to −20 °C, styrene-free

400 mlcartridge
down to −20 °Csubstrate temperature during installation
styrene-freecomposition
M8–M30threaded rods

Quick choice

ApplicationAnchoring threaded rods in concrete and masonry (solid and hollow) – including in winter; medium and heavy loads (according to the manufacturer)
ConditionsInstallation at substrate temperatures from −20 °C (resin min. +5 °C); installation in water-filled holes is not permitted
InstallationDrilling, cleaning the hole, filling with resin, inserting the rod – see the installation parameters card for details

About the product

Winter grade chemical anchor resin (styrene-free) is used for anchoring M8–M30 threaded rods in concrete and masonry (solid and hollow), including in winter. It is intended for fixings carrying medium and heavy loads (according to the manufacturer). The resin is supplied in a 400 ml cartridge.

The rod thread size determines the installation parameters in concrete. The manufacturer's table specifies the required drill bit diameter, the hole depth range (minimum and maximum) and the recommended minimum nut tightening torque. After drilling the hole, clean it with a brush of the diameter specified in the manufacturer's table and remove the dust. Then fill the hole with resin from the bottom and insert the rod. Once the curing time appropriate to the substrate temperature has elapsed, tighten the nut to the torque given in the table — only then may the fixing be loaded.

Installation in water-filled holes is not permitted. Although application is possible at substrate temperatures as low as −20 °C, the resin itself must be brought to a temperature of at least +5 °C before use. At low temperatures, the curing time extends to several tens of hours; select the appropriate time for the substrate temperature, taking into account the resin temperature stated alongside the manufacturer's table. The load-bearing capacity of the anchorage depends on the substrate, rod diameter and embedment depth — for structural connections, it is specified in the design.

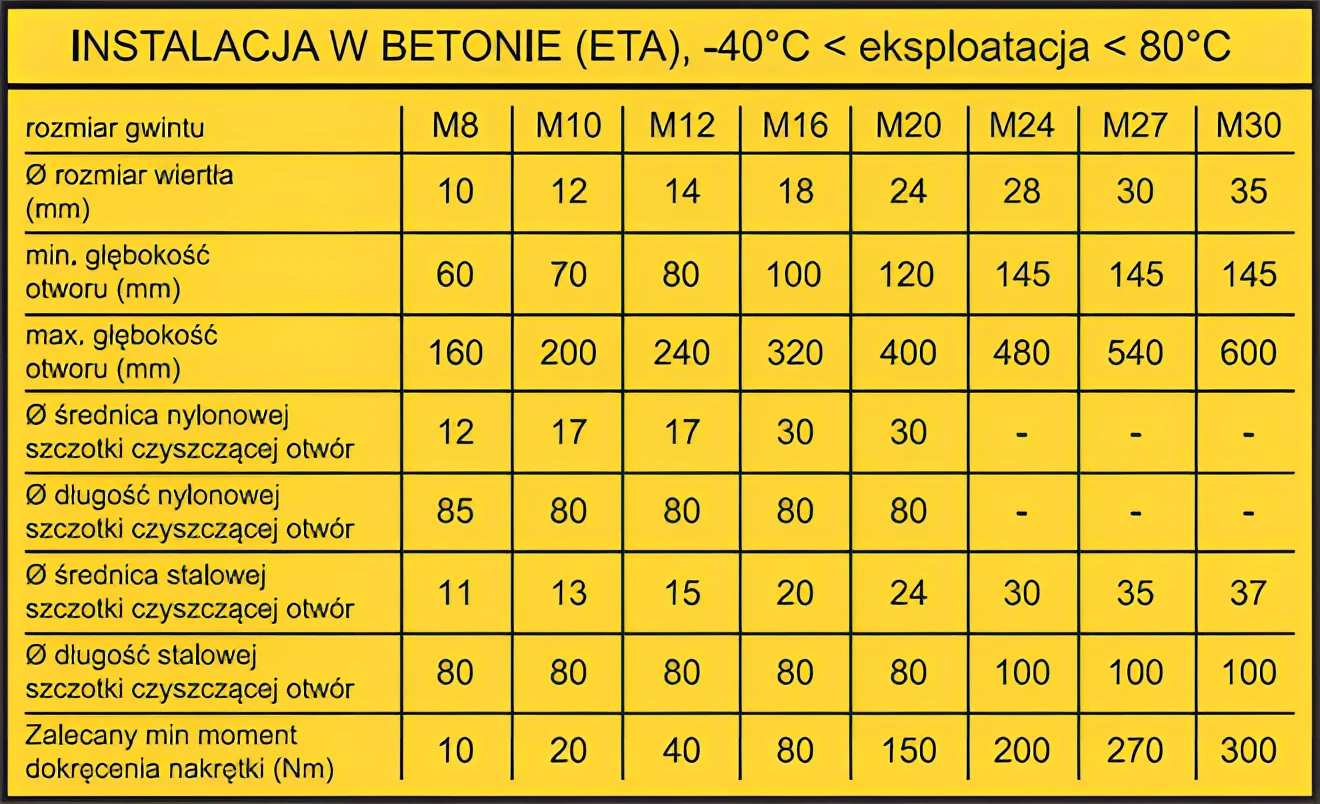

Installation parameters (concrete)

Cartridge capacity400 ml
M8 roddrill bit Ø10 mm, hole 60–160 mm, 10 Nm
M10 roddrill bit Ø12 mm, hole 70–200 mm, 20 Nm
M12 roddrill bit Ø14 mm, hole 80–240 mm, 40 Nm
M16 roddrill bit Ø18 mm, hole 100–320 mm, 80 Nm
M20 roddrill bit Ø24 mm, hole 120–400 mm, 150 Nm
M24 roddrill bit Ø28 mm, hole 145–480 mm, 200 Nm
M27 roddrill bit Ø30 mm, hole 145–540 mm, 270 Nm
M30 roddrill bit Ø35 mm, hole 145–600 mm, 300 Nm
Installation in concrete: drill bit diameter, hole depth (min.–max.) and recommended minimum nut tightening torque according to the manufacturer's table.

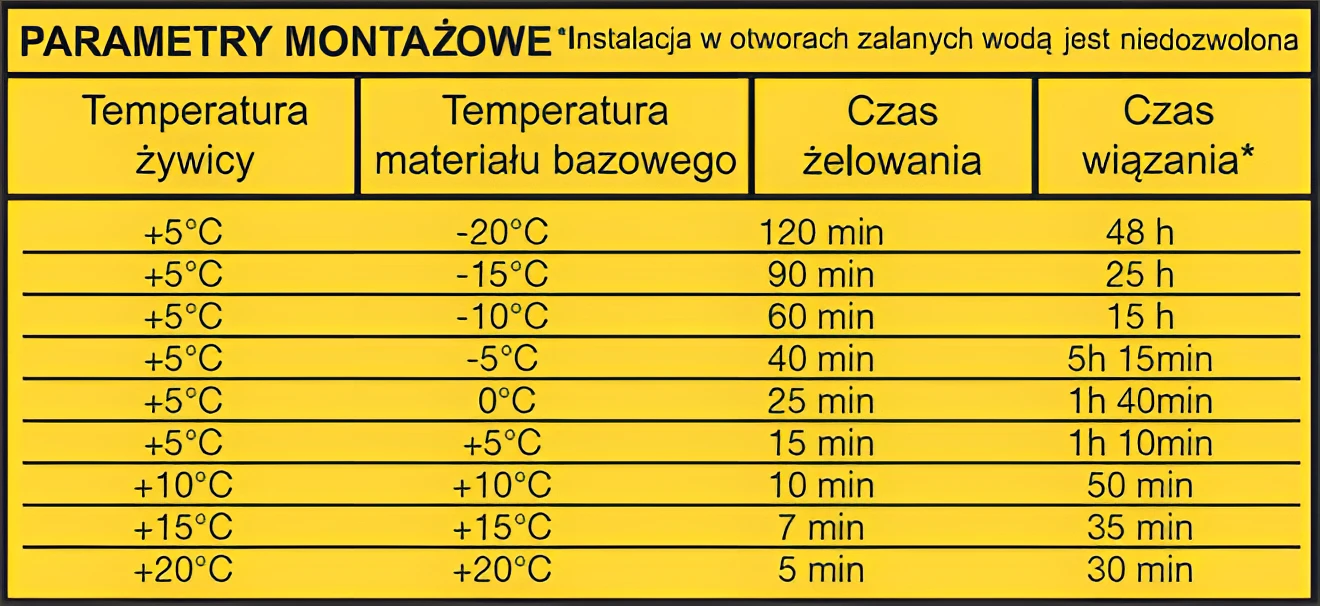

Temperatures and times

Substratesolid and hollow materials
Substrate −20 °Cgel time 120 min, curing time 48 h
Substrate 0 °Cgel time 25 min, curing time 1 h 40 min
Substrate +20 °Cgel time 5 min, curing time 30 min
Service temperaturefrom −40 °C to +80 °C
Times according to the manufacturer's table at a resin temperature of +5 °C (for −20 °C and 0 °C) and +20 °C (for +20 °C); full table in the product gallery.

Unit of sale

Sales unit1 pcs
Unit weight0.8 kg
Weight according to the supplier's data (approximate value).

Selection and installation

  • ✓Drill a hole to the diameter and depth specified in the table for the given rod.

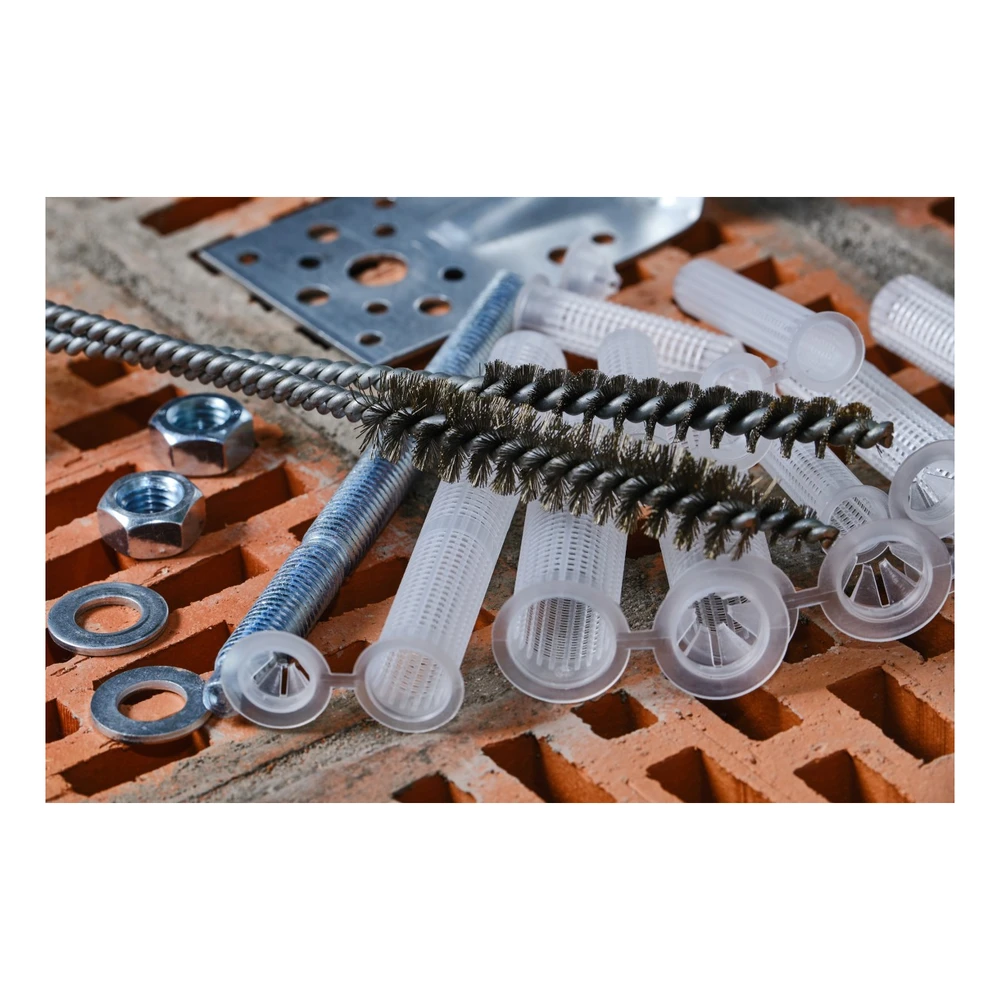

  • ✓Clean the hole with a brush of the diameter specified in the manufacturer's table and remove the dust; do not install in a water-filled hole.
  • ✓Bring the resin to at least +5 °C before use; fill the hole from the bottom and insert the rod.
  • ✓Apply loads only after the curing time appropriate to the substrate temperature has elapsed; tighten the nut to the torque given in the table.

Important

The load-bearing capacity of the anchorage depends on the substrate, rod diameter and embedment depth – for structural connections, it is specified in the design. At low temperatures, the curing time extends to several tens of hours.
