Wide angle bracket KS 3 60x60x60x2.0 gold zinc
Leave feedback on the product
Flat angle bracket 60×60×60 mm made of DC01 steel, thickness 2.0 mm, gold galvanised zinc coating, 6 mounting holes, ETA and CE certified.
Product code: 000-355
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 2
- Connector Type Wide Angle Bracket
- Material Steel
- Thread type M10
- Length [mm] 6
- Coating Black anodised
Description

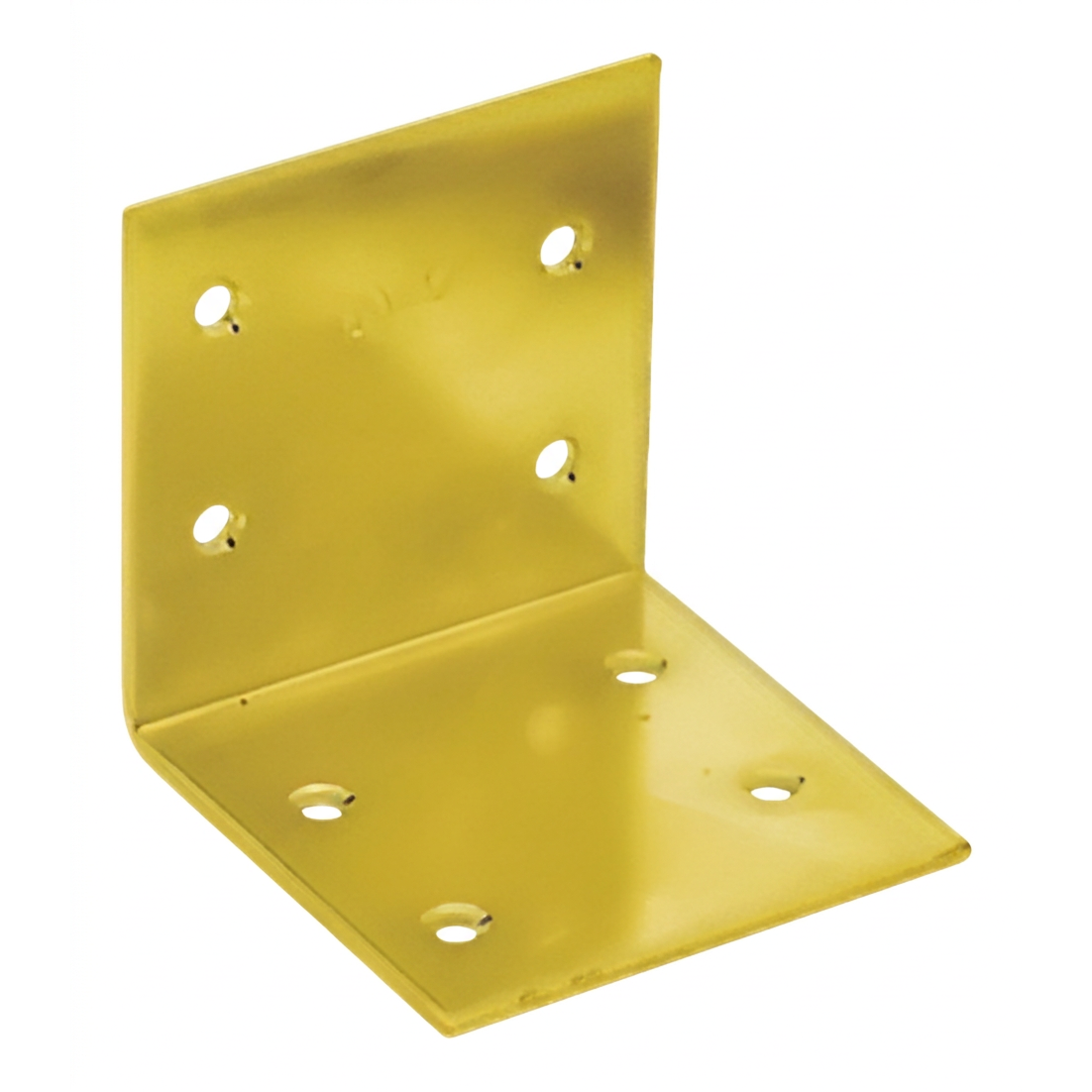

Wide Angle Bracket KS 3 60×60×60 mm Steel Hot-Dip Galvanised Gold
Wide Angle Bracket KS 3 is a robust corner connector measuring 60 × 60 × 60 mm, designed for the permanent joining of timber elements in joinery, furniture, and construction applications. Its symmetrical design with two wide flanges ensures even load distribution and high joint stability — an ideal component for installers seeking reliable connectors in everyday work.
Versatile Applications

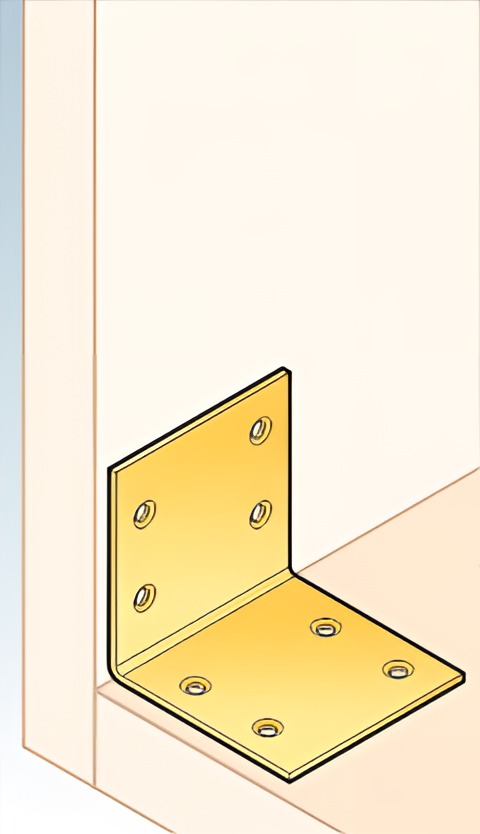

The KS 3 angle bracket performs wherever a solid, right-angle connection between two timber elements is required. It is used in furniture assembly, timber frame construction, roof trusses, pergolas, loft conversions, and all manner of general joinery work. The wide surface area of both flanges, each featuring three fixing holes, guarantees a secure and stable fixing capable of withstanding loads in multiple directions.
Dimensions and Technical Specifications

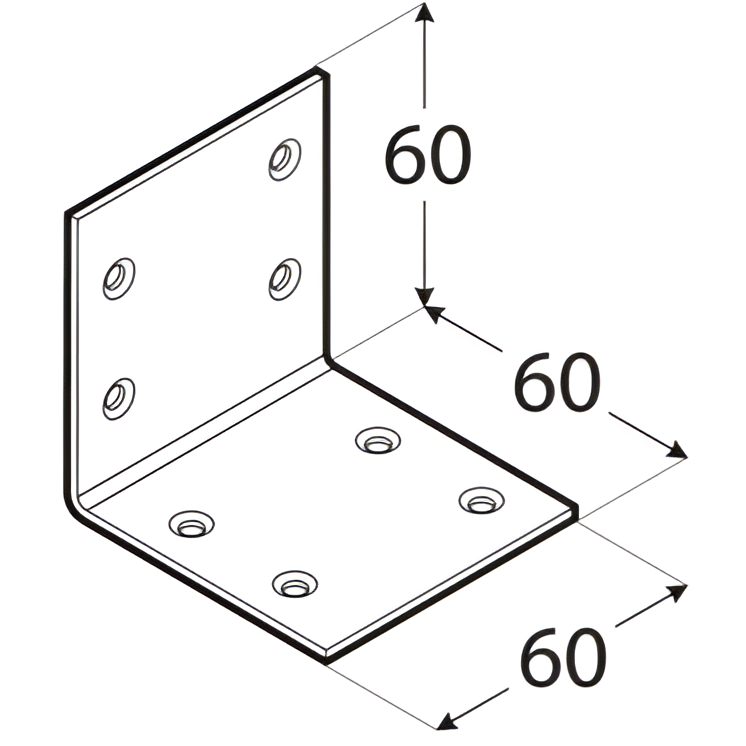

- Type: wide angle bracket (flat)
- Height: 60 mm
- Width: 60 mm
- Length (depth): 60 mm
- Sheet thickness: 2.0 mm
- Material: DC01 steel
- Finish: gold electro-galvanised
- Number of fixing holes: 6 (3 per flange)
- EAN: 5907708140135
Material and Durability
The bracket is manufactured from DC01 steel at a thickness of 2.0 mm, providing high rigidity and resistance to mechanical deformation. The gold electro-galvanised coating protects the component against corrosion and gives it an attractive finish, meaning the bracket can remain visible in the completed structure.
Installation

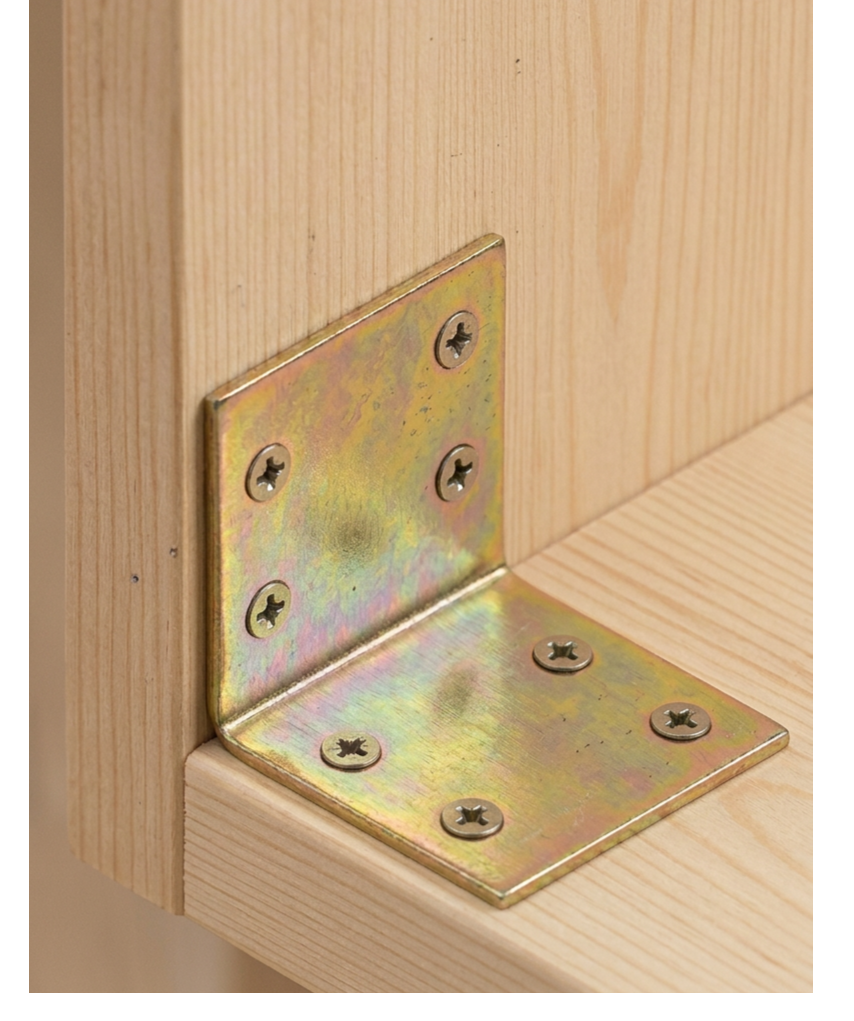

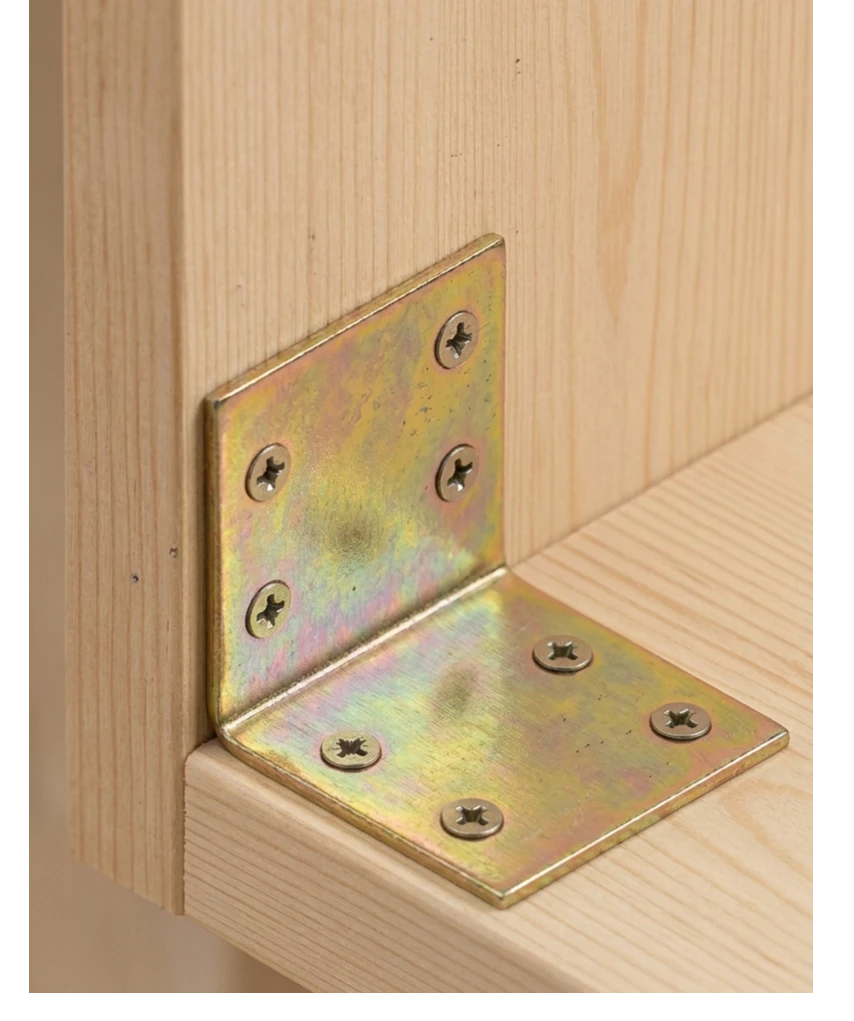

For fixing the bracket, the use of ANCHOR ring-shank nails with a diameter of ∅ 4 mm or timber screws with a diameter of ∅ 4 mm is recommended. The countersunk fixing holes facilitate precise driving and ensure a flush seating of the screw head.
Certifications and Compliance
The product holds a European Technical Assessment (ETA) and carries the CE marking, confirming its compliance with European construction standards. For installation companies, this provides assurance that the connector meets all formal requirements during inspections and quality audits.
