Wide angle bracket KS 2 40x40x40x1.5 gold zinc
Description

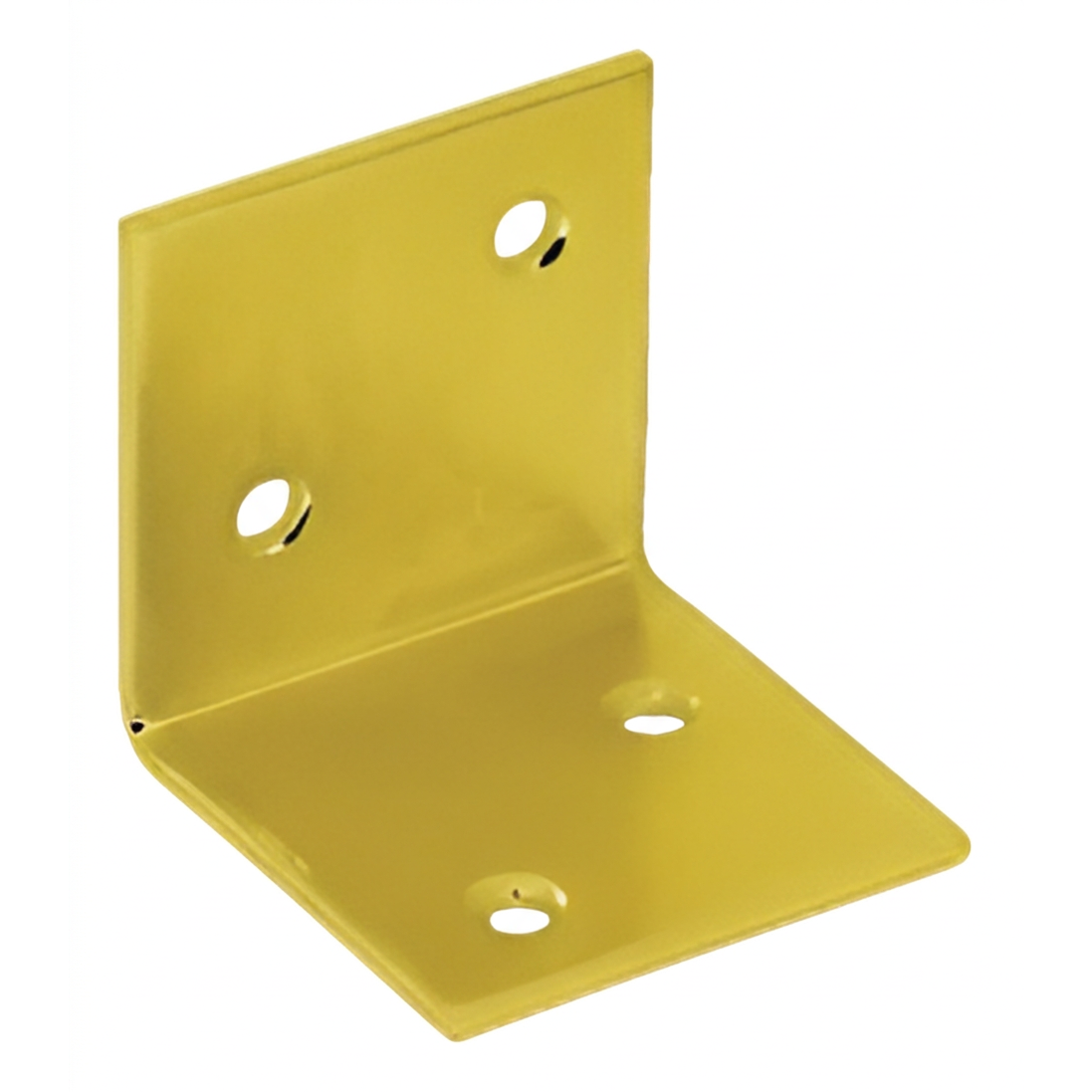

Steel Galvanised Angle Bracket 40×40×40 mm
The 40×40×40 mm furniture angle bracket is a versatile corner connector designed for joinery and furniture assembly. Made from electro-galvanised steel sheet with a golden finish, it provides durable and aesthetically pleasing reinforcement of corners in timber structures. Sold individually, making it easy to complete both single projects and larger assembly runs.
Applications

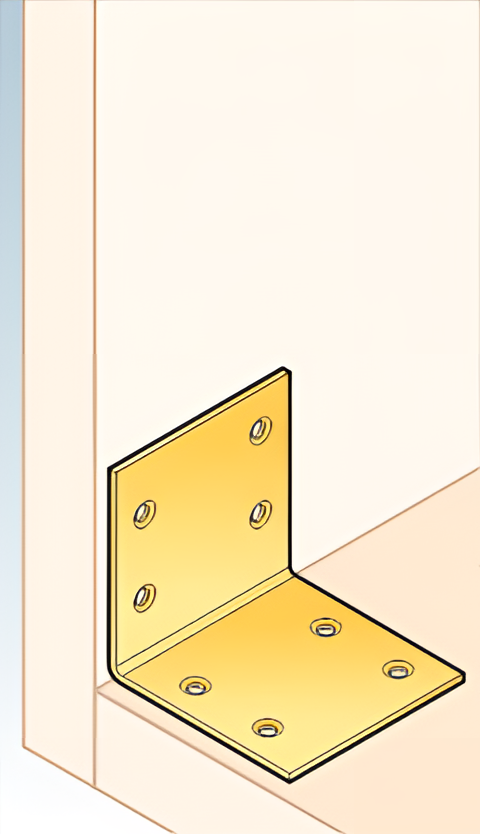

With equal arms measuring 40×40×40 mm, this angle bracket is ideal wherever a solid, perpendicular connection between timber elements is required. The range of widths available within the series allows you to select the right connector for both narrow and wide board edges and furniture panels.
- Timber and timber-frame structures
- Furniture – corner reinforcement for cabinets, shelving units and shelves
- Pergolas and garden gazebos
- Timber roofs – rafter and purlin connections
- Timber posts and fence posts

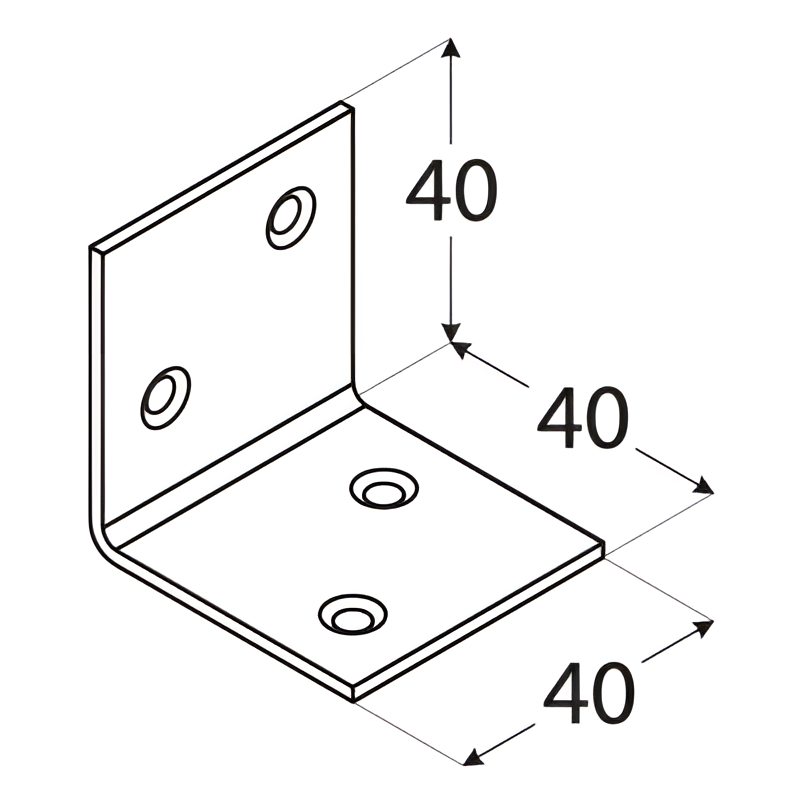

Technical Specifications
- Vertical arm height: 40 mm
- Horizontal arm length: 40 mm
- Width: 40 mm
- Sheet thickness: 1.5 mm
- Material: electro-galvanised steel sheet
- Colour: gold
- Load capacity: 3.44 kN
- Number of fixing holes: 4 (countersunk)
- Weight per piece: 0.037 kg
- EAN: 5904610625873

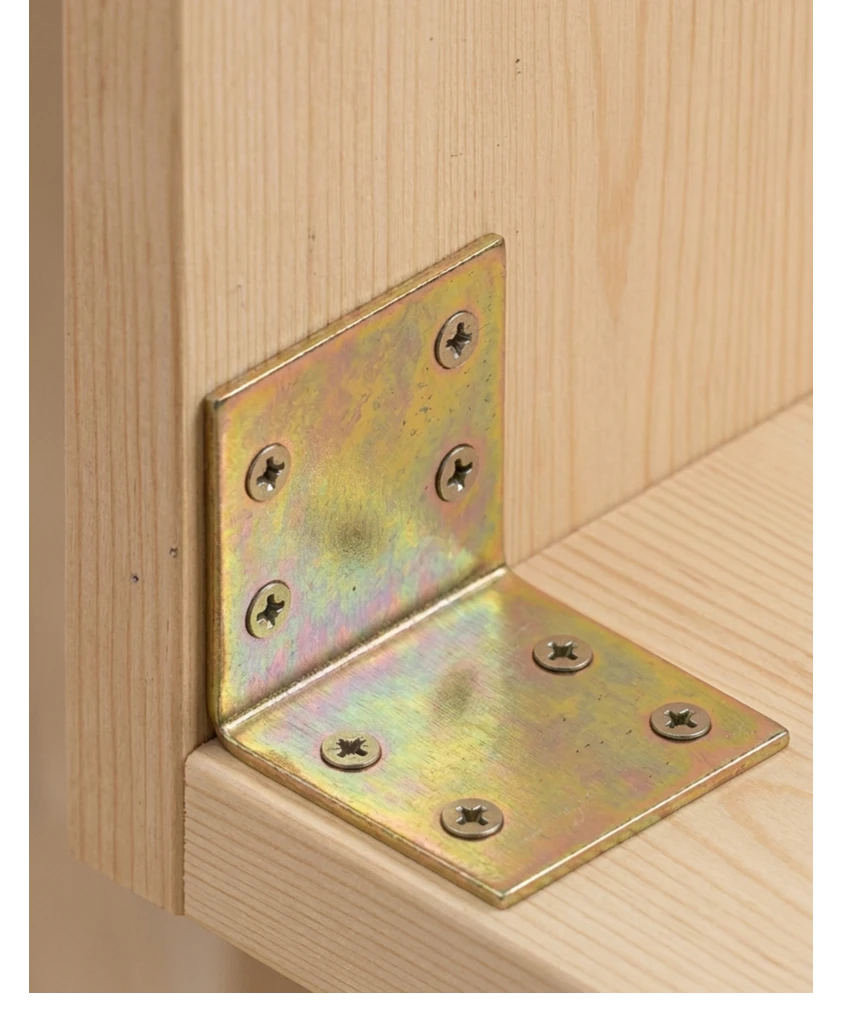

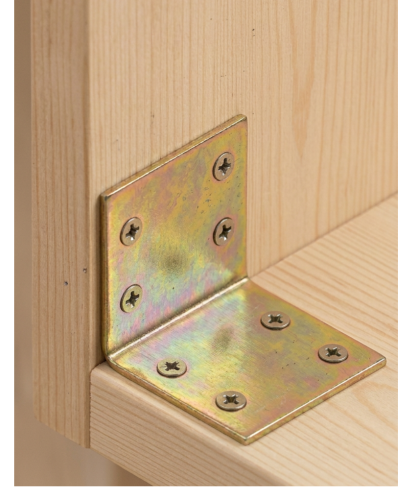

Installation and Recommended Fixings
The bracket is installed using standard timber fasteners. The countersunk holes allow the screw head to sit flush with the surface, resulting in a neat and smooth finish.
- ANCHOR ring shank nails ⌀ 4 mm
- Timber screws ⌀ 4 mm
Durability and Certification
The electro-galvanised zinc coating effectively protects the steel against corrosion, which is particularly important in interior applications – furniture, fitted joinery and lightweight carpentry. The product holds a European Technical Assessment (ETA) and carries the CE marking, confirming compliance with European construction standards and ensuring full acceptance across European markets.
The European Technical Assessment confirms that the bracket meets the strength and quality requirements necessary for use in construction. For installation companies, this provides assurance that the connector is fully compliant with applicable regulations and can be included in the technical documentation of completed projects.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Steel |
| Sheet metal thickness [mm] | 1.5 |
| Connector Type | Wide Angle Bracket |
