Wide angle bracket KS 1 30x30x30x1,5 gold zinc
Leave feedback on the product
30×30×30 mm angle bracket made from DC01 steel sheet, 1.5 mm thick with yellow zinc galvanising, load capacity 3.44 kN, 4 holes ø4.5 mm, ETA certificate and CE marking.
Product code: 000-357
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 1.5
- Connector Type Wide Angle Bracket
- Material Steel
- Thread type M10
- Length [mm] 6
- Coating Black anodised
Description

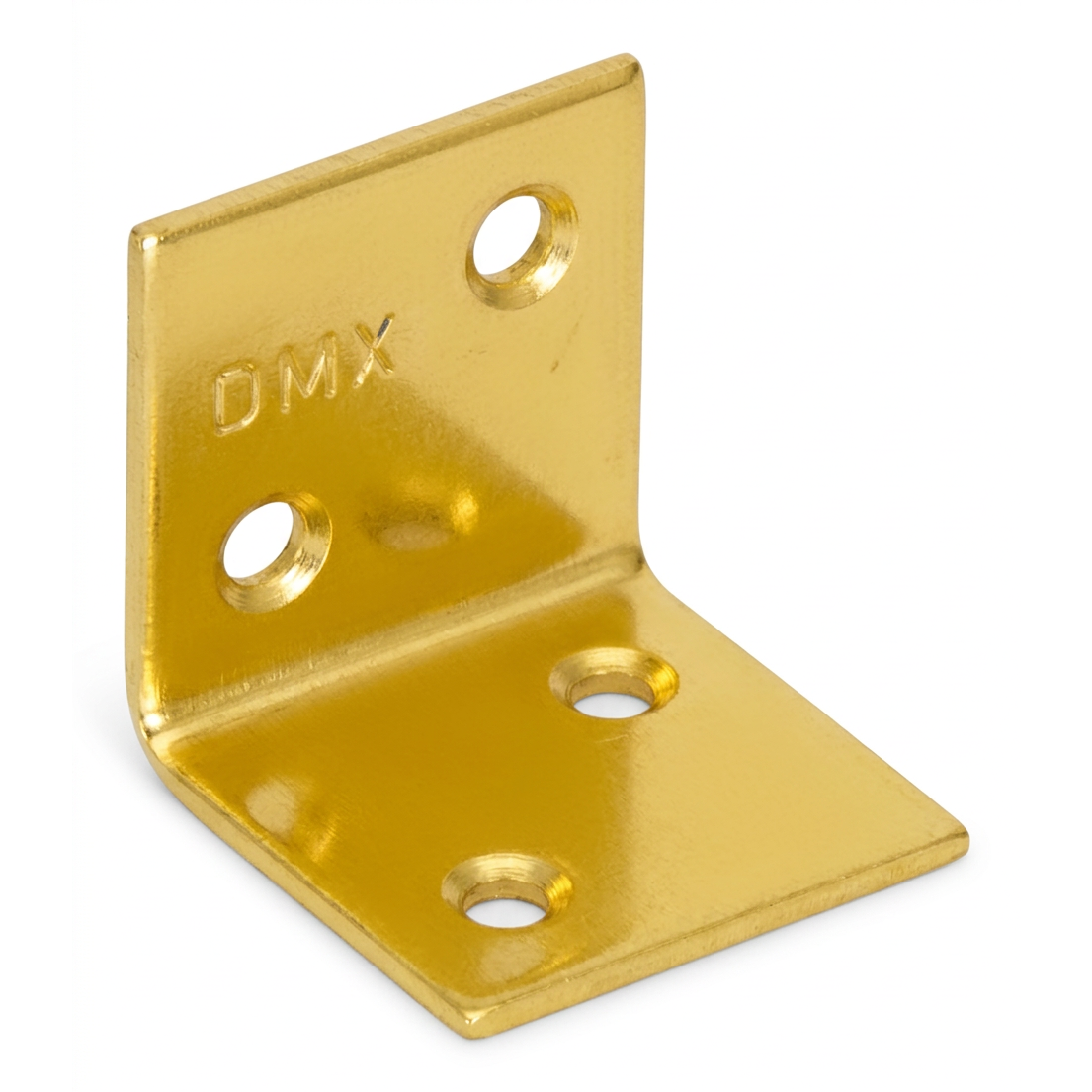

Wide Mounting Bracket KS1 30×30×30 mm – Galvanised Steel
The wide mounting bracket KS1 is a versatile angle connector designed for joinery, furniture assembly, and light timber constructions. Made from DC01 steel sheet with a thickness of 1.5 mm and protected against corrosion by a gold electro-galvanised coating, it provides a durable and aesthetically pleasing right-angle joint.
Application and Structural Features

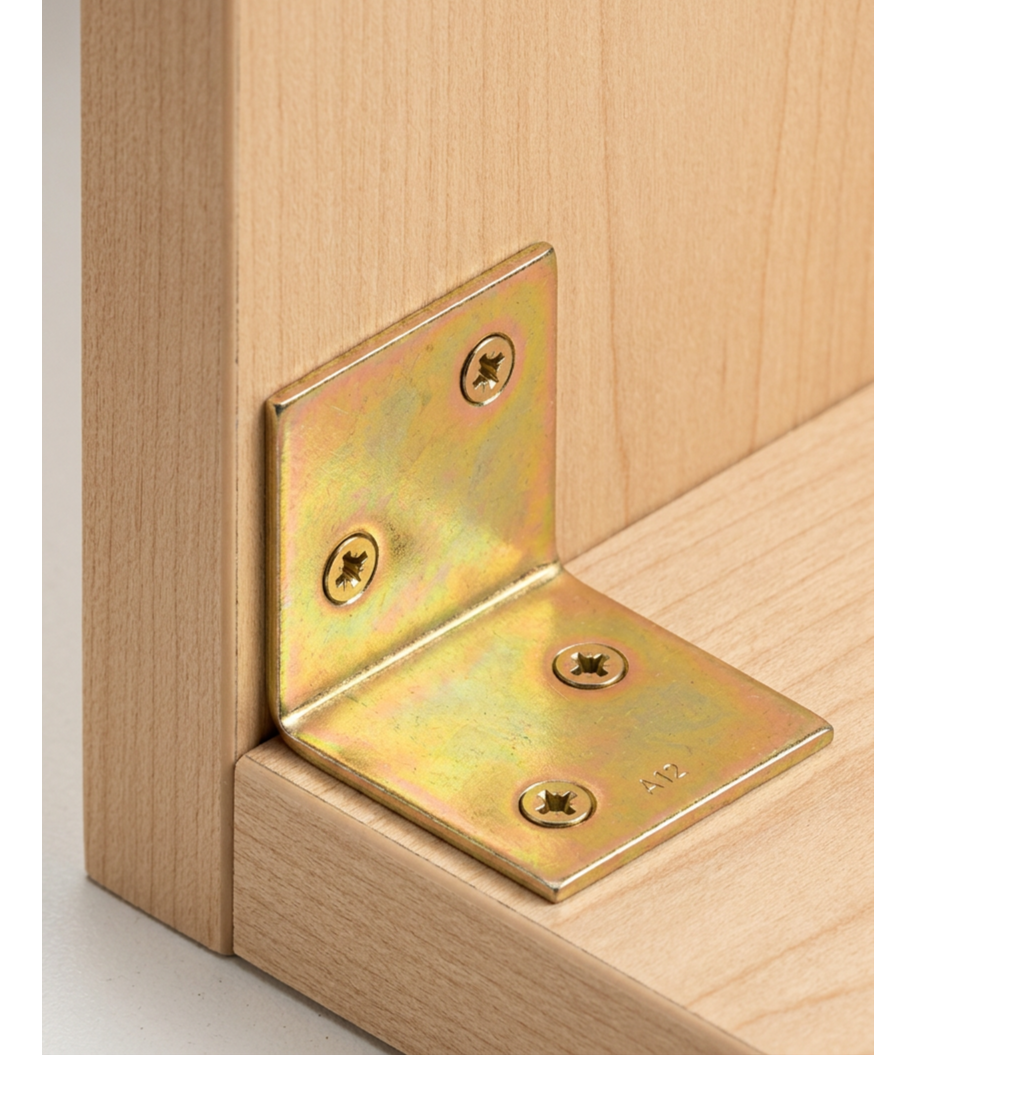

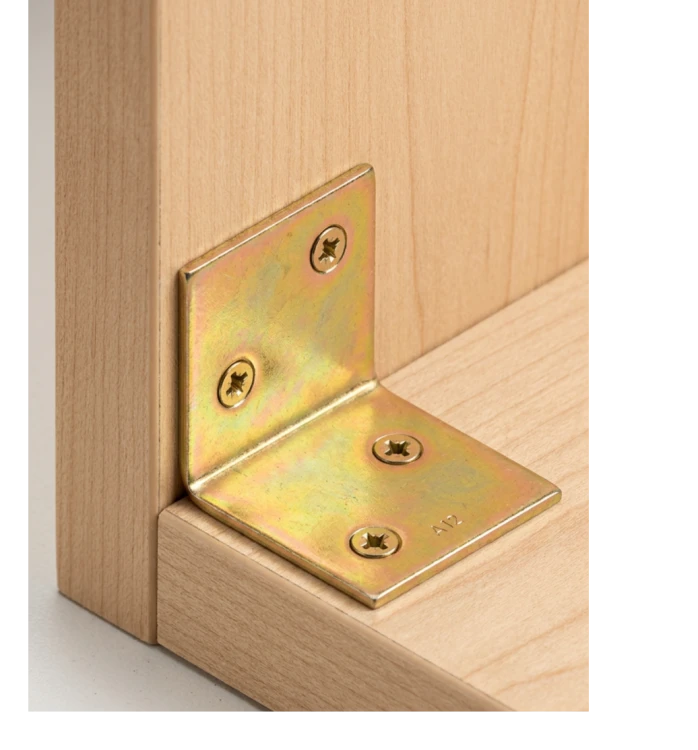

The KS1 bracket is ideal wherever a secure and quick 90° connection between two elements is required. Its symmetrical design (30 × 30 × 30 mm) simplifies installation – the connector fits regardless of orientation. The gold zinc coating protects against corrosion while providing an attractive finish suitable for visible applications, such as furniture or interior joinery.

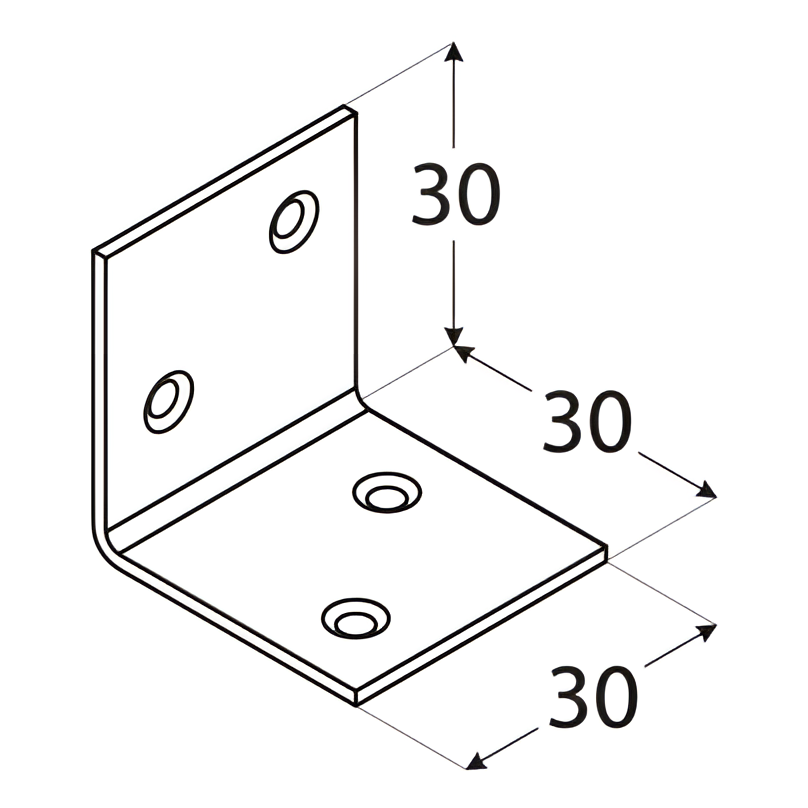

Technical Specifications
- Height: 30 mm
- Width: 30 mm
- Depth: 30 mm
- Sheet thickness: 1.5 mm
- Material: DC01 steel
- Corrosion protection: gold electro-galvanised coating
- Number of holes: 4 holes ø4.5 mm
- Load capacity: 3.44 kN
Installation
The bracket can be fixed using various types of fasteners, allowing the installation method to be matched to the substrate and structural requirements:
- ANCHOR ring shank nails ø4 mm
- Timber connector screws
- Hardened screws

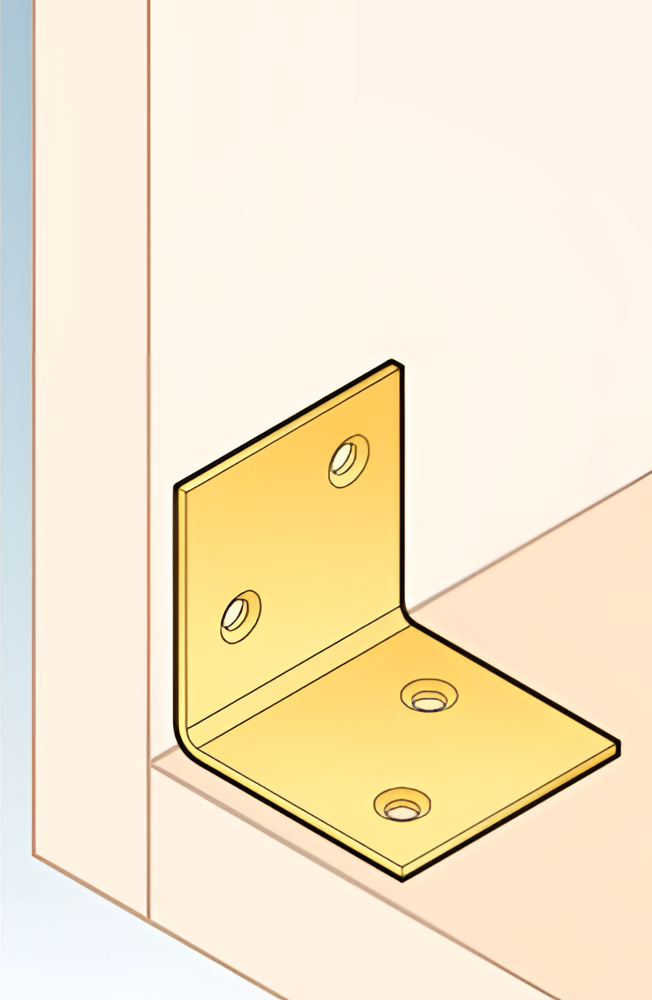

Four mounting holes (ø4.5 mm) – two on each leg – ensure stable and even load distribution in corner joints.
Certificates and Approvals
- European Technical Assessment (ETA)
- Declaration of Performance
- Certificate of Conformity of Factory Production Control
- CE marking
The certifications confirm that the bracket meets European quality standards and may be used in structures requiring documented load capacity and consistent production quality. For installation companies, this provides assurance that the connector is fully approved for professional structural applications.
