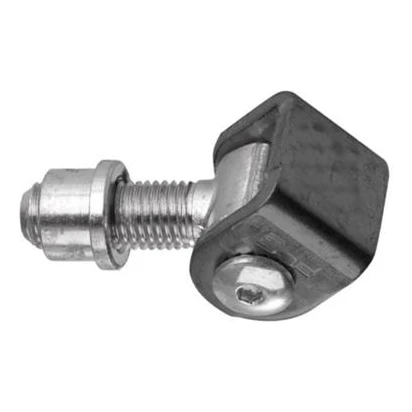

Adjustable Steel Weld-On Hinge M16 – Gate Hinges for Swing Gates
Adjustable steel weld-on hinge M16 — a robust mounting component designed for swing gates. The galvanised construction with a black-finished steel eye provides corrosion resistance and a neat appearance, while the built-in adjustment mechanism allows precise positioning of the gate leaf without the need for disassembly.
The hinge has been designed with heavy-duty outdoor use in mind. The galvanised surface effectively protects against moisture, rain and temperature fluctuations, minimising maintenance requirements. The nut-based adjustment mechanism allows the gate leaf position to be corrected at any time — for example, after sagging or due to thermal deformation. This solution saves time on servicing and eliminates costly repairs.
A pair of M16 hinges supports a gate leaf of up to 2 metres in length and up to 65 kg in weight, making them a versatile choice for driveway, garden and agricultural gates.
Technical Specifications
- Material: steel
- Corrosion protection: galvanised (eye with black finish)
- Bolt diameter: M16
- Outer diameter of pin: ø22 mm
- Eye hole diameter: ø14 mm
- Bolt length: 40 mm
- Eye width: 36 mm
- Eye height: 23 mm
- Head width: 30 mm
- Overall length: 78 mm (adjustable in the range of 42–62 mm)
- Permissible load for a pair of hinges (gate leaf up to 2 m): 65 kg
- Weight: 0.3 kg

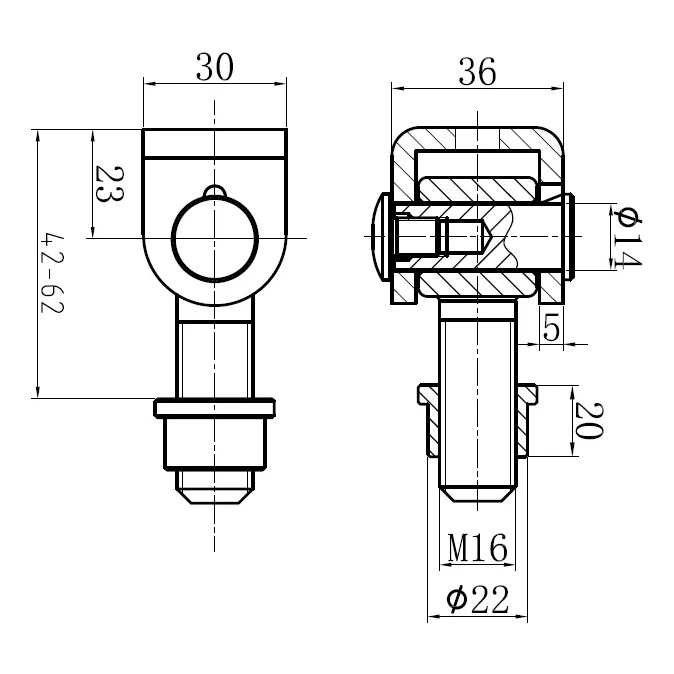

Technical Drawing with Dimensions
Installation is carried out by welding the pin to the steel structure of the gate or post. The black eye with a matt surface facilitates precise positioning during installation. Once fitted, the height and level of the gate leaf can be adjusted at any time — simply turn the adjustment nut, with no need to remove the entire hinge.
The adjustable M16 hinge is a tried-and-tested solution for the professional installation of swing gates — combining structural durability, ease of installation and convenient adjustment in a single, compact component.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Diameter | 12 |
| Mounting Method | Weld-On |
| Adjustment | No |
| Thread type | M16 |
| Material | Steel |
