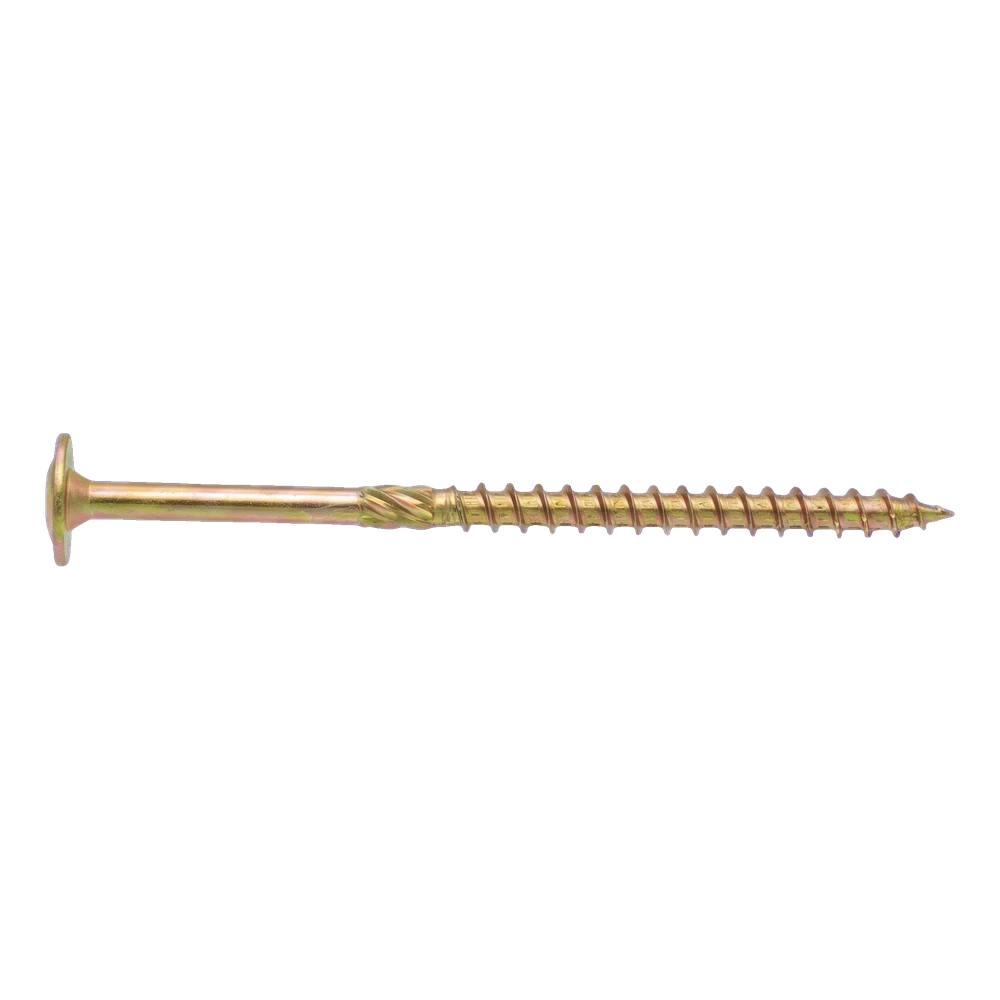

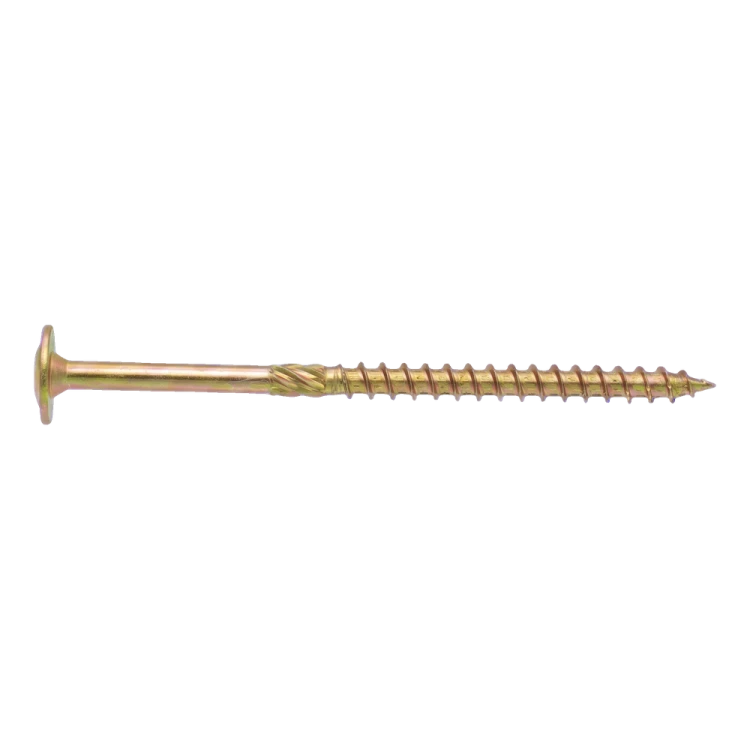

Washer head timber screw, zinc-plated, TX40, 8.0×160 mm – partial thread – pack of 50 pcs

Timber screw with a washer (flange) head, TX40 recess and 80 mm partial thread; low-carbon steel, electro-galvanised

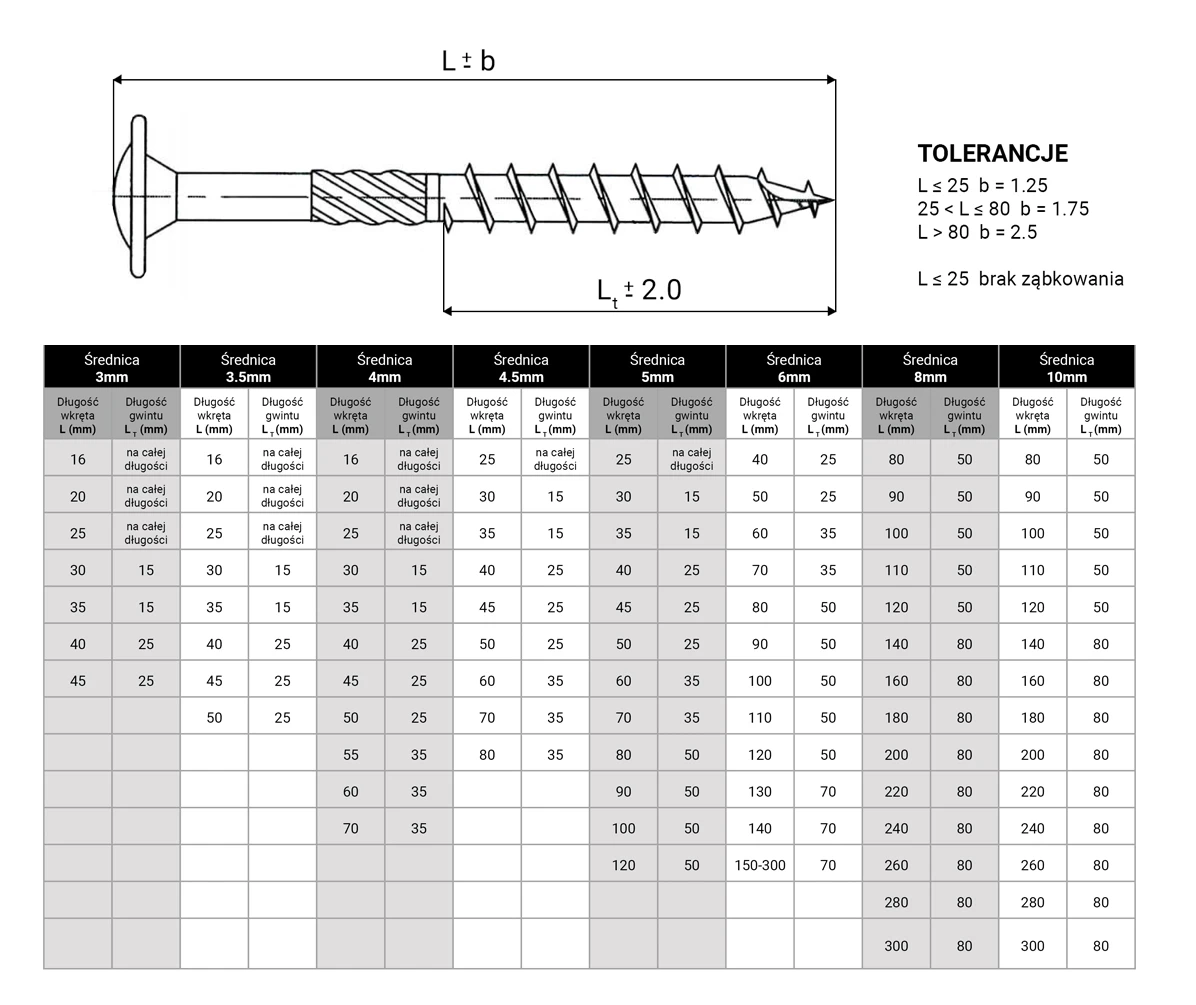

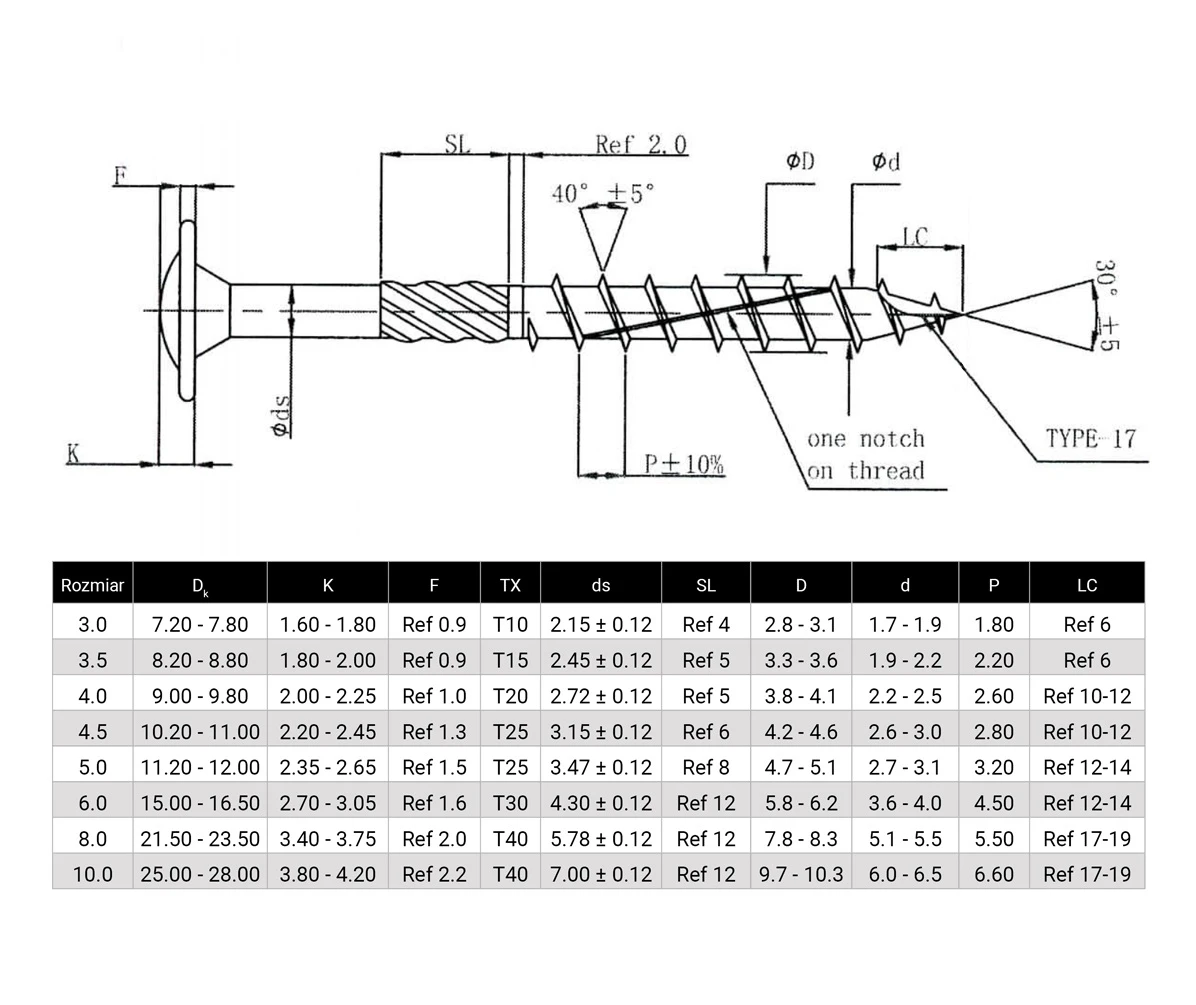

Open the dimension drawing in full size

About the product

The timber screw is used to join timber components. It has a washer (flange) head, a Torx TX40 recess and a partial thread. The washer head clamps the component over a wide surface area – without a separate washer. The product is sold in packs of 50.

The size 8 × 160 mm specifies the nominal diameter of 8 mm and the overall length L of 160 mm (including the head). Lt denotes the partial thread length: 80 mm. Dk denotes the head diameter, which is within the range of 21.5–23.5 mm, and K denotes its height: 3.4–3.75 mm. These are nominal dimensions according to the supplier's dimensional data sheet (Dk and K are given as ranges in the data sheet). Use a TX40 bit to drive the screw. Select the pilot hole size to suit the timber species. Pre-drill near the edges of the component to reduce the risk of splitting.

Material: low-carbon steel. Coating: electro-galvanised. The zinc coating protects the steel against corrosion under typical conditions. Where contact with salt, chemicals or constant moisture is expected, choose a version suited to the exposure conditions. The screw dimensions do not determine the load-bearing capacity of a particular joint. This depends on factors including the timber, penetration depth and joint configuration, and is specified in the design.

Dimensions per data sheet

Material and coating

Unit of sale

Selection and installation

• ✓Choose the pilot hole for the type of timber.
• ✓Pre-drill near the edges of the element – this reduces the risk of splitting.
• ✓Drive in with a TX40 bit.
