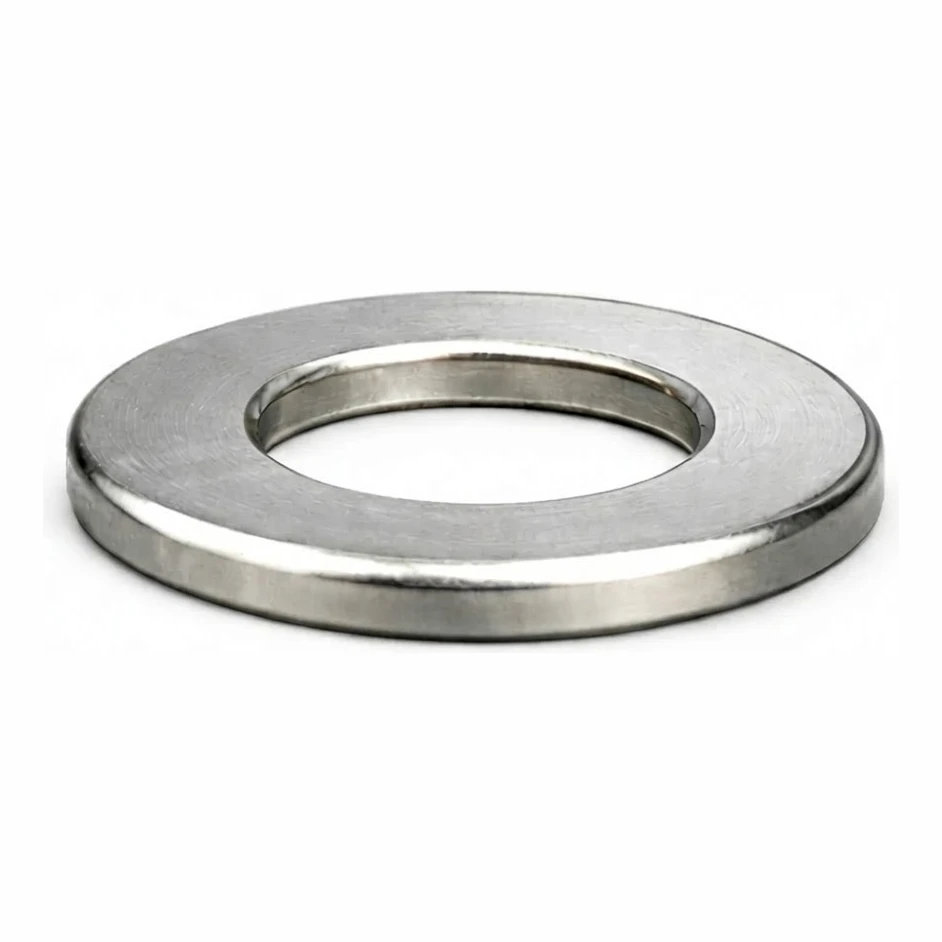

Washer M6 DIN 125 A2 140 HV 6.4

Why A2 stainless steel? A2 material (equivalent to AISI 304) provides excellent resistance to rust and atmospheric corrosion, making this washer ideal for long-term use even in the most demanding weather conditions. A hardness of 140 HV ensures high resistance to deformation and an even distribution of clamping forces.

Compliance with DIN 125 means standardised dimensions and tolerances, ensuring full compatibility with M6 metric bolts and nuts. The washer is reusable and fits all standard M6 bolted connections.

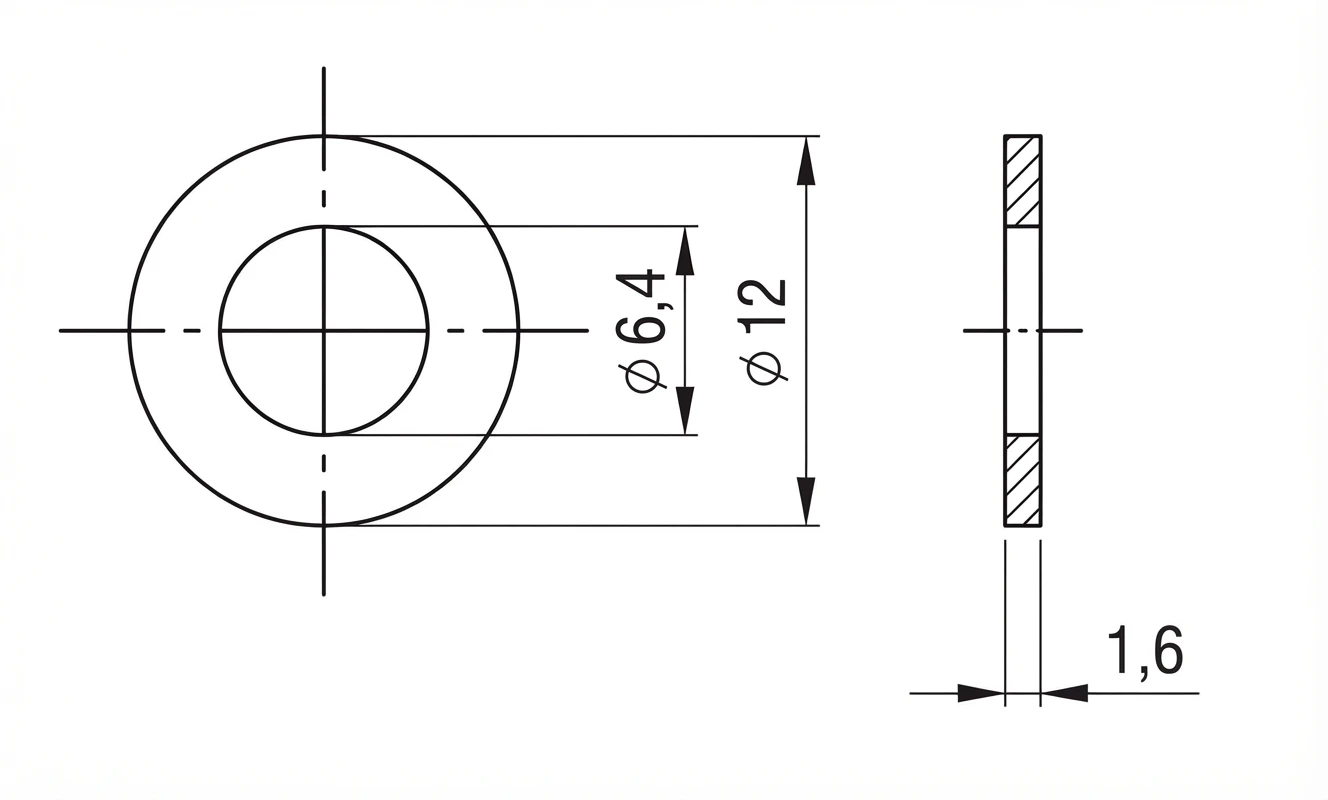

Technical Specifications

• Standard: DIN 125 (equivalent to ISO 7089/7090)
• Size: M6
• Hole diameter (d1): 6.4 mm
• Material: A2 stainless steel (AISI 304)
• Hardness: 140 HV
• Type: flat washer

Applications

• Photovoltaic installations: securing mounting structures and fastening components
• Steel structures: external and internal bolted connections
• Mechanical engineering: machinery and equipment requiring corrosion resistance
• Agriculture: equipment exposed to moisture and variable weather conditions
• Construction: façade and assembly elements

Function of the washer – increases the bearing surface, protects the joined material from damage, and prevents loosening of the connection. An essential component in every professional bolted assembly.
