Wall mounting bracket for handrail balustrade ø 42.4 mm in AISI 304 stainless steel – satin finish
0
Description
Wall mounting bracket for handrail balustrade ø 42.4 mm in AISI 304 stainless steel – satin finish

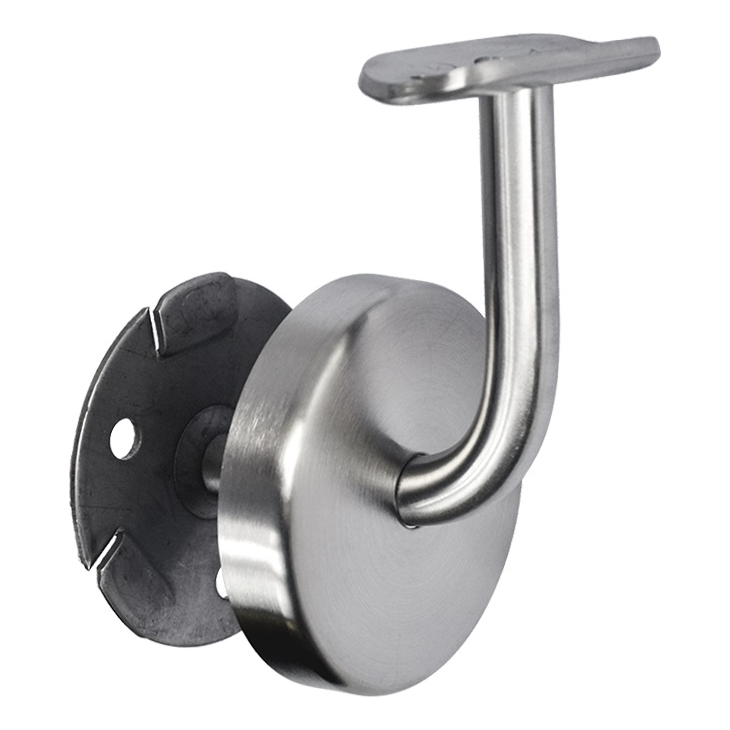

Wall mounting bracket for handrail with cover plate is an aesthetically pleasing and durable mounting element designed for mounting handrail balustrades with a diameter of 42.4 mm directly to the wall. Made from stainless steel AISI 304 with a satin finish, it guarantees durability, corrosion resistance and an elegant, modern appearance that perfectly fits both commercial and residential projects.
The bracket is equipped with a cover plate with a diameter of 70 mm, which effectively conceals the mounting holes and fixing plate, ensuring a neat finished appearance of the installation. The mounting plate has 3 holes, which facilitates precise and stable fixing to the wall — even under difficult mounting conditions. Thanks to the thoughtful design, installation proceeds smoothly, allowing fitting teams to save time on site.
The satin surface of the stainless steel is extremely easy to keep clean — most dirt can be removed with a dry soft microfibre cloth, and greasy stains with a special cleaning agent for stainless steel. This is an important advantage in public buildings, hotels or office buildings, where the aesthetics of balustrades must be maintained at the highest level.

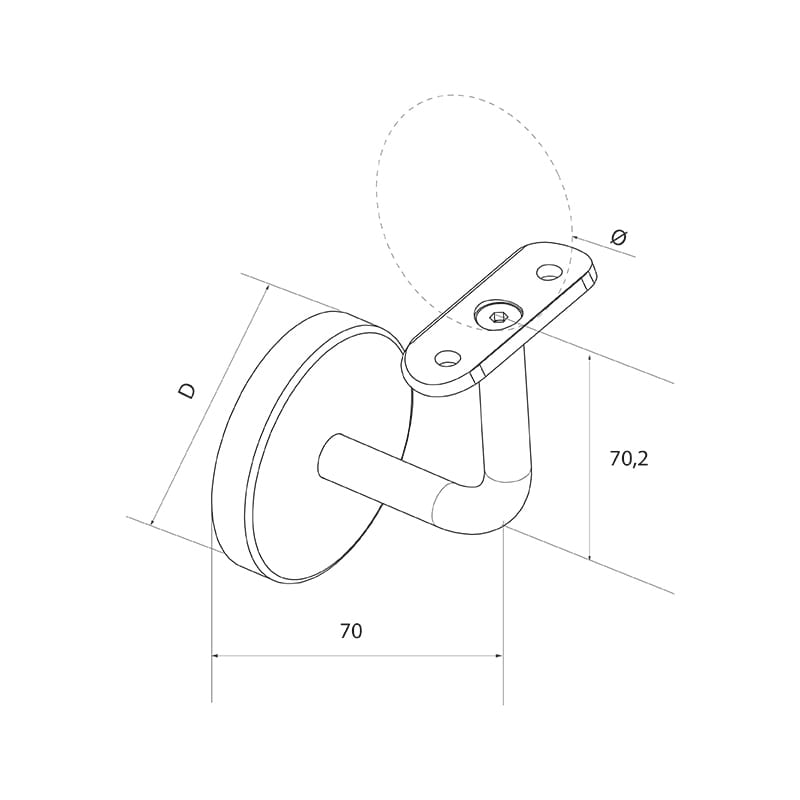

Dimensions and technical parameters
- Handrail diameter: ø 42.4 mm
- Cover plate diameter: ø 70 mm
- Projection from wall: 70 mm
- Height: 70.2 mm
- Pin diameter: 12 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting holes: 3 pcs
- Weight: 0.26 kg
- System: 42.4
- EAN: 5903313204163
The bracket is designed for use in the ø 42.4 mm handrail system — the most popular standard in stainless steel balustrades. An ideal choice for installation companies implementing internal and external balustrades in residential, commercial and public buildings.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
