Wall-mounted handrail bracket with cover Ø 70 mm – stainless steel AISI 304 satin finish
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.26 kg
Rating:
0
0
Vendor:
-
Product code:
001-024
Description
Wall-mounted handrail bracket with cover Ø 70 mm – stainless steel AISI 304 satin finish
Wall-mounted handrail bracket with cover is a universal balustrade element made from AISI 304 stainless steel with satin finish. The three-hole mounting system ensures secure and stable handrail attachment to the wall, whilst the elegant cover conceals mounting points, giving the construction an aesthetic, modern appearance.
The bracket arm is designed for welding into the handrail, guaranteeing a permanent and rigid connection. The universal system means broad compatibility with various types of handrails — one bracket works for multiple projects, simplifying warehouse logistics.

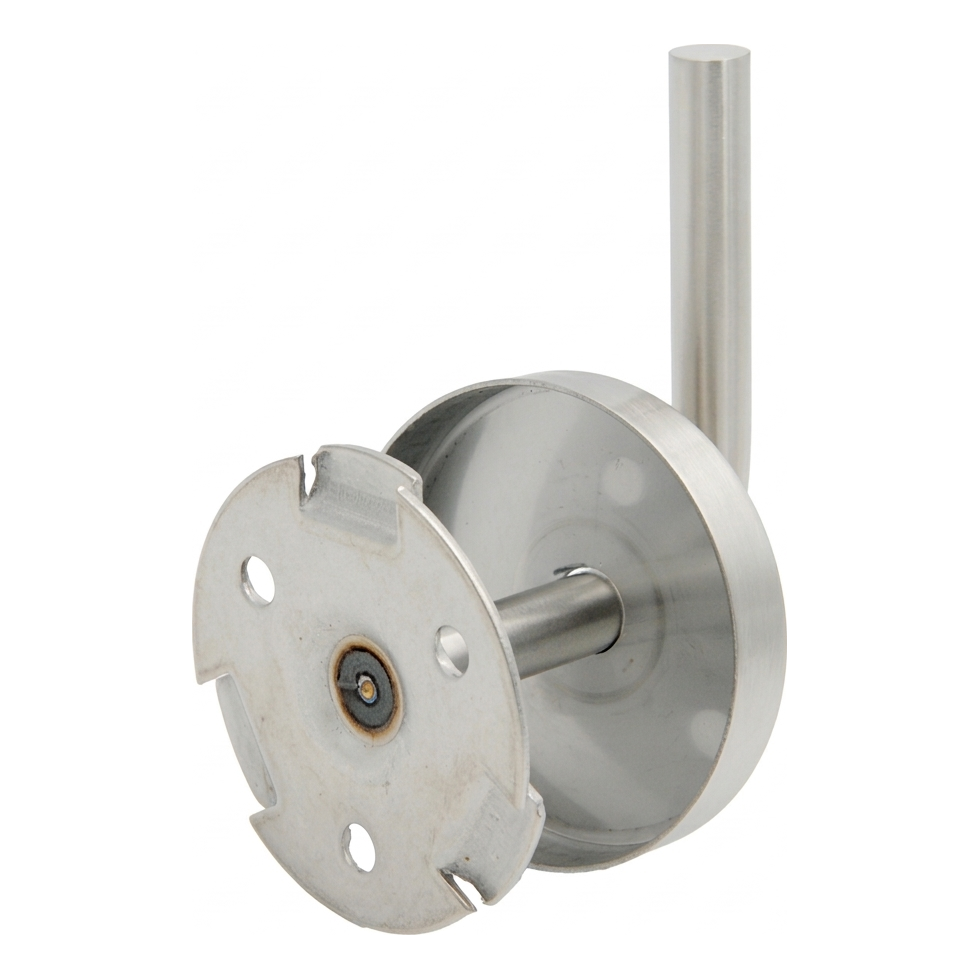

Construction and components
The bracket consists of three elements:
- Mounting plate (base) — with three mounting holes, screwed directly to the wall
- Cover — circular cap with 70 mm diameter, concealing the mounting plate and screws
- Bracket arm — 12 mm diameter rod bent at 90°, designed for welding into the handrail

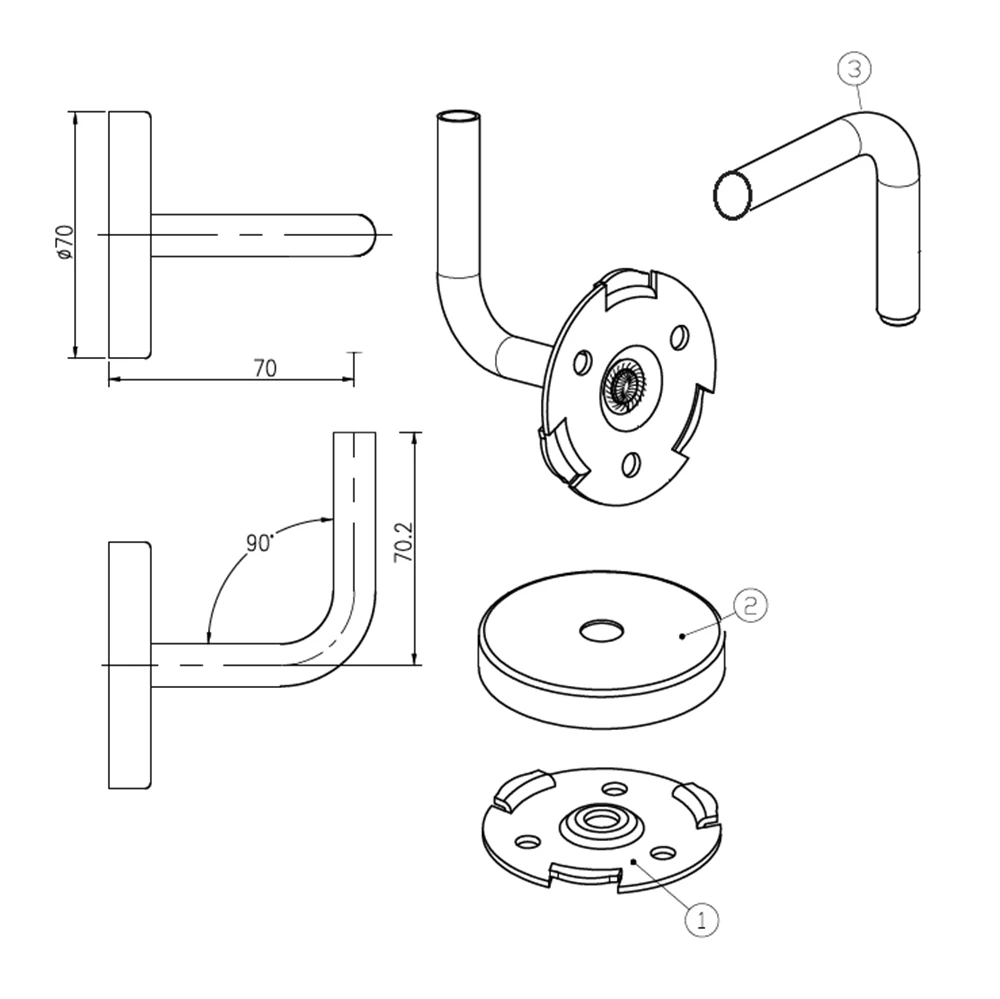

Dimensions and technical parameters
- Cover diameter: 70 mm
- Arm rod diameter: 12 mm
- Wall offset: 70 mm
- Height: 70.2 mm
- Arm bend angle: 90°
- Number of mounting holes: 3
- Plate mounting thread: none
- System: universal
- Mounting: to wall
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.26 kg
- EAN: 5903313216326
Installer benefits
- Quick installation — three mounting holes enable secure and fast attachment to the wall
- Versatility — compatibility with a wide range of handrails, one bracket type for various projects
- Durability — AISI 304 stainless steel guarantees corrosion resistance and long-term performance
- Aesthetics — satin finish and cover provide a clean, modern appearance without visible mounting elements
- Easy maintenance — dirt can be removed with a dry microfibre cloth, and greasy marks with special stainless steel cleaner
Loading...
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
