Wall-mounted handrail bracket for welding ø 70/12 mm – AISI 304 stainless steel satin finish
0
Description

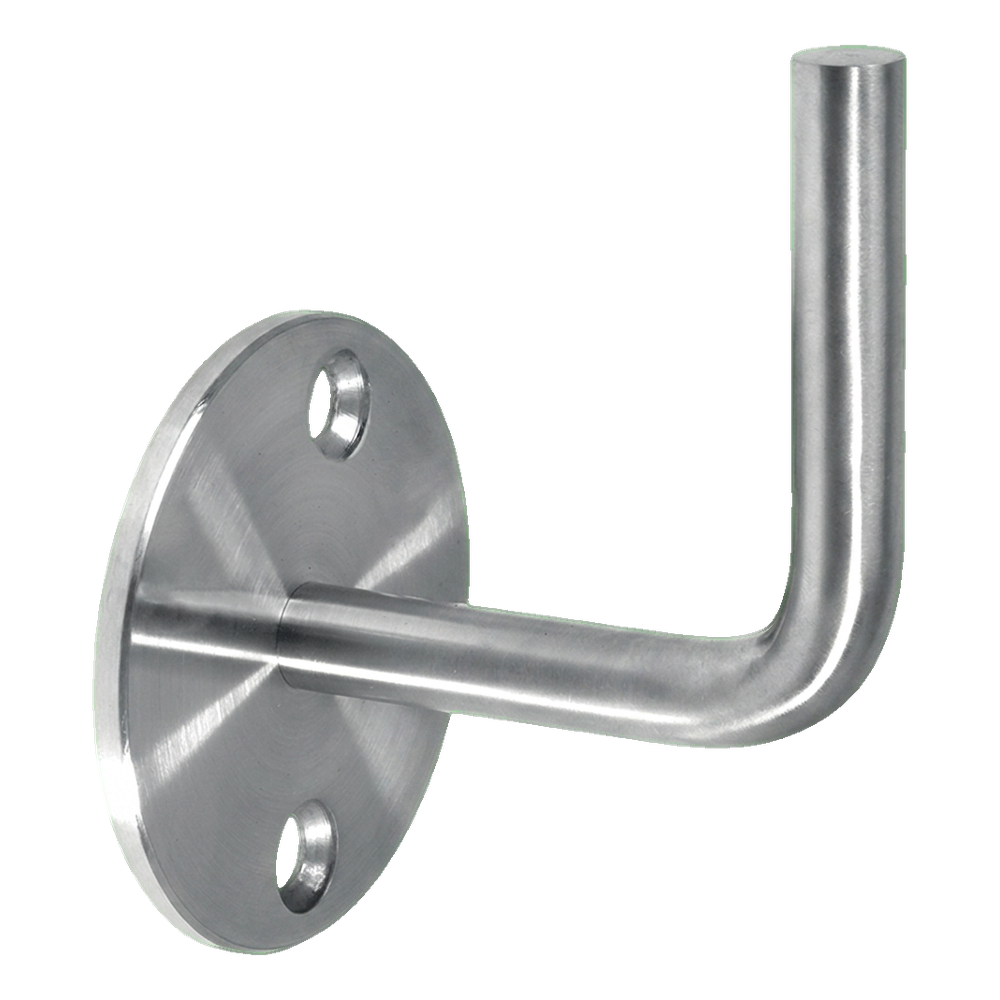

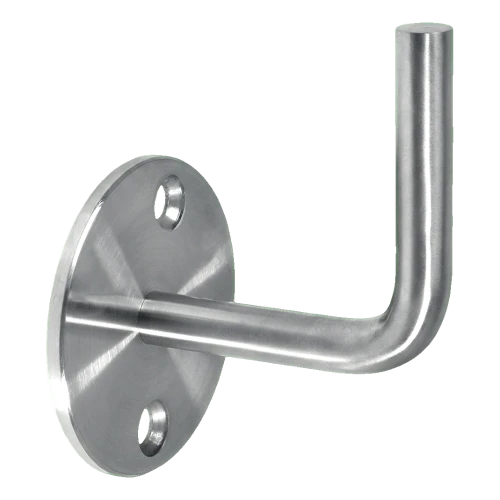

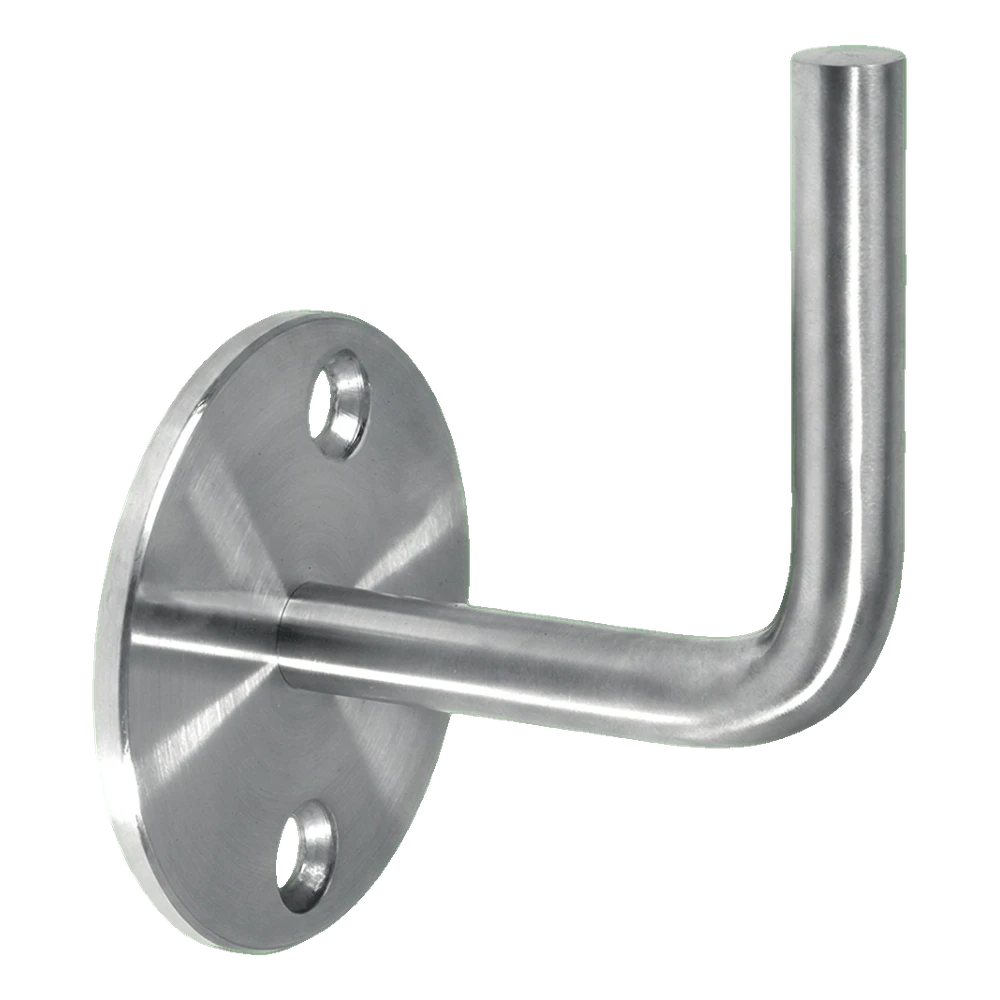

Wall-mounted handrail bracket for welding ø 70/12 mm – AISI 304 stainless steel satin finish
Wall-mounted handrail bracket for welding ø 70/12 mm is a solid mounting element designed for installing balustrades and handrails on walls. Made from AISI 304 stainless steel with a satin finish, it ensures high aesthetics and long-lasting durability even in demanding operating conditions. The simple, functional shape and precision craftsmanship make it perfectly suited for modern residential, office and public utility projects.
The bracket is mounted to the wall using two mounting holes in the circular rosette, and the handrail is fixed by welding to the vertical arm rod. This solution guarantees maximum rigidity and stability of the entire balustrade construction, which is crucial for user safety.

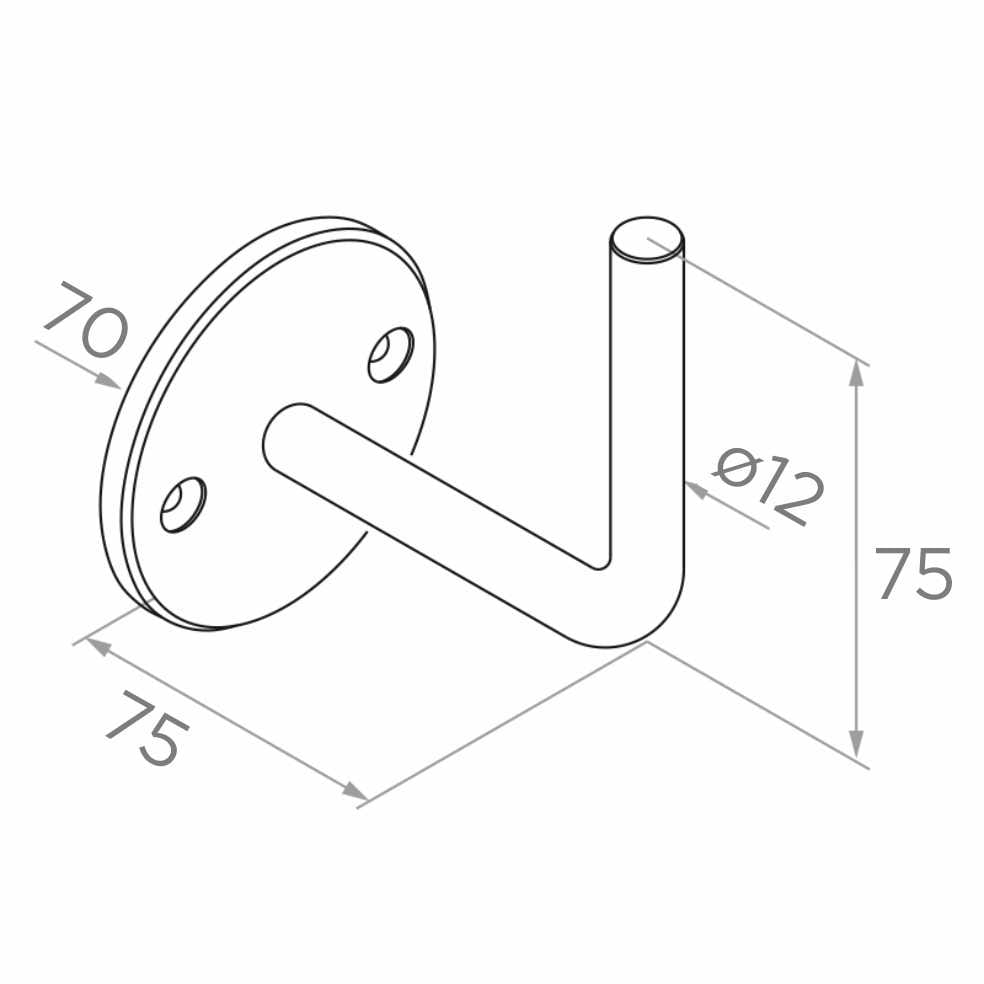

Dimensions and technical parameters
- Mounting rosette diameter: 70 mm
- Arm rod diameter: ø12 mm
- Projection from wall (depth): 75 mm
- Arm height: 75 mm
- Number of mounting holes: 2
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting type: for welding
- Weight: 0.25 kg
- EAN: 5901289671637
Ease of maintenance and care
AISI 304 stainless steel is extremely easy to keep clean — most daily dirt can be removed with a dry, soft microfibre cloth. For greasy stains, simply use a dedicated stainless steel cleaning agent. The satin finish effectively masks minor scratches and fingerprints, ensuring that balustrades maintain their aesthetic appearance for years.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
