Wall-mounted handrail bracket for balustrade ø 42.4 mm – stainless steel AISI 304 satin
Leave feedback on the product
Wall-mounted handrail bracket for balustrade ø 42.4 mm made from stainless steel AISI 304, satin finish. Mounting rosette Ø70 mm, depth 70 mm, height 70 mm. Support arm Ø12 mm, 2 mounting holes. Weight 0.28 kg.
Product code: 001-014
Product features
[PIM] uchwyty-scienne-poreczy #158
- Material AISI 304
- Finish Satin
- Mounting System 42.4 mm
Description
Wall-mounted handrail bracket for balustrade ø 42.4 mm – stainless steel AISI 304 satin
Wall-mounted handrail bracket designed for mounting circular handrails with a diameter of 42.4 mm directly to the wall. Solid construction made from stainless steel AISI 304 in satin finish ensures years of durability and corrosion resistance — an ideal element for internal and external balustrades in residential, office and public utility buildings.

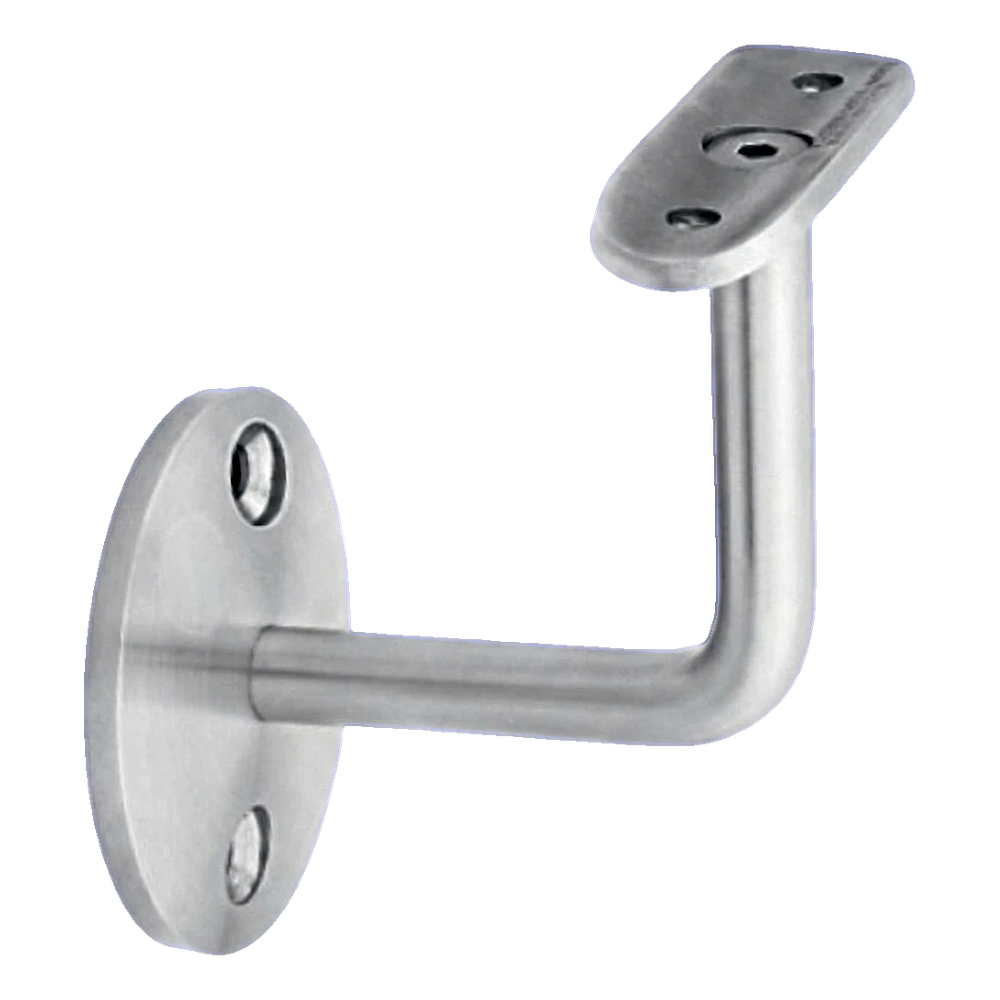

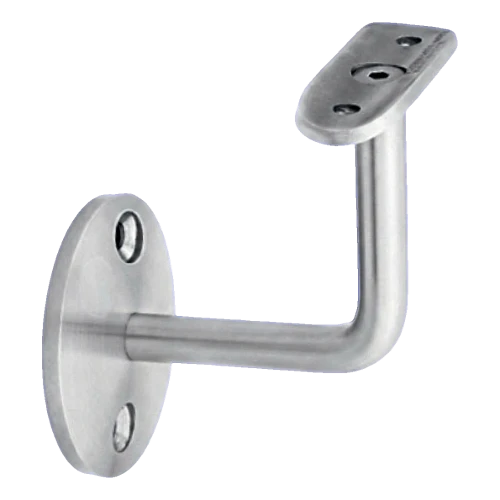

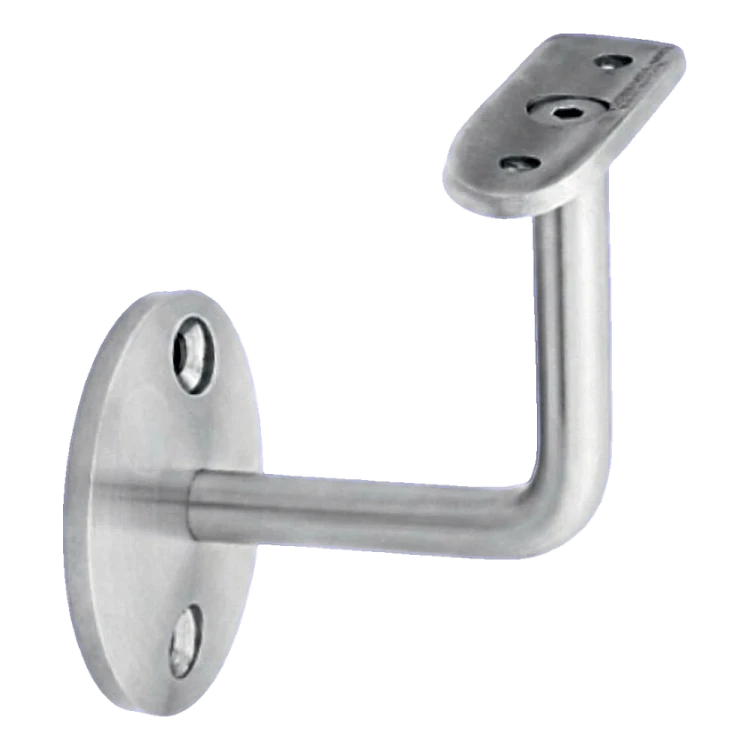

The bracket consists of a circular mounting rosette fixed to the wall using two mounting holes, an L-shaped support arm and a profiled saddle adapted to the curvature of the handrail tube. The whole assembly creates a rigid and stable construction that guarantees safe use of the balustrade.

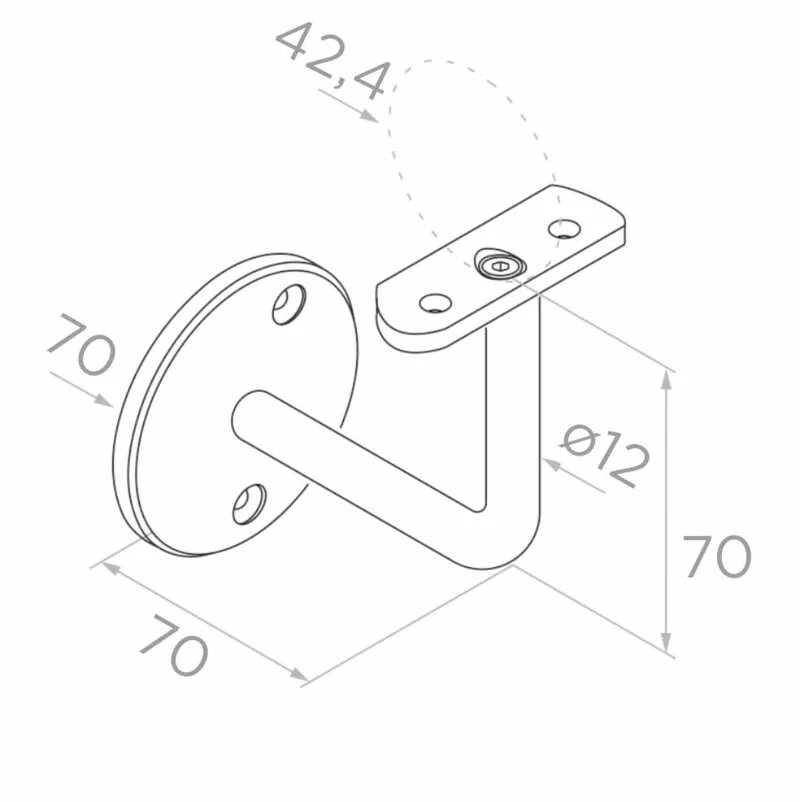

Dimensions and technical data
- Handrail diameter: 42.4 mm
- Mounting rosette diameter: 70 mm
- Depth (distance from wall): 70 mm
- Height: 70 mm
- Support arm diameter: Ø12 mm
- Mounting holes: 2 pcs.
- Material: stainless steel AISI 304
- Finish: satin
- Weight: 0.28 kg
- EAN: 5901289671606
Easy maintenance
The satin surface of stainless steel is easy to keep clean. Most dirt can be removed with a dry, soft microfibre cloth. For greasy stains, it is recommended to use a special stainless steel cleaning agent.
