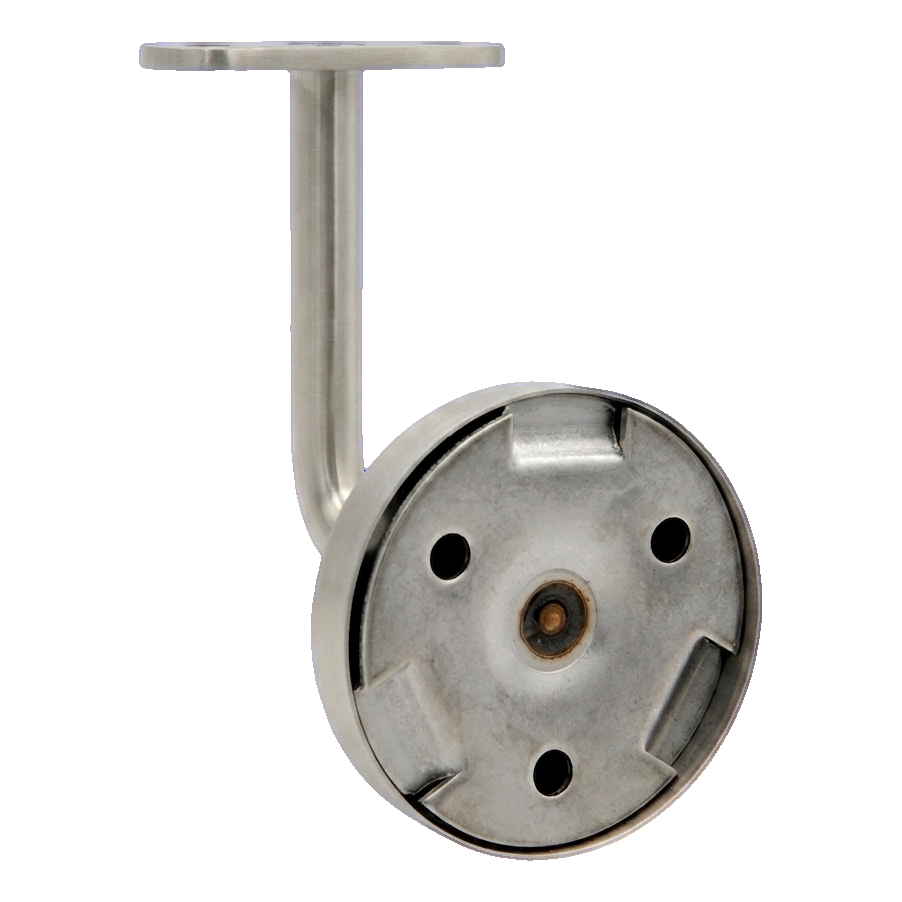

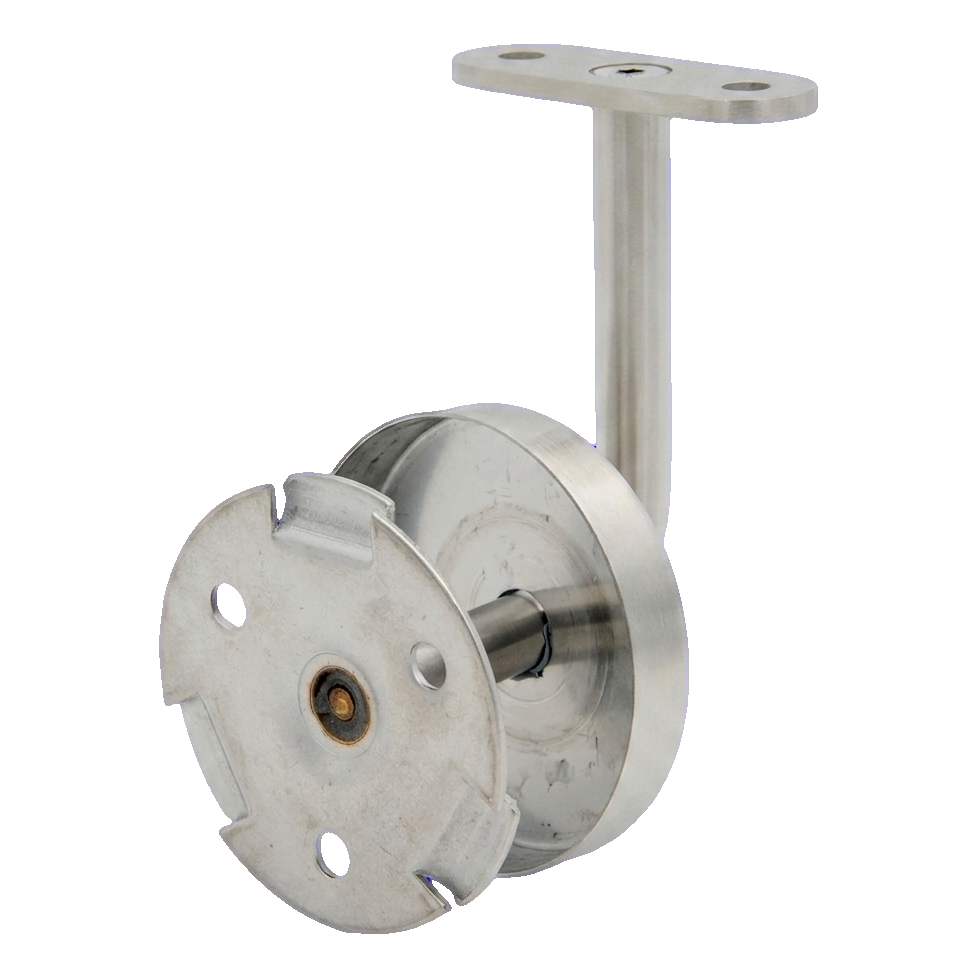

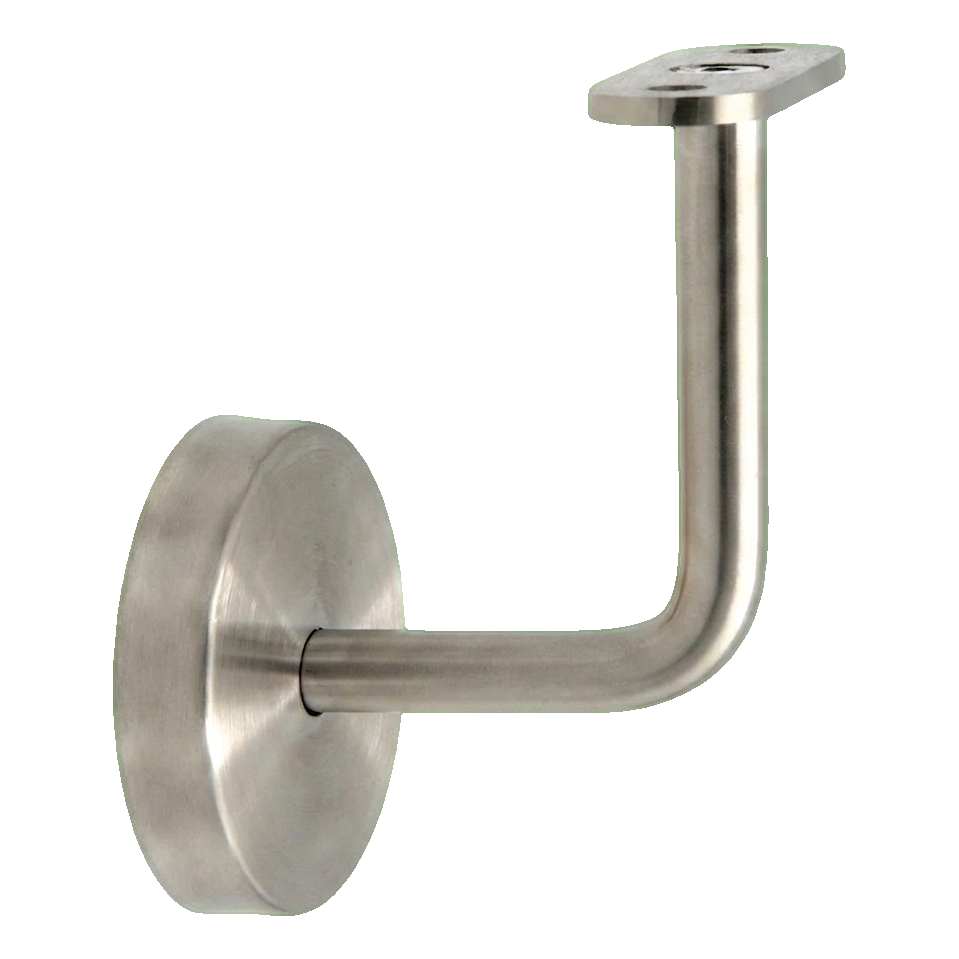

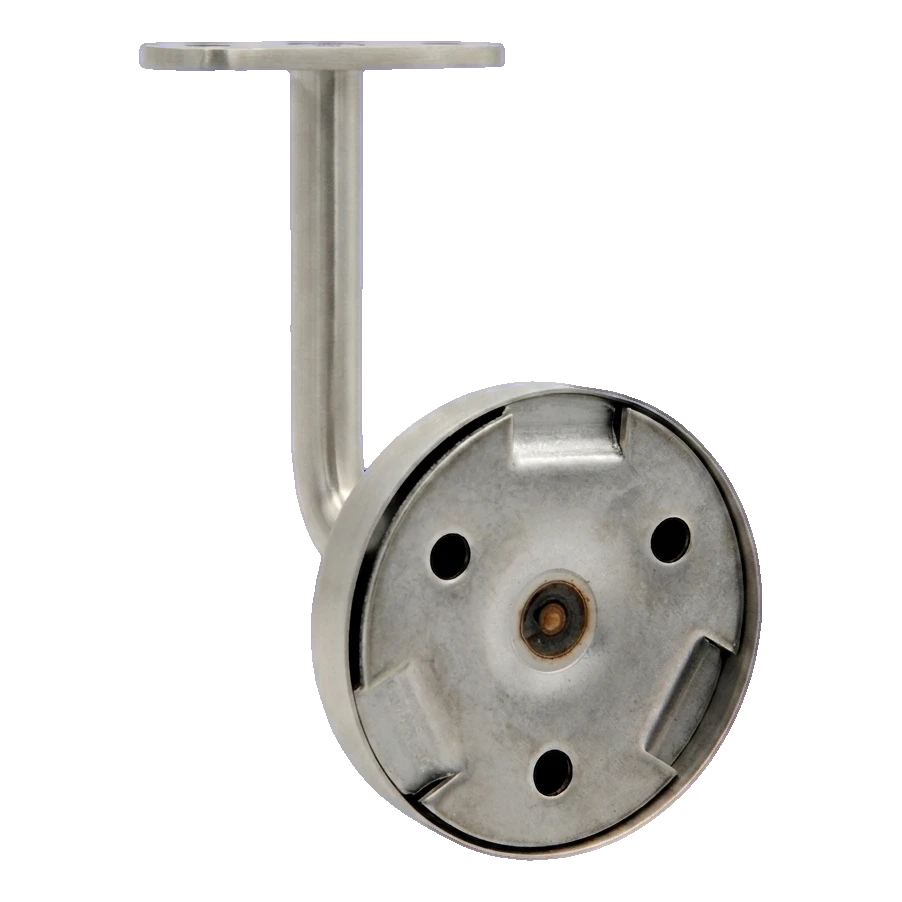

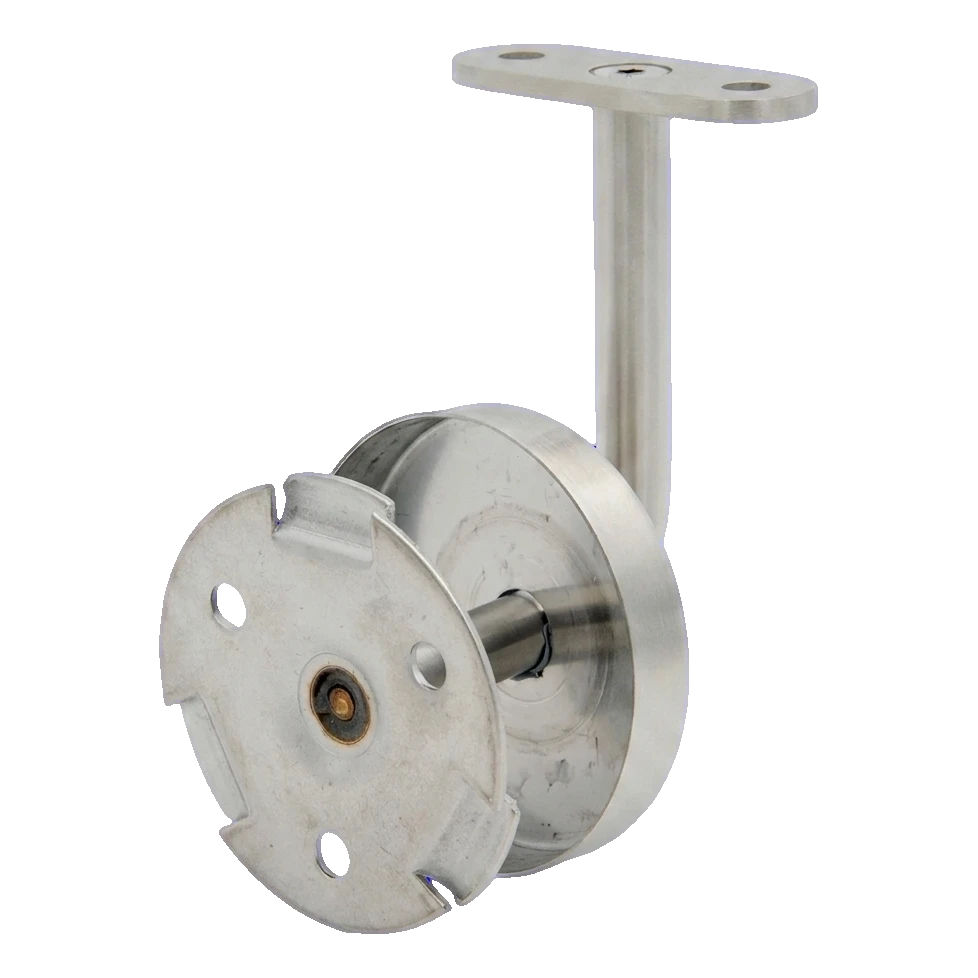

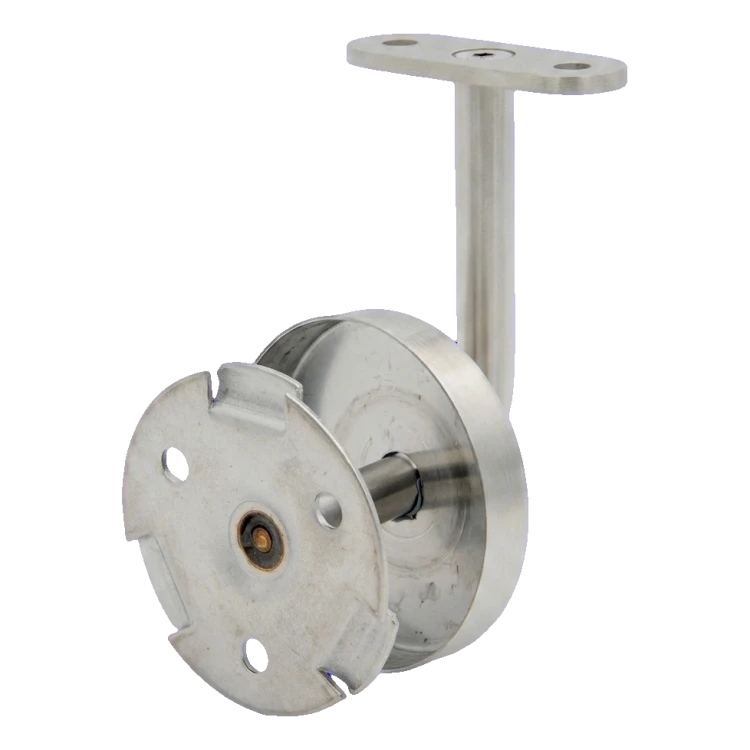

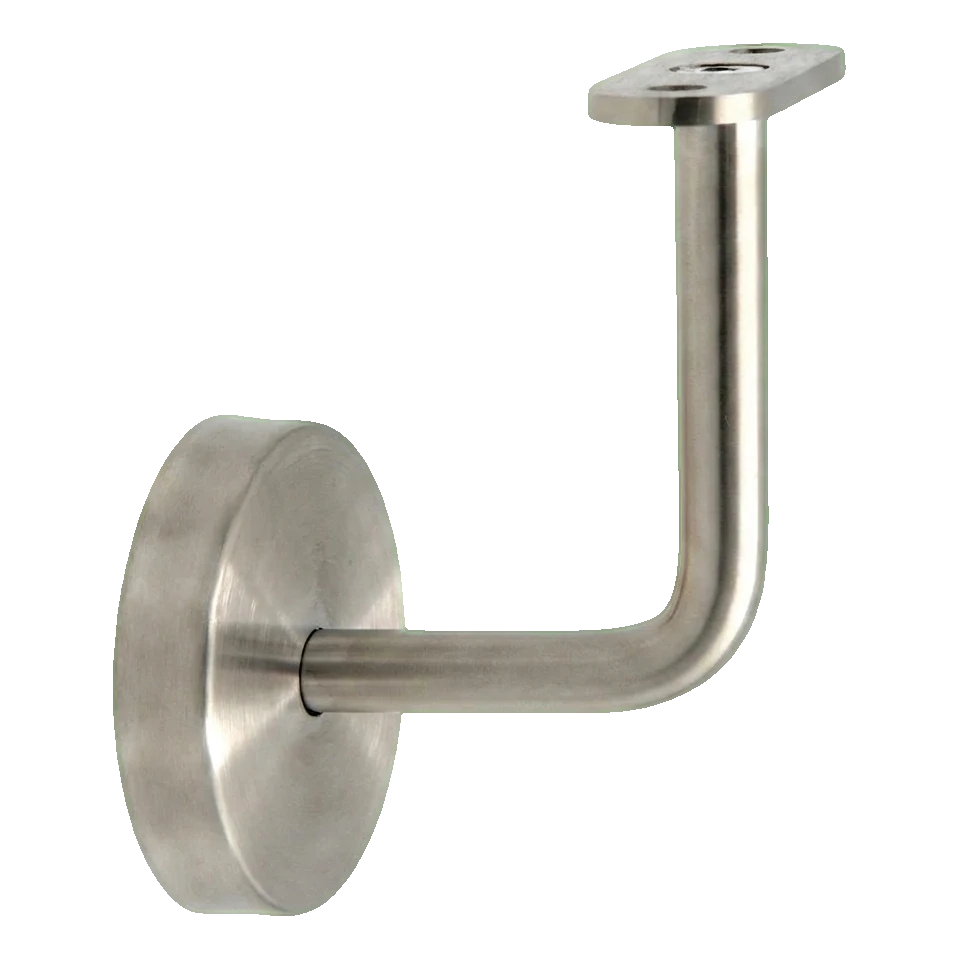

Wall handrail mounting bracket with cover plate AISI 304 – for flat surfaces, Ø 70 mm, satin finish
0
Description
Wall handrail mounting bracket with cover plate AISI 304 – for flat surfaces, Ø 70 mm, satin finish
Flat handrail mounting bracket with cover plate made of AISI 304 stainless steel designed for wall mounting. The product combines material durability with elegant satin finish — it works perfectly in modern stairwell arrangements, balustrades and handrails in public buildings, offices and residential properties.
The cover plate with a diameter of 70 mm effectively conceals mounting holes in the wall, ensuring an aesthetic final result. Three mounting holes in the wall plate guarantee stable and secure fixing, which positively affects the safety of the entire balustrade structure.

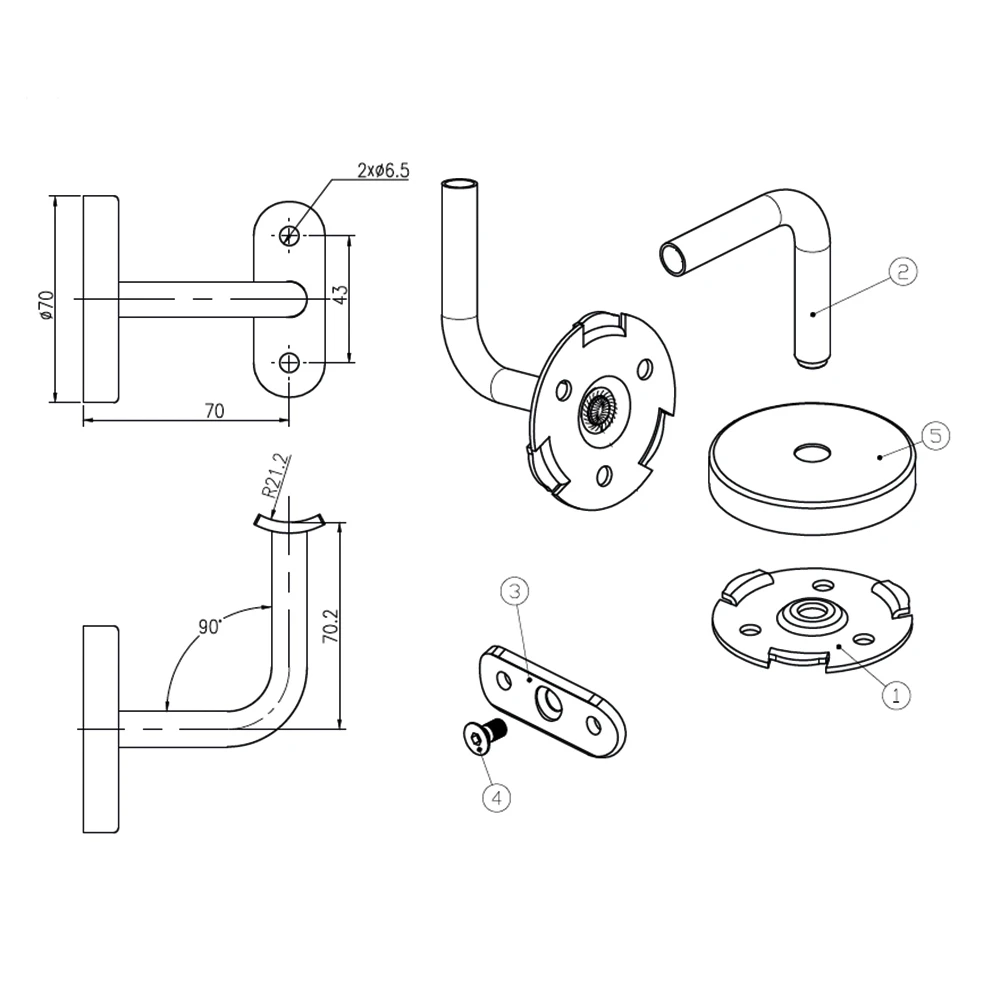

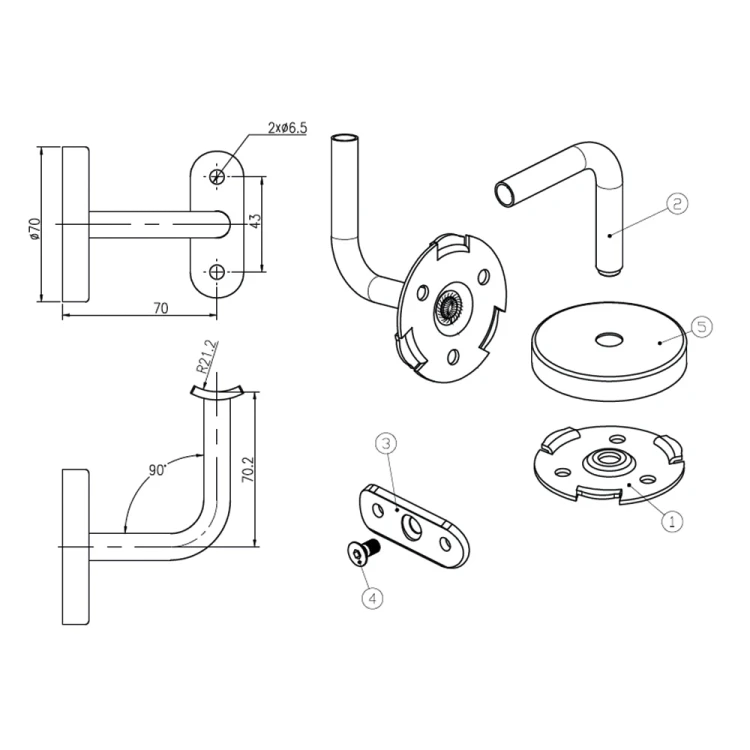

Construction and component parts
The mounting bracket consists of five precisely matched elements:
- Wall mounting plate with three holes
- Bent arm (tube) at 90° angle
- Handrail fixing plate (saddle) with two Ø6.5 mm holes at 43 mm spacing
- Countersunk head screw
- Wall cover plate Ø70 mm
Dimensions and technical parameters
- Material: AISI 304 stainless steel
- Finish: satin
- System: for flat surfaces
- Mounting: wall-mounted
- Cover plate diameter: Ø70 mm
- Rod diameter: 12 mm
- Wall offset: 70 mm
- Height: 70.2 mm
- Arm bend radius: R21.2 mm
- Arm bend angle: 90°
- Mounting hole diameter in saddle: 2× Ø6.5 mm
- Hole spacing in saddle: 43 mm
- Plate mounting thread: M6
- Number of mounting holes (wall): 3
- Weight: 0.26 kg
- EAN: 5903313206563
Installation and maintenance
Three mounting holes in the wall plate ensure quick and precise installation. The handrail fixing plate (saddle) enables secure mounting of handrails with flat cross-section. The wall cover plate fits over the plate, concealing the fixing points and giving the installation a professional appearance.
Maintenance is kept to a minimum — most dirt can be removed with a dry, soft microfibre cloth. For greasy stains, simply use a special stainless steel cleaning agent.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
