Wall bracket for square handrail 70x40 mm – stainless steel AISI 304 satin
0
Description

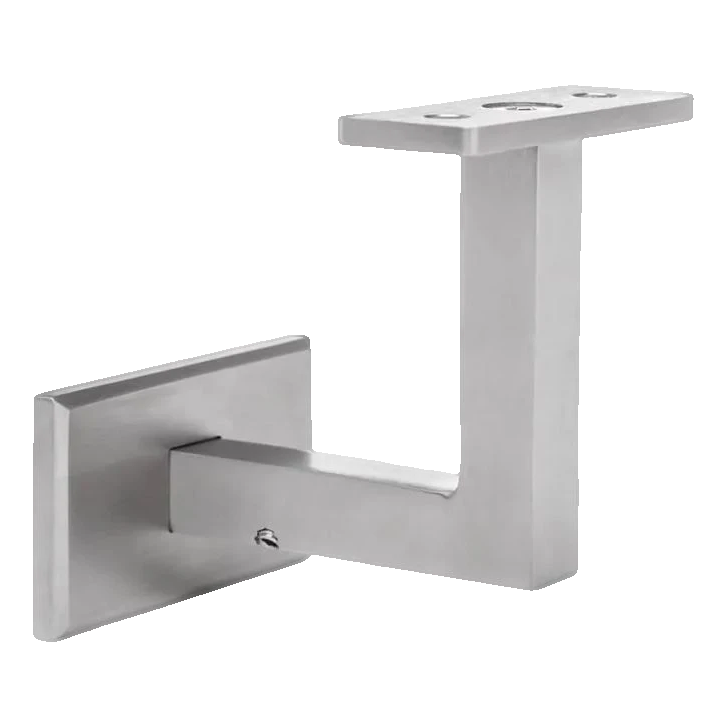

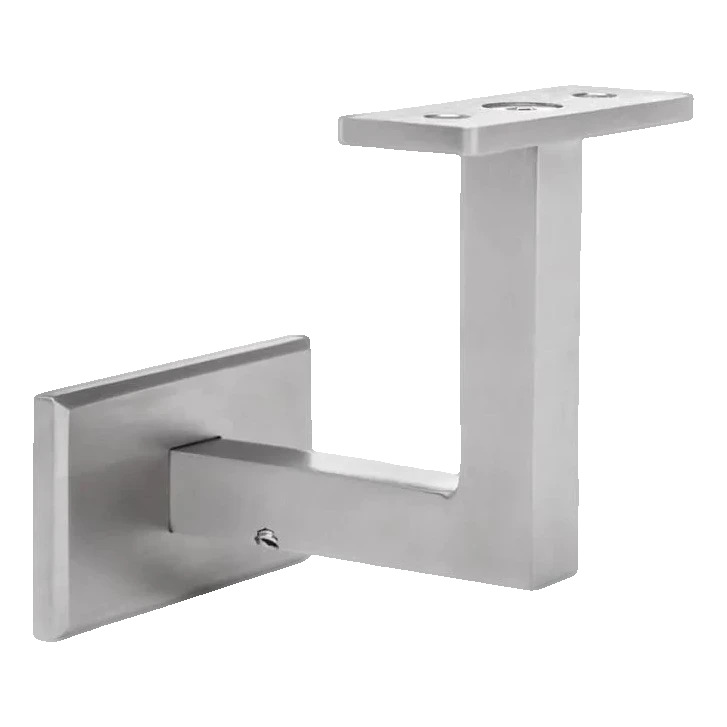

Wall bracket for square handrail 70x40 mm – stainless steel AISI 304 satin
Square handrail bracket designed for wall mounting — a solid and aesthetic solution for mounting flat handrails in balustrade systems. Made of AISI 304 stainless steel with satin finish, ensuring high corrosion resistance and elegant, modern appearance. The square profile of the arm with 14×14 mm cross-section and geometric rosette form give the whole a minimalist character, perfectly matching contemporary interior arrangements and commercial spaces.
The L-shaped construction consists of a flat wall rosette, rigid square arm and upper mounting plate with one hole for screwing the handrail. Thanks to compact dimensions and thoughtful geometry, the bracket is easy to install and requires no specialist tools — a standard set of wall screws is sufficient.

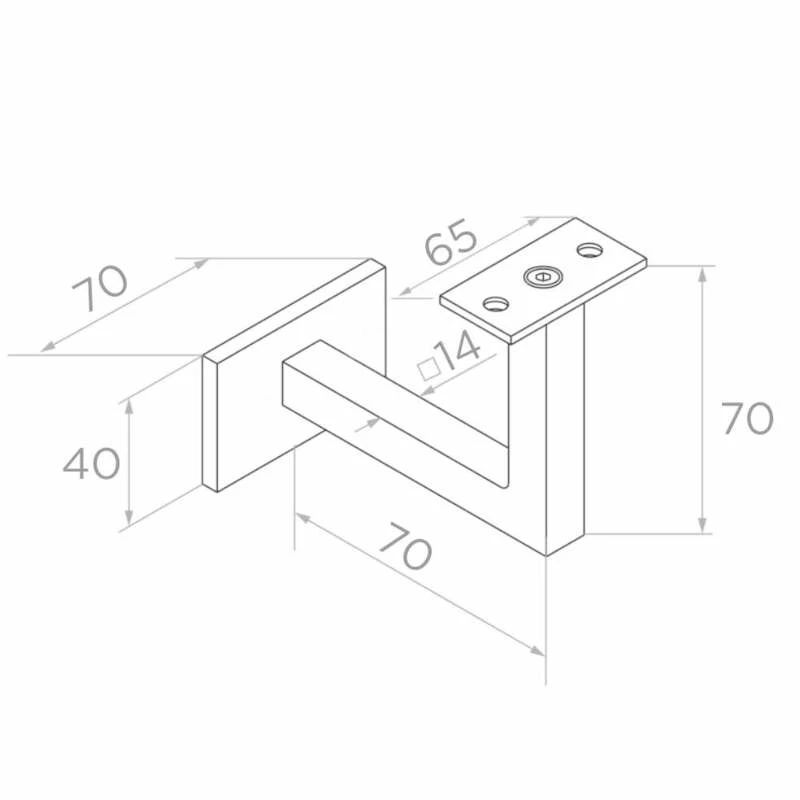

Dimensions and technical data
- Wall rosette: 70 × 40 mm
- Projection (distance from wall): 70 mm
- Arm height: 70 mm
- Arm cross-section: □14 mm (square profile 14×14 mm)
- Upper mounting plate: 65 mm length
- Mounting holes: 1 hole in upper plate
- Material: stainless steel AISI 304
- Finish: satin
- System: flat
- Weight: 0.35 kg
Application
The bracket is intended for mounting flat (square) handrails to masonry, concrete and plasterboard walls (with appropriate anchors). It is ideal for internal balustrade systems — on staircases, at steps, on mezzanines and in public buildings. The satin finish of AISI 304 stainless steel guarantees durability and ease of maintenance, whilst the minimalist form perfectly complements modern balustrades made of glass or steel.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
