Wall bracket for handrail balustrade Ø60/14 mm – AISI 304 stainless steel satin
0
Description

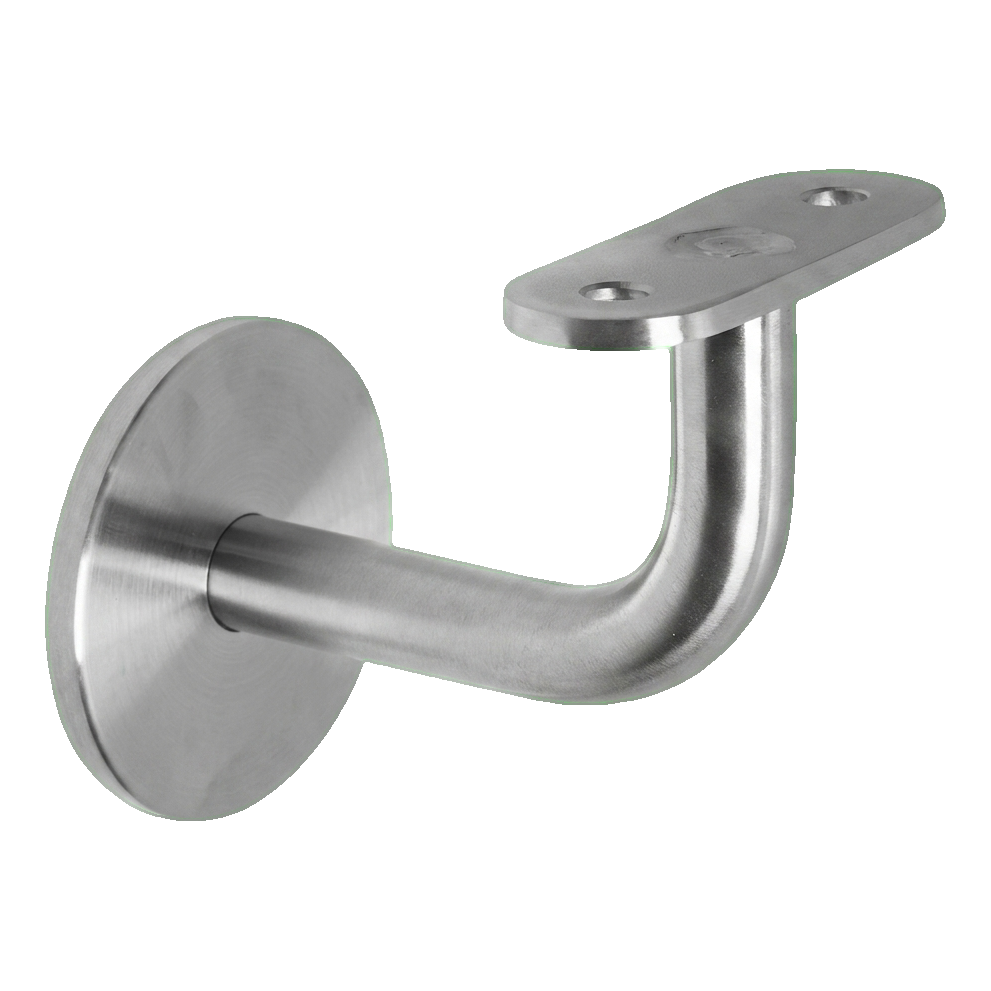

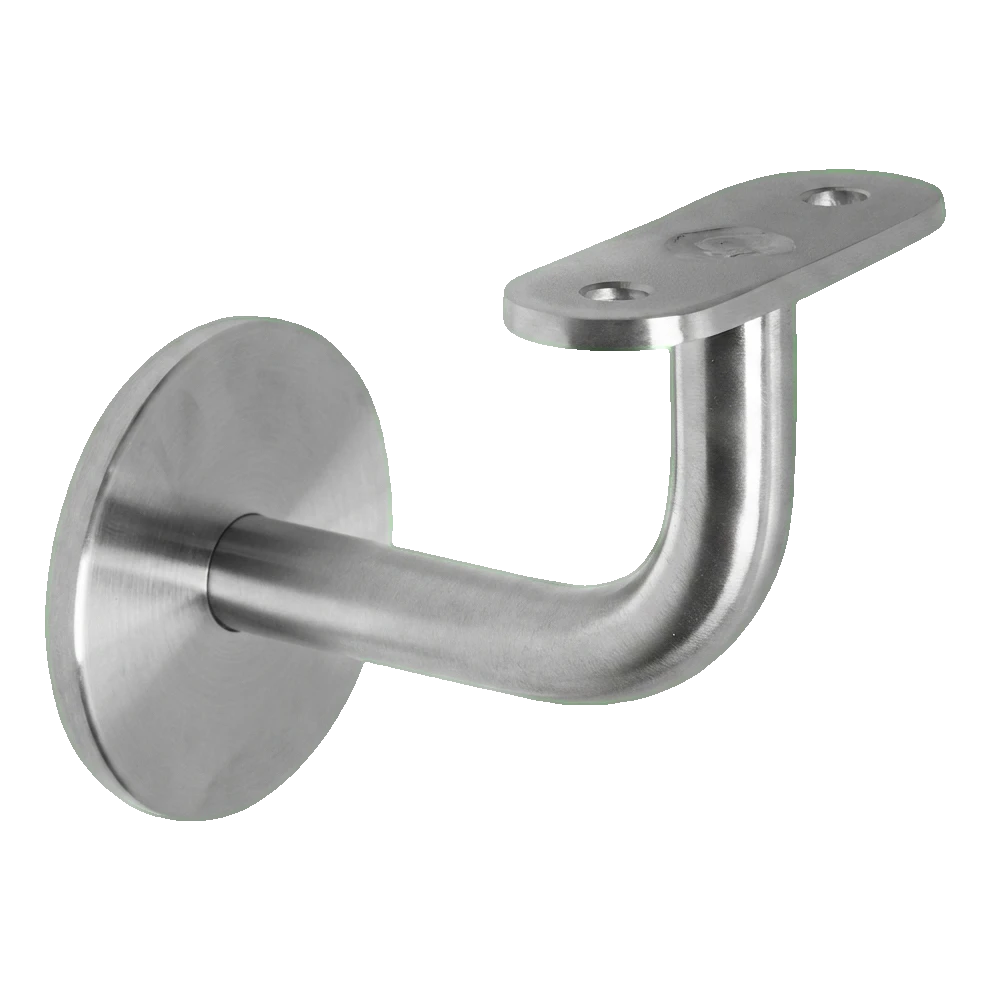

Wall bracket for handrail balustrade Ø60/14 mm – AISI 304 stainless steel satin
Wall bracket for handrail designed for mounting flat handrails of steel balustrades to walls. Made from high-quality AISI 304 stainless steel with satin finish, ensuring an aesthetic, modern appearance and years of durability. Thanks to its solid construction, it guarantees stable and safe handrail support — particularly effective when installing stair balustrades where adjustment of the handrail angle is necessary.
The bracket consists of a round wall rosette, curved support rod with diameter Ø14 mm and a flat mounting plate with holes to facilitate screwing on the handrail. The mounting plate is included in the set. Wall mounting is carried out using an M8 screw (screw not included in the set).
AISI 304 stainless steel is a material intended for internal use. Maintenance is simple — most dirt can be removed with a dry, soft microfibre cloth, and greasy stains with a special stainless steel cleaning agent.

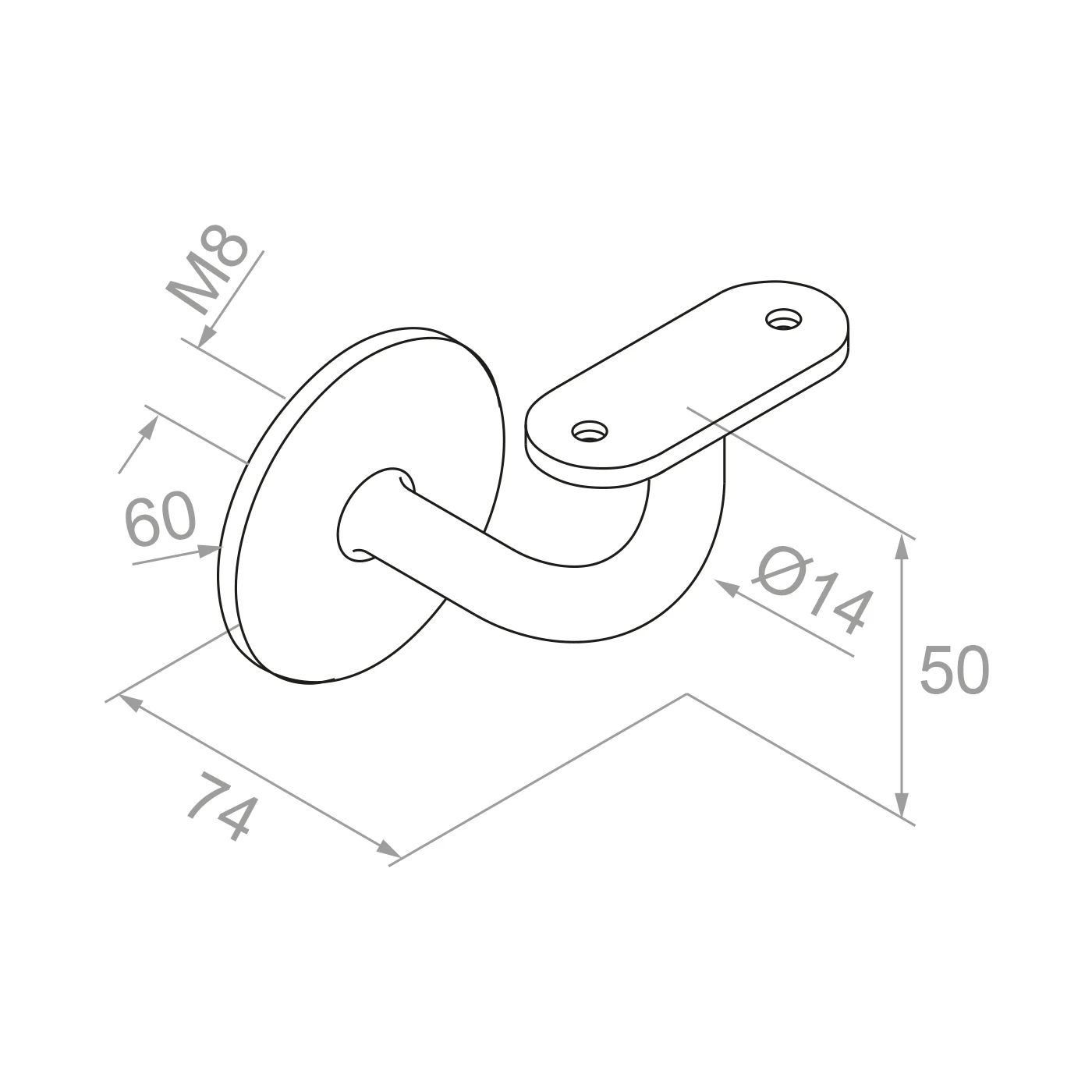

Dimensions and technical data
- Material: AISI 304 stainless steel
- Finish: satin
- Type: for flat surfaces
- Wall rosette diameter: 60 mm
- Support rod diameter: Ø14 mm
- Depth (distance from wall): 74 mm
- Height: 50 mm
- Wall mounting: M8 screw (not included)
- Number of mounting holes in rosette: 1
- Weight: 0.275 kg
- EAN: 5901289671668
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
