Wall bracket for handrail ø 42.4 mm – stainless steel AISI 304 polished
0
Description
Wall bracket for handrail ø 42.4 mm – stainless steel AISI 304 polished
Wall bracket for handrail ø 42.4 mm is a solid mounting element designed for fixing handrails with tube diameter 42.4 mm directly to the wall. The product is ideal for stair and balcony balustrade constructions, providing stable handrail support and an aesthetic, modern appearance. Made from high-quality stainless steel AISI 304 in polished finish — guarantees durability, corrosion resistance and easy maintenance.

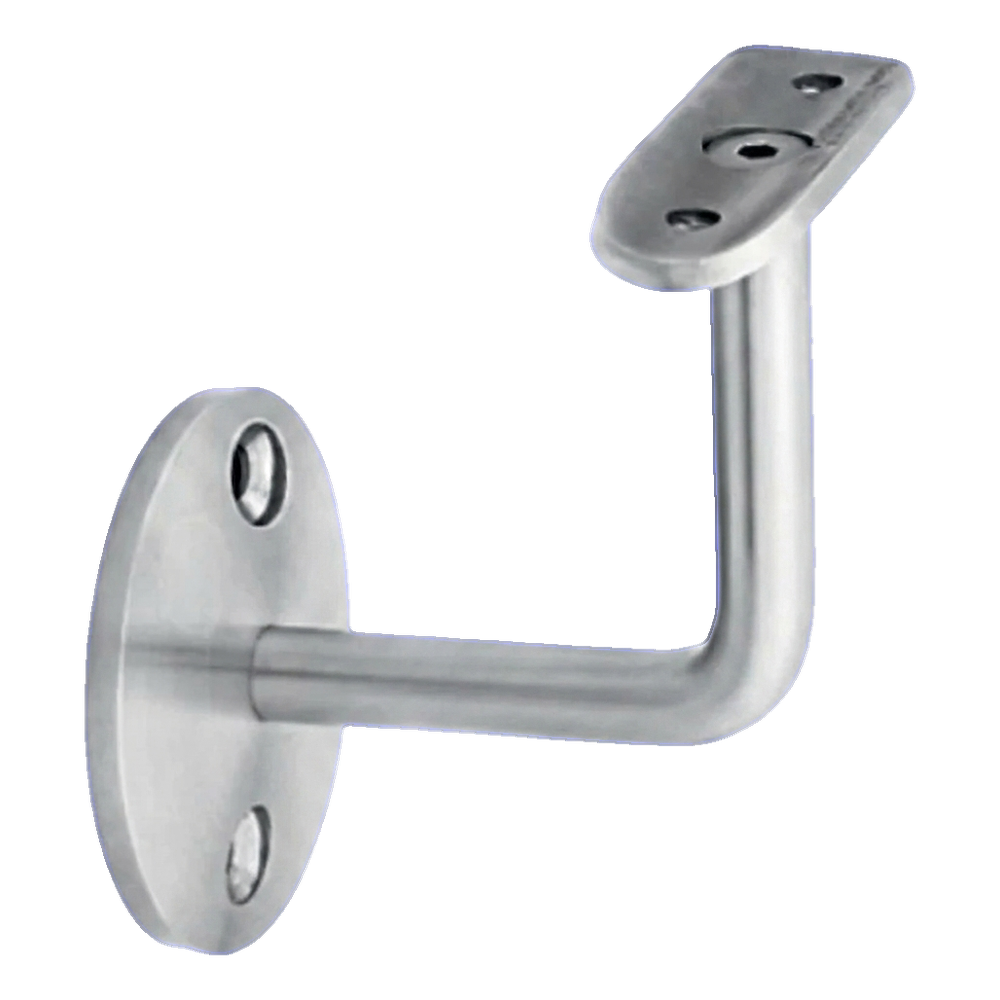

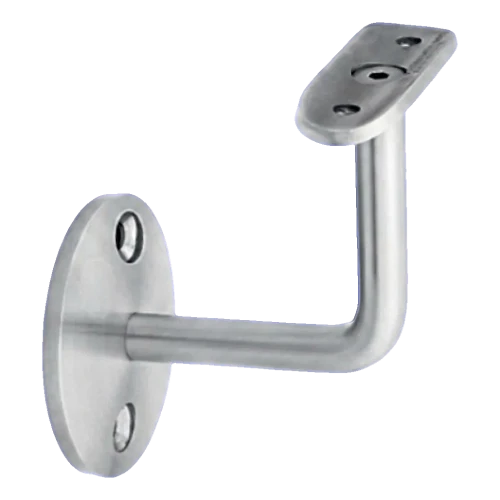

The bracket consists of a round mounting rosette with two fixing holes, an L-shaped arm made from ø12 mm rod and a saddle (plate with mounting holes) that supports the handrail. The construction ensures stable and safe support, whilst the polished surface gives balustrades an elegant, professional character.
Benefits for the installer
- Quick installation — two mounting holes in the wall rosette enable efficient fixing to the wall
- Saddle with holes — handrail support plate with mounting holes facilitates stable tube positioning
- High durability — stainless steel AISI 304 provides corrosion resistance and long-term operation without loss of aesthetics
- Easy maintenance — polished surface allows dirt removal with a soft microfibre cloth, and greasy stains with dedicated stainless steel cleaner

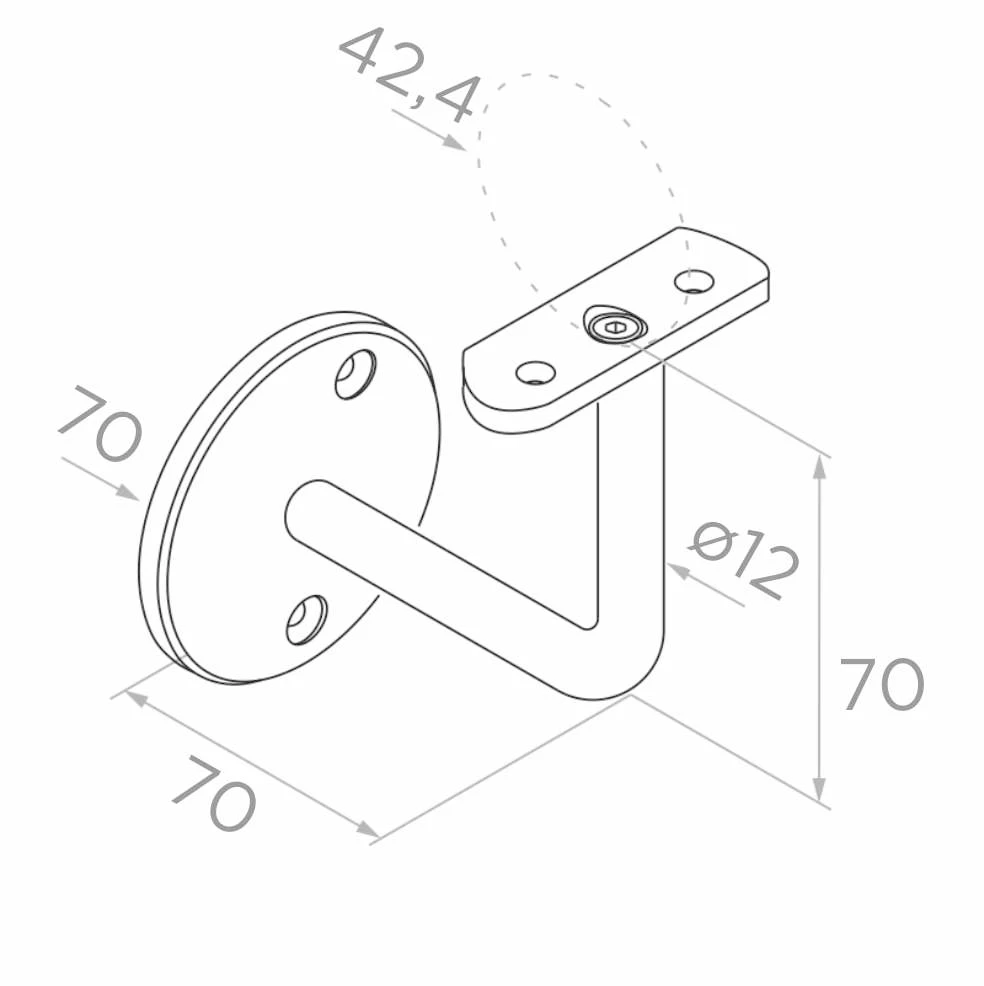

Dimensions and technical data
- Handrail diameter: 42.4 mm
- Wall rosette diameter: 70 mm
- Distance from wall (depth): 70 mm
- Bracket height: 70 mm
- Arm diameter (rod): ø12 mm
- Mounting holes in rosette: 2 pcs.
- Material: stainless steel AISI 304
- Finish: polished
- Weight: 0.29 kg
- System: 42.4 mm
The bracket is dedicated to the balustrade system based on tube diameter 42.4 mm — the most popular standard for stainless steel handrails. The ideal solution for installation companies carrying out balustrade installations in residential, office and public utility buildings.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
