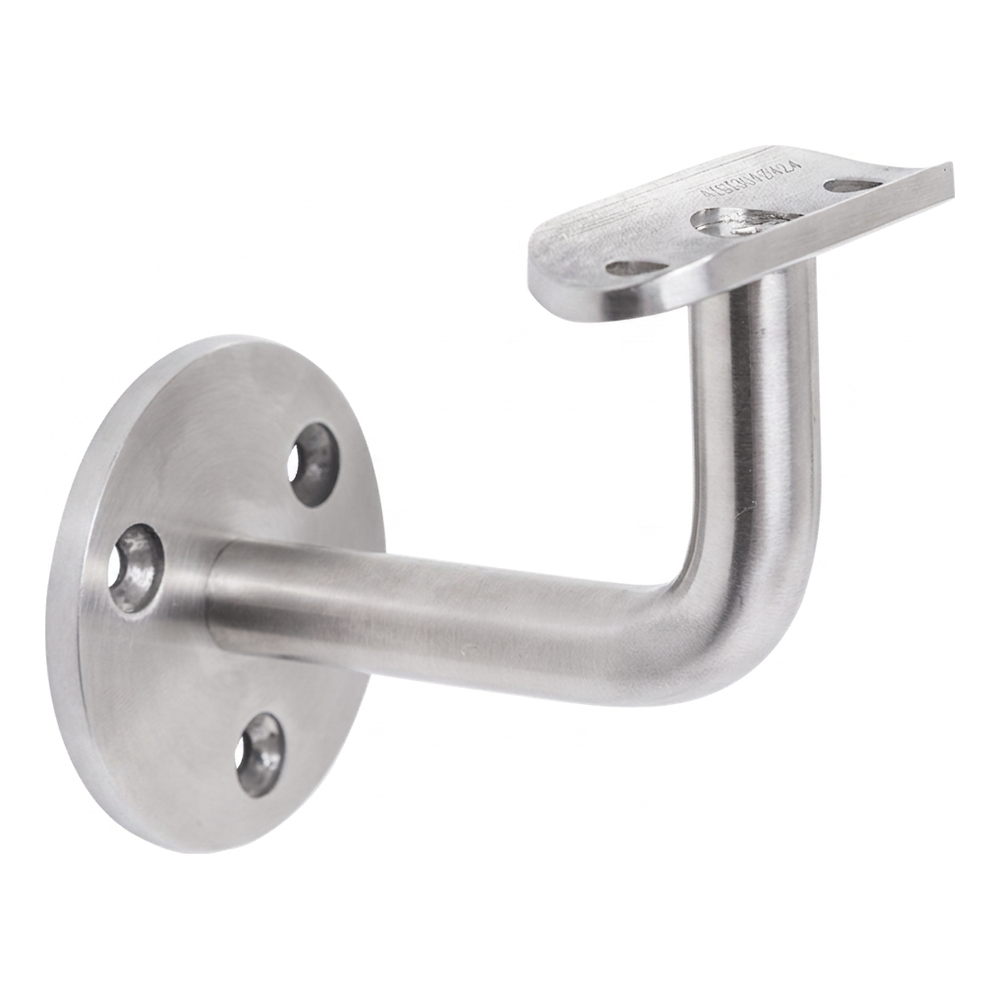

Wall bracket for handrail ø 42.4 mm – AISI 304 stainless steel satin
0
Description
Wall bracket for handrail ø 42.4 mm – AISI 304 stainless steel satin
Wall bracket for handrail with diameter 42.4 mm designed for mounting balustrades and handrails directly to the wall. Made of stainless steel AISI 304 with satin finish, provides solid and aesthetic fixing of balustrade structures in residential, office and public buildings.
The bracket construction consists of a round mounting plate with three holes for wall fixing, a support rod with diameter 14 mm and a flat top plate with holes for screwing the handrail. This arrangement guarantees stable load transfer and secure handrail retention even with intensive use. The satin surface of stainless steel gives the element a modern, discreet appearance that perfectly complements popular stainless steel balustrade systems.
Technical specification
- Handrail diameter: 42.4 mm
- Mounting circle diameter (wall plate): ø 60 mm
- Support rod diameter: ø 14 mm
- Number of mounting holes: 3
- Material: AISI 304 stainless steel
- Surface finish: satin
- Purpose: wall mounting
- Application: internal
- Weight: 0.26 kg
- EAN: 5903313203852
Installer advantages
- Long-term durability — AISI 304 steel is corrosion-resistant and maintains aesthetic appearance for years without maintenance requirements
- Solid structural support — massive ø 14 mm rod and three-point wall mounting ensure stability and safety of the balustrade
- Easy cleaning maintenance — satin surface does not collect fingerprints; dirt can be removed with a dry microfibre cloth or special stainless steel cleaner
- Compatibility with 42.4 mm system — standard handrail dimension used in the most popular stainless steel balustrade systems
The bracket is ready for installation — simply place the plate against the wall, mark the holes, drill and screw in. Thanks to three mounting points, the element holds securely even on walls made of hollow blocks or cellular concrete (when using appropriate expansion plugs). Simple and quick installation allows efficient completion of successive projects without unnecessary downtime.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
