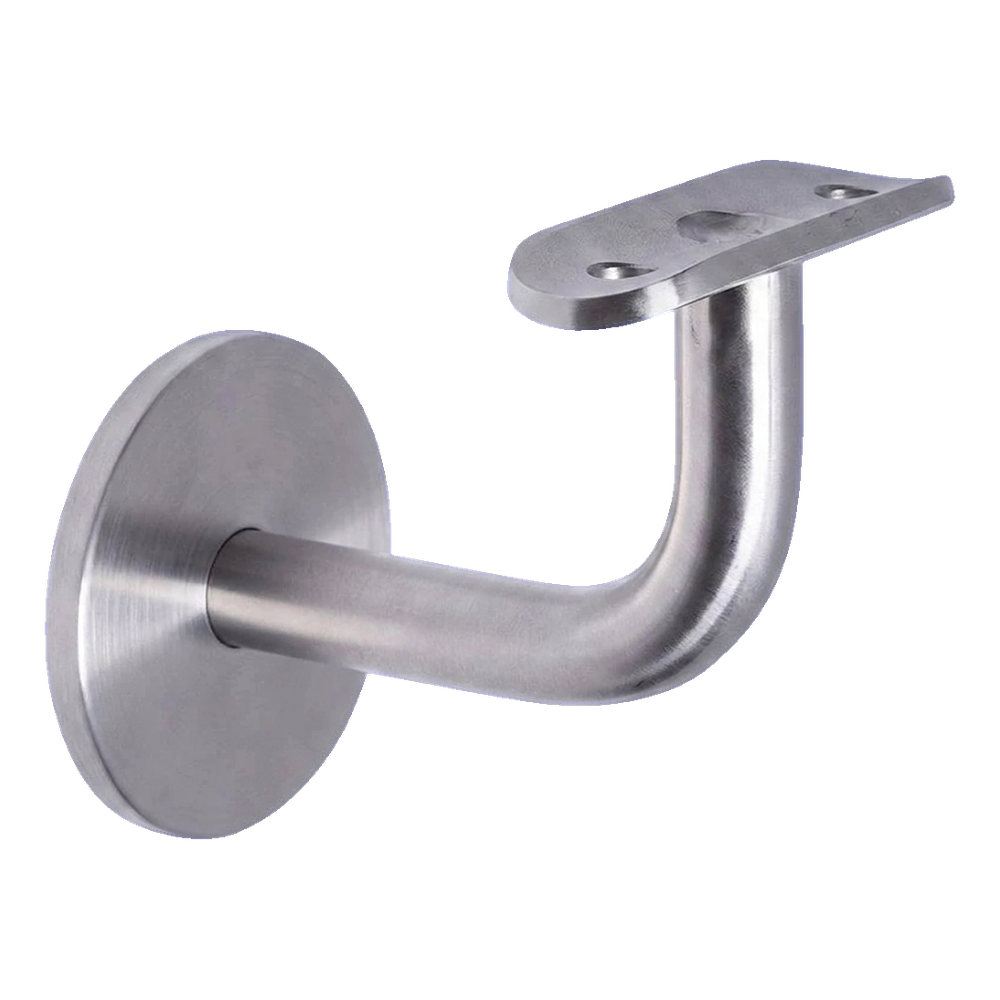

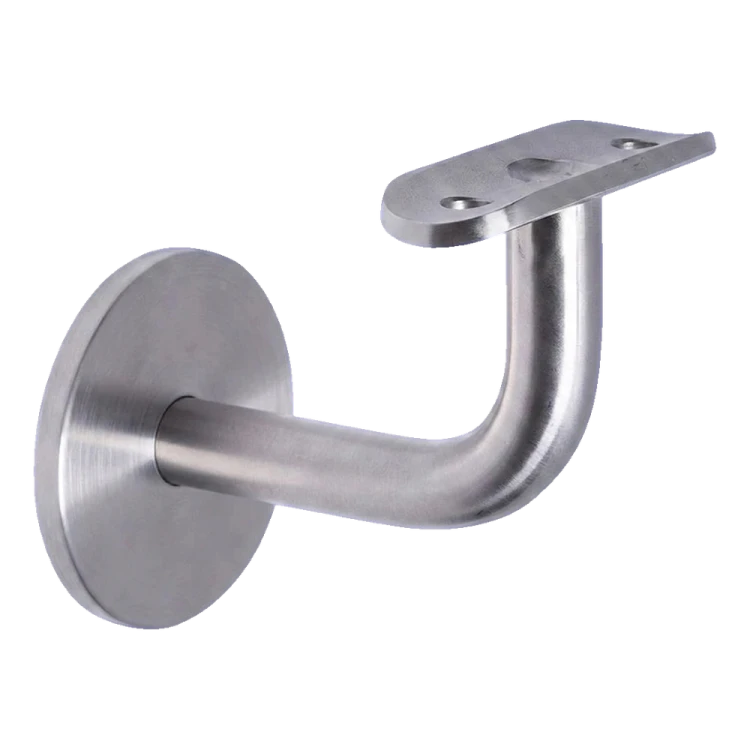

Wall bracket for balustrade handrail 42.4 mm – stainless steel AISI 304 satin

Go to Product feedback

Wall bracket for balustrade handrail made from stainless steel AISI 304 with satin finish. Handrail diameter 42.4 mm, wall rose 60 mm, projection 74 mm, height 50 mm. M8 thread, weight 0.275 kg. Adjustable angle of inclination.

Go to full description
with VAT without VAT
Price €5.79
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-scienne-poreczy #158

  • Material AISI 304
  • Finish Satin
  • Mounting System 42.4 mm

Description

Wall bracket for balustrade handrail 42.4 mm – stainless steel AISI 304 satin

Wall bracket for balustrade handrail 42.4 mm made from stainless steel AISI 304 with satin finish
Wall bracket for balustrade handrail 42.4 mm made from stainless steel AISI 304 with satin finish

Wall bracket for handrail 42.4 mm is a robust mounting element designed for securing steel balustrade handrails directly to the wall. Made from high-quality stainless steel AISI 304 with satin finish, it ensures long-term durability and aesthetic, modern appearance. Thanks to the adjustable handrail angle feature, it works perfectly for mounting stair balustrades — allowing you to adjust the handrail inclination to match the stair flight.

The bracket consists of a round rose mounted to the wall, a curved support arm and a mounting plate (saddle) that enables screwing on the handrail tube. The mounting plate with one mounting hole is included in the set. Mounting screws for the wall are not included in the kit — select them appropriately according to the substrate type (concrete, brick, plasterboard).

The satin finish of stainless steel makes it easy to maintain cleanliness — most dirt can be removed with a dry, soft microfibre cloth, and greasy stains with a dedicated stainless steel cleaning product.

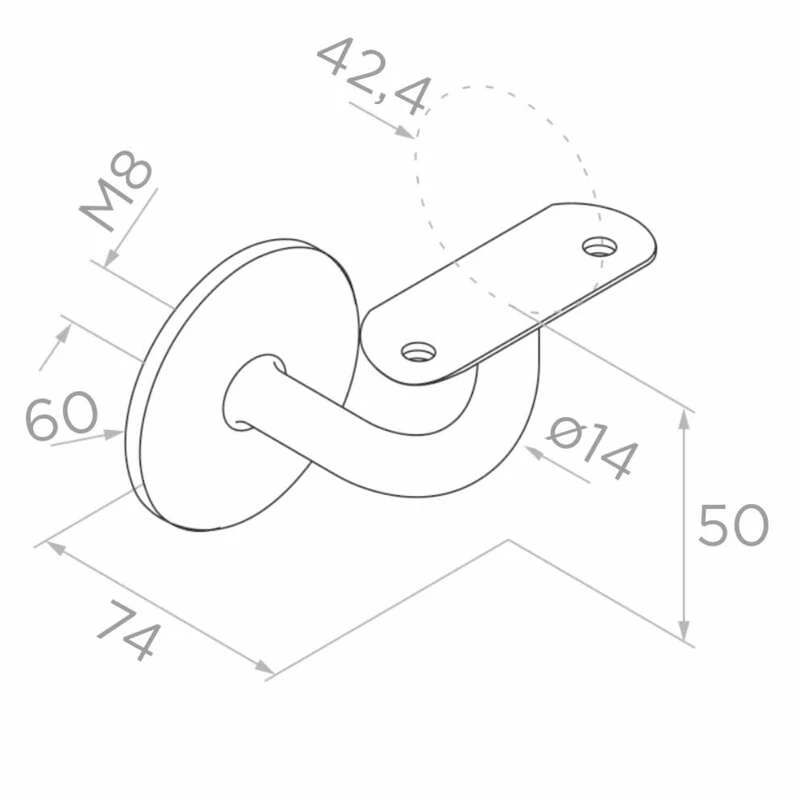

Dimensional drawing of wall bracket for handrail 42.4 mm with mounting dimension markings
Dimensional drawing of wall bracket for handrail 42.4 mm with mounting dimension markings

Dimensions and technical parameters

  • Handrail system: 42.4 mm
  • Wall rose diameter: 60 mm
  • Support arm diameter: 14 mm
  • Height (from rose axis to saddle): 50 mm
  • Projection from wall: 74 mm
  • Mounting thread: M8
  • Material: stainless steel AISI 304
  • Finish: satin
  • Mounting holes: 1
  • Weight: 0.275 kg
  • EAN: 5901289671651
