Vario Roof Hook Class 5-6-5 - 3x Adjustable Stainless Steel 1.4016 - 120mm - Reinforced
product unavailable
add to wish list
Description

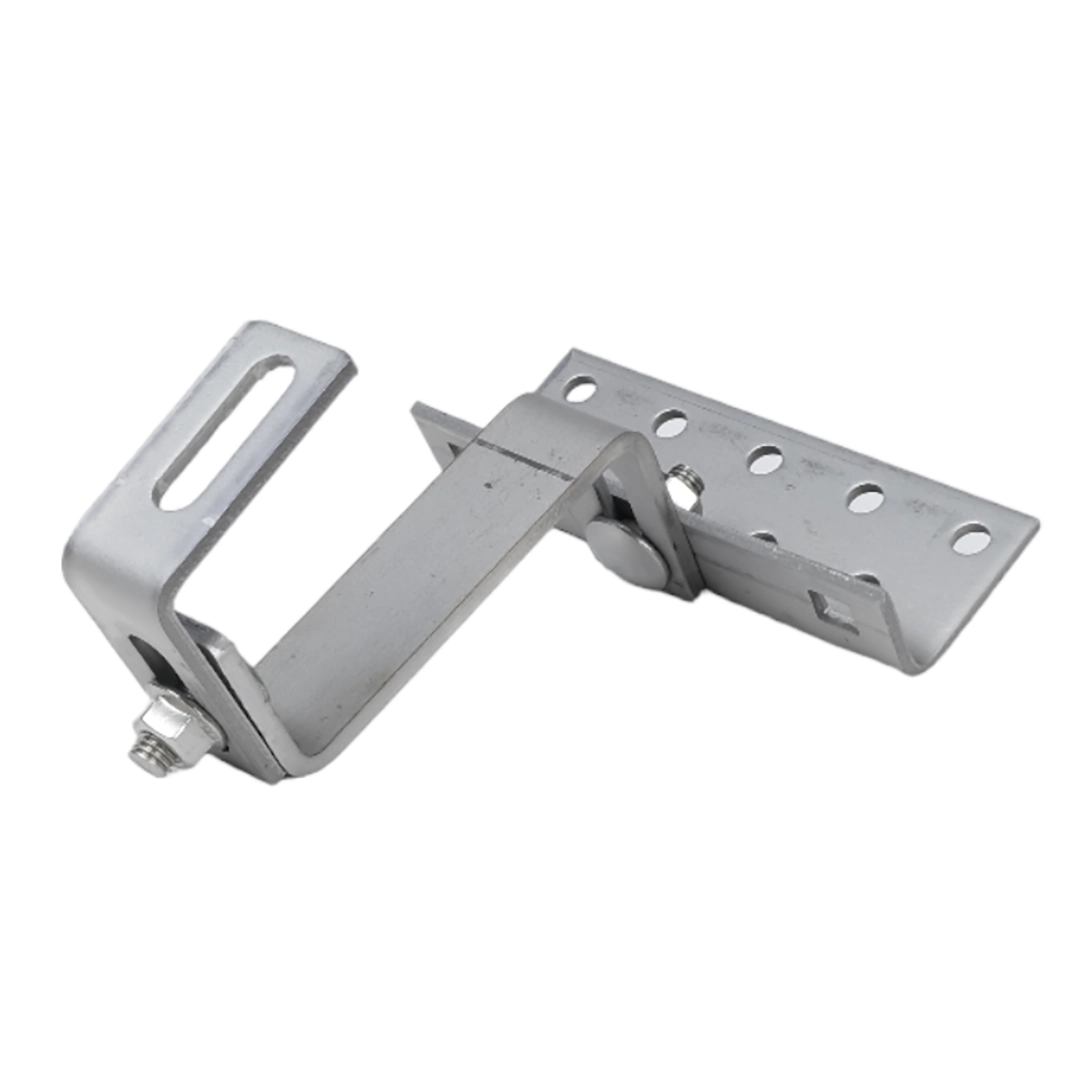

Vario Roof Hook Class 5-6-5 - 3x Adjustable Stainless Steel 1.4016 - 120 mm - Reinforced
Reinforced Vario Roof Hook Class 5-6-5, 3x Adjustable Stainless Steel 1.4016, 120mm for photovoltaic systems.
Vario roof hook for mounting profiles of photovoltaic systems on roofs covered with ceramic and concrete tiles. Ensures stability of the entire structure.
The vario hook class 5-6-5 is additionally reinforced, with brackets made from 5 mm thick sheet metal and a rivet made from 6 mm thick sheet metal.
The additional reinforcement makes the hook even more stable and resistant to weather conditions.
Enables mounting of profiles to the roof covering. The hook is attached to the lower channel of the rail using a bolt. For use when standard roof brackets are too short without adjustment.
The H17 stainless steel from which the product is made is resistant to atmospheric factors, ensuring it does not lose its properties even after several years. It is characterised by high resistance to adverse environmental conditions.
- The wide and adjustable bracket is made from 5 mm thick sheet metal, and the zeta from a 30x6 mm flat bar.

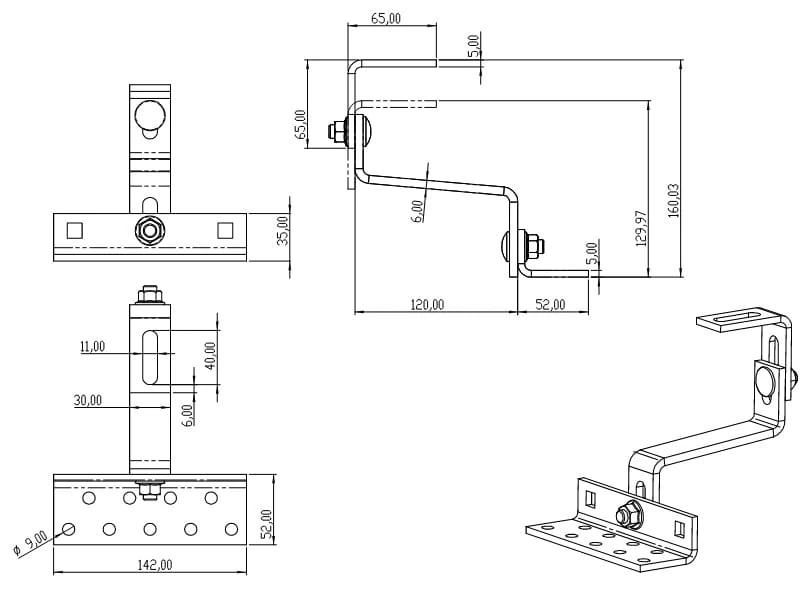

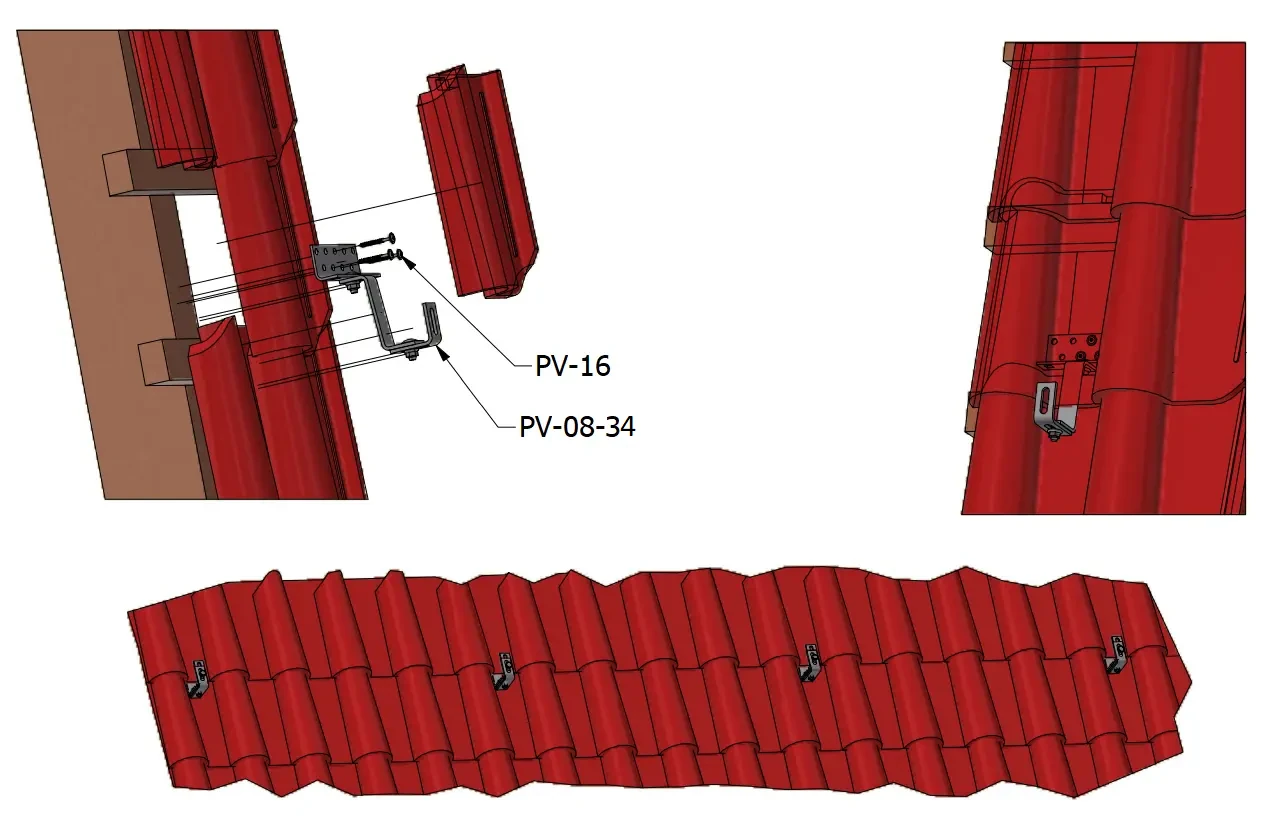

- The mounting method and exact dimensions of the hook can be seen in the image above.
- The H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Stainless steel 1.4016 (H17) grade 430 |
| Length of Z element [mm] | 120 |
| Width of Z element [mm] | 30 |
| Z-section element thickness [mm] | 6 |
| Width of adjustable angle bracket [mm] | 30 |
| Thickness of adjustable angle bracket [mm] | 5 |
| Width of wide angle bar [mm] | 142 |
| Wide angle thickness [mm] | 5 |
| Profile mounting method [mm] | From above |
| Additional reinforcement | Yes |
| Type | VARIO roof hook |
| Adjustment | Yes |
| Steel Grade | H17 |
