Vario Roof Hook 3x Adjustable Stainless Steel H17/1.4016/430 145mm
product unavailable
add to wish list
Description

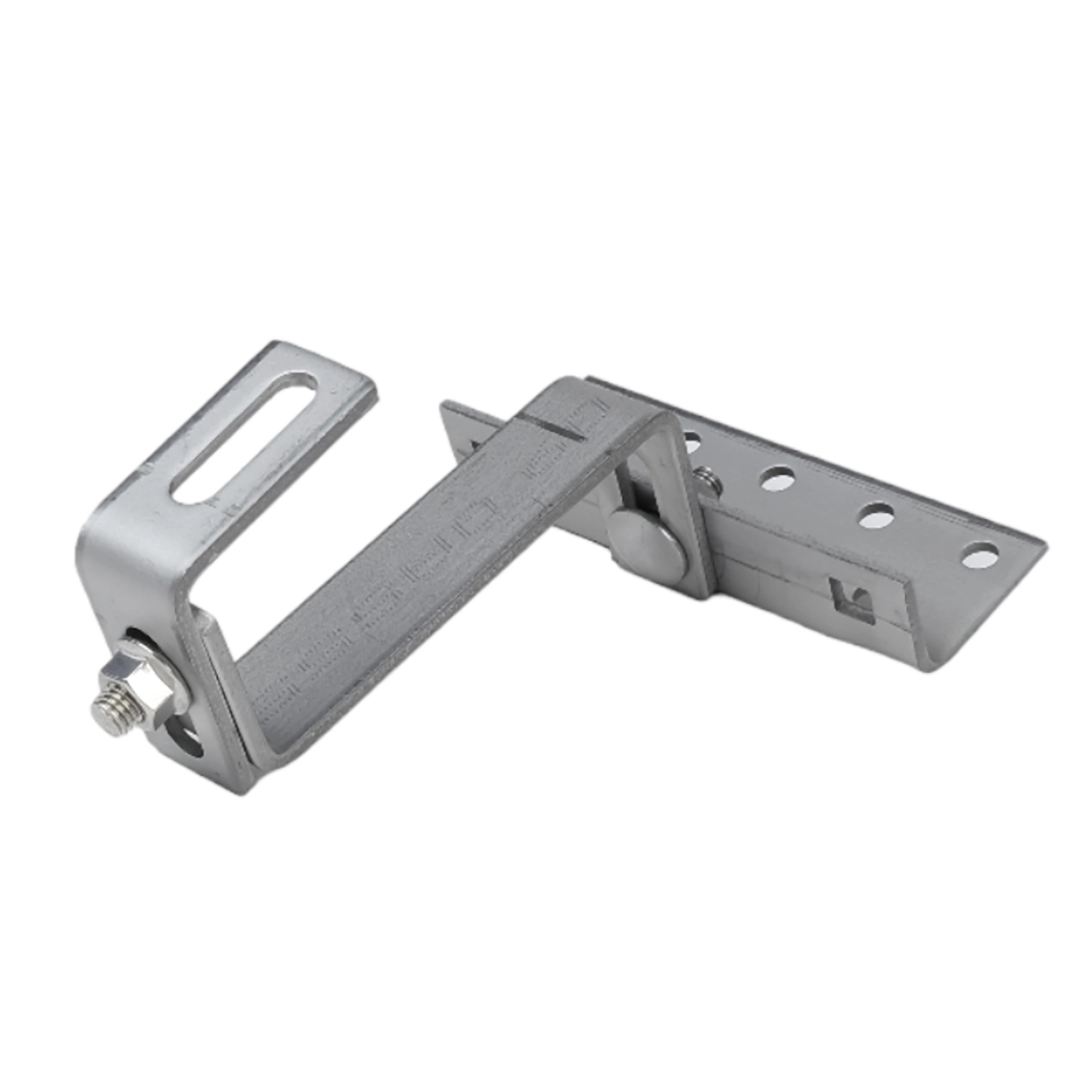

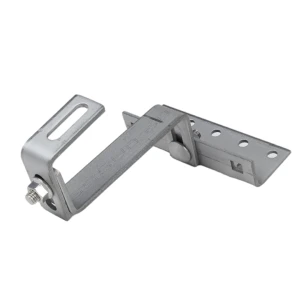

Vario Roof Hook 3x Adjustable Stainless Steel H17/1.4016/430 145mm
Vario Roof Hook 3X Adjustable, stainless steel 1.4016, with dimensions 145x30x5/4mm and M10 hole for profile mounting in photovoltaic systems.
Roof bracket for mounting rails for photovoltaic panels on roofs covered with ceramic and concrete tiles. Guarantees proper stability of the entire structure.
Enables connection of profiles to the roof covering. The Vario hook is fixed to the lower channel of the rail using a bolt. Used where standard roof brackets (without adjustment) are too short.
The stainless steel from which the product is made is resistant to weather conditions and therefore does not lose its properties for many years.
- The wide angle bracket is made of 4mm sheet metal, the flat bar is Zeta 30x5, and the wide angle is 30x4mm.

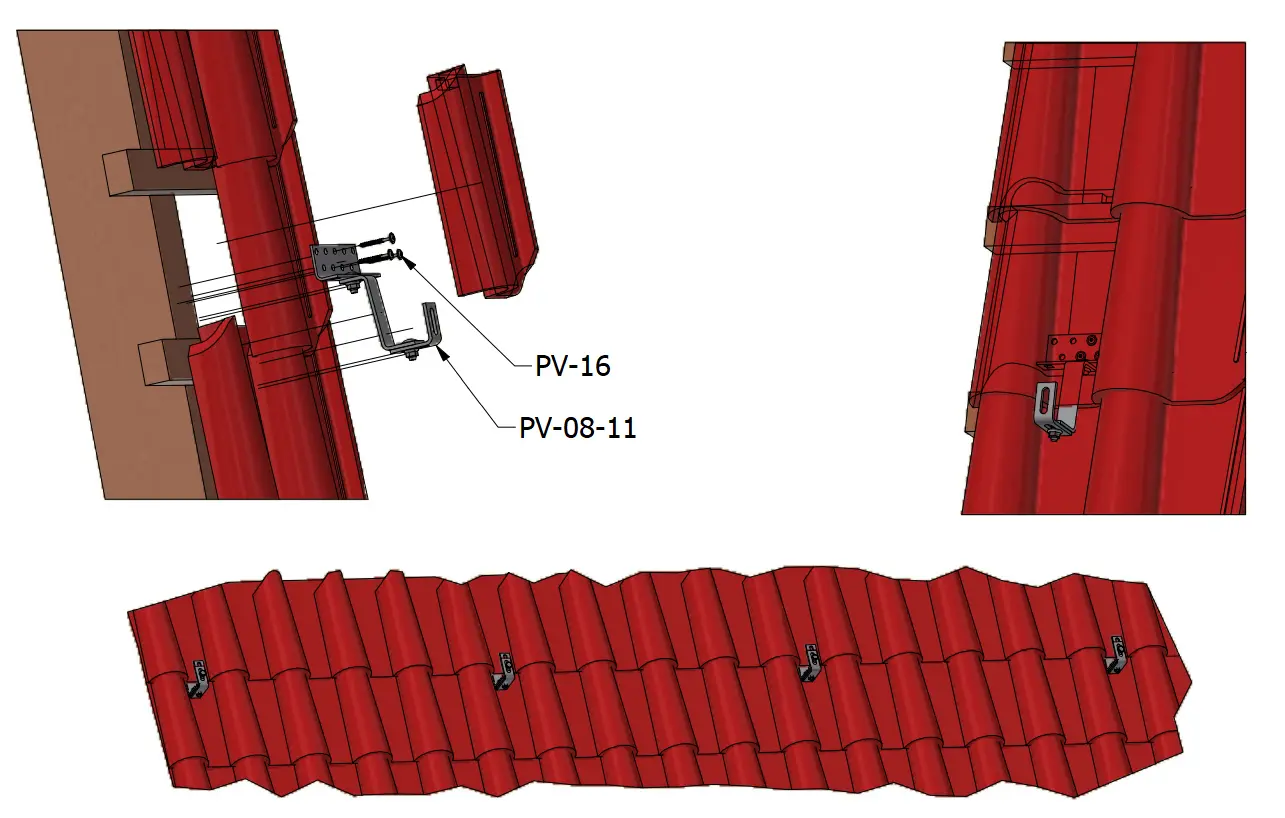

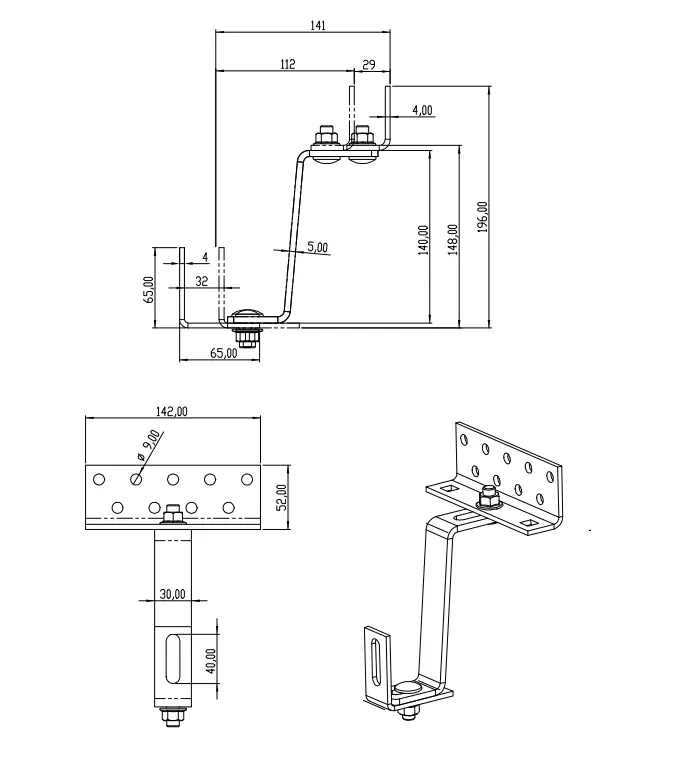

- The installation method and exact dimensions of the hook are shown in the graphic above.
- The H17 steel from which the hooks are made is highly resistant to adverse environmental conditions (stainless steel).
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Stainless steel 1.4016 (H17) grade 430 |
| Length of Z element [mm] | 145 |
| Width of Z element [mm] | 30 |
| Z-section element thickness [mm] | 5 |
| Width of adjustable angle bracket [mm] | 30 |
| Thickness of adjustable angle bracket [mm] | 4 |
| Width of wide angle bar [mm] | 142 |
| Wide angle thickness [mm] | 4 |
| Profile mounting method [mm] | From above |
| Type | VARIO roof hook |
| Adjustment | Yes |
| Steel Grade | H17 |
