Vario Roof Hook 3x Adjustable Stainless Steel A2/1.4301/304 120mm

Go to Product feedback

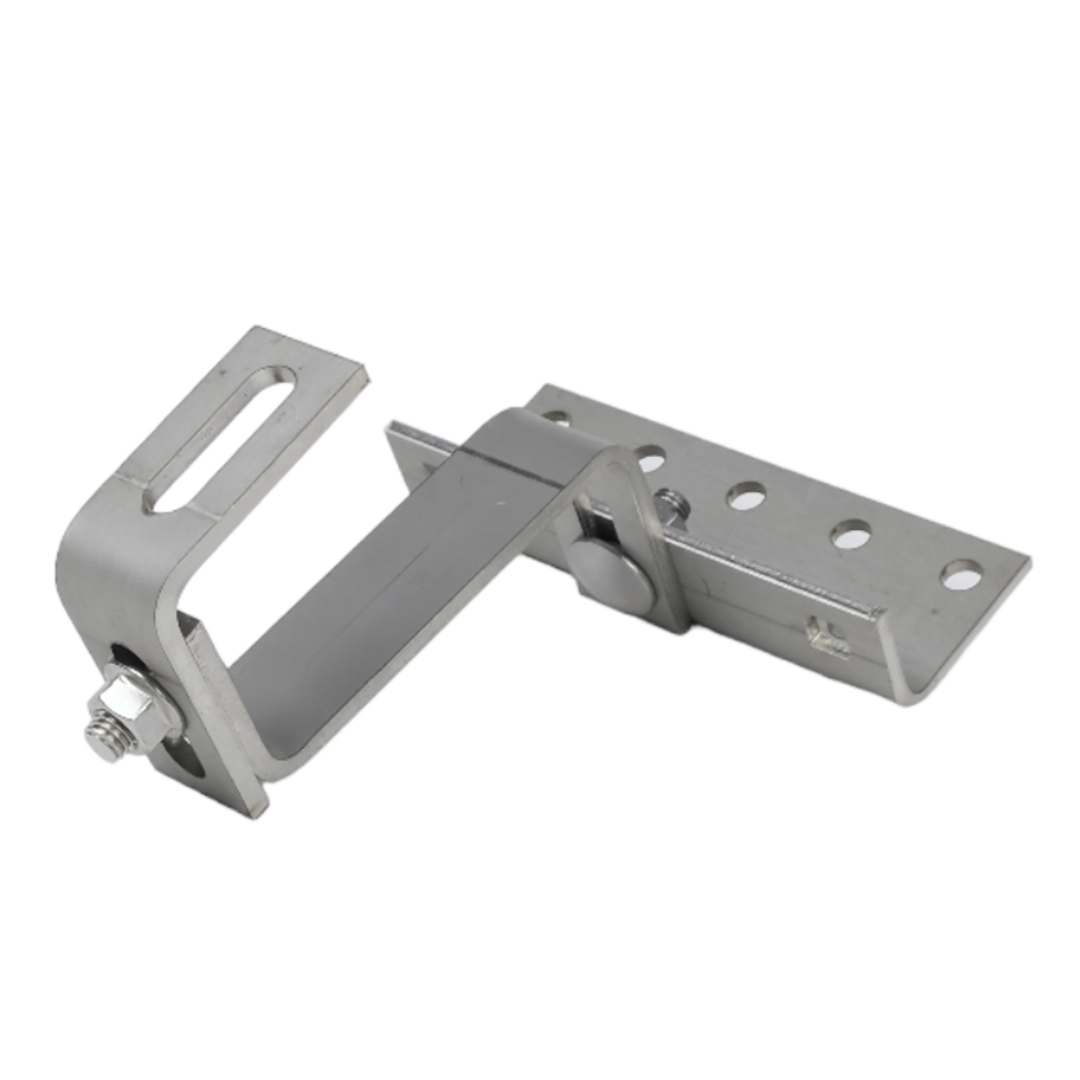

3x adjustable roof hook made of stainless steel A2/1.4301/304, dimensions 120x30x5/4mm, M10 hole. Designed for mounting rails of photovoltaic systems on ceramic and concrete roof tiles. Corrosion-resistant construction ensures long-term durability in outdoor conditions. Compatible with standard PV mounting systems.

Go to full description
with VAT without VAT
Price €5.71
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

Vario Comparison

  • Material Stainless Steel 1.4301 (A2) Grade 304
  • Length of Z element [mm] 120
  • Width of Z element [mm] 30
  • Z-section element thickness [mm] 5
  • Width of adjustable angle bracket [mm] 30
  • Thickness of adjustable angle bracket [mm] 5
  • Width of wide angle bar [mm] 142
  • Wide angle thickness [mm] 4
  • Profile mounting method [mm] From above
  • Additional reinforcement No

[PIM] Haki i mocowania #22

  • Type VARIO roof hook
  • Adjustment Yes
  • Steel Grade A2

Description

Vario Roof Hook 3x Adjustable Stainless Steel A2/1.4301/304 120mm

Vario Roof Hook 3X Adjustable, stainless steel A2 1.4301, with dimensions 120x30x5/4mm and M10 hole for profile mounting in photovoltaic systems.

Vario Roof Hooks for mounting rails for photovoltaic modules on roofs covered with ceramic and concrete tiles. Guarantees stability of the entire structure.

Enables connection of profiles to the roof covering. Vario bracket is fixed to the lower channel of the rail using a bolt. It is used when standard (non-adjustable) roof fixings are too short.

1.4301 is an austenitic stainless steel and should always be used outdoors in locations where there is a risk of corrosion. The stainless steel from which the product is made is resistant to weather conditions and therefore does not lose its properties for many years.

  • The wide angle bracket is made from 5mm sheet metal, the flat bar is 30x5mm, and the adjustable angle bracket has dimensions of 30x4mm.

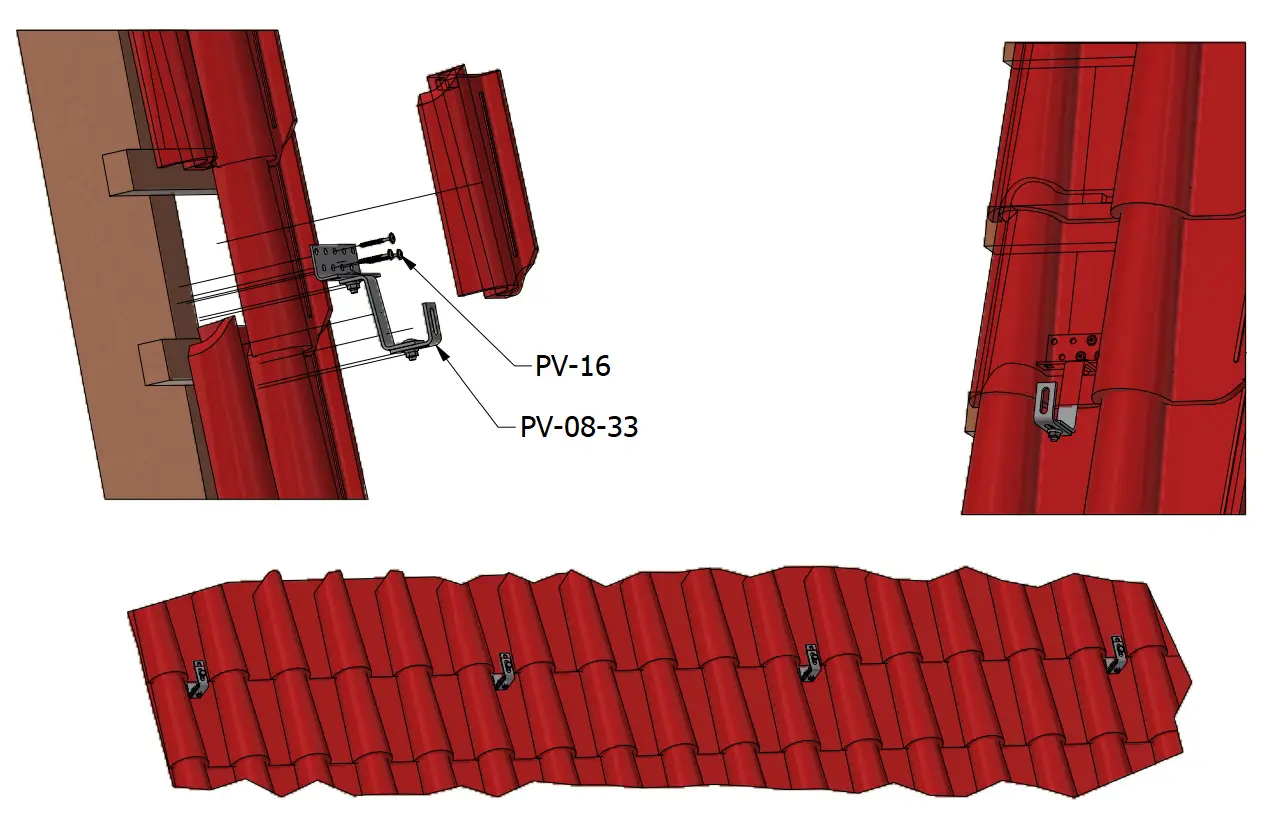

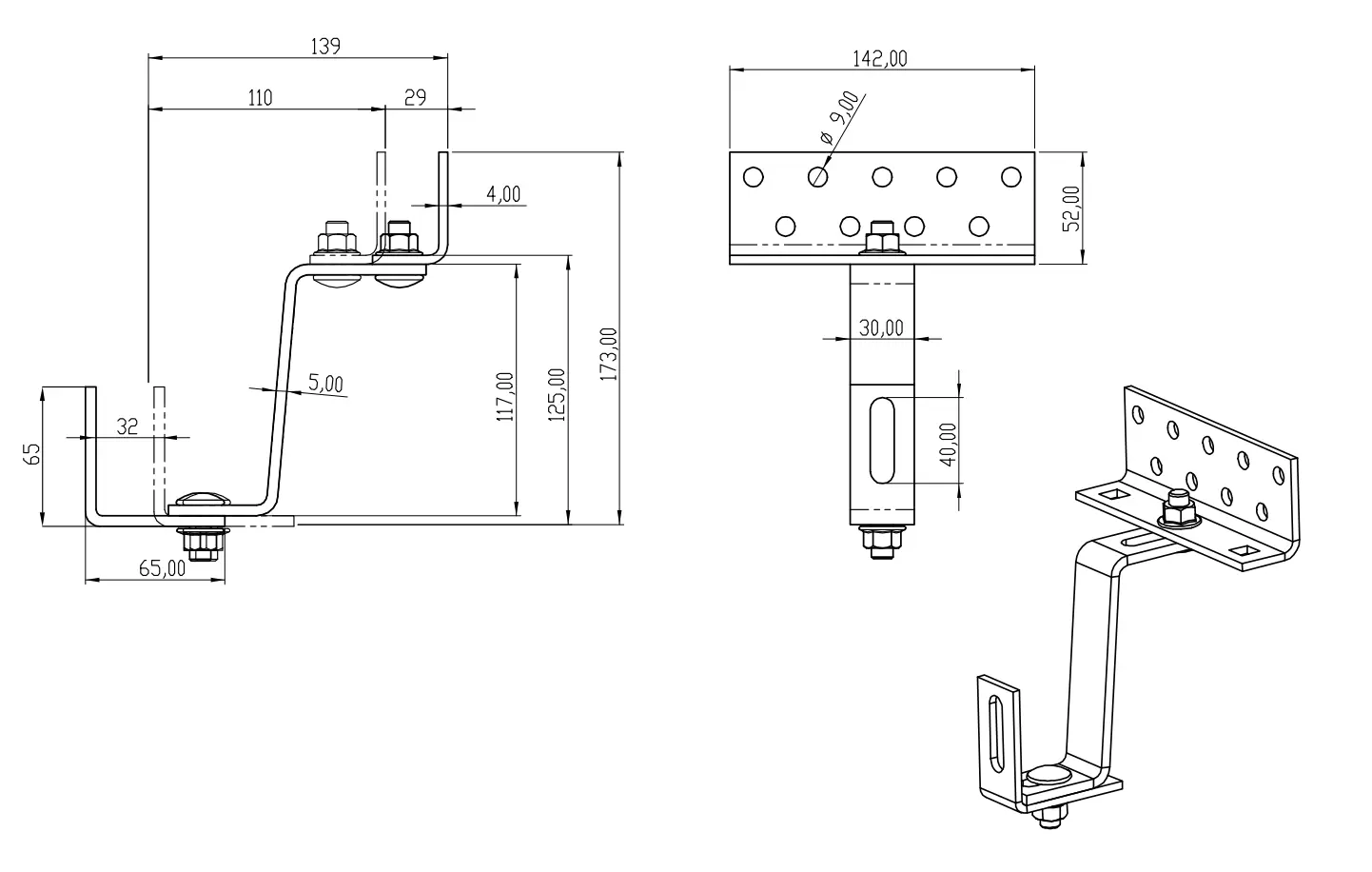

  • The installation method and exact dimensions of the hook are shown in the graphic above.
  • Stainless steel type (A2 1.4301) - (corrosion resistance class II) is more suitable where there is higher salt or acid content in the air.
