Vario Roof Hook 145 (4-5-5-5) with Triple Adjustment Stainless Steel H17/1.4016
Leave feedback on the product

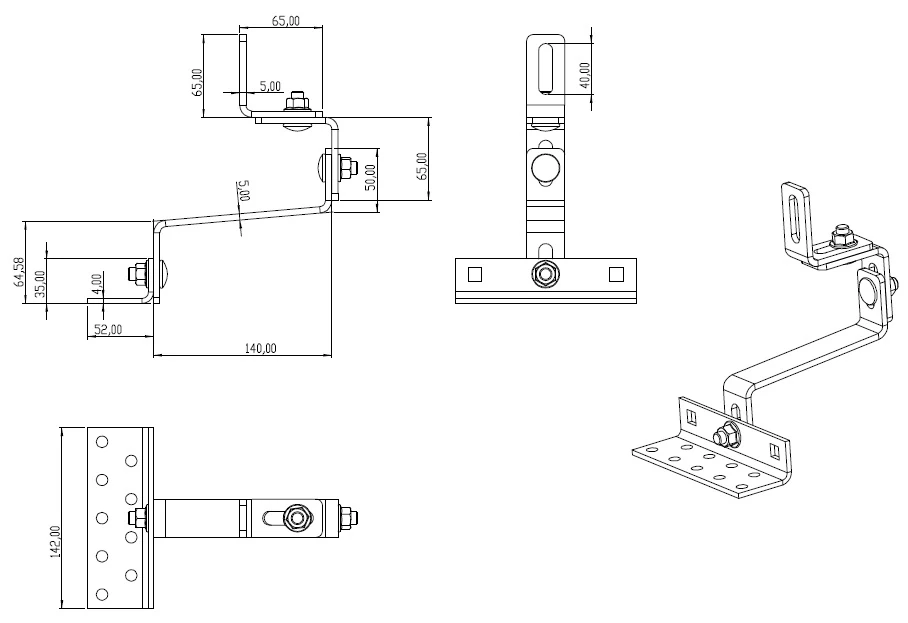

Vario 145 roof bracket | Triple adjustment | Stainless steel H17/1.4016. Mounting bracket for side profiles of PV systems. Dimensions 145x30x5/4mm, M10 hole. Additional 30x5mm angle bracket for side-mounted profiles, wide angle bracket made of 4mm sheet metal.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Vario Comparison
- Material Stainless steel 1.4016 (H17) grade 430
- Length of Z element [mm] 145
- Width of Z element [mm] 30
- Z-section element thickness [mm] 5
- Width of adjustable angle bracket [mm] 30
- Thickness of adjustable angle bracket [mm] 5
- Width of wide angle bar [mm] 142
- Wide angle thickness [mm] 4
- Width of side angle bar [mm] 30
- Side angle thickness [mm] 5
- Profile mounting method [mm] From the side
[PIM] Haki i mocowania #22
- Type VARIO roof hook
- Adjustment Yes
- Steel Grade H17
Description
Vario Roof Hook 145 (4-5-5-5) with Triple Adjustment Stainless Steel H17/1.4016

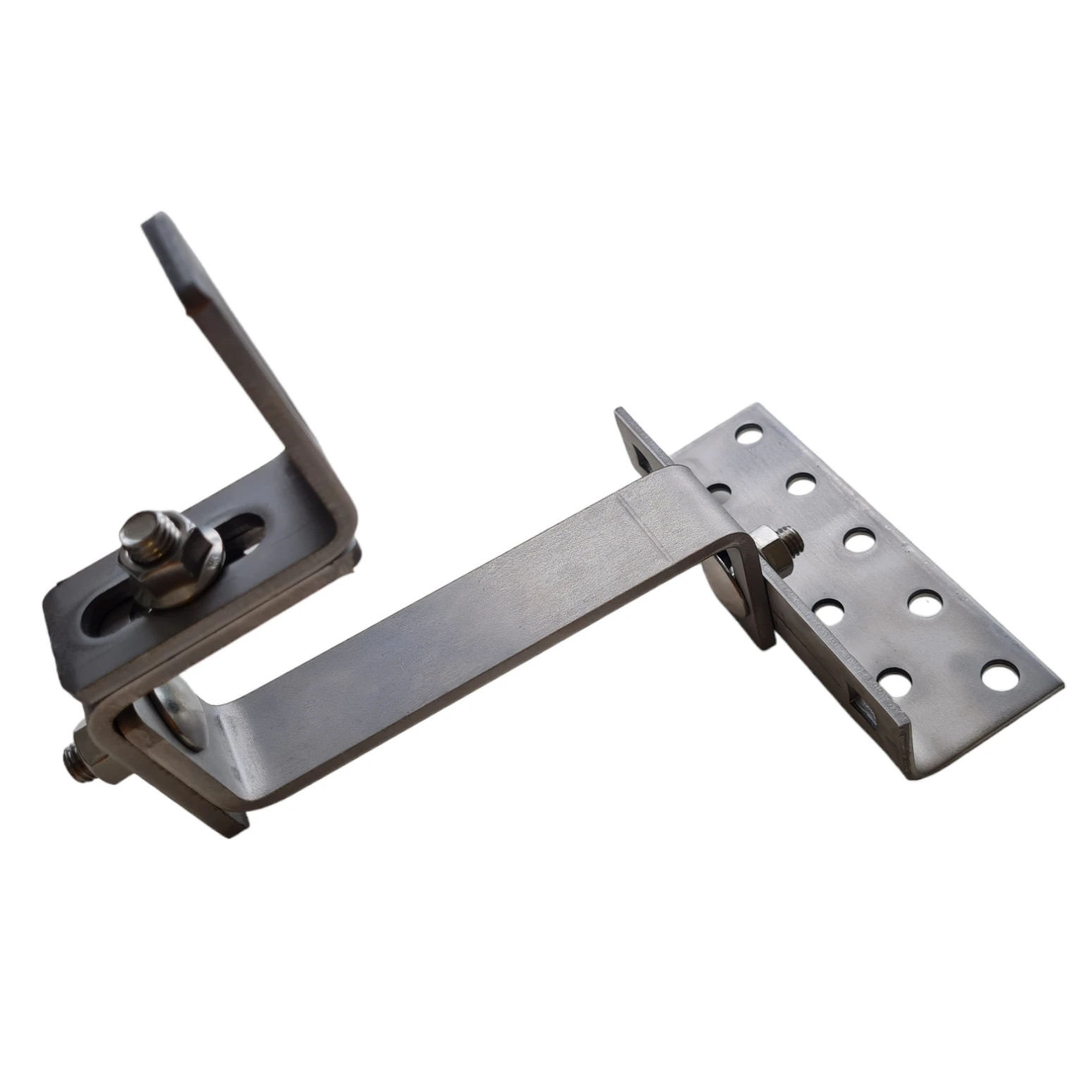

Vario Roof Hook 145 (4-5-5-5) 3x adjustable, stainless steel 1.4016, with dimensions 145x30x5/4mm with M10 hole for rail mounting in photovoltaic systems with additional 30x5mm angle bracket for side-mounted profiles.
Roof bracket for mounting rails for photovoltaic panels on roofs covered with ceramic and concrete tiles. Guarantees proper stability of the entire structure. This Vario hook model is designed for side-mounted profiles.
The Vario hook class 145 (4-5-5-5) is additionally equipped with an angle bracket that enables side mounting of profiles. The additional angle brackets are made of 5mm thick sheet metal.
Enables connection of profiles to the roof covering. The Vario bracket is fixed to the lower channel of the rail using a bolt. Used where standard roof brackets (without adjustment) are too short.
H17 stainless steel, from which the product is manufactured, is resistant to atmospheric factors, ensuring it retains its properties even after several years. It is characterised by high resistance to adverse environmental conditions.
- The wide angle bracket is made of 4mm sheet metal, Z-profile from 30x5 and two angle brackets 30x5
- H17 steel from which the hooks are made is highly resistant to adverse environmental conditions (stainless steel).
