VSM Turbo Pad 3 – Ribbed Backing Pad for Fibre Discs 125 mm M14
Leave feedback on the product
VSM Turbo Pad 3 ribbed backing pad for 125 mm fibre discs, M14 thread. Maximum speed 12,200 rpm, 80 m/s. Plastic construction with steel insert. For angle grinders, EN 13743 standard.
Product code: 000-933
Product features
[PIM] tarcze-do-szlifowania #154
- Brand VSM
- Diameter 125
Description

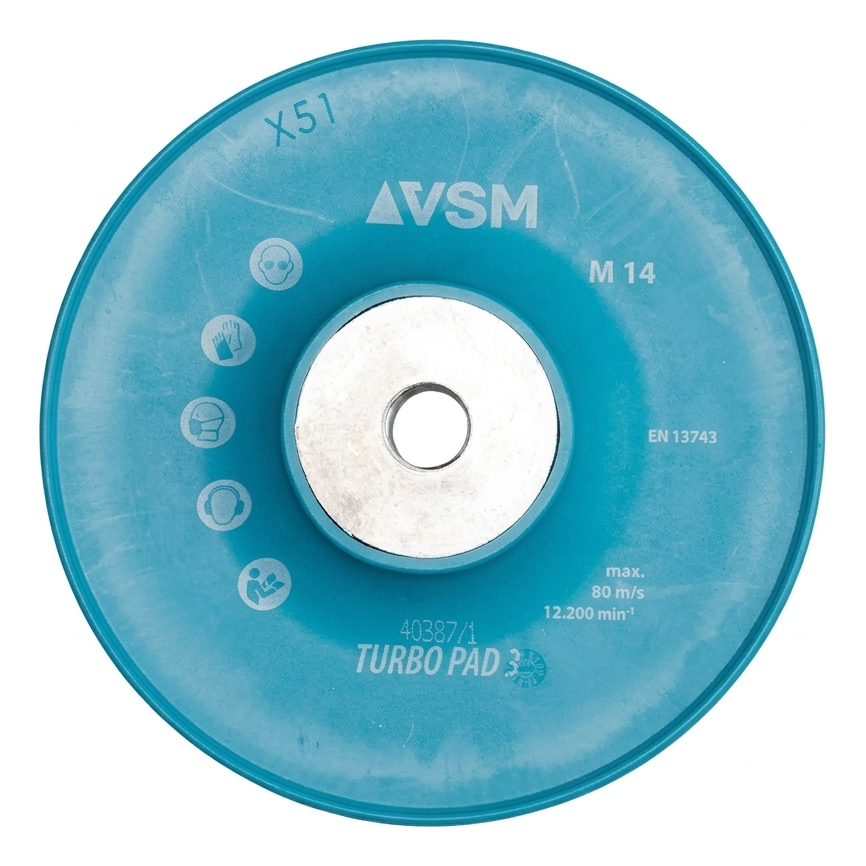

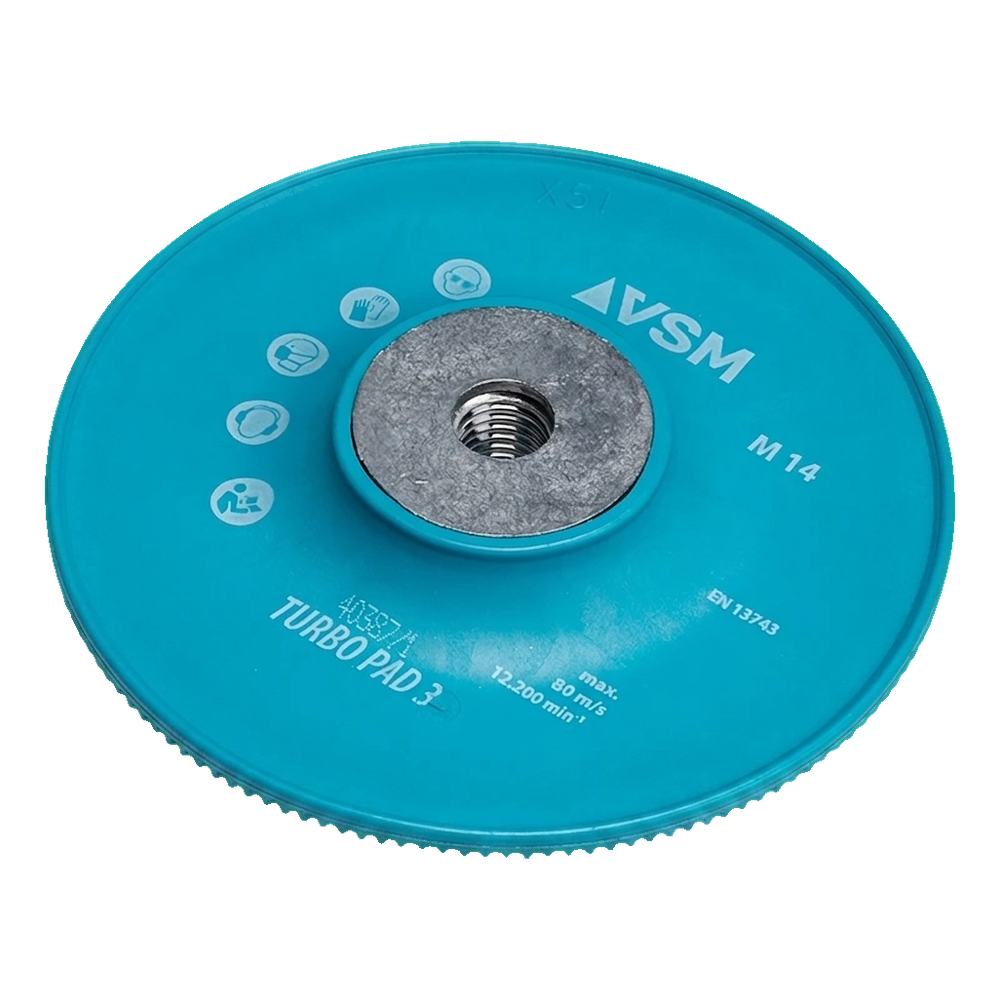

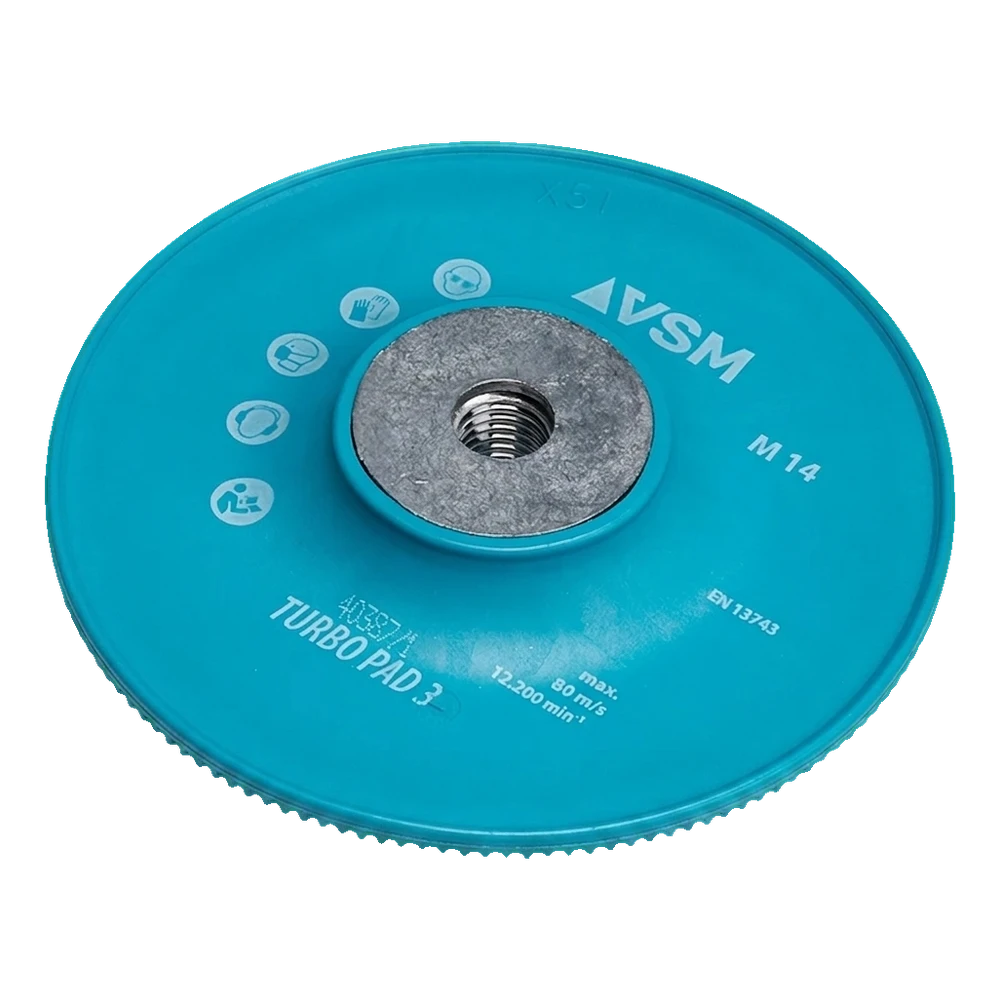

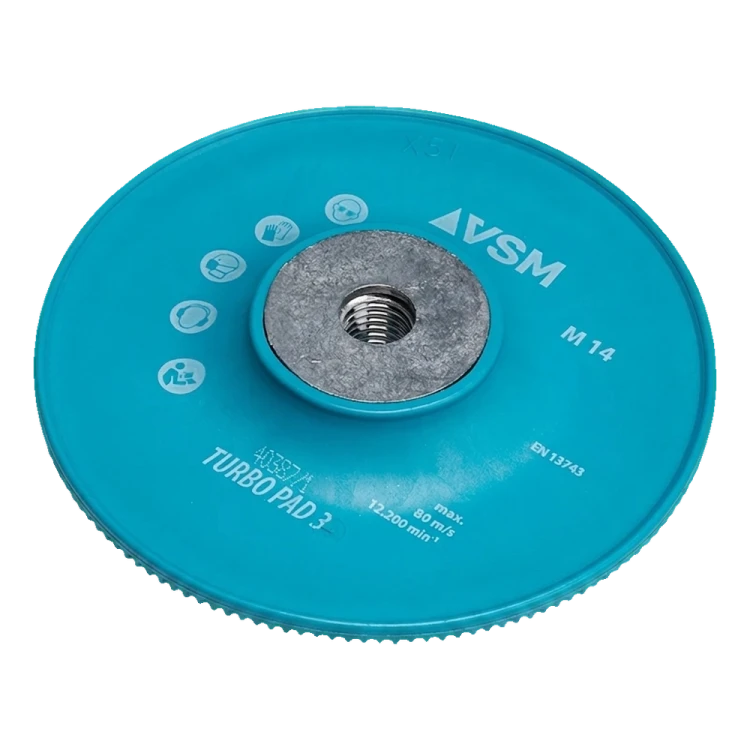

VSM Turbo Pad 3 – ribbed backing pad for fibre discs 125 mm M14
VSM Turbo Pad 3 is a professional ribbed backing pad designed for mounting fibre discs with a diameter of 125 mm on angle grinders with M14 thread. The unique design with radial ribs ensures effective air circulation beneath the disc, which significantly reduces temperature in the grinding zone — extending the life of both the disc and the backing pad itself.
Why choose Turbo Pad 3?
During intensive grinding with fibre discs, excessive heating of the material and backing pad is a key problem. Traditional, flat backing pads trap heat, leading to faster disc wear and deterioration in machining quality. Turbo Pad 3 eliminates this problem thanks to its ribbed surface, which creates ventilation channels between the disc and the backing pad. Air flows freely beneath the fibre disc, effectively removing heat from the grinding zone. The result? Longer life of abrasive materials and comfortable operation even during extended grinding sessions.
Construction and design details

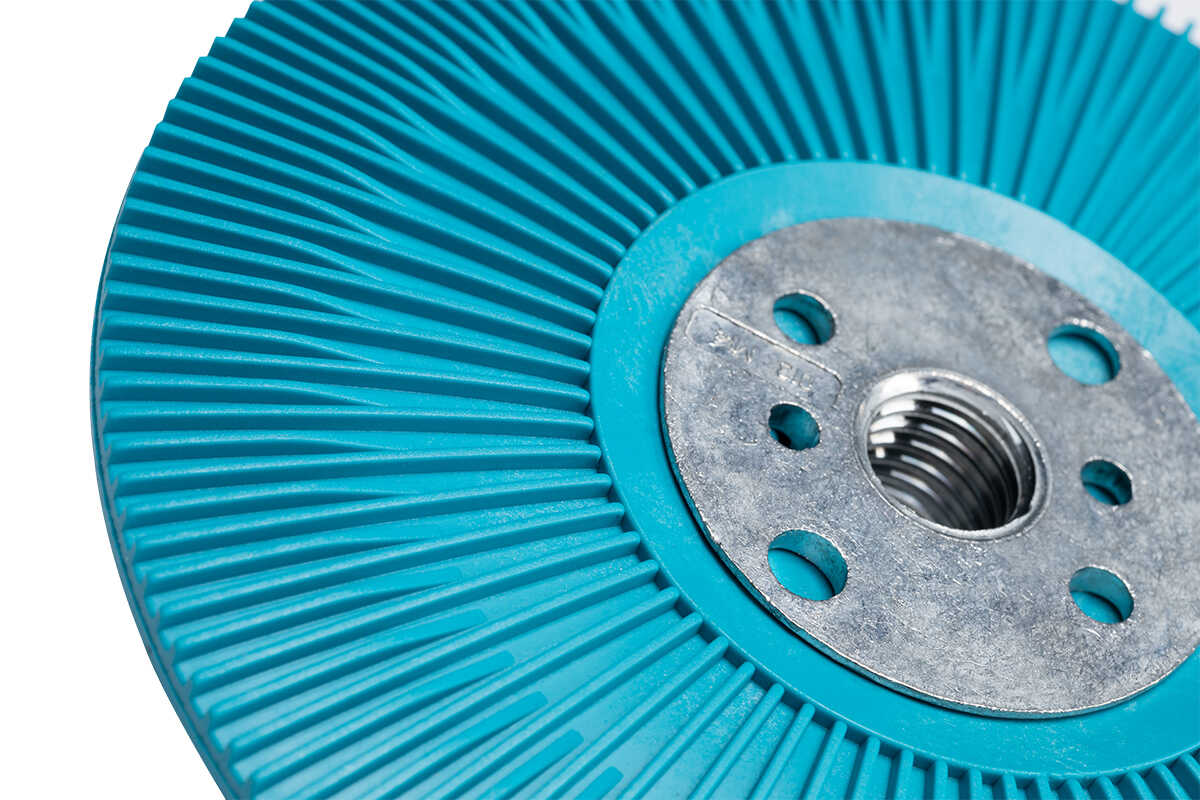

The backing pad is made from durable plastic reinforced with radial ribs, which stiffen the disc and ensure even pressure distribution on the fibre disc. The central part is equipped with a steel insert with M14 thread, enabling quick mounting on an angle grinder spindle without additional tools. Ventilation holes in the metal insert further support air circulation.
Technical parameters
- Manufacturer: VSM / PFERD
- Model: Turbo Pad 3
- Designation: X51
- Diameter: 125 mm
- Mounting: M14 thread
- Maximum rotational speed: 12,200 rpm
- Maximum peripheral speed: 80 m/s
- Application: for mounting 125 mm fibre discs
- Use: medium- and high-speed angle grinders
- Standard: EN 13743
- EAN: 4018875763865
Application
VSM Turbo Pad 3 backing pad is designed for use with fibre discs on medium- and high-speed angle grinders. It performs excellently wherever intensive grinding of metals, stainless steel, welds or steel surfaces is required — both on construction sites and in workshops. Thanks to its ribbed construction, it is particularly recommended for extended grinding sessions, where temperature control directly affects the efficiency and durability of abrasive materials.
