Type C Galvanised Pipe Clamp M8×35×68 mm – 1" Pipe Clamp
Leave feedback on the product
Cybant (pipe clamp) type C by Dromet, galvanised, M8 × 35 × 68 mm. Square profile, M8 threaded rod, 1" connection size. Weight 0.053 kg. For fixing pipes and cables to steel, timber and concrete structures.
Product code: 002-180
Description
Cybant (pipe clamp) type C, galvanised, M8 × 35 × 68 mm, for 1" pipe — Dromet

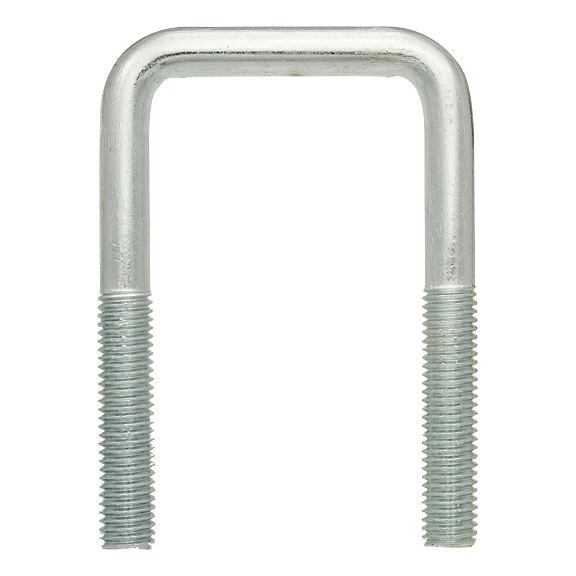

Cybant type C (pipe clamp) with a square profile, designed for fixing pipes and cables with a connection size of 1". Made from M8 threaded rod and protected with a galvanised coating, providing corrosion resistance in typical installation conditions.
Application
The type C Cybant is used for fixing pipes, cables and installation components to steel, timber and concrete structures. The square profile of the bow prevents the clamp from rotating once the nuts are tightened, which makes installation easier and ensures a stable, durable connection. It is well suited to plumbing, gas and heating installations, as well as to routing cables along supporting profiles in photovoltaic structures.
Construction

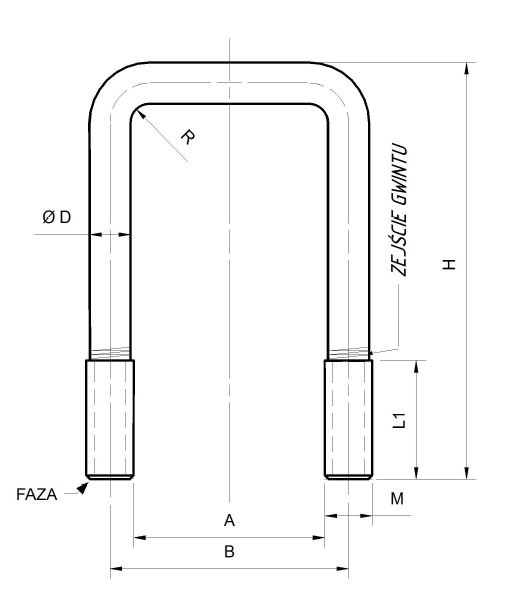

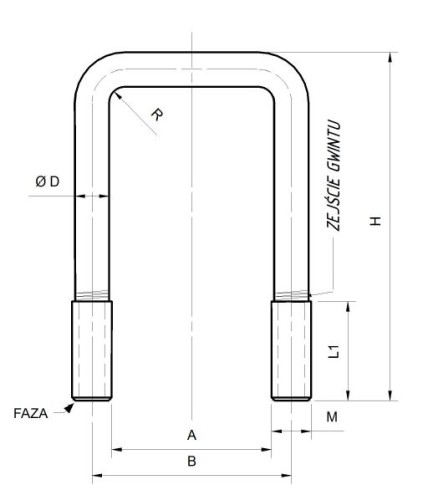

The Cybant is U-shaped with square corners (type C profile). Both arms end in an M8 thread, allowing fastening with standard nuts. The dimensional drawing shows the key geometric parameters: internal arm spacing (A), external width (B), overall height (H), rod diameter (ØD), bend radius (R) and threaded section length (L1). The manufacturer's dimensional designation is M8 × 35 × 68 mm.
