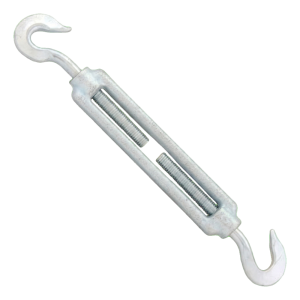

Turnbuckle forged hook-hook 6x110 DIN 1480
Leave feedback on the product

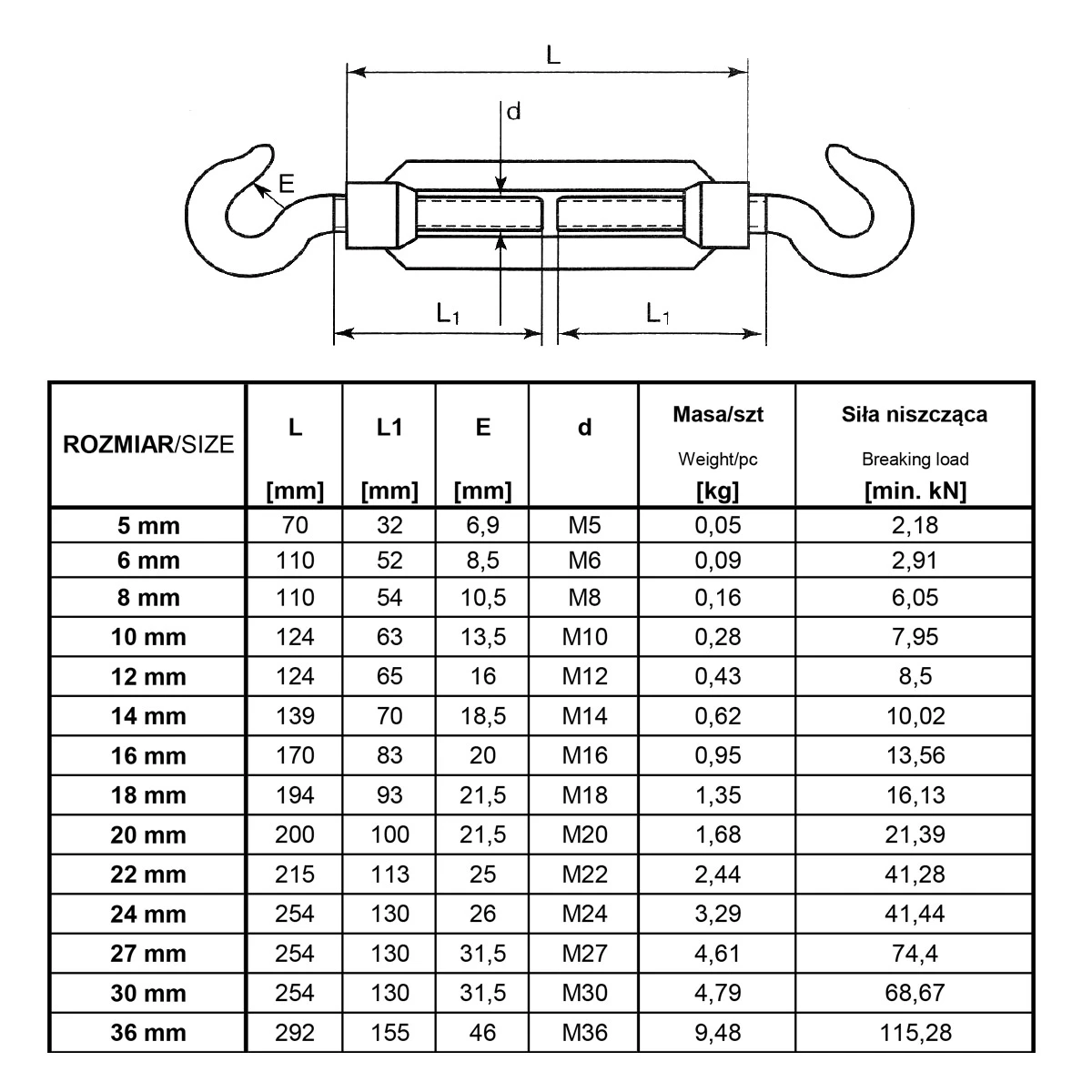

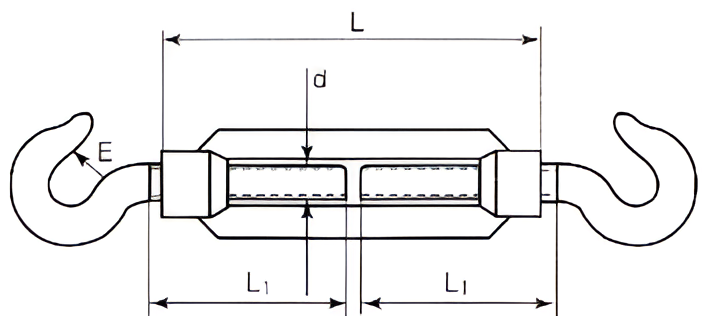

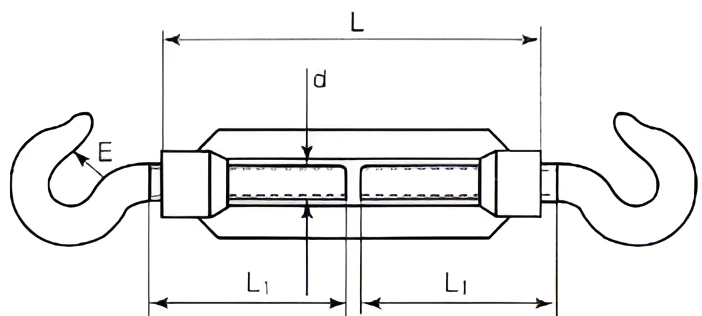

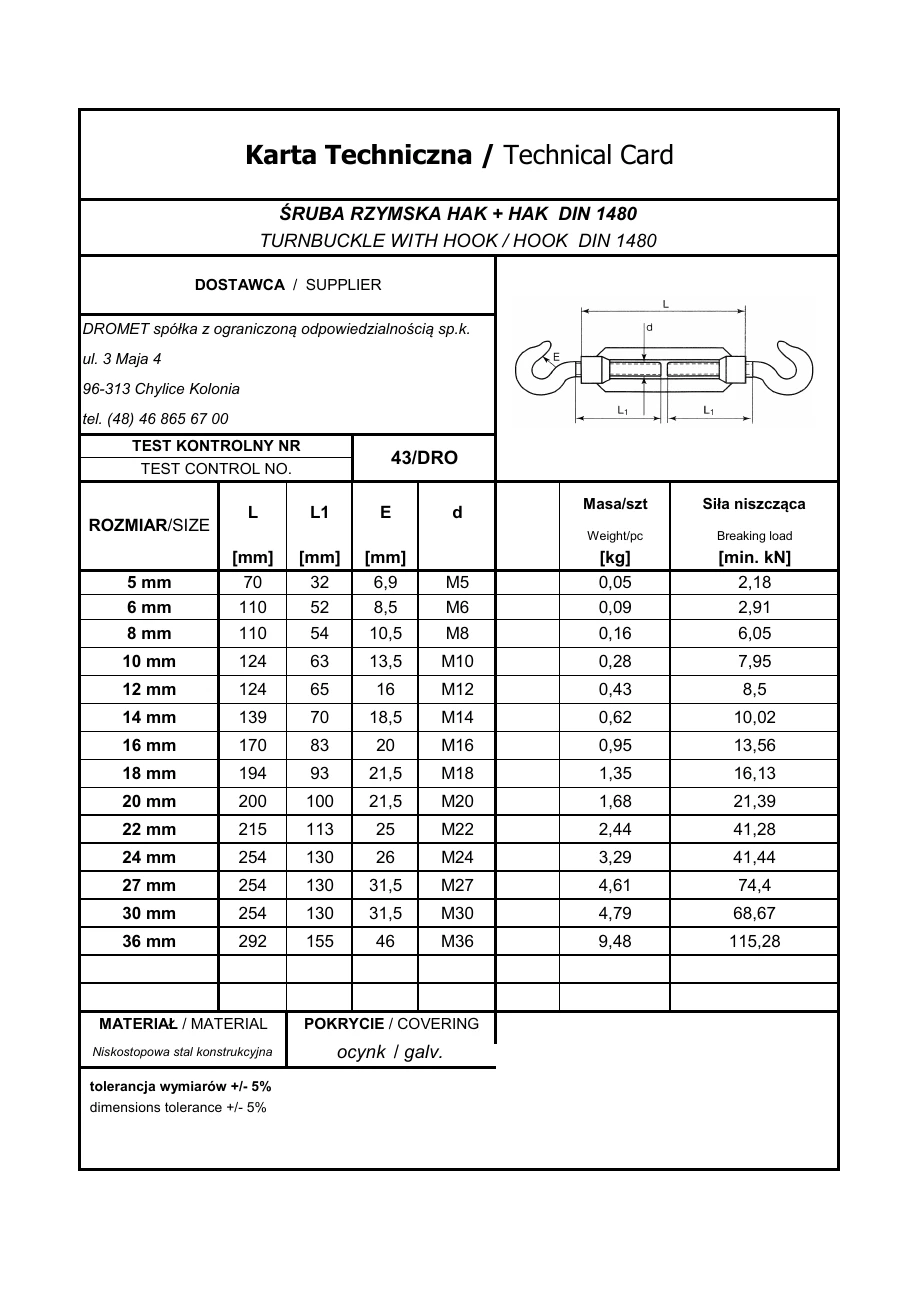

Forged hook-hook turnbuckle M6x110 to DIN 1480, made of C15 steel with an electro-galvanised finish. Overall length 110 mm, hook arm length 52 mm, hook opening 8.5 mm. Weight 0.09 kg. Minimum breaking force 2.91 kN.
Product code: 002-509
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M6
Description

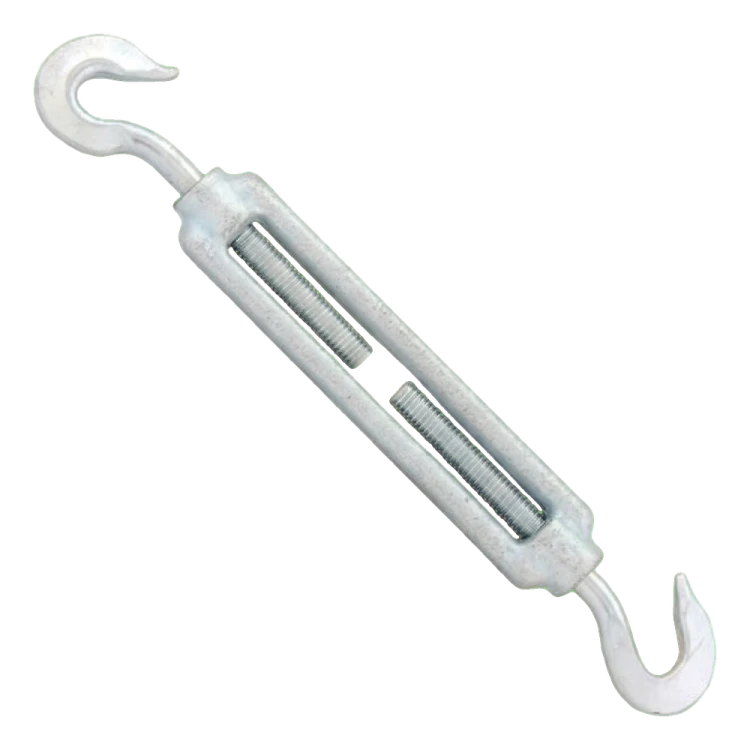

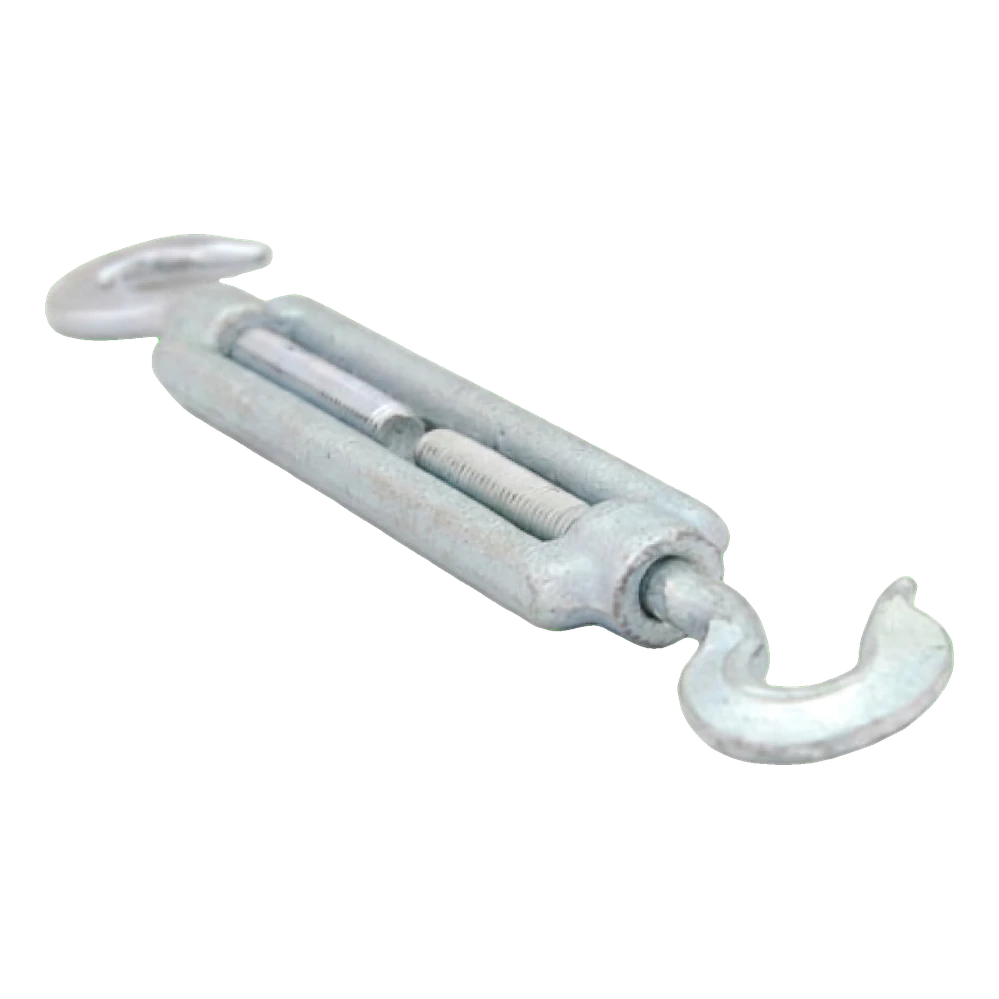

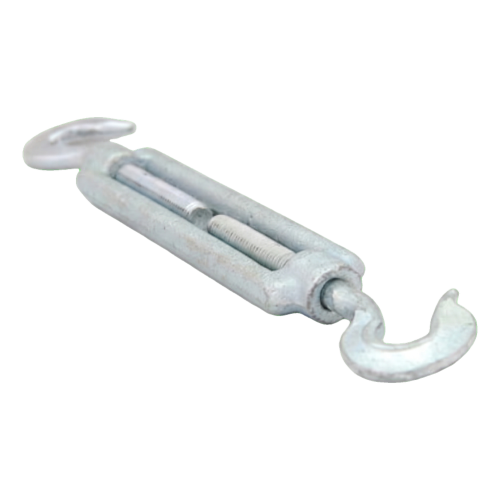

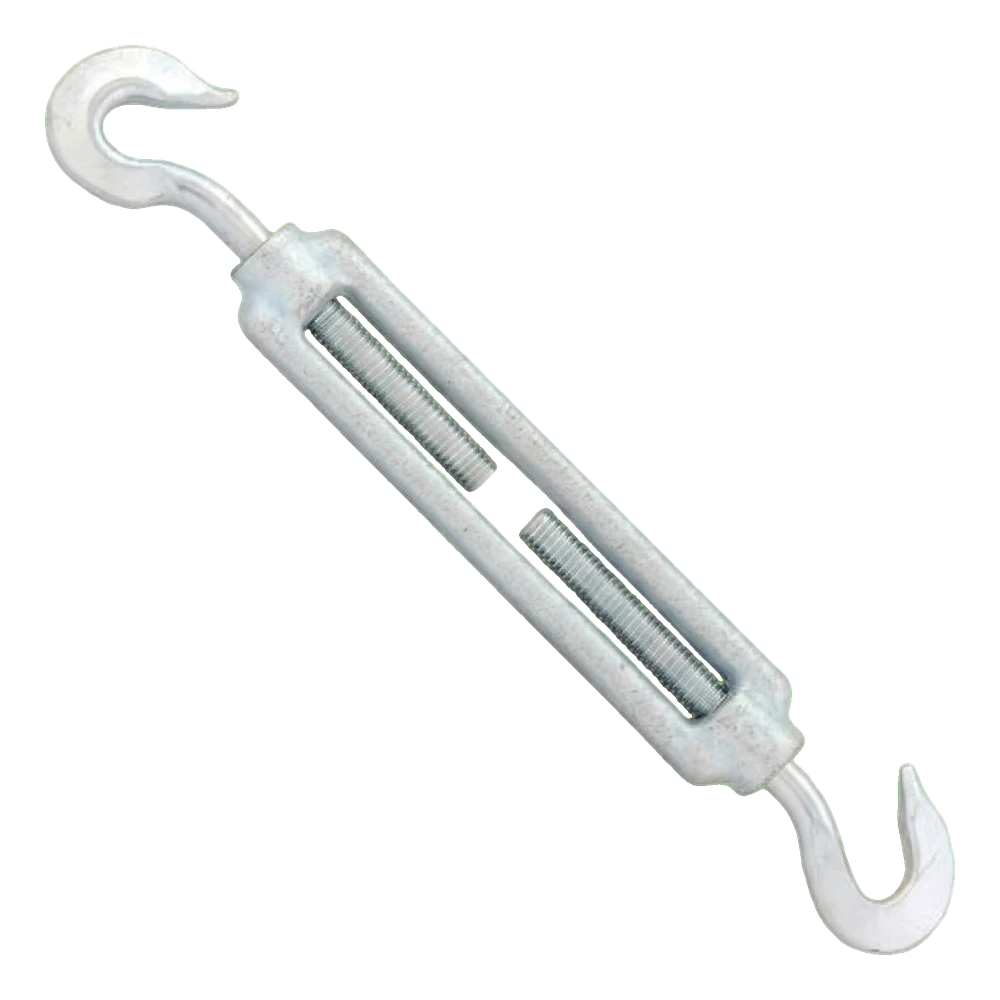

Turnbuckle forged hook-hook 6x110 DIN 1480
The forged hook-hook turnbuckle is a proven tensioning element designed for adjusting the tension of steel wire ropes, guy lines, barriers and fences. The forged body construction ensures high dimensional consistency and mechanical strength confirmed by the manufacturer's testing. Both ends are shaped as open hooks, allowing quick connection to links, shackles, chains or steel wire ropes – simply place the hook on the relevant piece of hardware, with no need to cut the rope. Rotating the body relative to the threaded rods allows precise tension adjustment without dismantling the whole connection, which significantly speeds up installation and maintenance work. The protective coating guards the element against corrosion, extending its service life when exposed to weather conditions.
Applications and advantages
- Tensioning steel wire ropes, guy lines, barriers and fences – open hooks allow quick installation and removal
- Tension adjustment in temporary and permanent structures – smooth adjustment of the working length by rotating the body
- The hook-hook design makes it easy to connect to other rope hardware without having to cut it
- Forged construction compliant with DIN 1480 ensures dimensional consistency and reliability in the field
- The galvanised surface protects against corrosion in outdoor installations
