Turnbuckle forged hook-hook 10x125 DIN1480
Leave feedback on the product
Turnbuckle, forged, hook-hook M10 to DIN
Product code: 002-511
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M10
Description

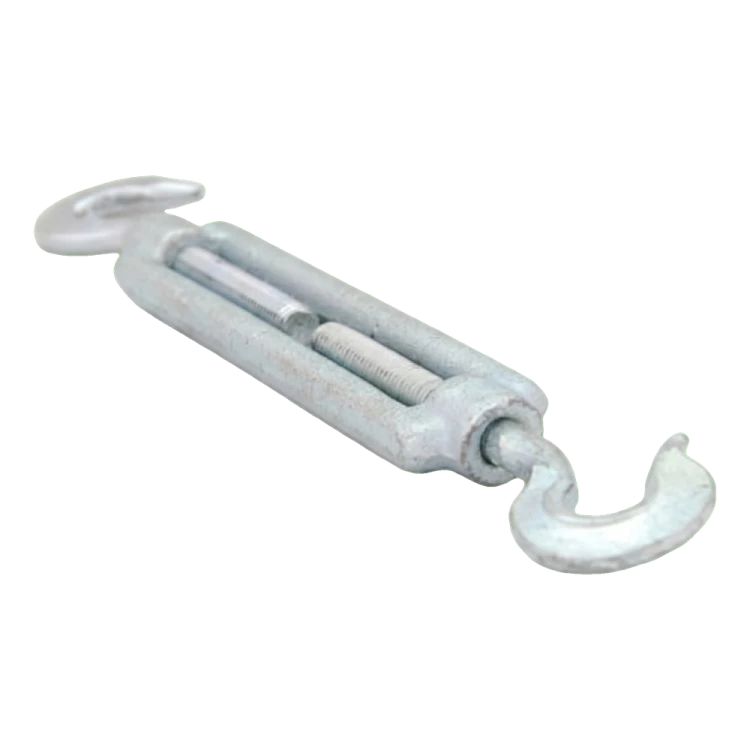

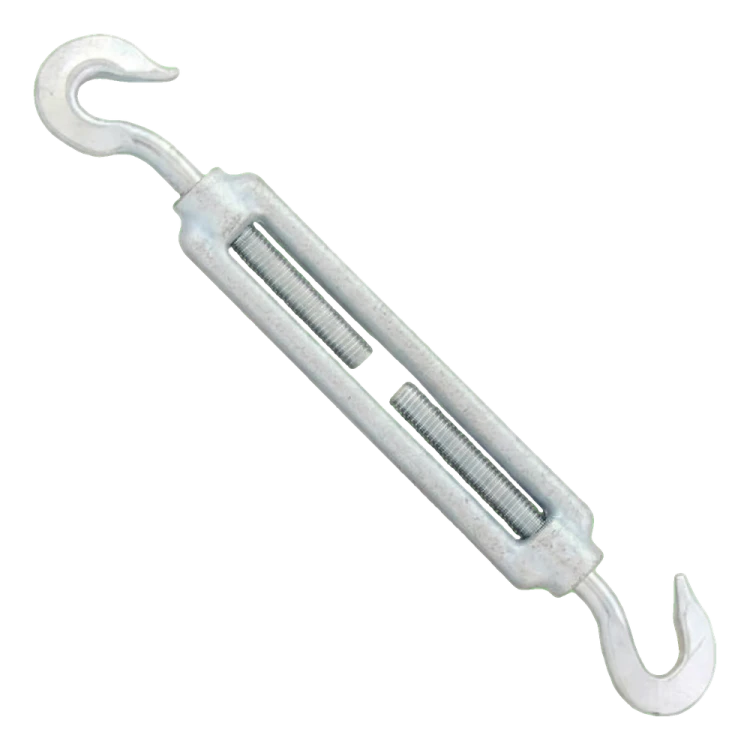

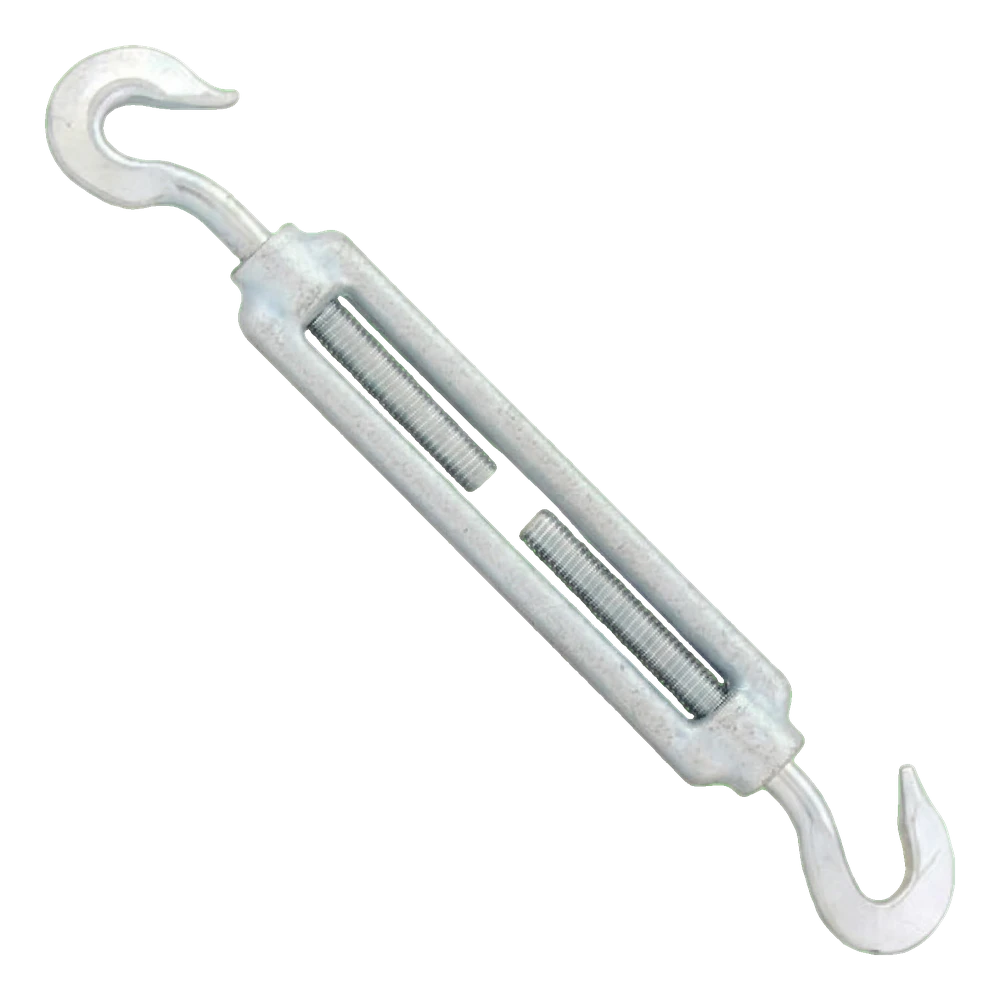

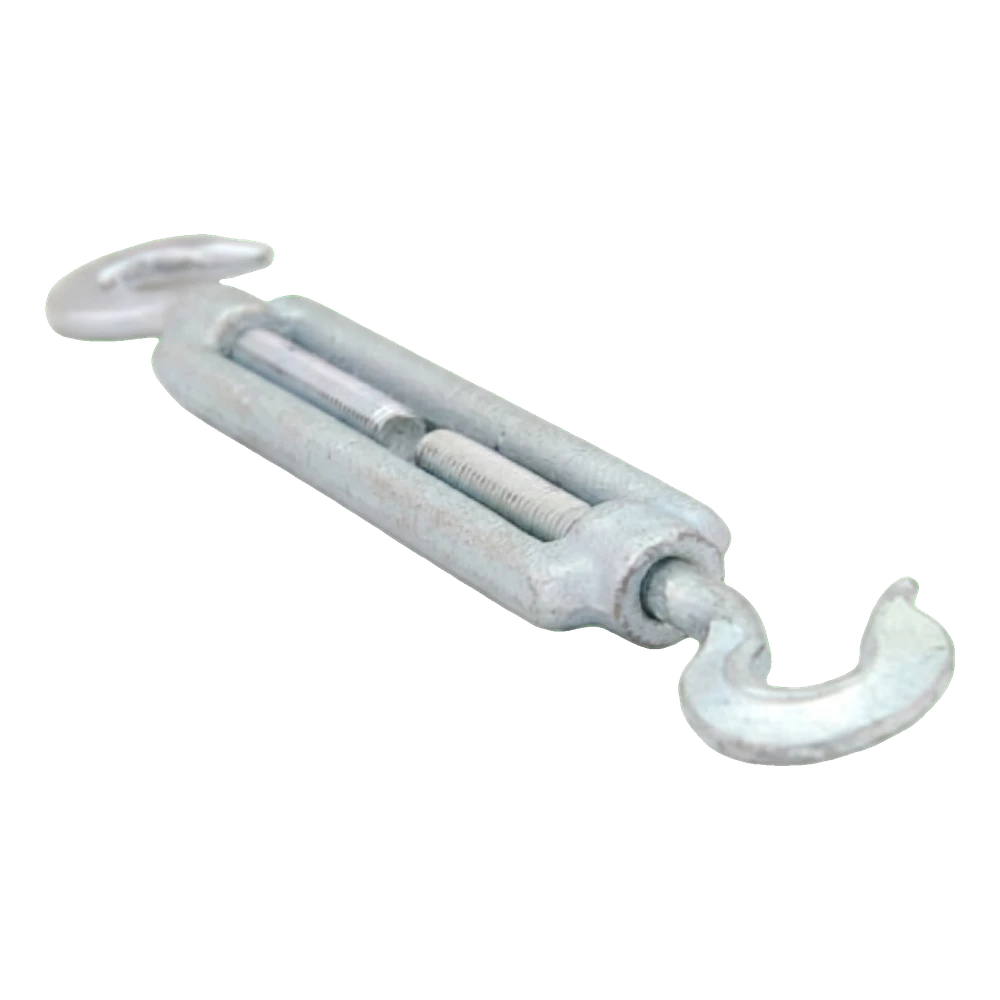

Turnbuckle forged hook-hook 10x125 DIN1480
The forged hook-hook turnbuckle M10 is a durable tensioning component manufactured in accordance with DIN 1480. The hook-hook end type allows quick and trouble-free connection to chain links, shackles or anchor points without the need for additional connectors. The body of the turnbuckle is forged, which ensures a highly uniform material structure and translates into reliability under load. The electroplated zinc coating effectively protects against corrosion, so the component performs well both inside halls and outside buildings. A minimum breaking force of 7.95 kN (~811 kg) allows the turnbuckle to be used in demanding tensioning applications — from mast guy lines and fence wire tensioning to temporary bracing of steel structures.
Benefits for the installer
- Forged hook-hook ends — instant attachment of ropes and chains without removing end fittings
- Tension adjustment by turning the body — precise setting of rope or tie-rod tension on site
- Electro-galvanised coating — corrosion protection that extends service life in outdoor conditions
- Dimensional tolerance of ±5% in line with the manufacturer's data sheet — repeatable dimensions make design easier
- Sold per piece — order exactly as many as you need for a given project

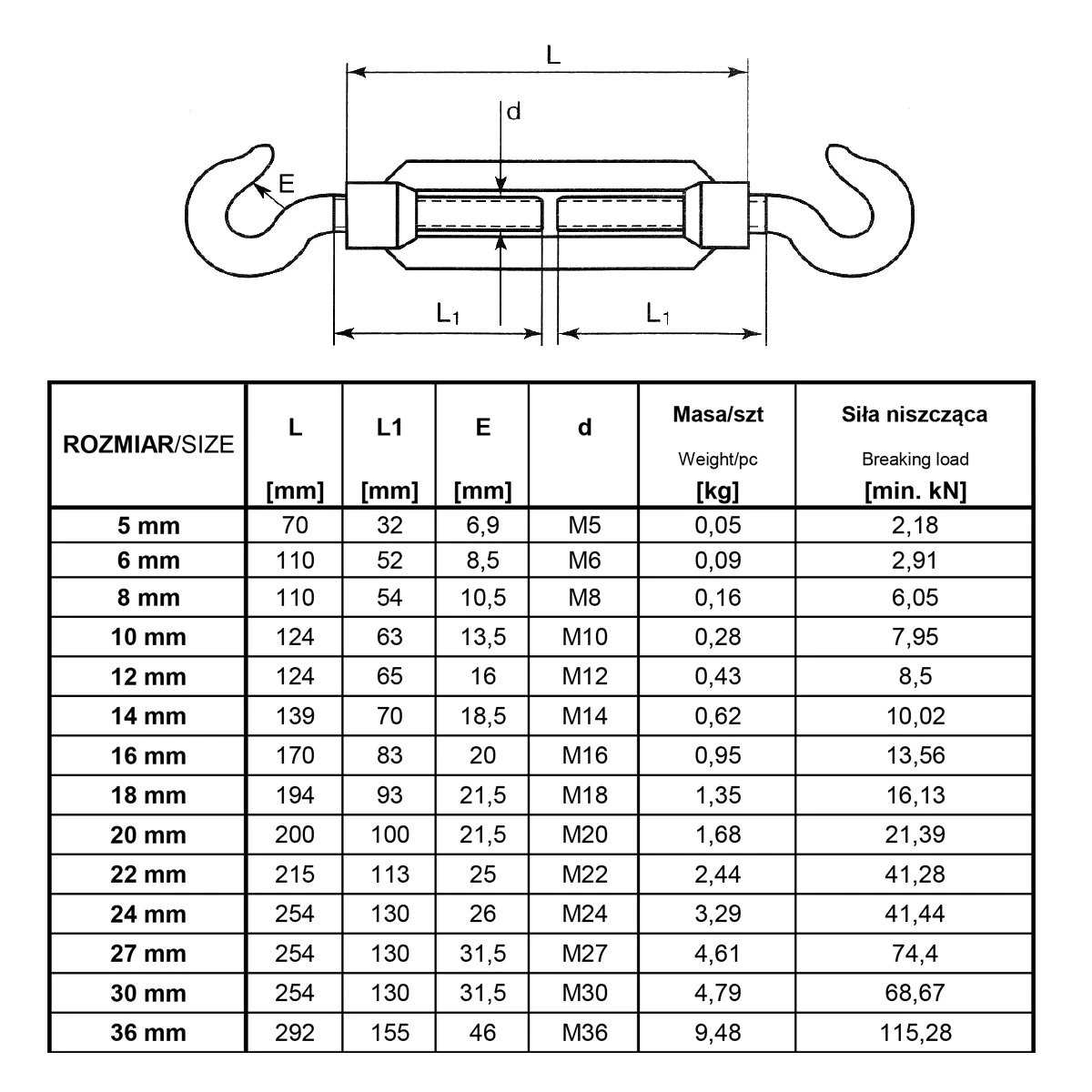

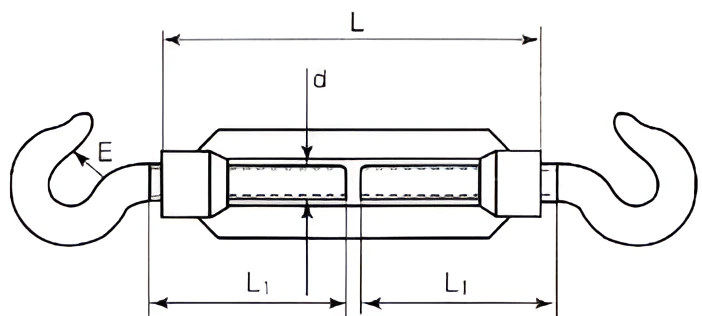

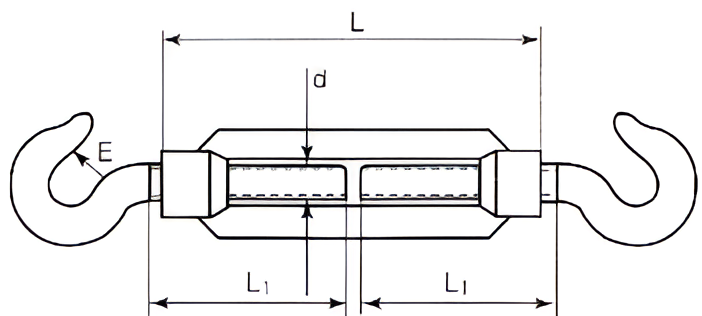

The turnbuckle belongs to the KHH DIN 1480 series, covering sizes from M5 to M36. The M10 variant presented here, with an overall length of 124 mm, is a versatile choice for medium tensioning loads in rope and tie-rod installations.
