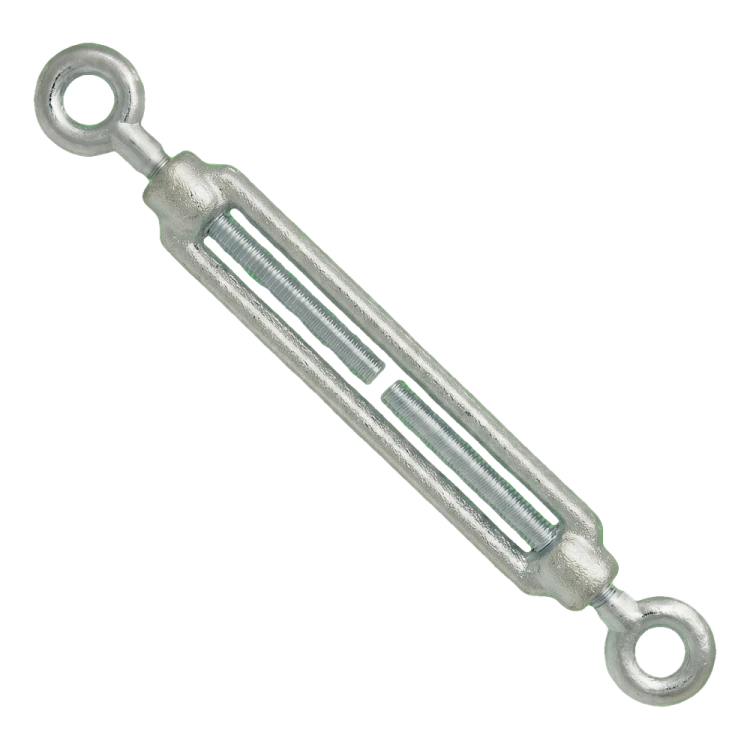

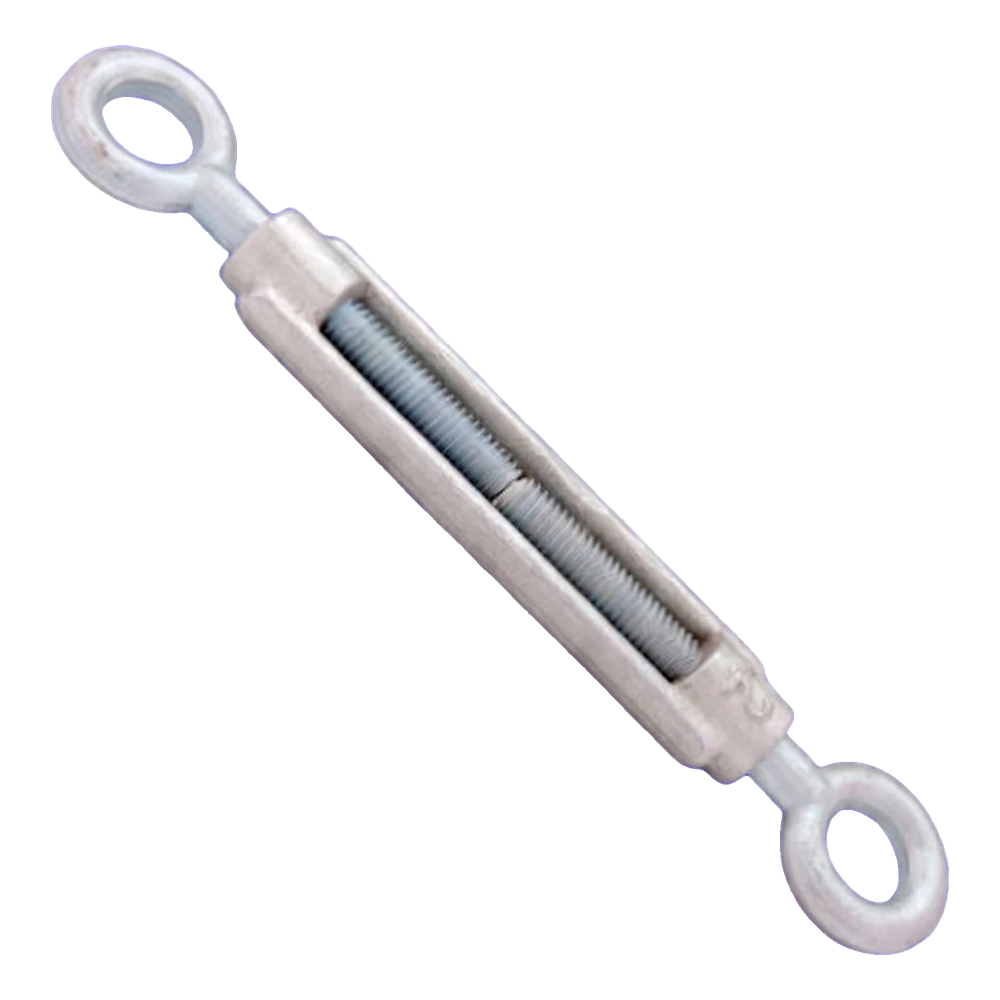

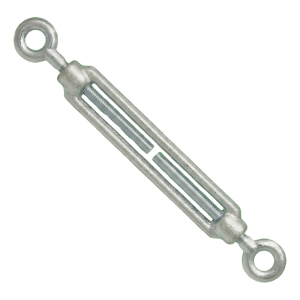

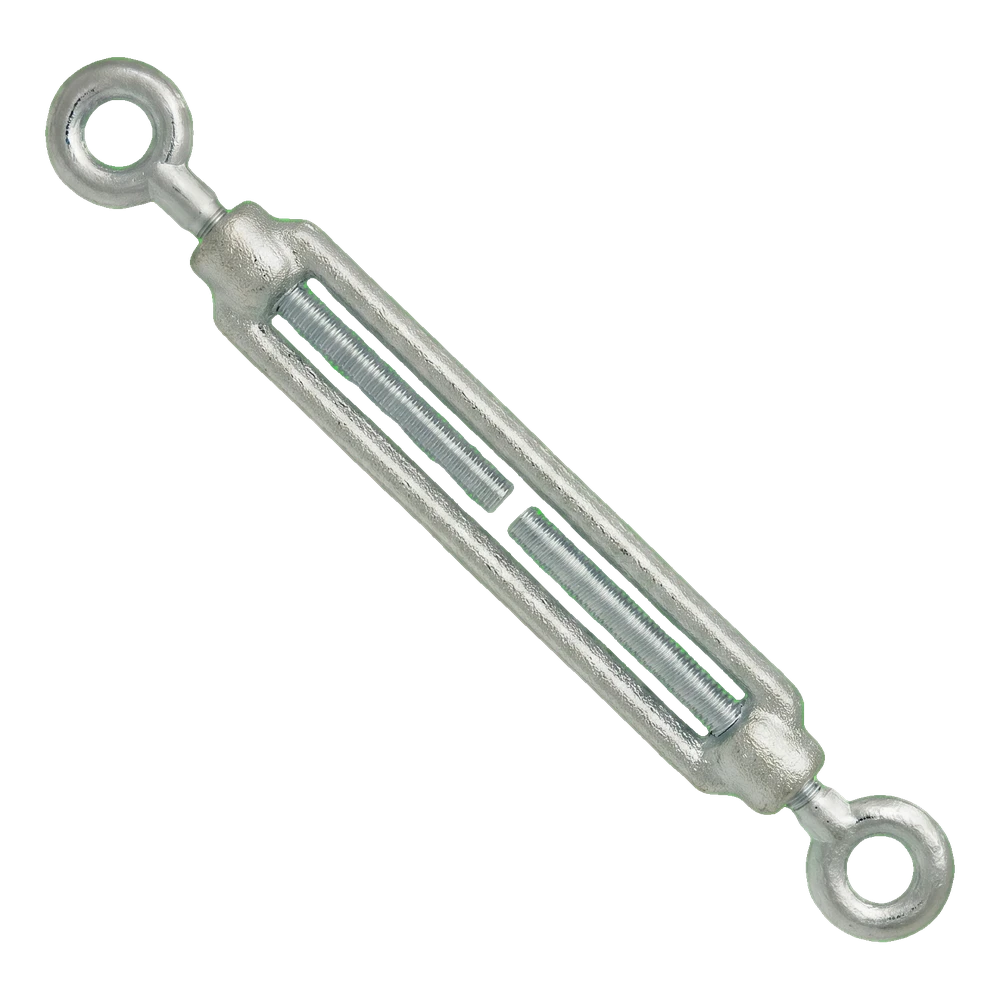

Turnbuckle, forged, eye-eye 6x110 DIN1480
Leave feedback on the product
Forged eye-eye turnbuckle M6x110 DIN 1480, galvanised. C15 structural steel with electrogalvanised finish. Length 110 mm, arm length L1 52 mm, eye diameter 9 mm, weight 0.1 kg. Minimum breaking force 7.8 kN.
Product code: 002-517
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M6
Description
Turnbuckle, forged, eye-eye 6x110 DIN1480
The manufacturer's eye-eye turnbuckle M6x110 DIN 1480 is a forged tensioning screw designed for adjusting the tension of steel wire ropes, chains and tie rods. Made of low-alloy structural steel C15 and protected with an electrogalvanised coating, it provides effective corrosion protection in outdoor conditions. The design conforms to the DIN 1480 standard, which ensures repeatable dimensions (±5% tolerance) and full interchangeability with other rigging components of the same standard. The eye-eye ends allow connection using shackles, snap hooks or pins, with no need for additional adapters. A minimum breaking force of 7.80 kN allows the turnbuckle to be used in loaded tensioning systems.
Features and applications
- Forged construction ensuring high strength and durability
- Eye-eye ends for quick connection to rigging hardware using shackles or pins
- Electrogalvanised coating protecting against corrosion in outdoor weather conditions
- Tension adjustment of steel wire ropes, tie rods, mast guys and barriers

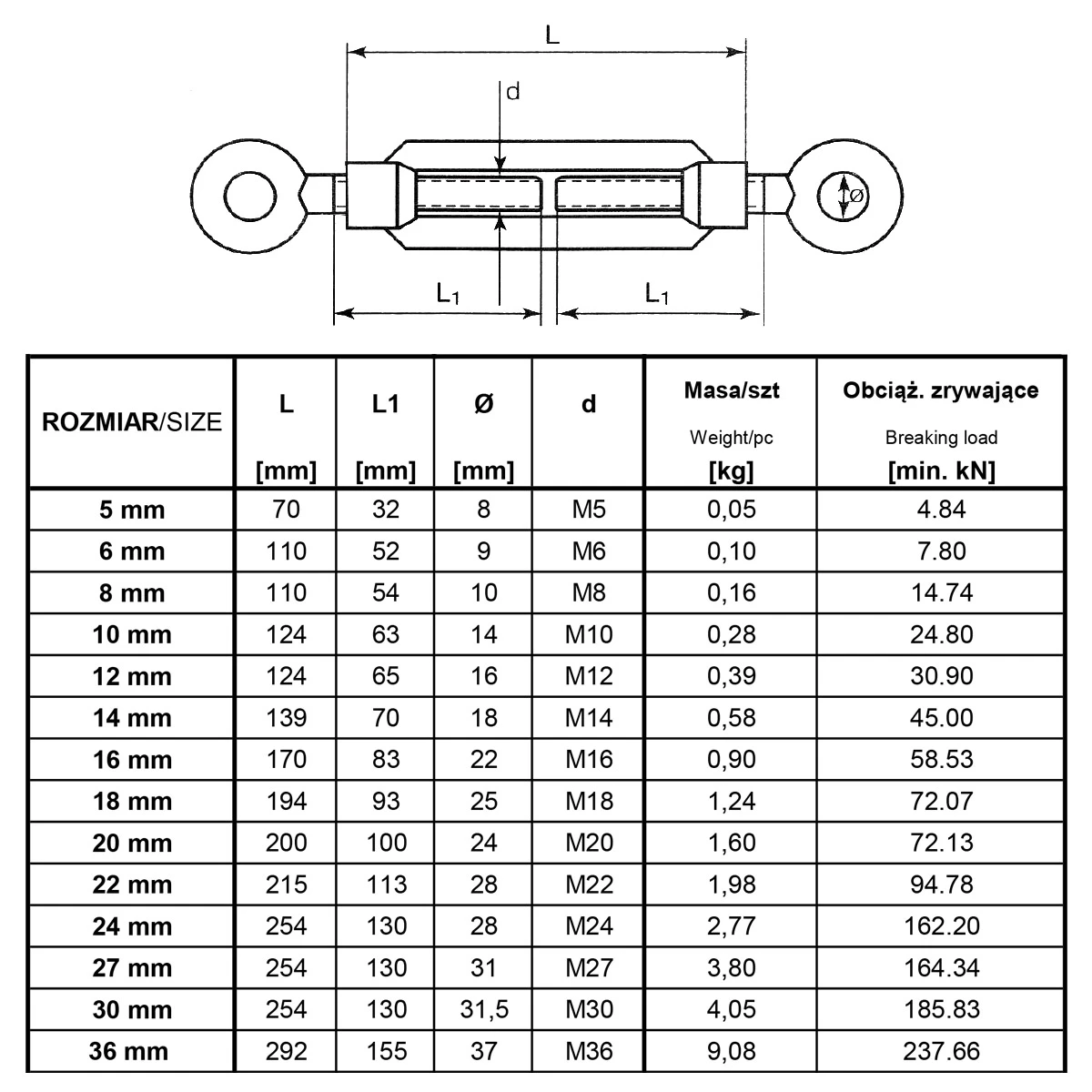

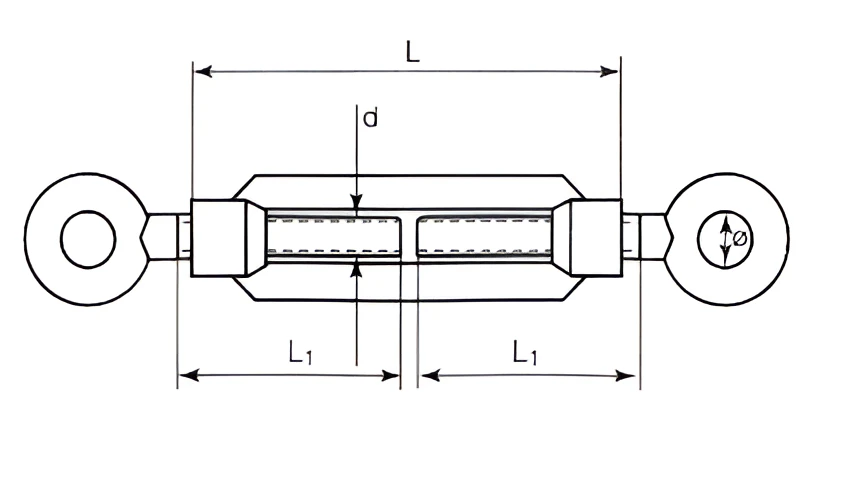

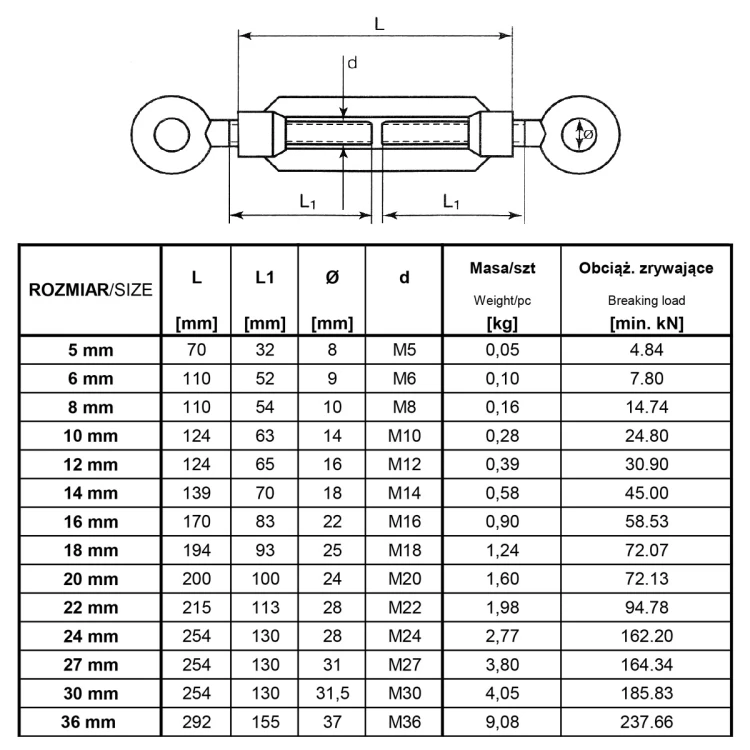

The dimensional drawing shows the key dimensions of the turnbuckle: L — overall length, L1 — arm length from the eye to the body, d — thread diameter, Ø — eye diameter. Thanks to the DIN 1480 standard, the component is fully compatible with shackles, brackets and other rigging accessories available under the same standard.
