PSG

Trolley set for self-supporting sliding gates + accessories KIT for rail 80

Go to Product feedback

Complete kit for self-supporting sliding gates: 2 running trolleys 60.003 with 5 rollers, ramp roller 60.011.80 and ramp bracket, compatible with 80x80x5 rail, galvanised finish.

Go to full description
with VAT without VAT
Price €81.68
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wozki #111

  • Rail Size 80x80x5
  • Product Type Package / KIT with accessories
  • Roller Material Steel
  • Number of Rollers [szt.] 5
  • Trolley Construction Swivel
  • Max. load capacity [kg] 350
  • Running System Type Rolling system

Description

Cantilever Sliding Gate Trolley Kit – 80×80×5 mm Rail

The trolley kit is a complete, cost-effective set of running components and mounting accessories designed for cantilever sliding gates. With both trolleys and gate-stabilising elements included in a single package, you save time on sourcing individual parts and can be confident that all components are fully compatible with one another.

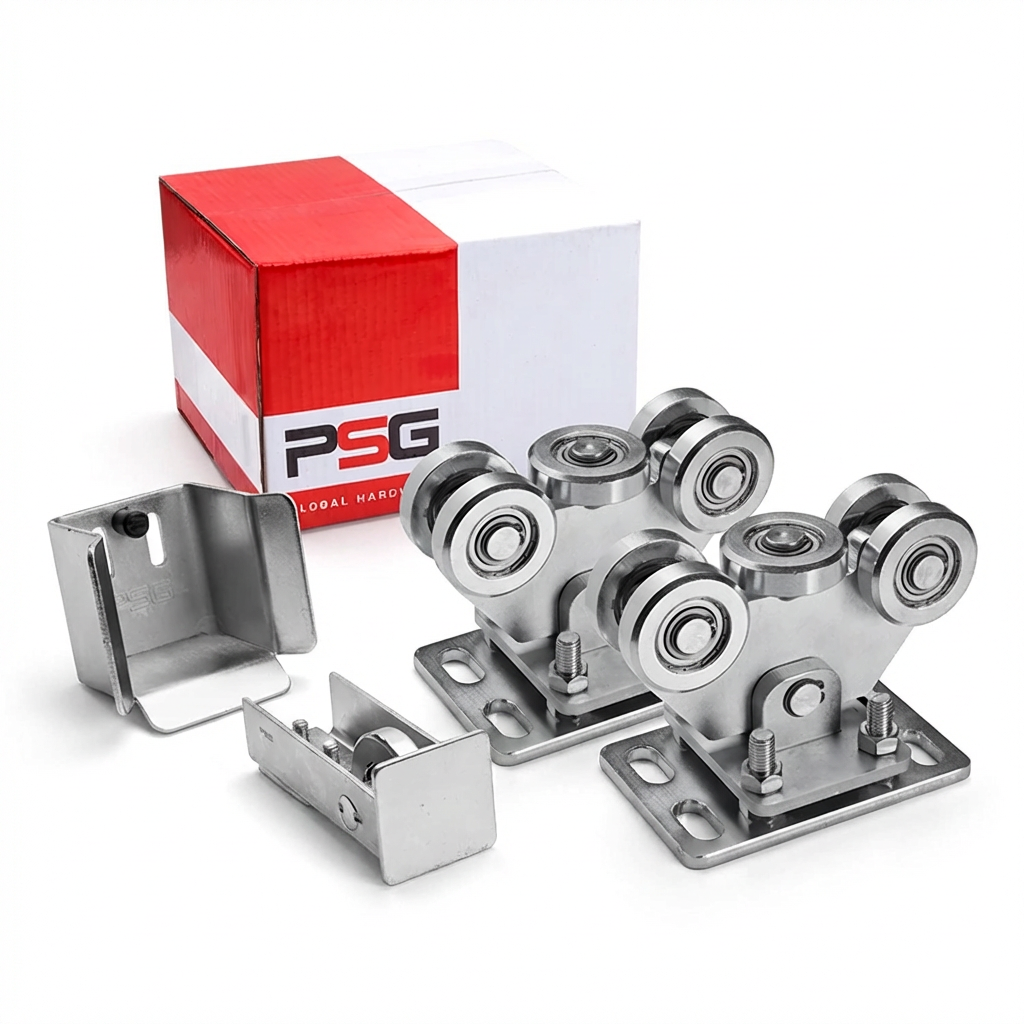

Trolley kit – complete set with packaging
Trolley kit – complete set with packaging

What does the kit include?

  • Running trolley – 2 pcs – featuring 5 metal rollers each (including one horizontal roller), swivel construction with pivot pin, height adjustment via bolts
  • Entry roller with end cap – 1 pc – steel component mounted at the start of the rail, end cap protects against snow and ice, mounting bolts included
  • Entry bracket – 1 pc – steel bracket with two mounting holes and a rubber buffer, compatible with 80×80×5 mm and 70×70×4 mm rail

How does the entry system work? The entry roller rides into the bracket fixed to the gate post – this means the gate's weight is distributed across a greater number of components, keeping the gate stable when closed. This design significantly extends the service life of the running trolleys and reduces operational wear.

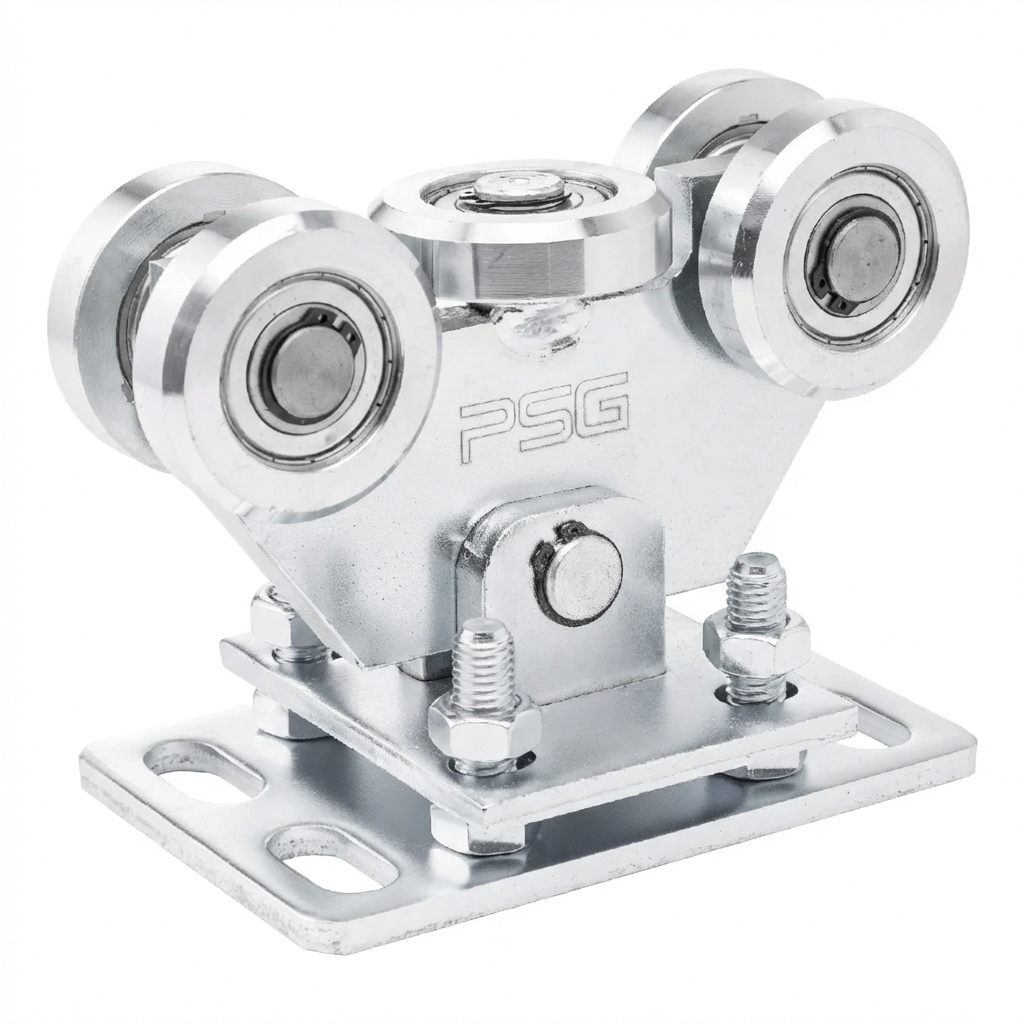

Running trolley – close-up view showing rollers
Running trolley – close-up view showing rollers

The running trolley is fitted with 5 metal rollers, including one horizontal roller that provides additional stability when guiding the gate. The swivel construction – the trolley is connected to the base via a pivot pin – means it automatically adjusts to the sliding gate rail. Height adjustment via bolts allows precise gate alignment during installation.

Technical Specifications

  • Application: cantilever sliding gates
  • Rail: 80×80×5 mm
  • Number of rollers per trolley: 5 (including 1 horizontal)
  • Trolley construction: swivel (pivot pin)
  • Height adjustment: yes – via bolts
  • Finish: hot-dip galvanised
  • Kit weight: 15.36 kg
  • EAN: 5901289674768

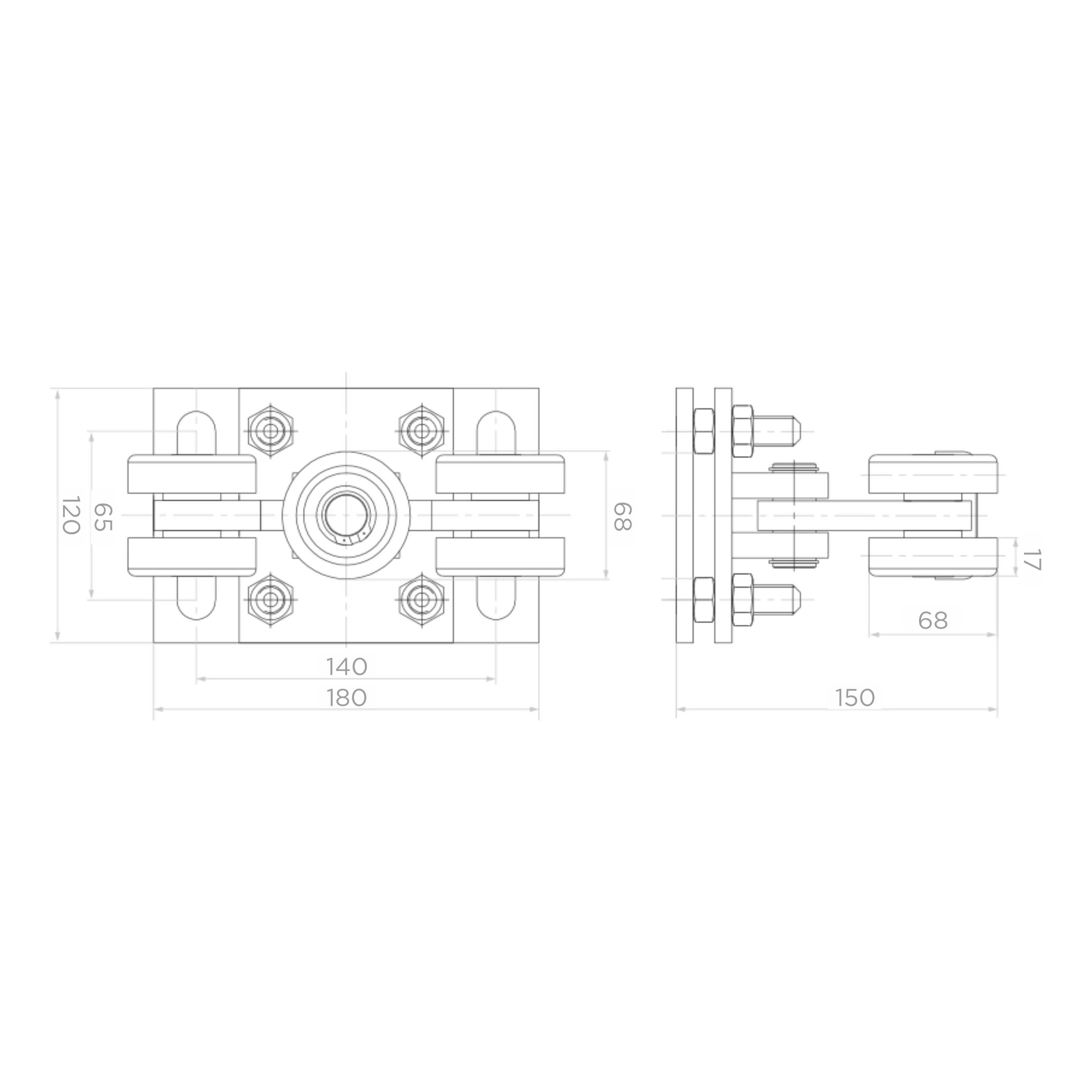

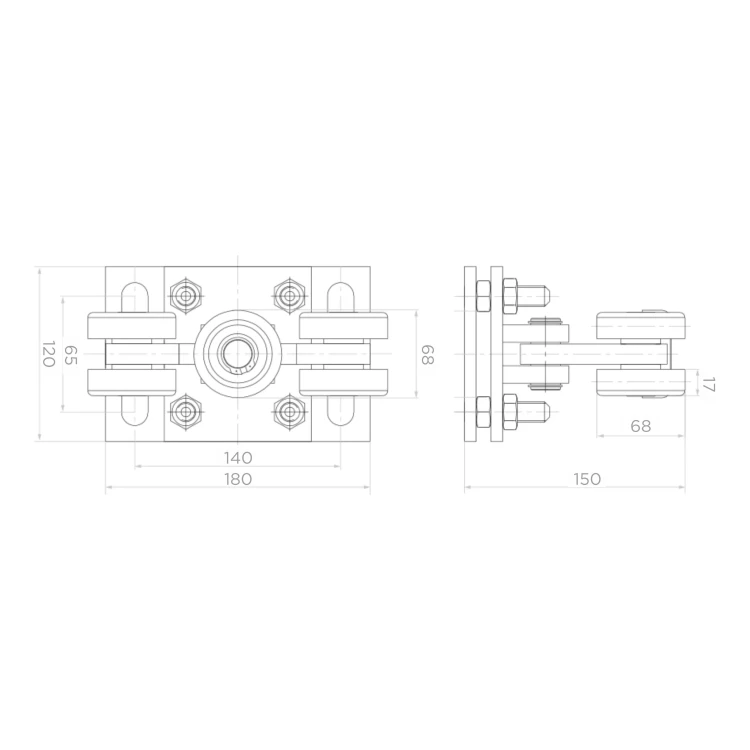

Technical drawing of the running trolley with dimensions
Technical drawing of the running trolley with dimensions

Why choose the kit over individual components?

  • Complete in one order – trolleys, entry roller and entry bracket ready to install
  • Cost saving – the kit offers better value compared to purchasing components separately
  • Full compatibility – all elements matched to the 80×80×5 mm rail
  • Durability – galvanised components with excellent corrosion resistance
  • Extended service life – the entry system reduces load on the trolleys and stabilises the gate

All components in the kit are galvanised, ensuring high corrosion resistance and long-lasting performance even in demanding weather conditions. This is a proven solution for professional installation companies carrying out cantilever sliding gate projects.
