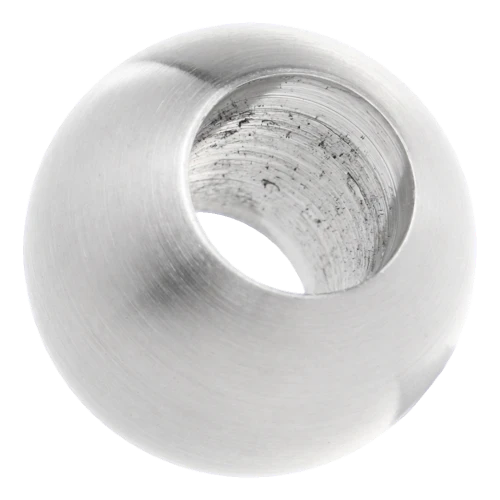

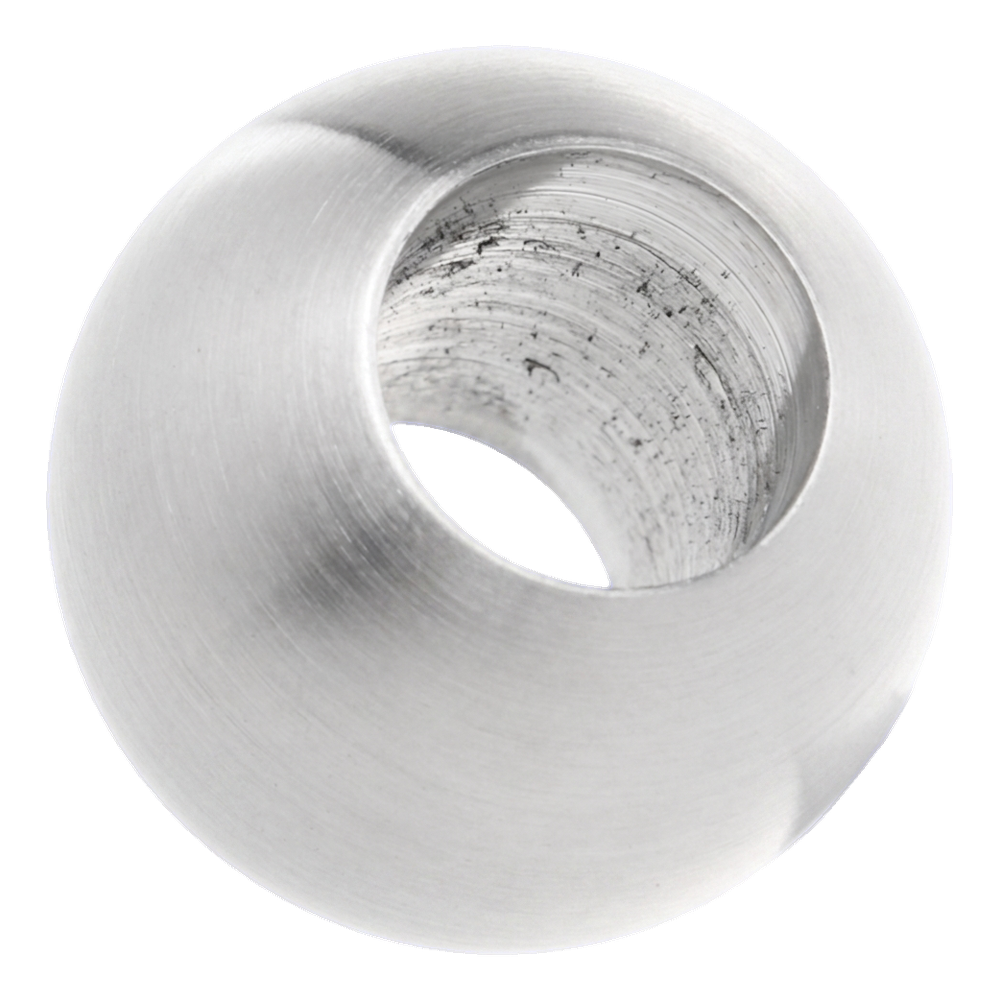

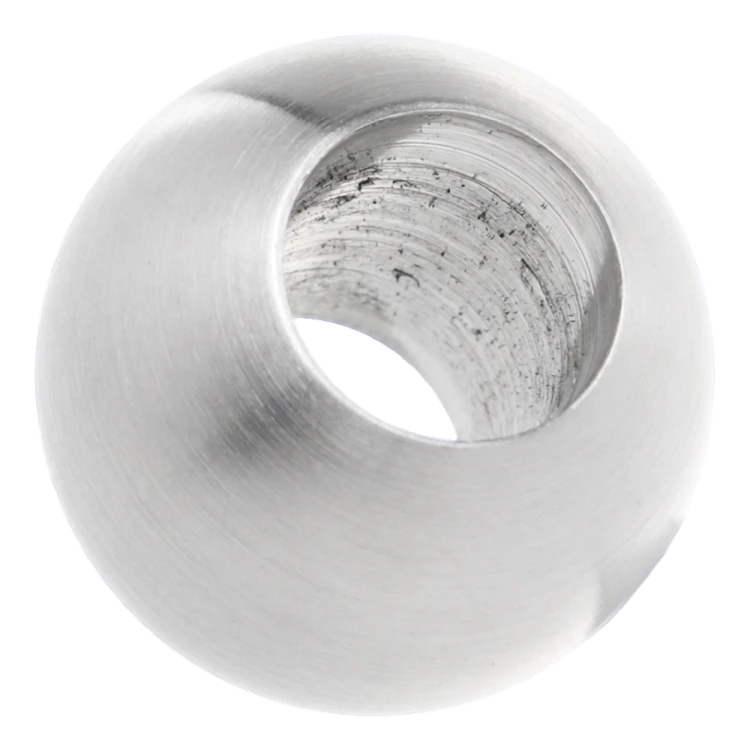

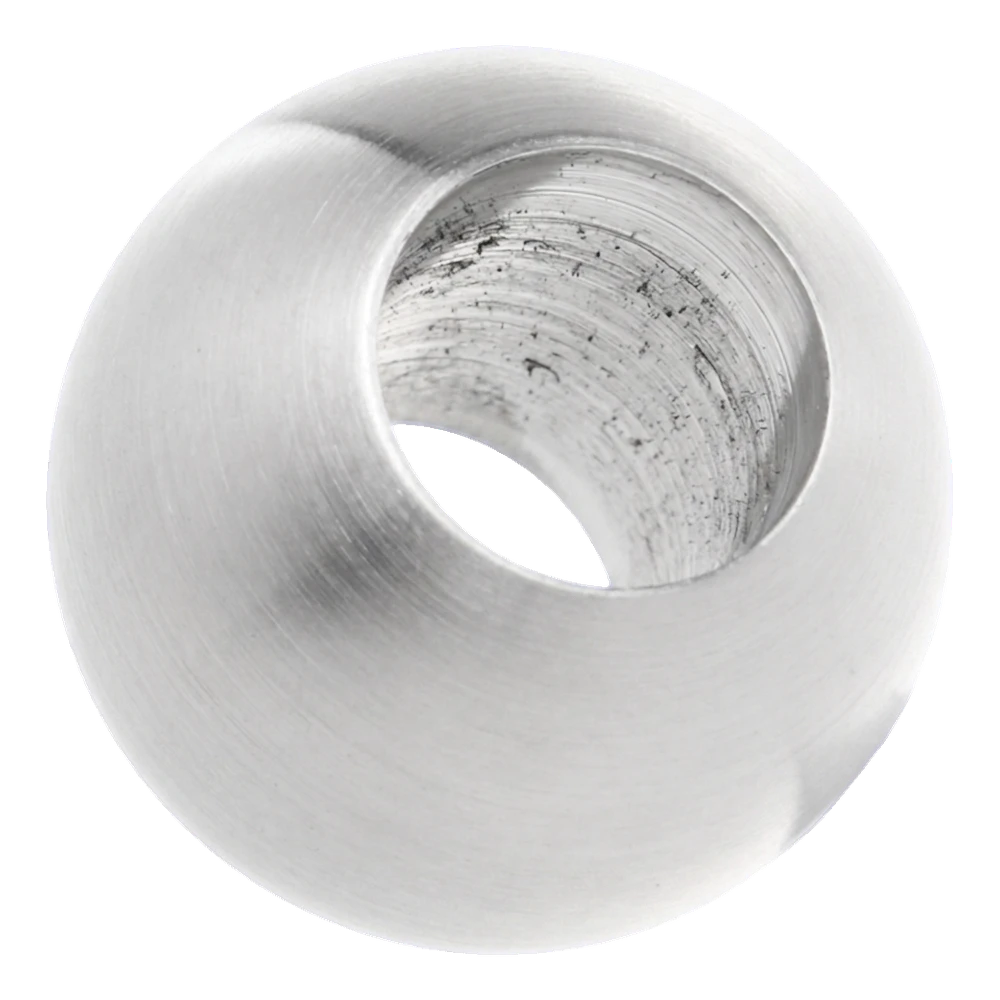

Through-hole balustrade ball ø 25 mm / 12 mm hole, stainless steel AISI 304 satin
Description
Through-hole balustrade ball ø 25 mm / 12 mm hole, stainless steel AISI 304 satin
Through-hole ball ø 25/12 mm made from stainless steel AISI 304 with satin finish — a universal decorative-connecting element for stainless steel balustrade and railing systems. The ball is designed for mounting on rods with a diameter of 12 mm, through which it passes completely, creating an aesthetic connection or decorative termination.
Product mounted using anaerobic adhesive method — the adhesive bonds through contact with metal and cures after oxygen supply is cut off. This connection method ensures permanent, invisible fixing without the need for welding, significantly speeding up installation work on site.

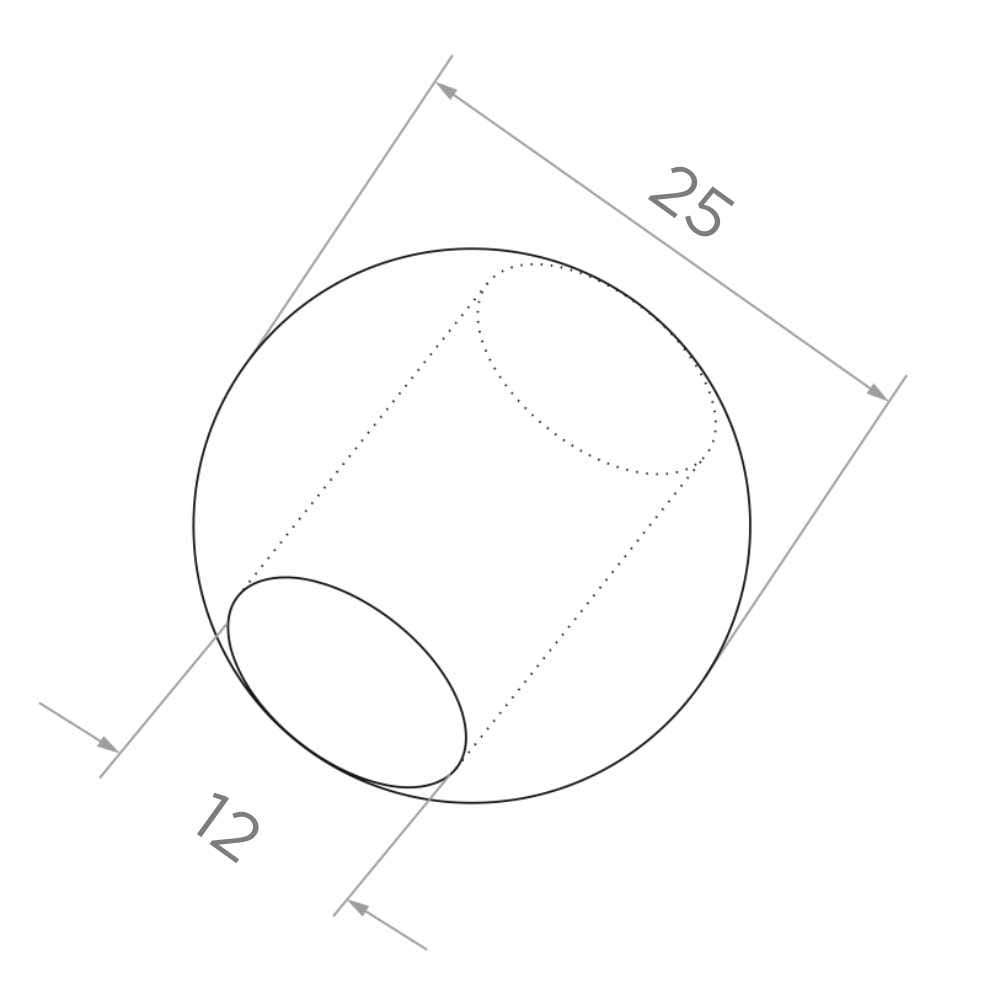

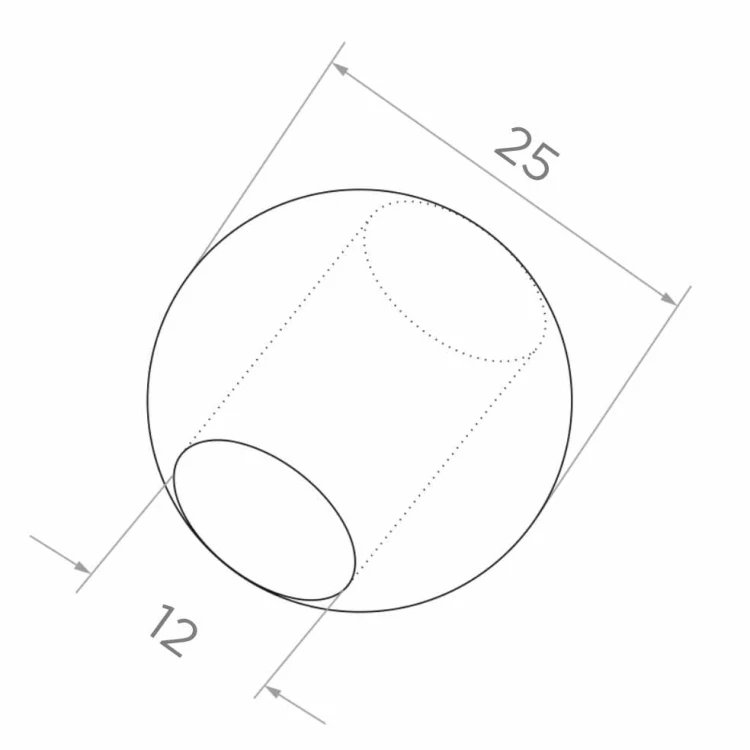

Dimensions and technical data
- Ball diameter: 25 mm
- Through-hole diameter: 12 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Hole type: through-hole (complete penetration)
- Weight: 0.044 kg
- Overall dimensions: 25 × 25 × 25 mm
- Application: universal — balustrades, railings, decorative elements
- EAN: 5901289672757
Installation guidelines
The ball should be fixed using anaerobic adhesive designed for stainless steel. Before applying the adhesive, surfaces must be dry and cleaned of grease and contaminants. The adhesive cures after the metal-to-metal contact is sealed, without oxygen access, guaranteeing a secure and permanent connection without thermal interference with the material.
Technical data
| Material | AISI 304 |
| Finish | Satin |
