Threaded rod A2-70 M5x1000mm stainless steel DIN 976
0
Description

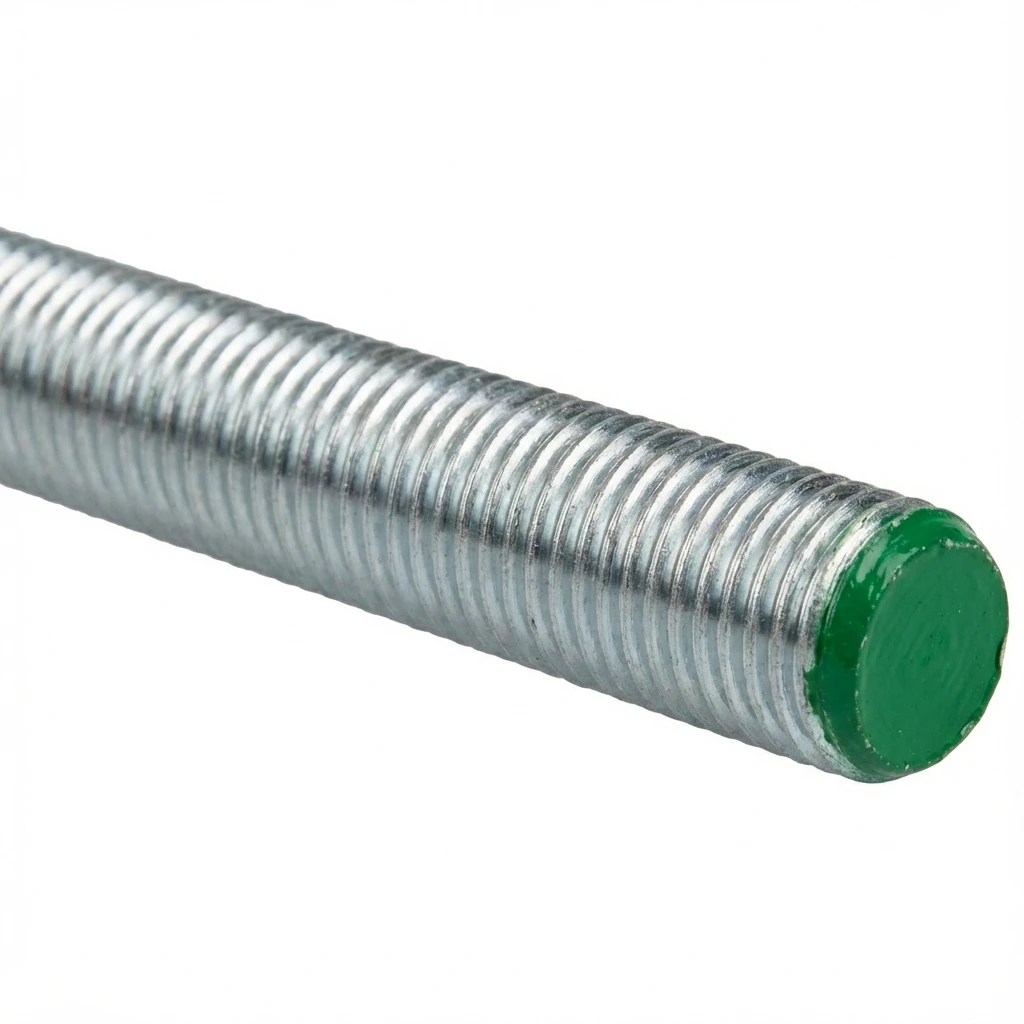

Threaded Rod A2-70 M5x1000mm Stainless Steel DIN 976
Threaded rod DIN 976 with diameter M5 and length 1000 mm, manufactured from A2 (AISI 304) stainless steel in strength class A2-70. Universal fastening element with full metric thread along the entire length, providing maximum installation flexibility. Ideal solution for professional applications in construction, photovoltaic installations and wherever corrosion resistance and connection reliability are required.
- Thread: M5 (metric ISO, pitch 0.8 mm)
- Length: 1000 mm
- Weight: 0.12 kg
- Material: Stainless steel A2 (1.4301)
- Strength class: A2-70 according to DIN EN ISO 3506
- Tensile strength Rm: min. 700 N/mm2
- Yield strength Rp0.2: min. 450 N/mm2
- Corrosion resistance class: CRC II
- Standard: DIN 976 (replaces DIN 975)
DIN 976 threaded rods made of A2 stainless steel are widely used in professional installations requiring durability and resistance to atmospheric conditions. They are an essential element in mounting photovoltaic structures, fixing solar panels to roofs and constructing PV farms. They perform excellently in construction – for fixing roof trusses, mounting wall plates, suspending ceilings and in ventilation and air conditioning installations.
Thanks to the thread along the entire length, the rod can be freely cut to the required dimension without loss of functionality. Compatible with standard nuts DIN 934, washers DIN 125 and all types of chemical and mechanical fixings, including resin anchors and expansion sleeves.
A2 stainless steel (also designated as V2A or AISI 304) is an austenitic chromium-nickel steel belonging to corrosion resistance class CRC II. It is characterised by good corrosion resistance in atmospheric conditions and is suitable for applications in equipment installation, timber construction, balustrades and architecture. It is not recommended for use in environments with high chloride content (swimming pools, seaside) – in such cases, A4 steel should be selected.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Length [mm] | 1000 |
| Material | A2 - stainless steel |
| Thread type | M5 |
