Threaded balustrade ball fi 80 mm stainless steel AISI 304 satin M10
Description
Threaded balustrade ball fi 80 mm stainless steel AISI 304 satin M10

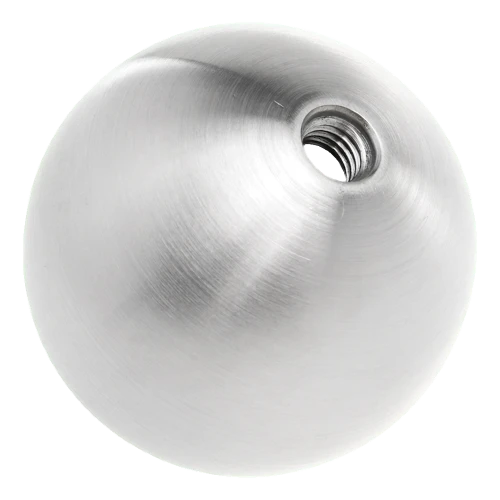

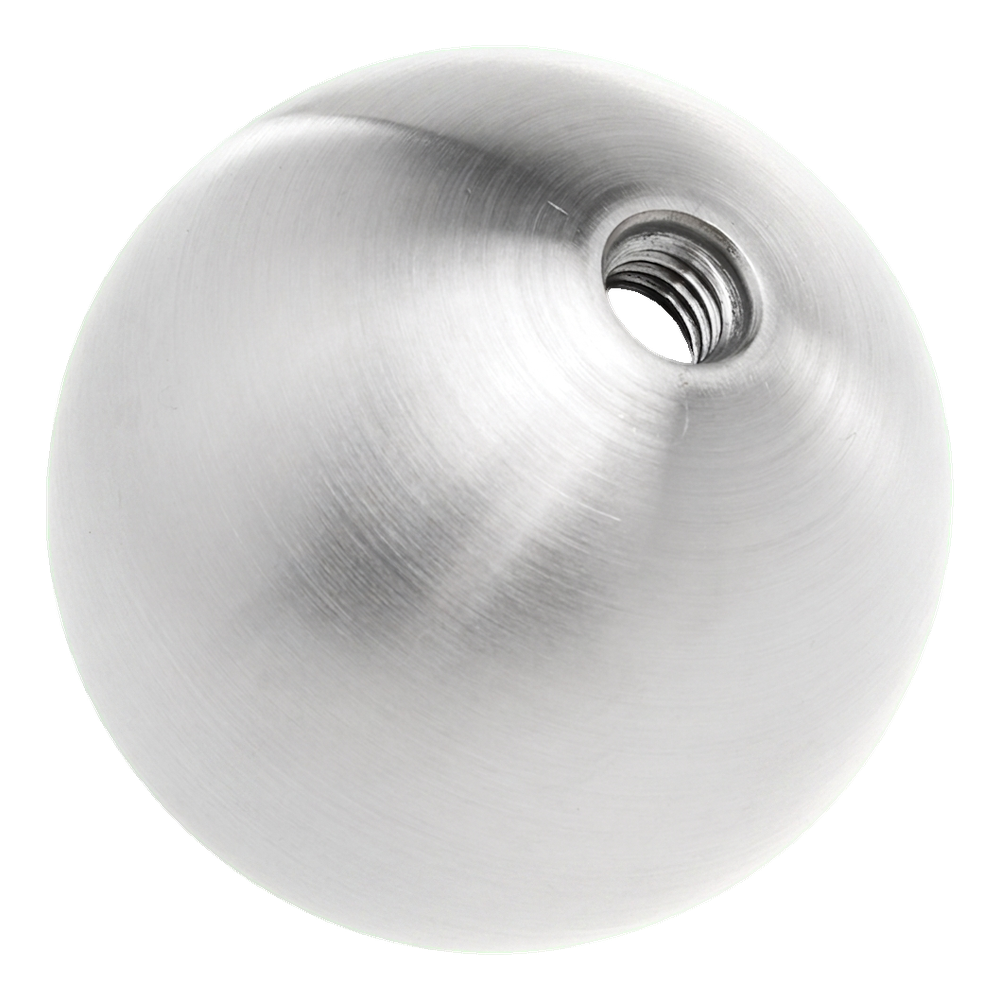

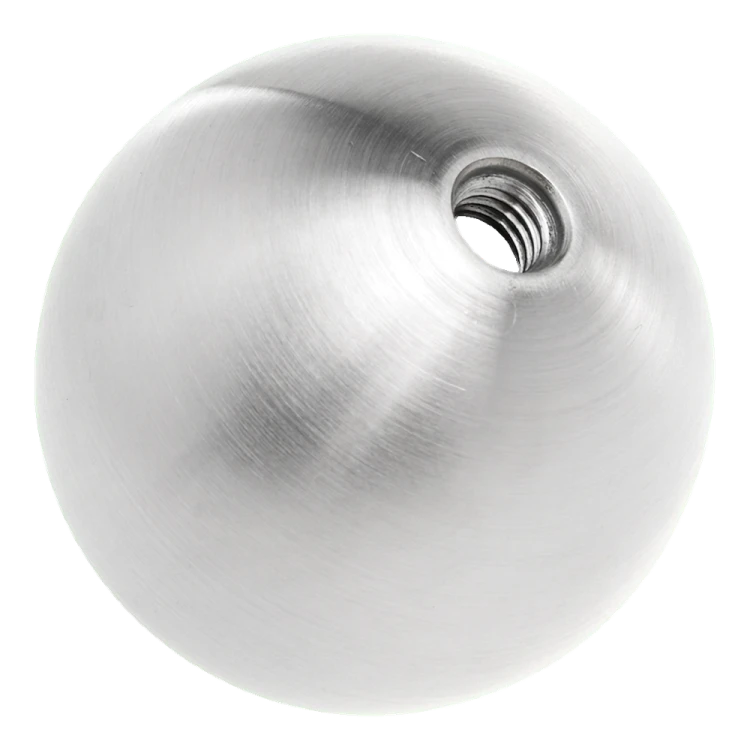

Threaded ball fi 80 mm made of stainless steel is an elegant finishing element dedicated to stainless steel balustrades. Manufactured from AISI 304 grade with satin finish, it gives the entire structure an aesthetic, professional character. The threaded hole M10 enables quick and secure mounting by direct screwing onto a rod or post — without the need for gluing or welding.
The hollow construction of the ball means low weight whilst maintaining full rigidity, which facilitates transport and storage of larger batches. The satin surface of stainless steel is resistant to corrosion, scratches and soiling — it performs ideally both inside buildings and outdoors.

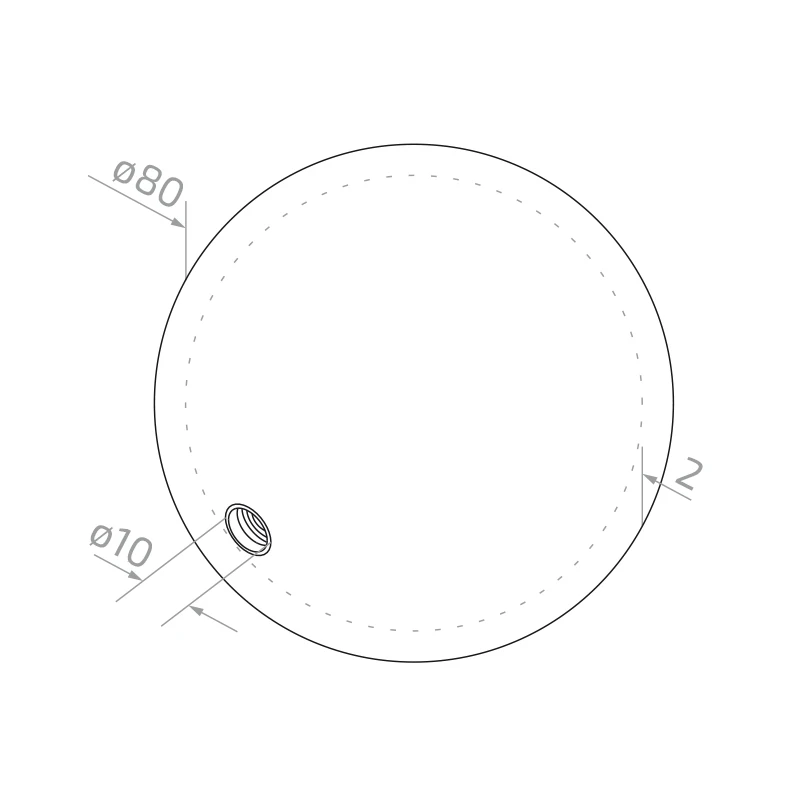

Dimensions and technical parameters
- Ball diameter: ø 80 mm
- Wall thickness: 2 mm
- Thread: M10
- Threaded hole diameter: ø 10 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Type: hollow (threaded)
- Weight: 0.28 kg
- Overall dimensions: 80 × 80 × 80 mm
- EAN: 5901289672795
Application
The ball is designed for mounting on stainless steel balustrades as a decorative end cap or post finial element. The M10 thread ensures compatibility with popular balustrade rods and spindles. Thanks to its universal character, the element perfectly complements a wide range of balustrade systems — both in residential and commercial properties.
Technical data
| Material | AISI 304 |
| Finish | Satin |
