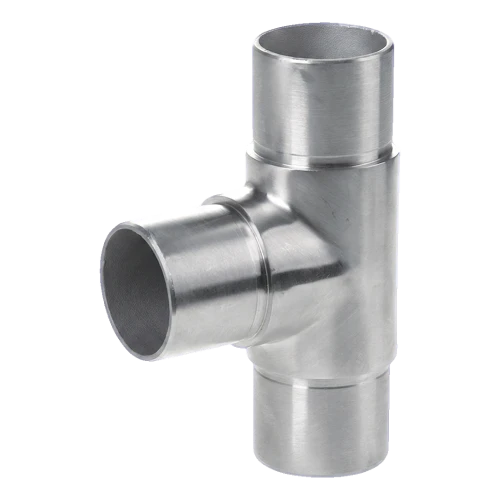

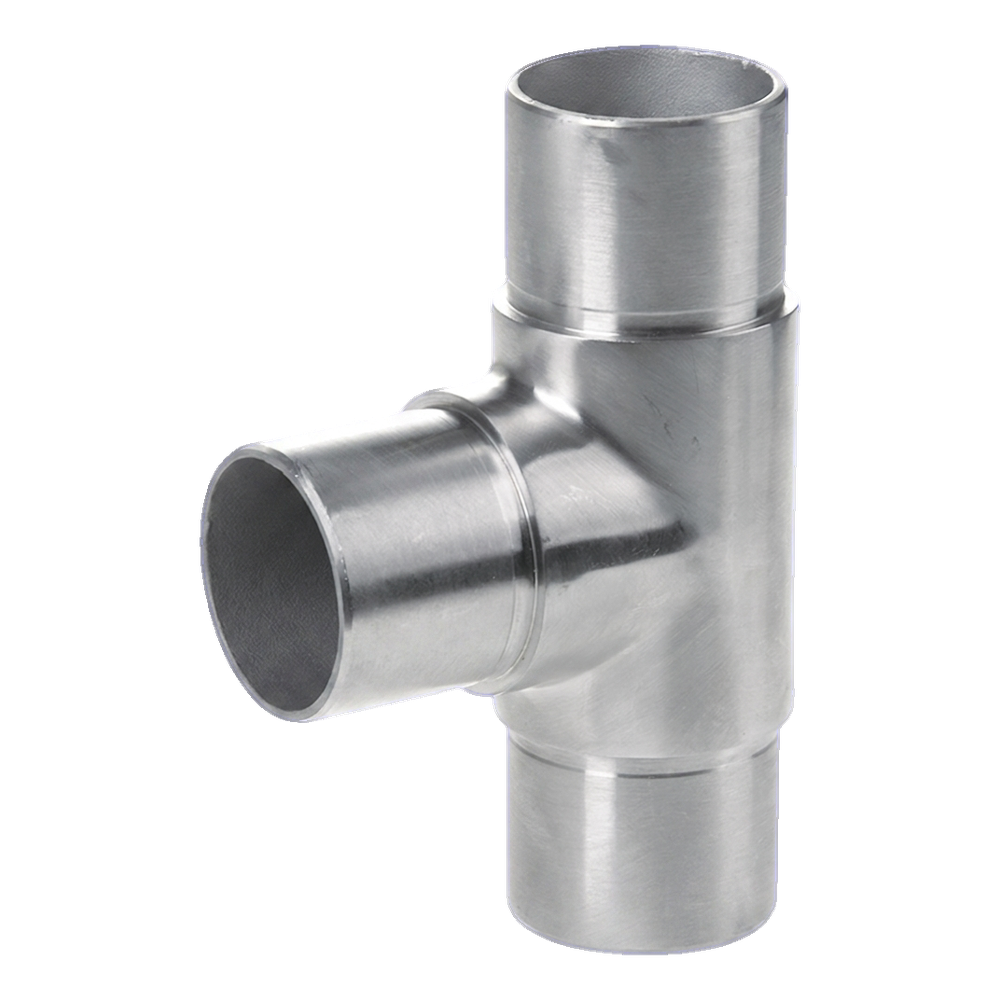

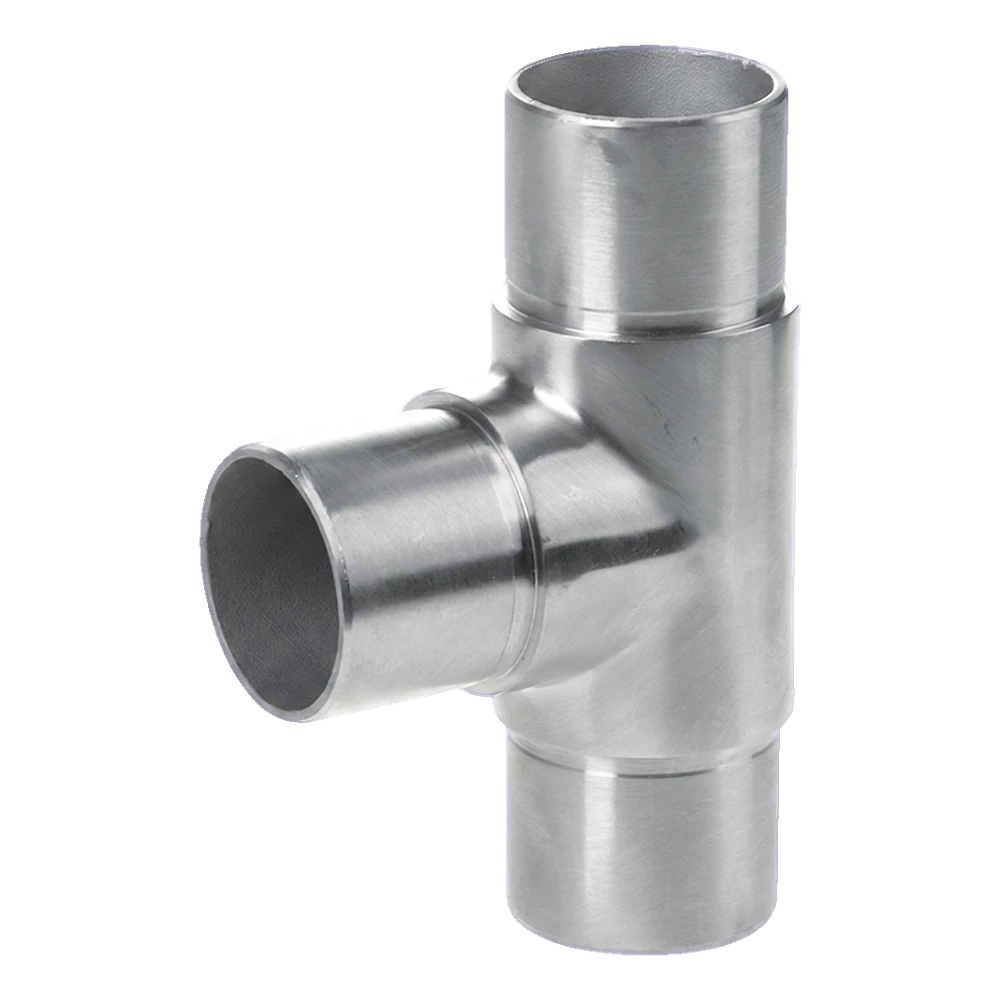

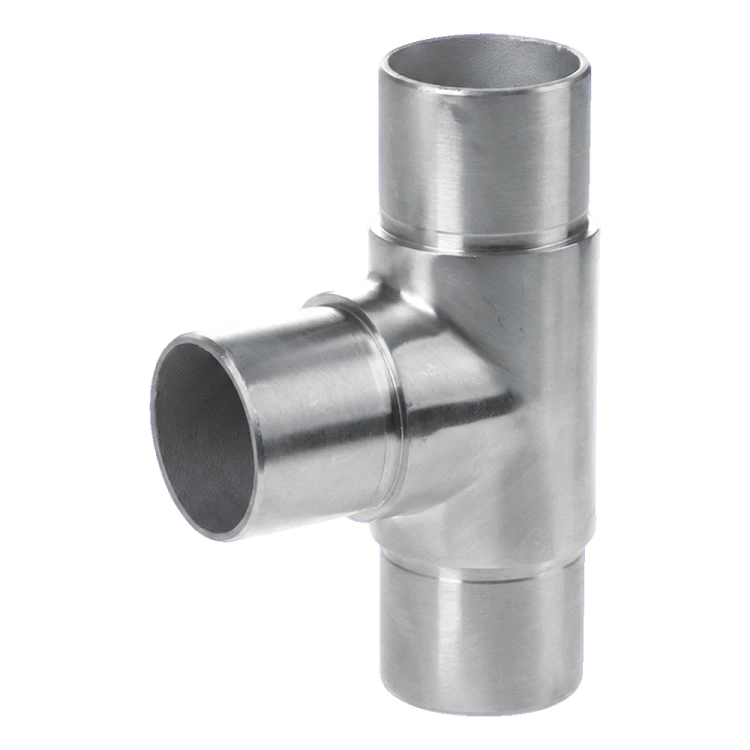

T-junction connector for handrail tube 42.4x2 mm - AISI 304 steel satin finish
0
Description
T-junction connector for handrail tube 42.4x2 mm - AISI 304 steel satin finish
T-junction connector for handrail tube with diameter 42.4 mm and wall thickness 2 mm. The T-shape enables connection of three tube sections at right angles, allowing for creation of branches in stainless steel handrail constructions. Component designed for adhesive mounting — ensures durable and aesthetic connection without the need for on-site welding.
The T-junction is manufactured from AISI 304 stainless steel with satin finish, guaranteeing high corrosion resistance and elegant, matt appearance that perfectly complements modern handrails. Precise manufacturing and consistent geometry ensure the component fits perfectly with 42.4 mm system tubes — one of the most popular standards in the handrail industry.
The connector provides an aesthetic joint for constructions with different directional runs, eliminating the need for manual angle fitting on site. Thanks to adhesive technology, installation is quick and clean — without welding marks, grinding or discolouration.

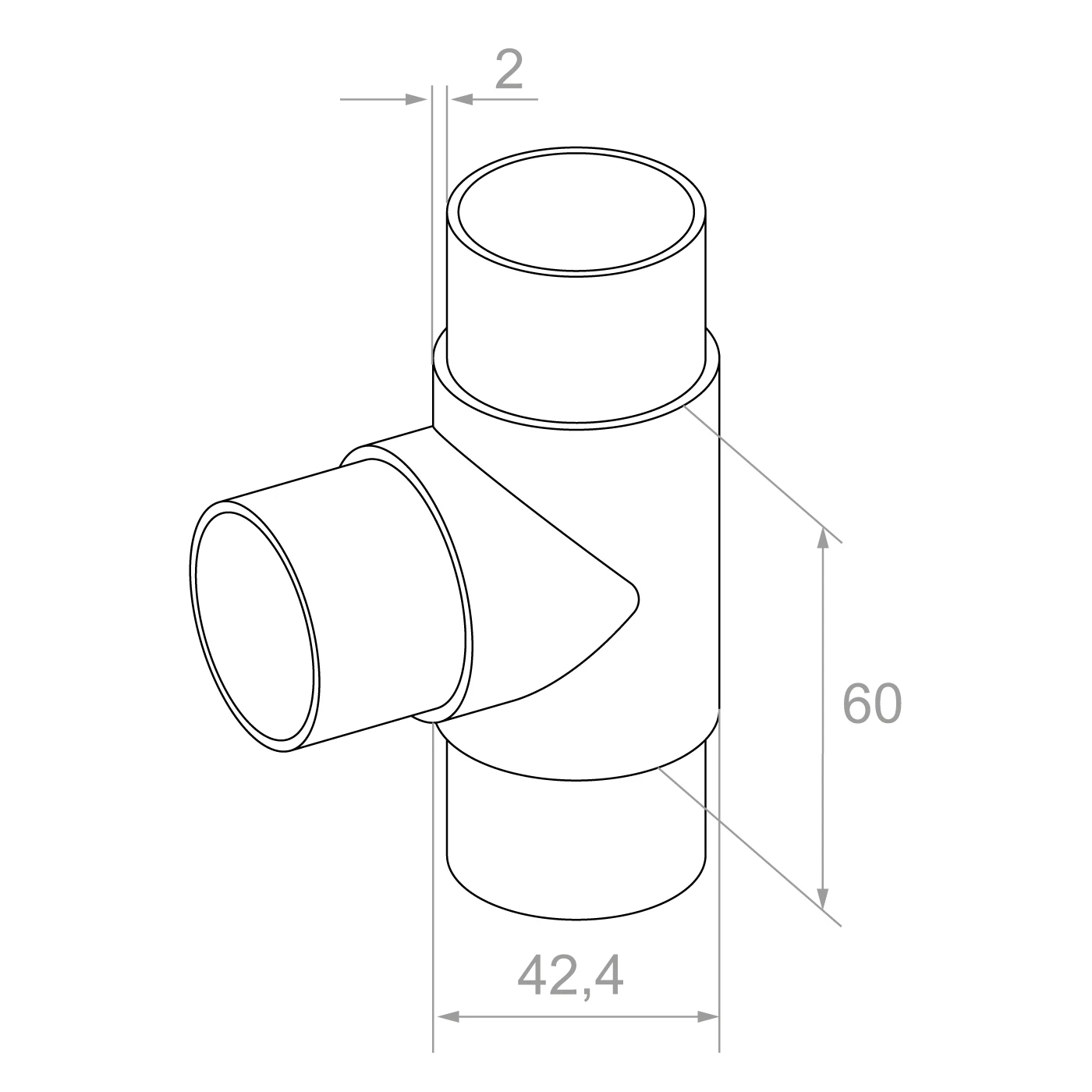

Technical parameters
- Type: T-junction (adhesive)
- System: tube Ø 42.4 mm
- External diameter: 42.4 mm
- Tube wall thickness: 2 mm
- Body height (H): 60 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Mounting: adhesive
- Weight: 0.3 kg
- EAN: 5901289673167
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
