T-Roof Hook Welded 110mm A2 Stainless Steel
product unavailable
add to wish list
Description

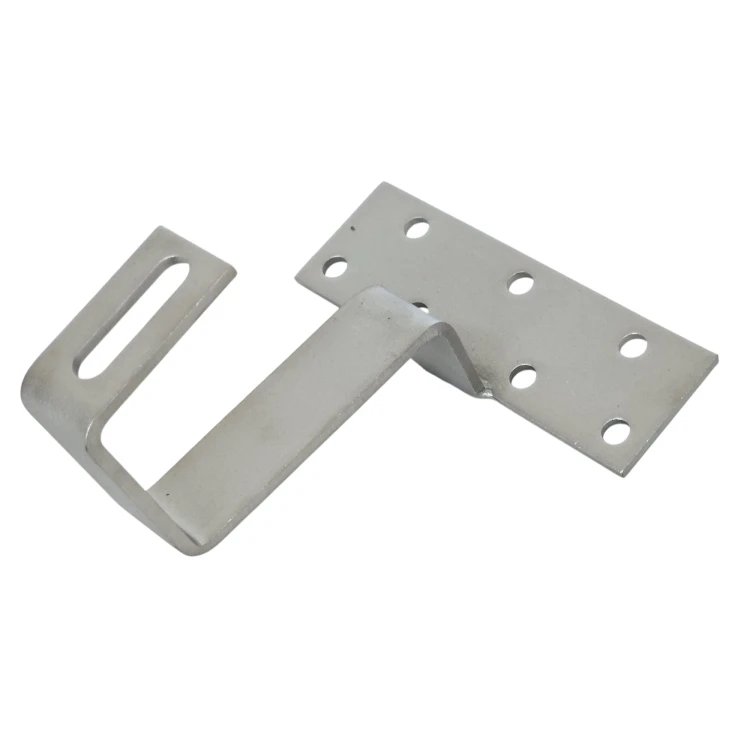

T-Profile Roof Hook Welded 110mm A2 TS
T-Profile Roof Hook Welded 110mm TS made of A2 stainless steel (1.4301) is a robust mounting component used in photovoltaic installations on tile-covered roofs.
The hook's construction enables permanent and secure fastening of mounting rails to the roof structure, guaranteeing stability of the entire PV system.
Used wherever a simple yet extremely durable form of connection to the roof structure is required. The T-type hook is an alternative to more complex brackets and fulfils its function in locations where adjustment is not necessary, and resistance and durability are key.
1.4301 is an austenitic stainless steel and should always be used outdoors in locations where there is a risk of corrosion. The stainless steel from which the product is made is resistant to weather conditions and therefore does not lose its properties for many years.
A2 type stainless steel (1.4301, corrosion resistance class II) performs better in environments where there is a higher concentration of salts or acids in the air.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Files to download:

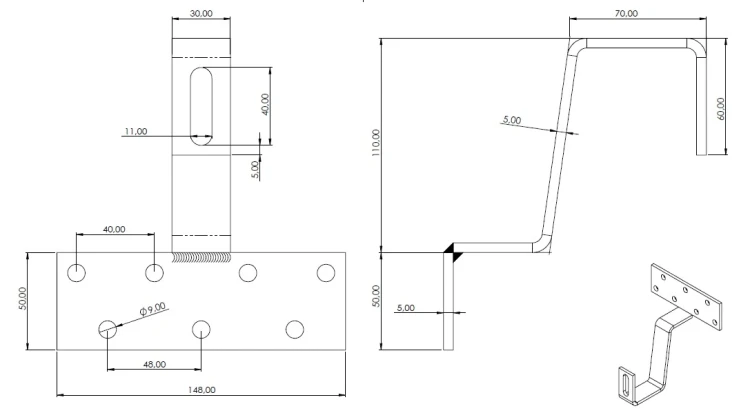

Technical data
| Material | Stainless Steel 1.4301 (A2) Grade 304 |
| Length of Z element [mm] | 110 |
| Width of Z element [mm] | 30 |
| Z-section element thickness [mm] | 5 |
| Width of wide angle bar [mm] | 148 |
| Wide angle thickness [mm] | 5 |
| Profile mounting method [mm] | From above |
| Type | T roof hook |
| Adjustment | No |
| Steel Grade | A2 |
