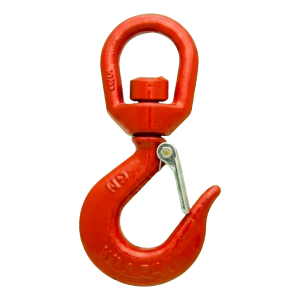

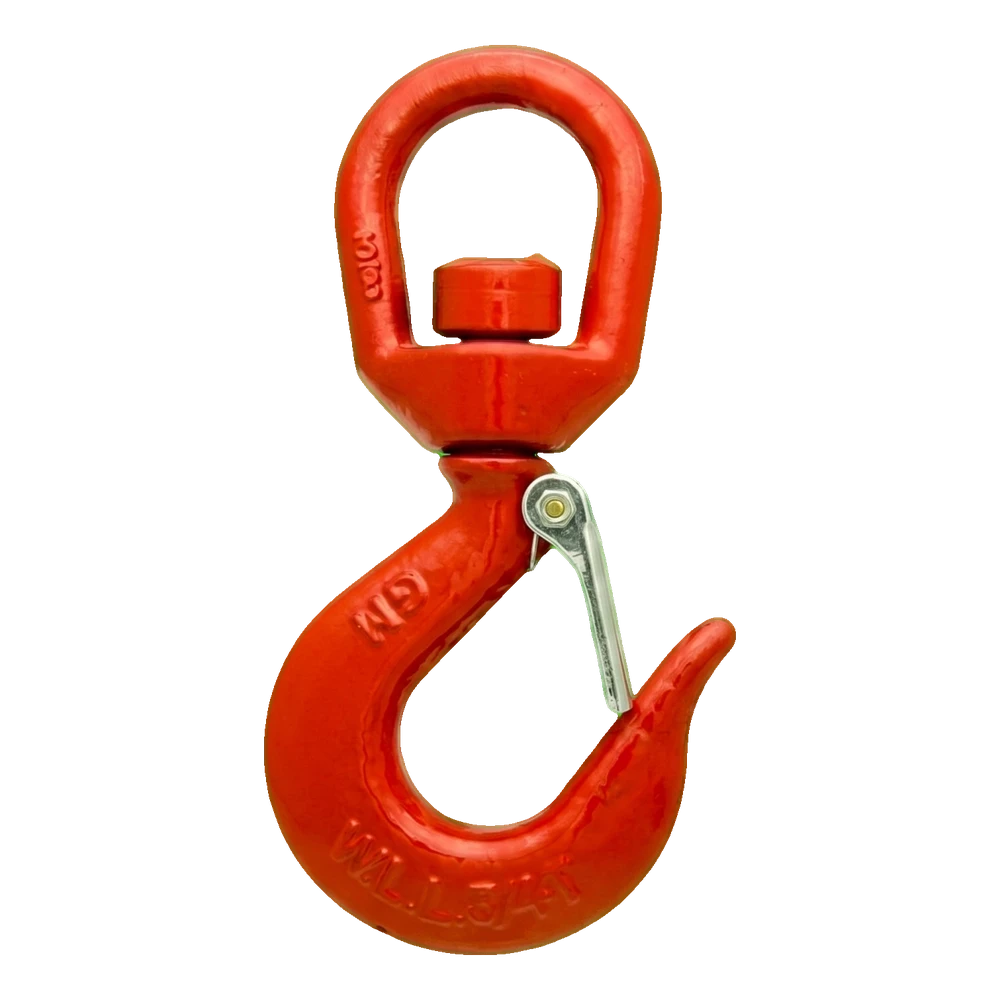

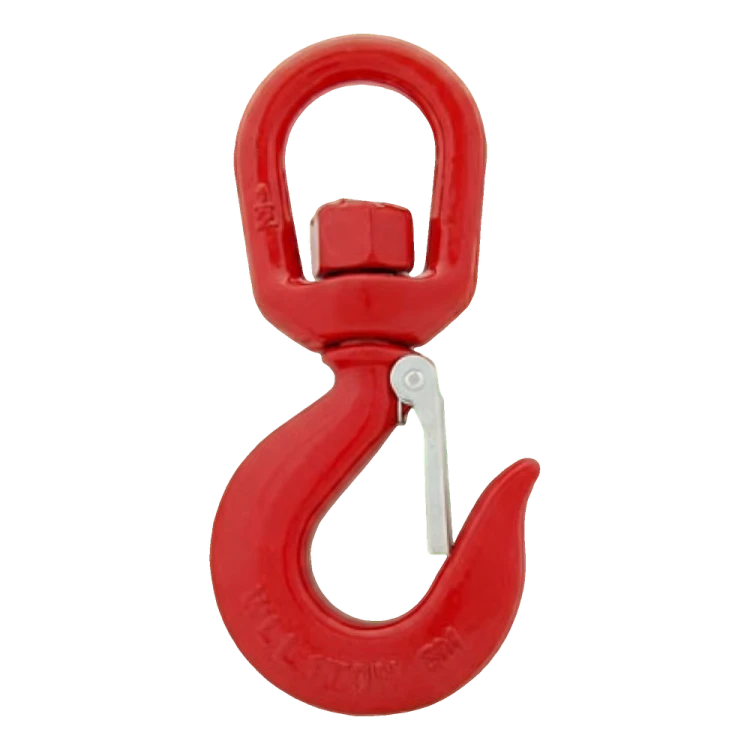

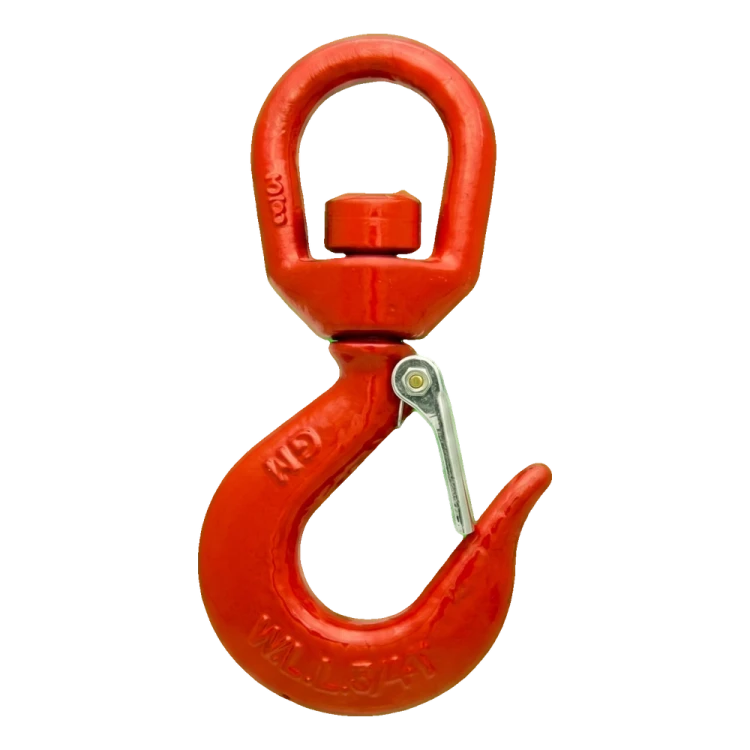

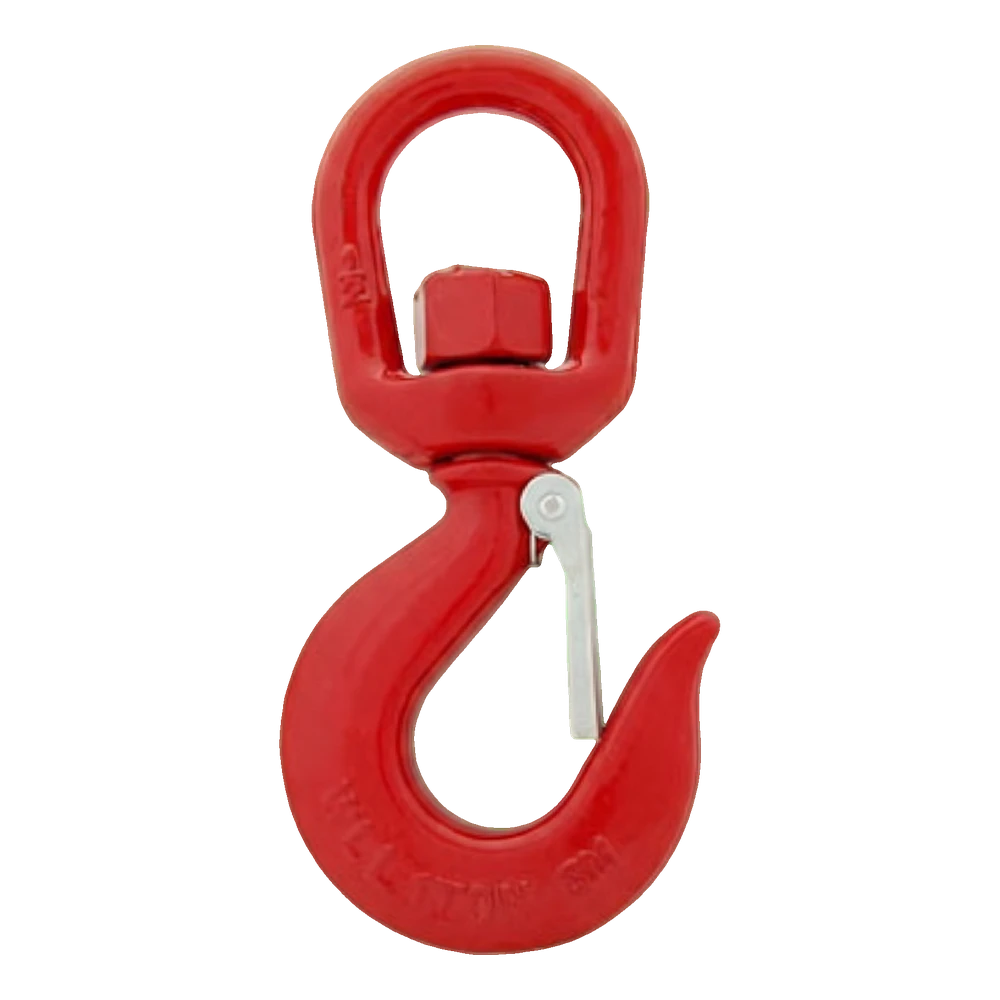

Swivel hook with safety catch 750 kg – galvanised and painted C45 steel
Leave feedback on the product
Swivel hook with safety catch HZO, C45 steel, galvanised and powder-coated (RAL 3020, red). Working load limit 750 kg, breaking force 36.8 kN, safety factor 5:1. Spring latch, height 141 mm. For steel wire ropes and chains.
Product code: 002-532
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Swivel hook with safety latch
- Max. load capacity [kg] 750
Description
Swivel hook with safety catch 750 kg – galvanised and painted C45 steel
Swivel hook with safety catch HZO with a working load limit of 750 kg is a reliable piece of rigging hardware designed for use with steel wire ropes and chains. Made of C45 steel and protected by a double coating — zinc plating + RAL 3020 powder coating (red) — it provides durable corrosion protection even in demanding outdoor conditions. The built-in spring latch effectively prevents the rope from accidentally slipping out of the hook throat, increasing the safety of every lifting operation. The swivel eye prevents the sling from twisting, making precise positioning of the load easier during work. A breaking force of 36.8 kN at a safety factor of 5:1 confirms the high strength reserve of the design.
Key features of the HZO 750 kg hook
- Swivel eye allowing the sling to rotate freely through 360° — no twisting of the rope
- Spring latch securing the hook throat against accidental loss of the load
- Double protective coating: zinc + RAL 3020 powder coating providing corrosion resistance

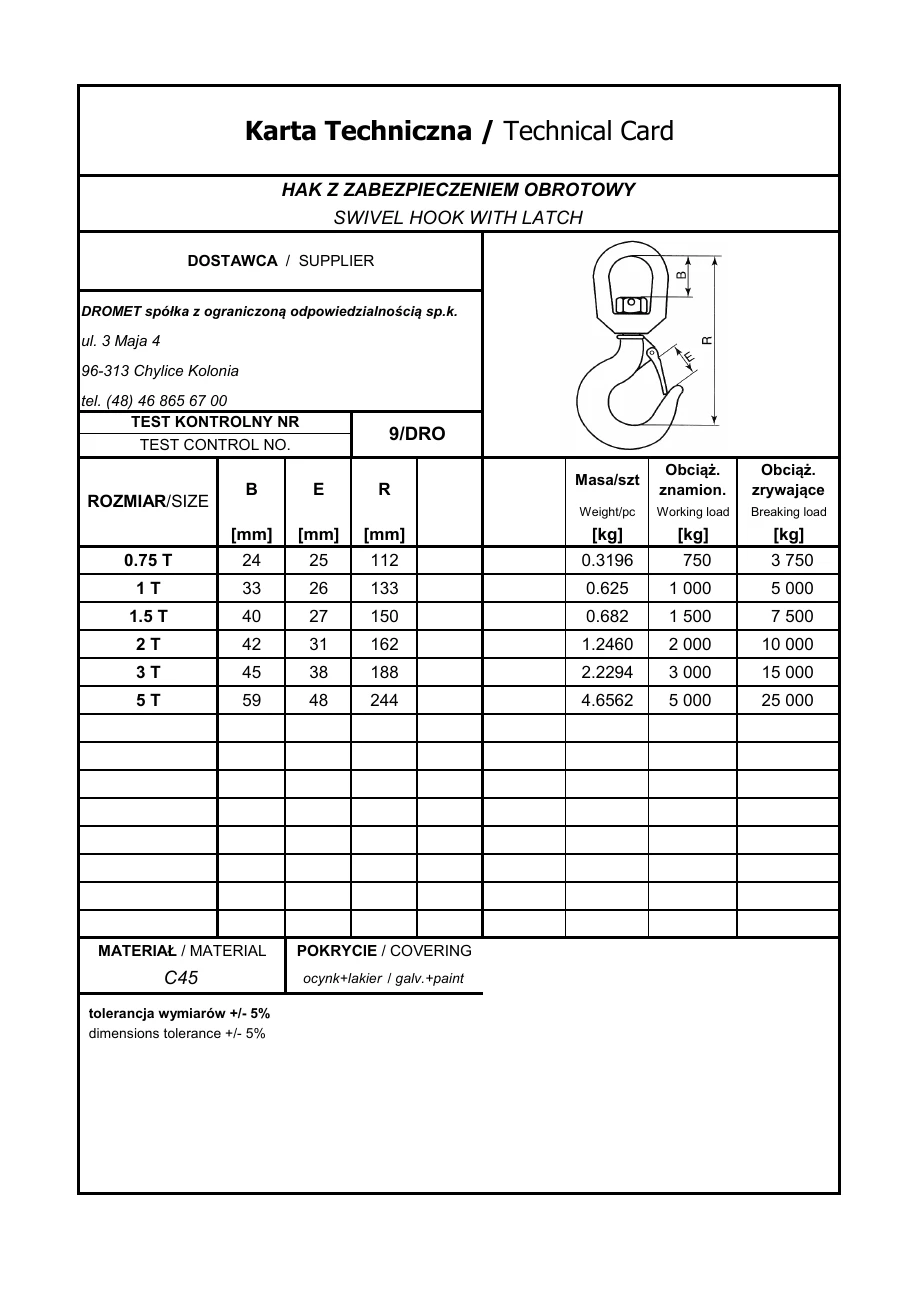

- Dimensional tolerance of ±5% in line with the manufacturer's technical data sheet
- Sold as single units — you order exactly as many as you need

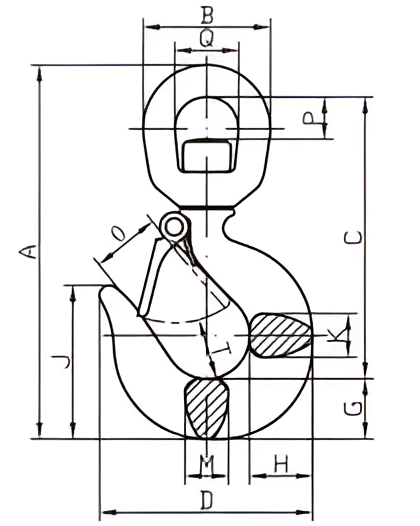

The technical drawing shows the full geometry of the hook with dimensional markings. Detailed dimensions of the individual points of the design — from the swivel eye to the throat — allow you to select the hook precisely for a specific sling, chain or transport lifting point configuration before ordering.
