Swivel hook with safety catch 2000 kg – galvanised and painted C45 steel
Leave feedback on the product

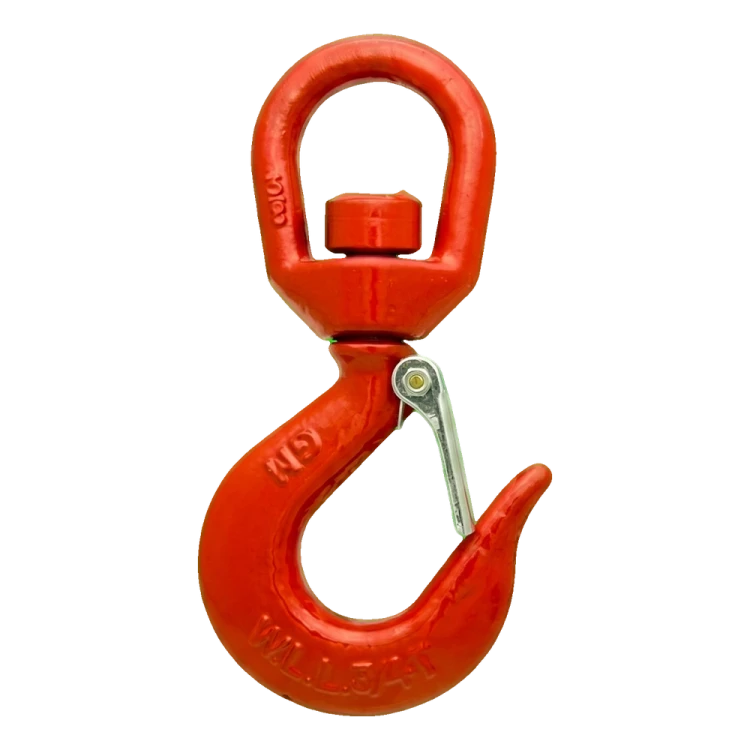

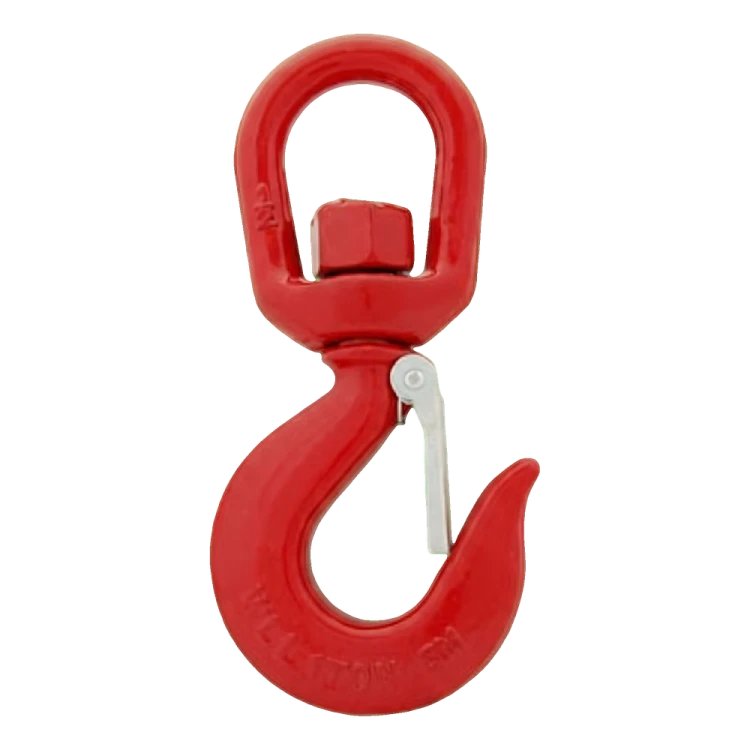

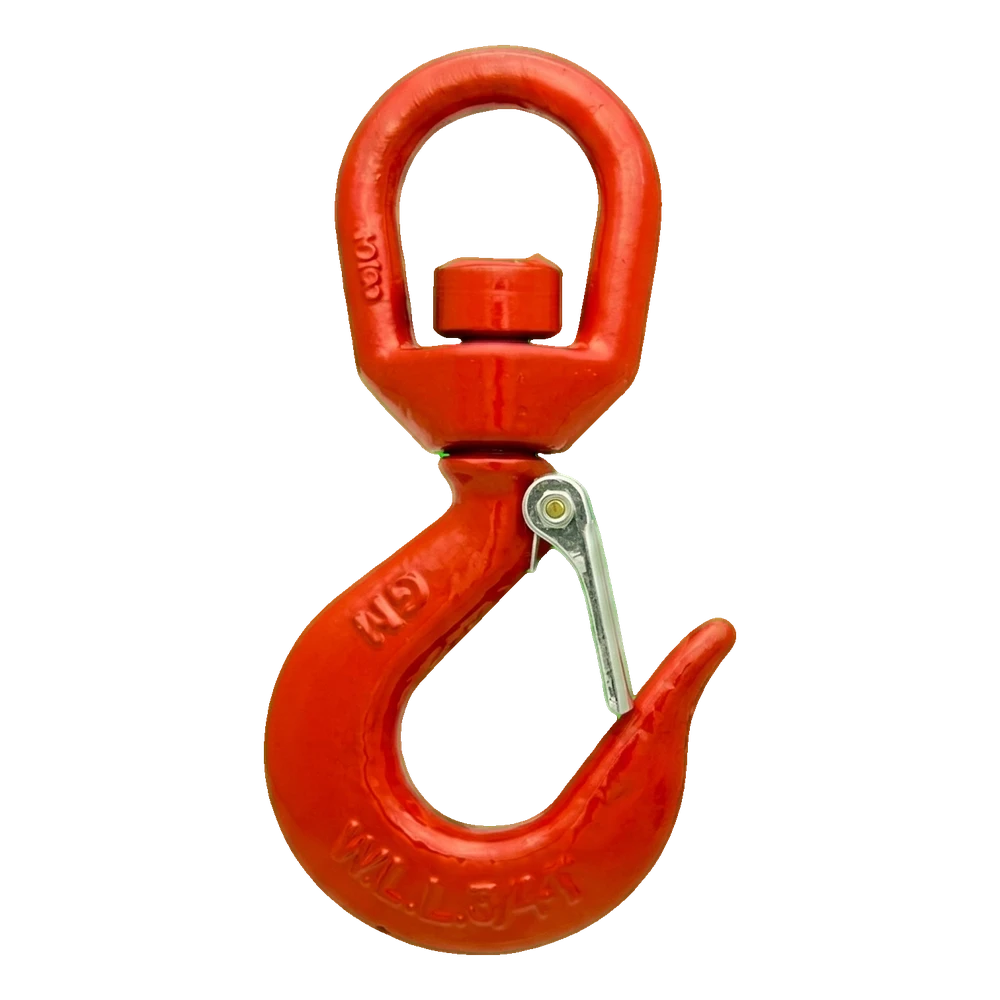

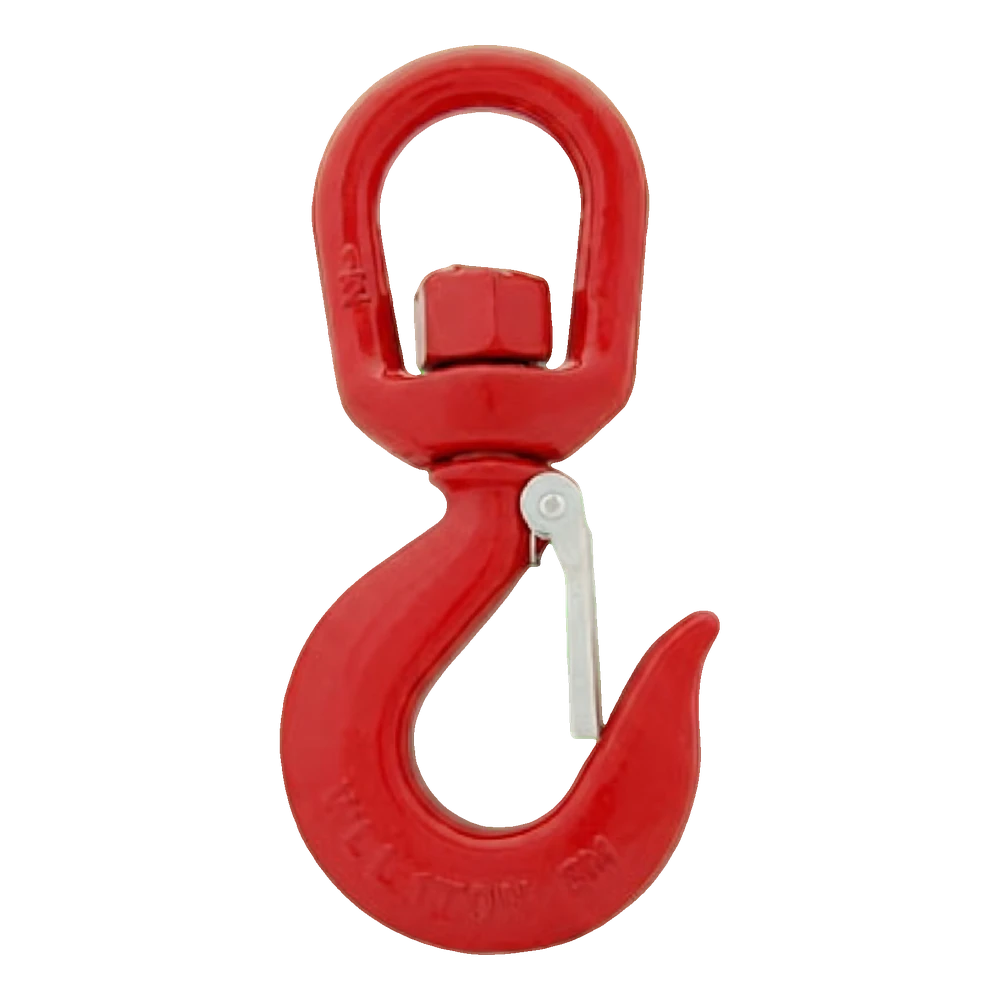

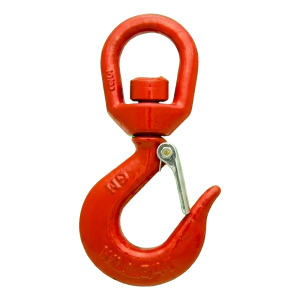

Swivel hook with safety catch HZO, C45 steel, galvanised and powder-coated in red RAL 3020. Working load limit (WLL) 2000 kg. Overall height 205 mm, throat opening 161 mm, eye width 76.2 mm. Spring-loaded latch. Dimensional tolerance ±5%.
Product code: 002-534
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Swivel hook with safety latch
- Max. load capacity [kg] 2000
Description
Swivel hook with safety catch 2000 kg – galvanised and painted C45 steel
The Swivel hook with safety catch from the HZO series, with a working load limit of 2000 kg, is durable hardware designed for professional lifting and transport applications. Made of C45 steel and protected by a double anti-corrosion coating (zinc plating + RAL 3020 powder coat), the hook provides long-lasting protection even in harsh environmental conditions. The swivel design with an eye allows the load to be positioned freely during lifting, while the spring-loaded safety latch effectively prevents the rope or chain from slipping off accidentally. The hook is permanently marked with the WLL symbol, making it easy to identify the permissible load directly on the construction site.
Key design features
- The swivel eye allows the load to rotate freely and prevents the sling from twisting
- The spring-loaded safety latch protects against uncontrolled release of the rope or chain
- Double anti-corrosion coating — hot-dip zinc plating and red RAL 3020 powder coat
- Permanent WLL marking on the hook body makes it easy to check the load at the workstation
- Dimensional tolerance ±5% in accordance with the manufacturer's datasheet

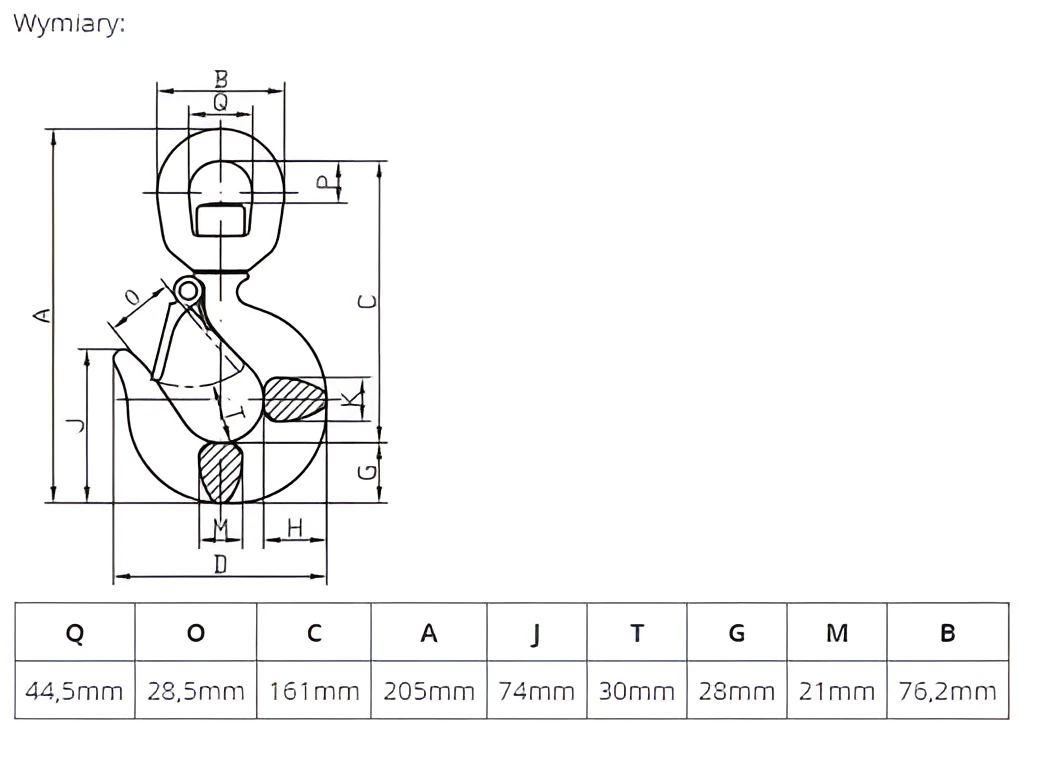

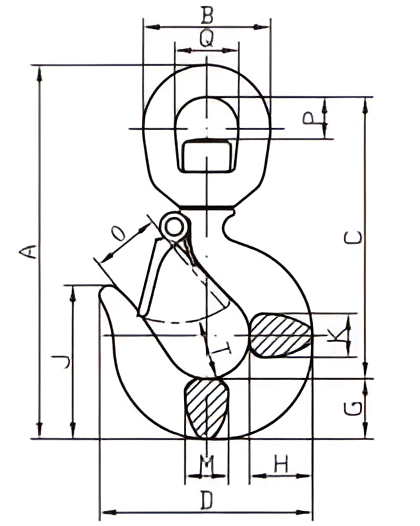

The dimensional drawing shows the layout of the hook's key overall dimensions, marked with the letters Q, O, C, A, J, T, G, M and B. The compact design allows the hook to be used in confined installation spaces, and the proportions of the eye ensure compatibility with common sizes of chain and wire rope slings.
