Swing hook, metric thread, galvanised M8×100 mm
Leave feedback on the product

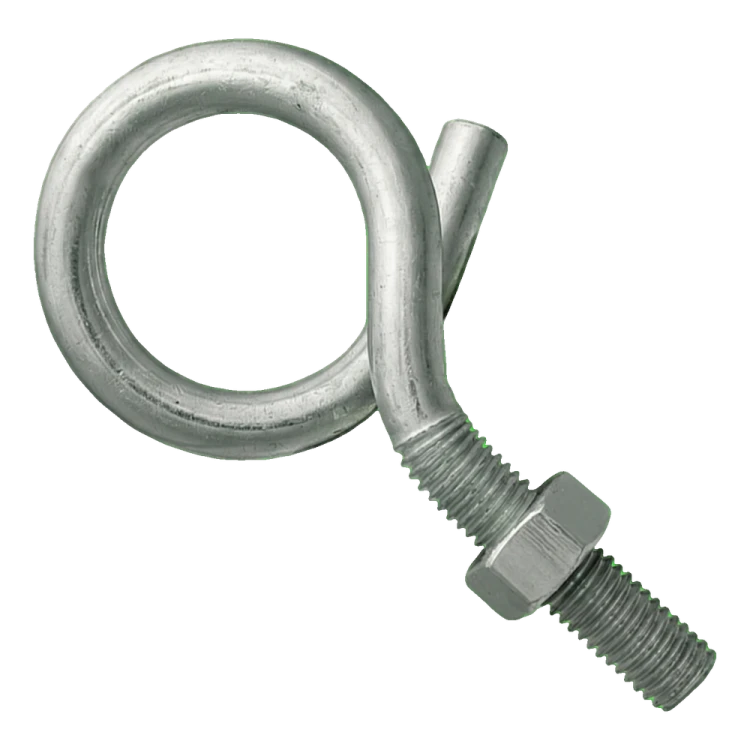

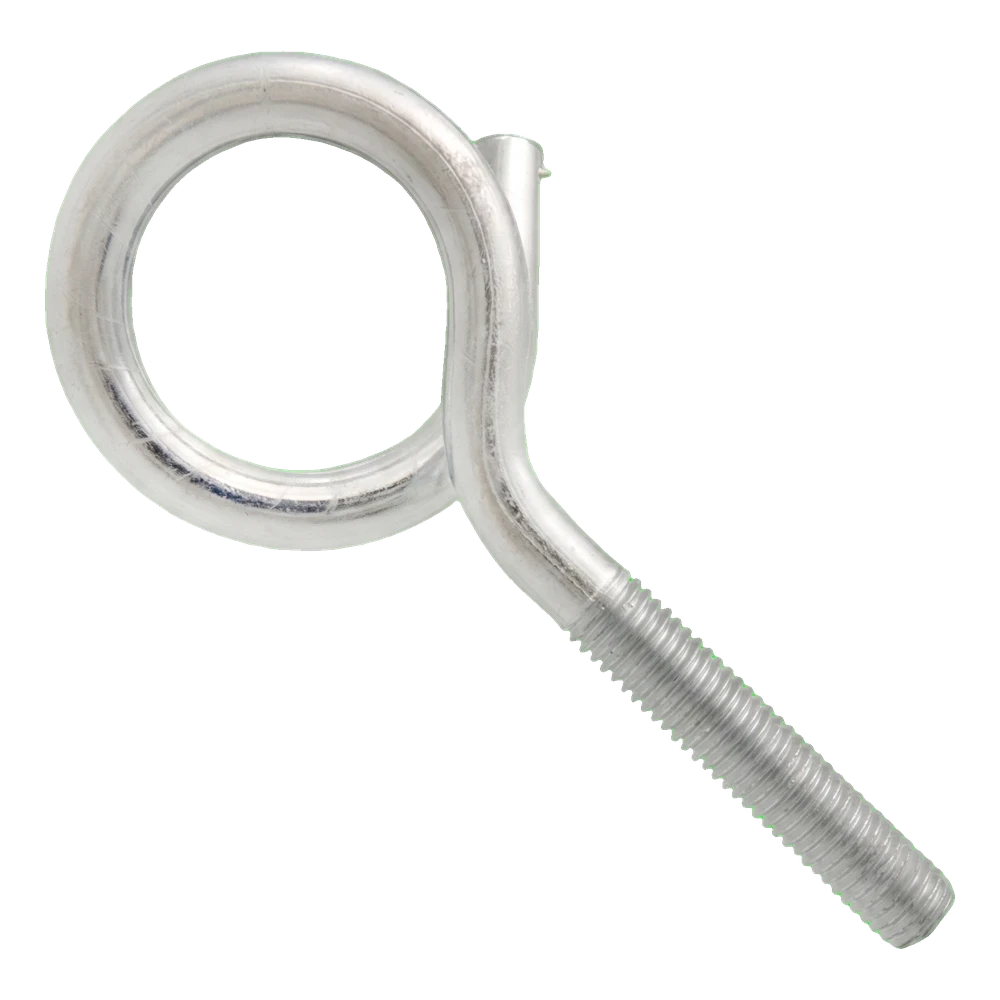

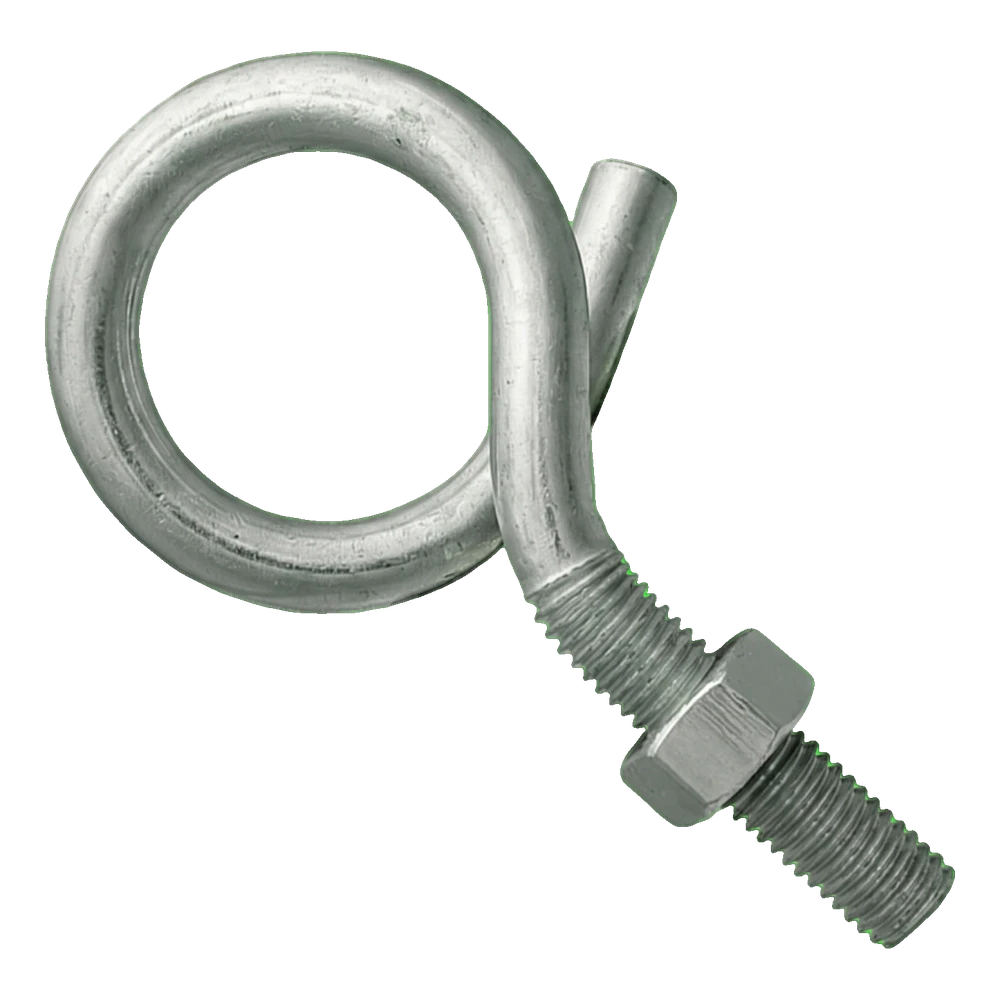

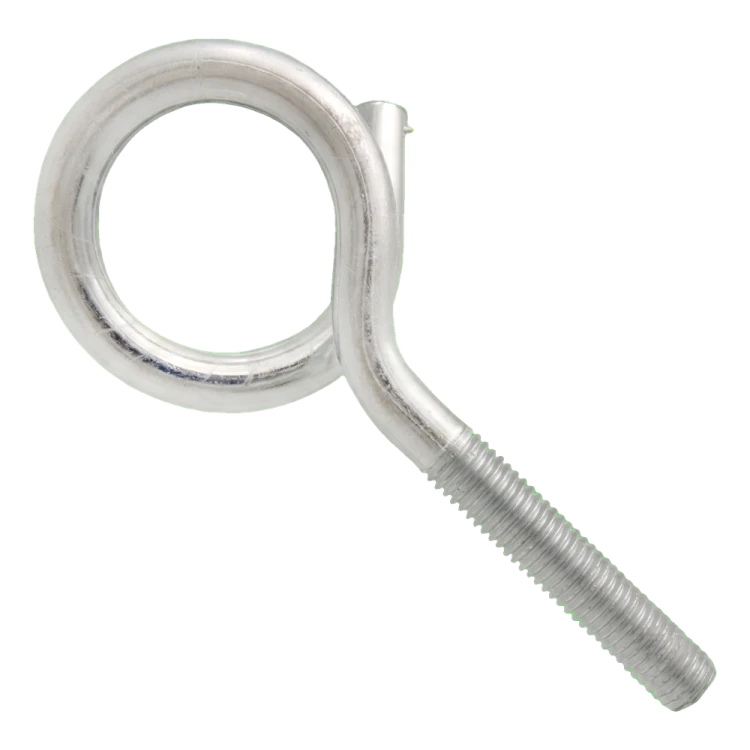

HOH swing hook, metric thread M8, electro-galvanised. Steel, strength class 5.8. Length 100 mm, thread length 45 mm, outer bend diameter Ø41 mm, weight 0.061 kg. Closed eye. Suitable for indoor and outdoor use.
Product code: 002-337
Product features
[PIM] haki-budowlane #1022
- Hook end swing hook HOH
- Thread type M8
- Length [mm] 100
Description
Threaded rod ending in a closed ring with a projecting tip — for screwing into a metric thread, e.g. when suspending swings and ropes; steel property class 5.8, electroplated zinc coating
About the product
A swing hook with a metric thread is used for suspending swings, hammocks and ropes. It consists of a threaded rod ending in a closed ring with a projecting tip. It screws into an internally threaded component, such as an anchor sleeve, nut or tapped hole.

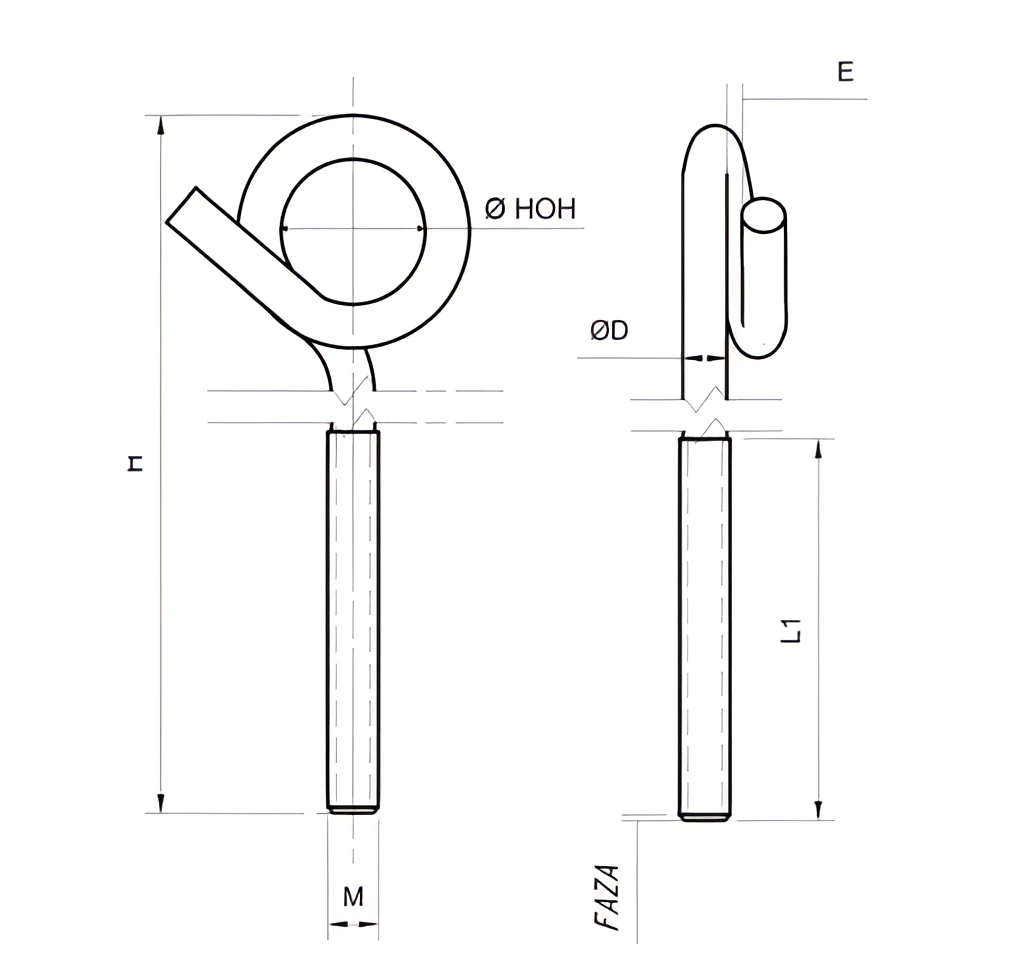

The designation M8 specifies the hook's metric thread — the mating component must have a matching thread. The overall length H is 100 mm, measured from the end of the thread to the furthest point of the bent section. The thread length L1 is 45 mm, and the outside diameter of the bend Dz is 41 mm. These are nominal values according to the manufacturer's table. Screw the hook in to the depth required by the mating component and secure any thread projecting beyond that component with a locknut. After installation, align the end with the direction of the load; do not apply sideways loads to the hook at the bend.
Material: steel. Property class: 5.8. Coating: electro-galvanised. The zinc coating protects the steel against corrosion under typical conditions; where exposed to salt, chemicals or persistent moisture, choose a version suitable for the exposure conditions. The manufacturer does not specify the hook's load capacity. The permissible load depends on the substrate and fixing method — it is specified by the design or the anchor manufacturer. Do not use the hook for lifting loads or for personal fall protection.
Selection and installation
- ✓Match the thread of the mating component to M8 — an anchor, nut or internally threaded sleeve.
- ✓Screw the hook in to the depth required by the mating component (available thread: L1 = 45 mm); secure any thread projecting beyond the component with a locknut.
- ✓After installation, align the end with the direction of the load; do not apply sideways loads to the hook at the bend.
Important
The manufacturer does not specify the hook's load capacity. The permissible load depends on the substrate and fixing method — it is specified by the design or the anchor manufacturer. Do not use the hook for lifting loads or for personal fall protection.
