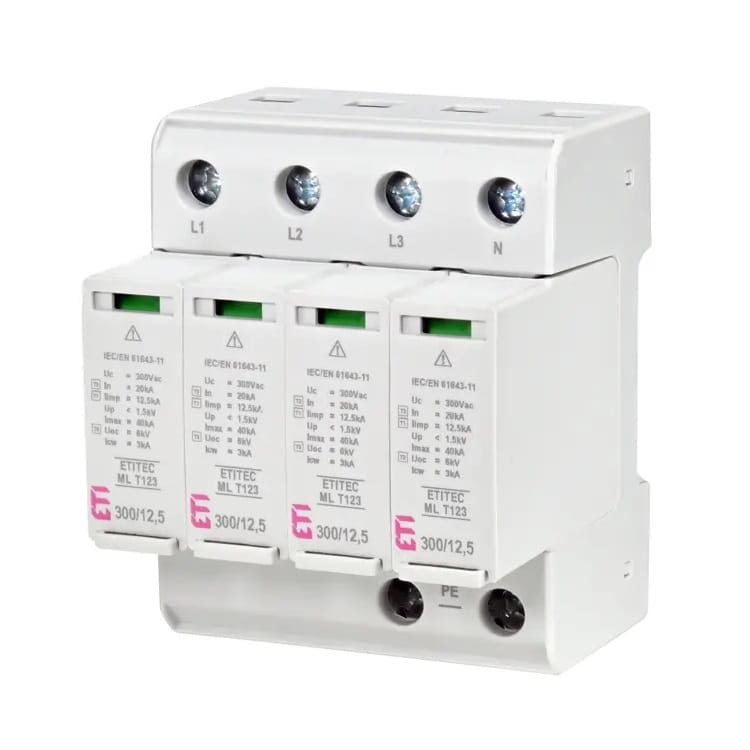

Surge protector Type 1+2+3 (B+C+D) 4P 20kA 1.5kV ETITEC ML T123 300/125 4+0 002440667 ETI

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.68 kg

Price / pcs.: £106.32 106.32

excl. shipping costs

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: ETI

Product code: GPV-401-141

recommend to a friend

Description

Surge protector Type 1+2+3 (B+C+D) 4P 20kA 1.5kV ETITEC ML T123 300/125 4+0 002440667 ETI

- 4P 20kA 1.5kV837

Surge protector Type 1+2+3 (B+C+D) 4P 20kA 1.5kV ETITEC ML T123 300/125 4+0 002440667 ETI is an advanced protective device that is used to protect electrical installations against surges.

Surge arresters protect against surges originating from lightning (type 1 arresters) and against surges resulting from indirect discharges and switching operations in the network (type 2 arresters).

SPECIFICATION

Manufacturer

ETI

Protector class

B+C+D (Type 1+2+3)

Number of poles

Nominal discharge current (In)

20kA

Long-term operating voltage Uc (V)

300

Discharge current imp (10/350) (kA)

12/5

In (8/20)

Imax(8/20) (kA)

Protection level Up (kV)

1/5

Leakage current

Yes

Technology used

MOV

Network system

TNS

Number of modules

Design material

Plastic, metal

Mounting

DIN mounting rail TH-35 mm

Standards

PN-EN 61643-11, IEC 61643-11

Available Configuration

Product code

Catalogue no.

EAN

Model

GPV-401-141

002440667/ETI

3838895927167

4P 20kA 1.5kV

Files to download:

Technical data

Application	AC (mains)
Surge Protector Type (SPD Class)	T1+T2+T3 (B+C+D)
Rated Voltage [V]	275V AC
Number of poles	4P
Lightning Current (Iimp/In) [kA]	20 kA
Brand	ETI
Protection Level (Up) [kV]	1,5 kV
