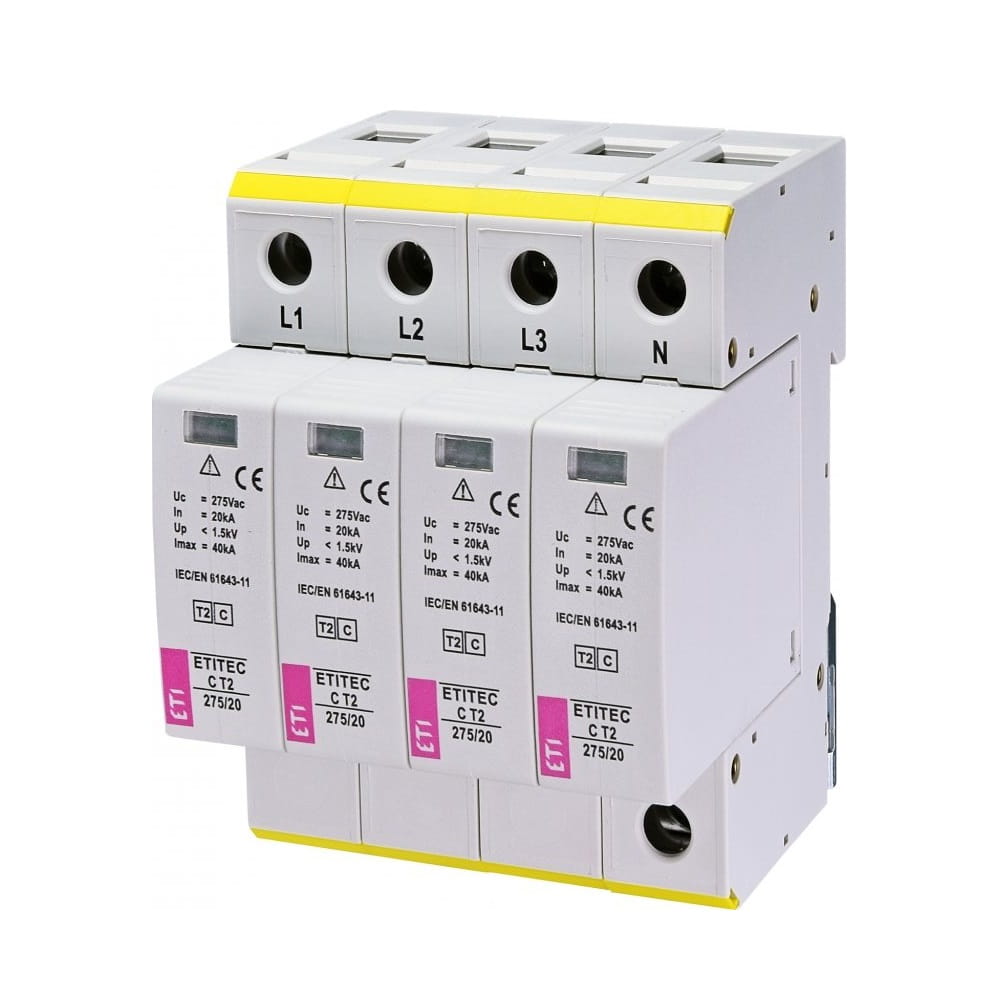

Surge arrester type 2 (C) 4P 20kA 1.5kV ETITEC C T2 275/20 4+0 002440395 ETI
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.15 kg
Price / pcs.:
excl. shipping costs
product unavailable
add to wish list
* - Field mandatory
Description
Surge arrester type 2 (C) 4P 20kA 1.5kV ETITEC C T2 275/20 4+0 002440395 ETI
Surge arrester type 2 (C) 4P 20kA 1.5kV ETITEC C T2 275/20 4+0 002440395 by ETI is an advanced protective device designed to protect electrical installations from the effects of lightning and surges that may occur when switching on or off an unloaded overhead line.
These devices can be classified as follows: class B provides protection for installations against direct and close lightning strikes, class C protects against commutation surges, and class D offers additional protection for highly sensitive electrical equipment. In addition, surge arresters are divided into three types: cut-off, limiting and combined.
Specification
Manufacturer
ETI
For the network
TN-S
Protector class
C (Type 2)
Number of poles
4
Nominal discharge current (In)
20kA
Maximum allowable operating voltage
275 V
Protection level at rated surge current
≤ 1.5 kV
Rated continuous current
20 A
Surge current
40 kA
IP degree of protection
IP20
Mounting method
On a 35 mm rail in accordance with EN 60715
Maximum discharge current
40 kA
Series and type
Surge arrester Type 2 (cl.C) ETITEC C T2 275/20 4+0 002440395 ETI
Type
C
Long-term operating voltage Uc
275 V
RC
No
Nominal discharge current
40 kA
Mounting method
DIN rail TH-35mm
Available Configuration
Technical data
| Application | AC (mains) |
| Surge Protector Type (SPD Class) | T2 (C) |
| Rated Voltage [V] | 275V AC |
| Number of poles | 4P |
| Lightning Current (Iimp/In) [kA] | 20 kA |
| Brand | ETI |
| Protection Level (Up) [kV] | 1,5 kV |
