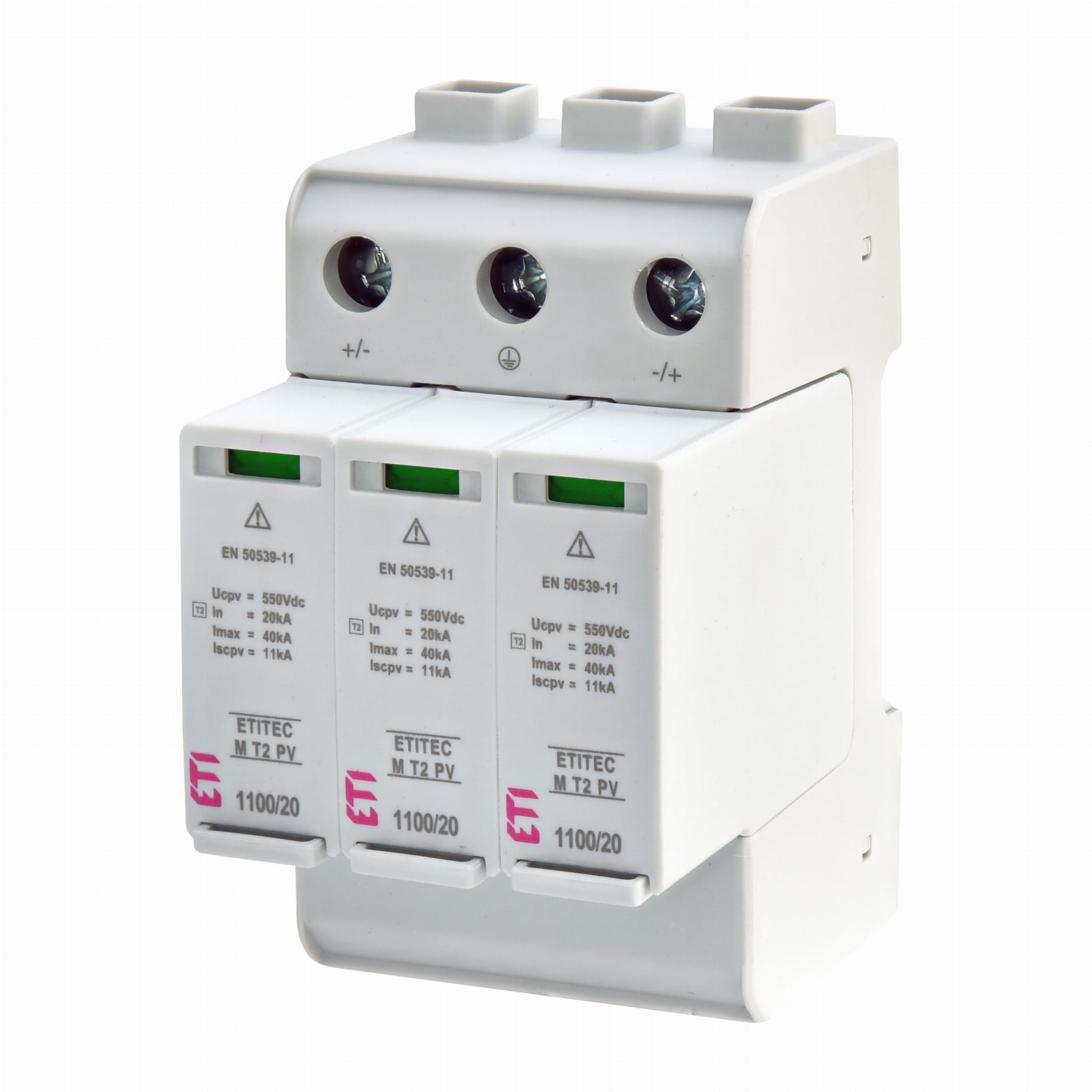

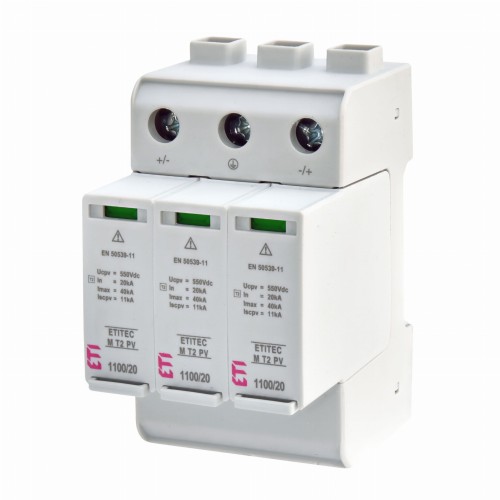

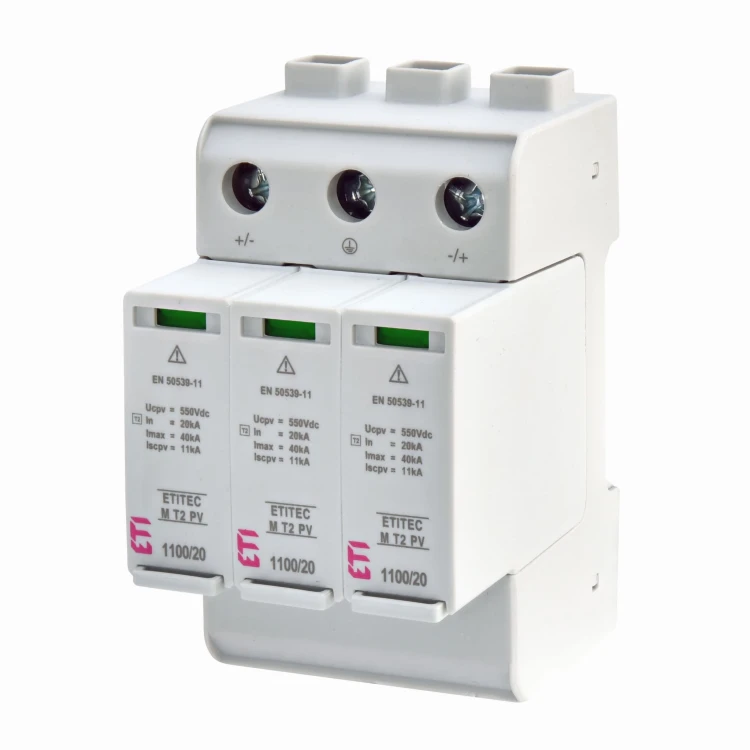

Surge arrester PV DC Type 2 (C) 1100V 3P 20kA 3.8kV ETITEC M T2 PV 1100/20 Y 002440515 ETI
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.15 kg
Price / pcs.:
excl. shipping costs
product unavailable
add to wish list
* - Field mandatory
Description
Surge arrester PV DC Type 2 (C) 1100V 3P 20kA 3.8kV ETITEC M T2 PV 1100/20 Y 002440515 ETI
Surge arrester PV DC Type 2 (C) 1100V 3P 20kA 3.8kV ETITEC M T2 PV 1100/20 Y 002440515 ETI is an advanced protective device that is used to protect electrical installations from the effects of lightning and surges occurring when switching on or off an unloaded overhead line.
Lightning arresters are divided into three classes. Class B protects the installation against direct and close lightning strikes, class C protects against commutation surges and class D additionally protects highly sensitive electrical equipment. There are also three types of surge arresters: cut-off, limiting and combined.
SPECIFICATION
Manufacturer
ETI
Protector class
C (Type 2)
Number of poles
3
Nominal discharge current (In)
20kA
Voltage protection level
3.9kV
Width expressed in number of modules
3
Maximum permissible operating voltage
1100 V
IP degree of protection
IP20
Rated Exponential Current - peak value
40 kA
Mounting
DIN rail TH-35mm
Available Configuration
Technical data
| Application | DC (photovoltaic) |
| Surge Protector Type (SPD Class) | T2 (C) |
| Rated Voltage [V] | 1100V DC |
| Number of poles | 3P |
| Lightning Current (Iimp/In) [kA] | 20 kA |
| Brand | ETI |
| Protection Level (Up) [kV] | 3,8 kV |
