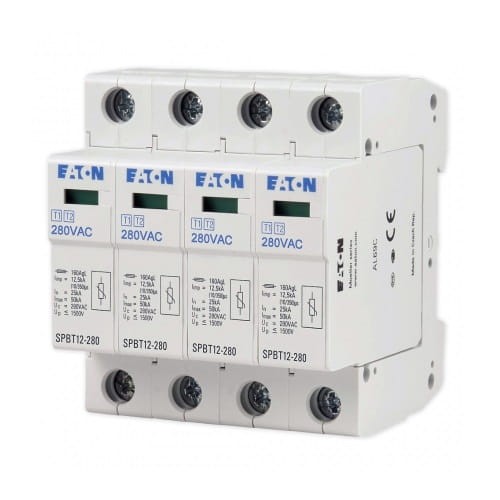

Surge Protector SPBT12 Type 1+2 (Class B+C) 4-pole 12.5kA 280V 1.5kV IP20
Leave feedback on the product
Class B+C (Type 1+2) surge protection device, 4-pole with varistors, discharge current 12.5kA, operating voltage 280V. Protection level 1.5kV, impulse current 25kA. DIN rail mounting, visual fault indication, IP20 enclosure rating.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] ograniczniki-przepiec #93
- Application AC (mains)
- Surge Protector Type (SPD Class) T1+T2 (B+C)
- Rated Voltage [V] 275V AC
- Number of poles 4P
- Lightning Current (Iimp/In) [kA] 12,5 kA
- Brand EATON
- Protection Level (Up) [kV] 1,5 kV
Description
Surge Protection Device Type 1+2 (B+C) 4P 12.5kA 1.5kV SPBT12/280/4 158331 EATON
The surge protection device, SPBT-12/280/4 Moeller Type B+C surge arrester is an advanced surge protection system that combines the characteristics of Class B and C arresters using varistors in a single unit.
This device is primarily designed for use in the residential sector, equipped with a visual fault indication function. It provides maximum surge current withstand capability of up to 12.5kA (10/350)µs and is available in various configurations, from single to four-pole, minimising surge voltage levels to values below 1.5kV. The modern surge protection device has been designed to provide effective protection against the effects of direct and indirect lightning strikes as well as switching surges, making it an ideal solution for homes and residential buildings.
It is recommended to install the units (considering from the supply side) before metering and residual current devices. This prevents false tripping of residual current circuit breakers during surge current flow after the surge protection devices operate. A residual current circuit breaker installed before the surge protection devices is exposed to surge currents which may lead to its destruction or unnecessary tripping.
- Surge protection device class according to IEC 61643-1
- Type test based on EN61643-1
- Quick mounting on DIN rail according to EN 50022
- For SPB-25/440 and SPB-60/400 surge protection devices, gas discharge occurs externally - clearance from combustible elements required!
- Surge protection device class according to VDE 0675, Part 6/A3 11.97
SP-B+C surge protection devices should be installed in:
- buildings with external lightning protection systems
- buildings with external overhead lines and lightning protection systems
- protected structures where internal steel construction is used as the lightning protection system
- buildings supplied by cable lines where the distance between the building and transformer station is small (possibility of high short-circuit currents)
- structures without lightning protection systems in close proximity to tall structures, where the earth electrodes of the structures are connected
SPECIFICATION
| Parameter | Value |
|---|---|
| Package weight | 0.3 kg |
| For network | TN |
| Arrester class | B+C (Type 1+2) |
| Number of poles | 4 |
| Nominal discharge current (In) | 12.5kA |
| Maximum continuous operating voltage | 280 V |
| Protection level at nominal surge current | 1.5 kV |
| Operating frequency | 50/60 Hz |
| Surge current | 25 kA |
| IP protection rating | IP20 |
