Straight insert connector for 40x40 mm balustrade profile – AISI 304 stainless steel satin
0
Description

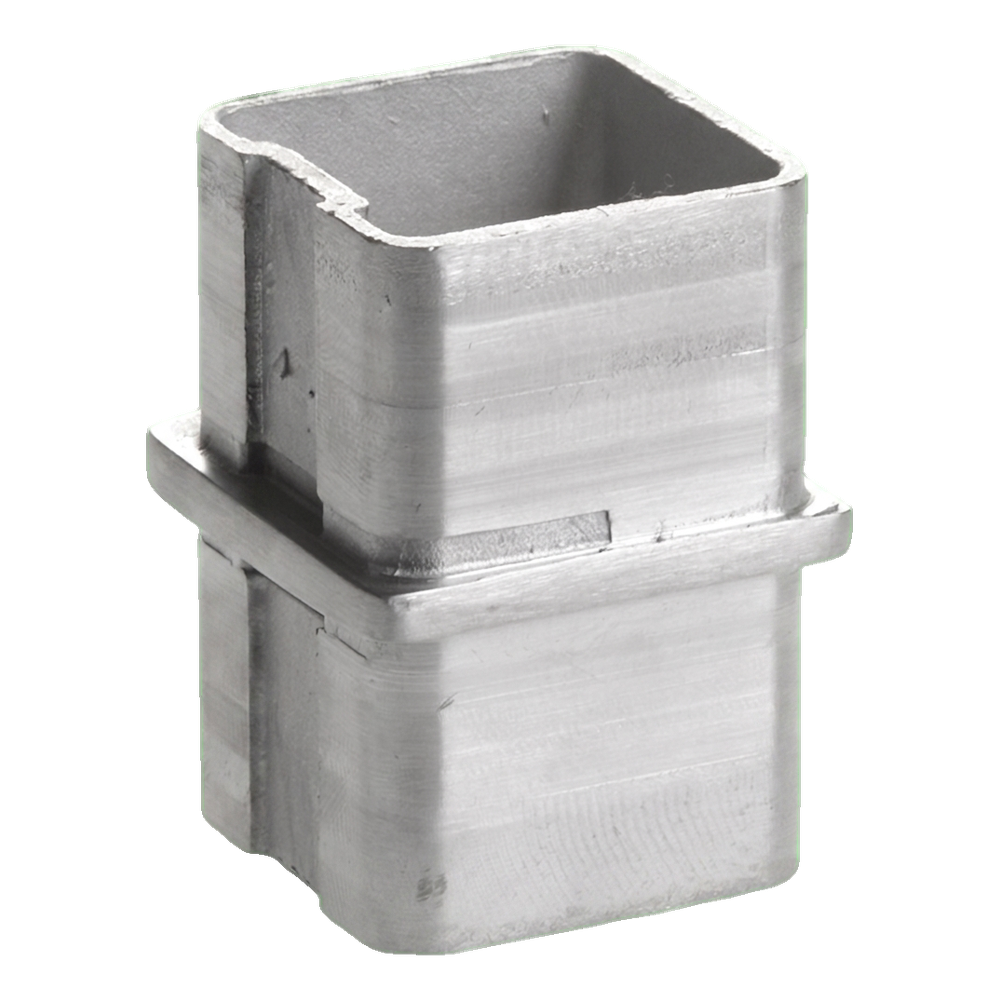

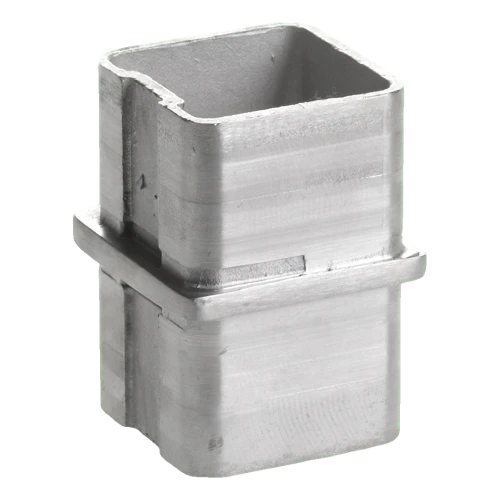

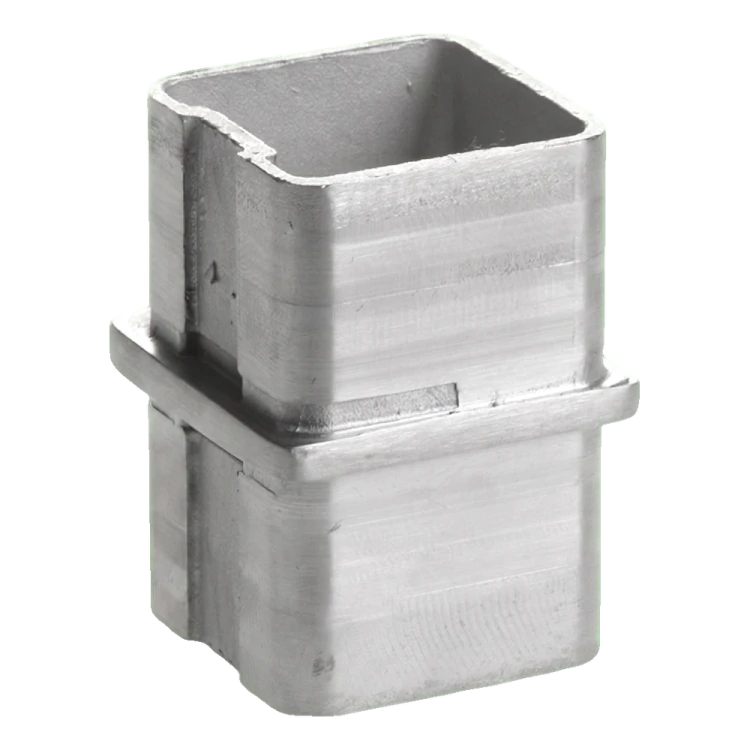

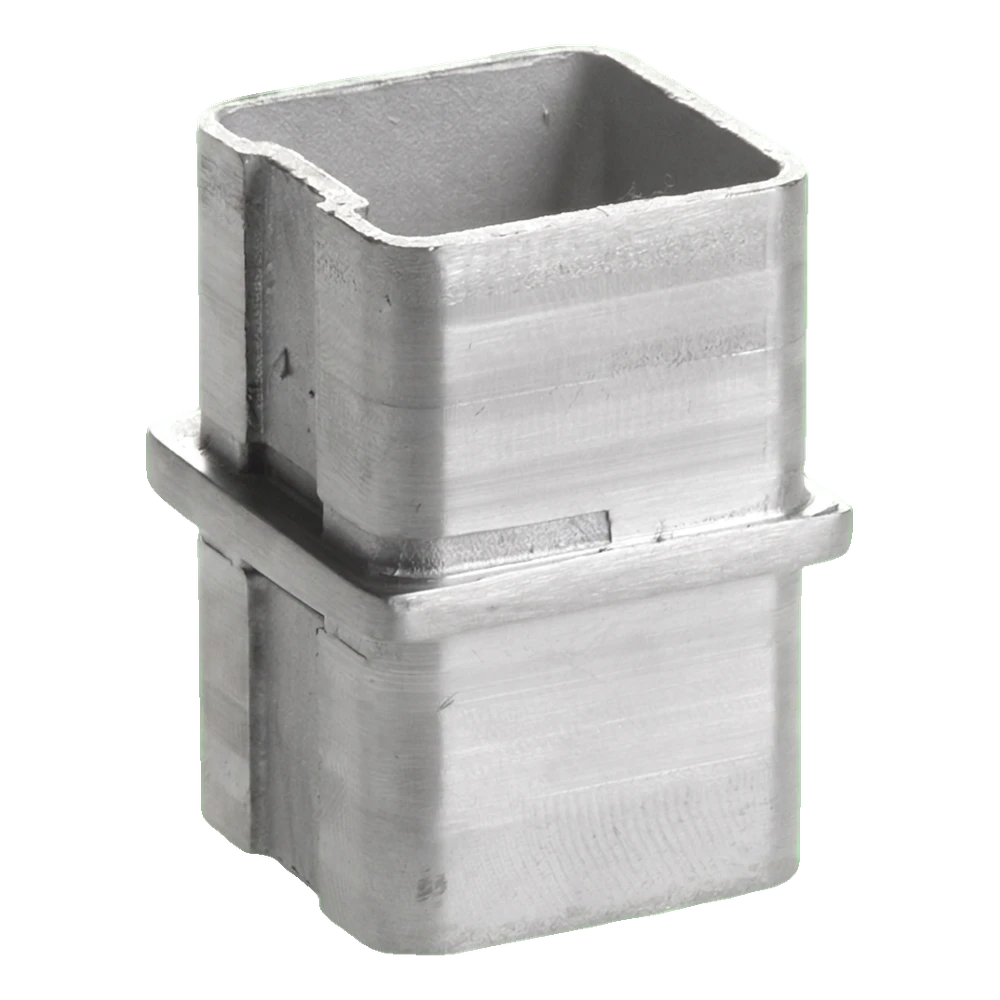

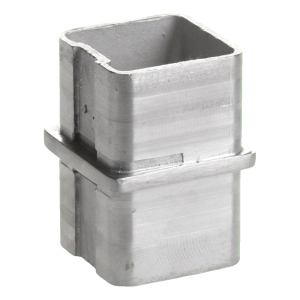

Straight insert connector for 40x40 mm balustrade profile – AISI 304 stainless steel satin
Straight insert connector for square profiles 40×40 mm — a reliable structural element for stainless steel balustrades, designed for aesthetic and durable connection of profiles meeting at one point. Made from stainless steel AISI 304 with satin finish, it perfectly complements other elements of the 40×40 balustrade system.
The connector is installed using the insert method with anaerobic adhesive — the connection is invisible, without screws or welds, ensuring high visual quality of the finished balustrade. The central stop flange with thickness of 4 mm serves as a spacer and insertion depth limiter, guaranteeing consistent installation at every workstation.

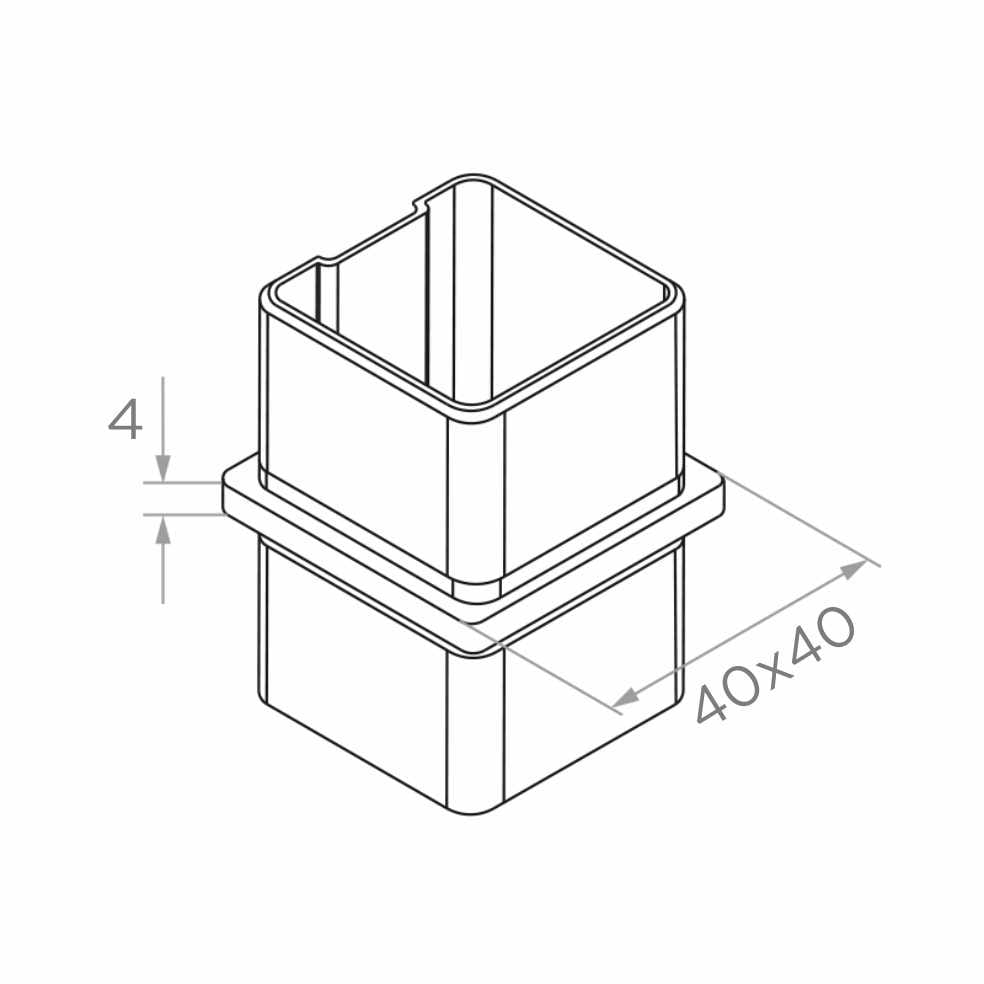

Dimensions and technical data
- Type: straight insert connector
- Application: square profile 40×40×2 mm
- External flange dimension: 40×40 mm
- Stop flange thickness: 4 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.12 kg
- EAN: 5901289673150
Installation and application
The connector has two symmetrical parts inserted into the interior of the connected profiles and a central spacer flange that prevents excessive insertion and ensures an even gap between profiles. Installation requires anaerobic adhesive — the bonded connection eliminates the need for welding and allows achieving smooth, uniform connection without visible fastening elements. This is particularly important in internal and representative balustrades where every finishing detail matters.
Technical data
| Material | AISI 304 |
| Finish | Satin |
