Straight handrail tube connector 48.3mm adhesive-bonded – AISI 304 stainless steel satin
0
Description

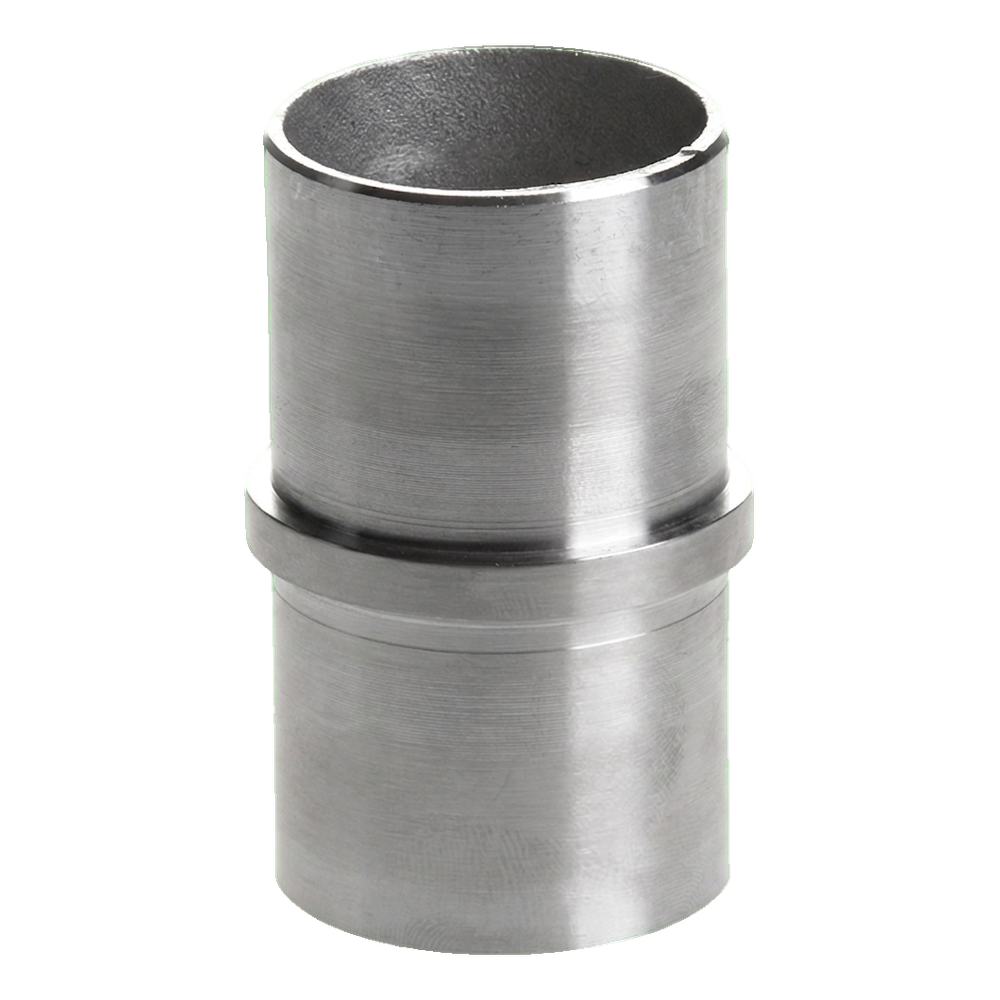

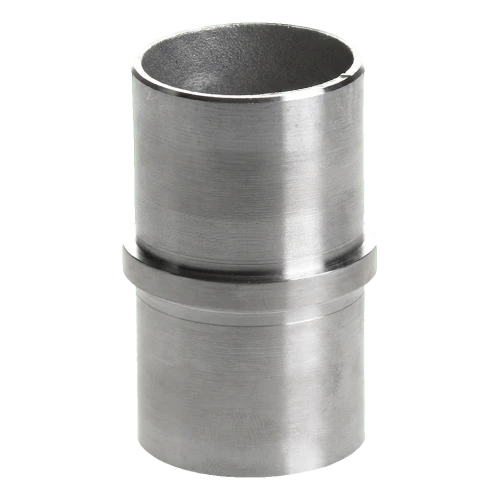

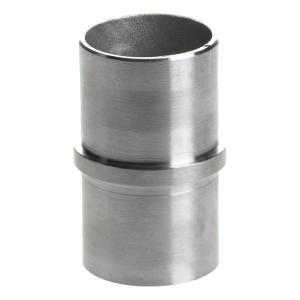

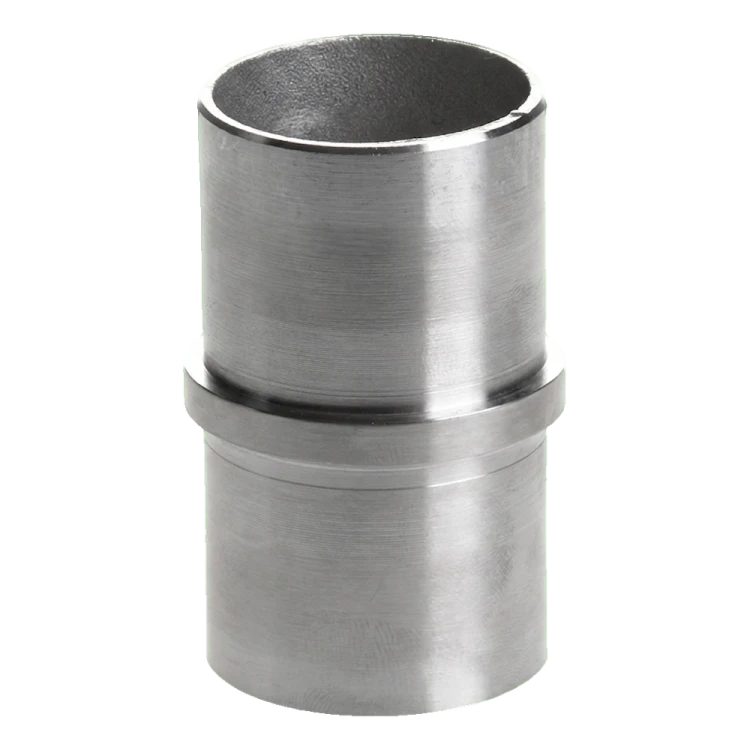

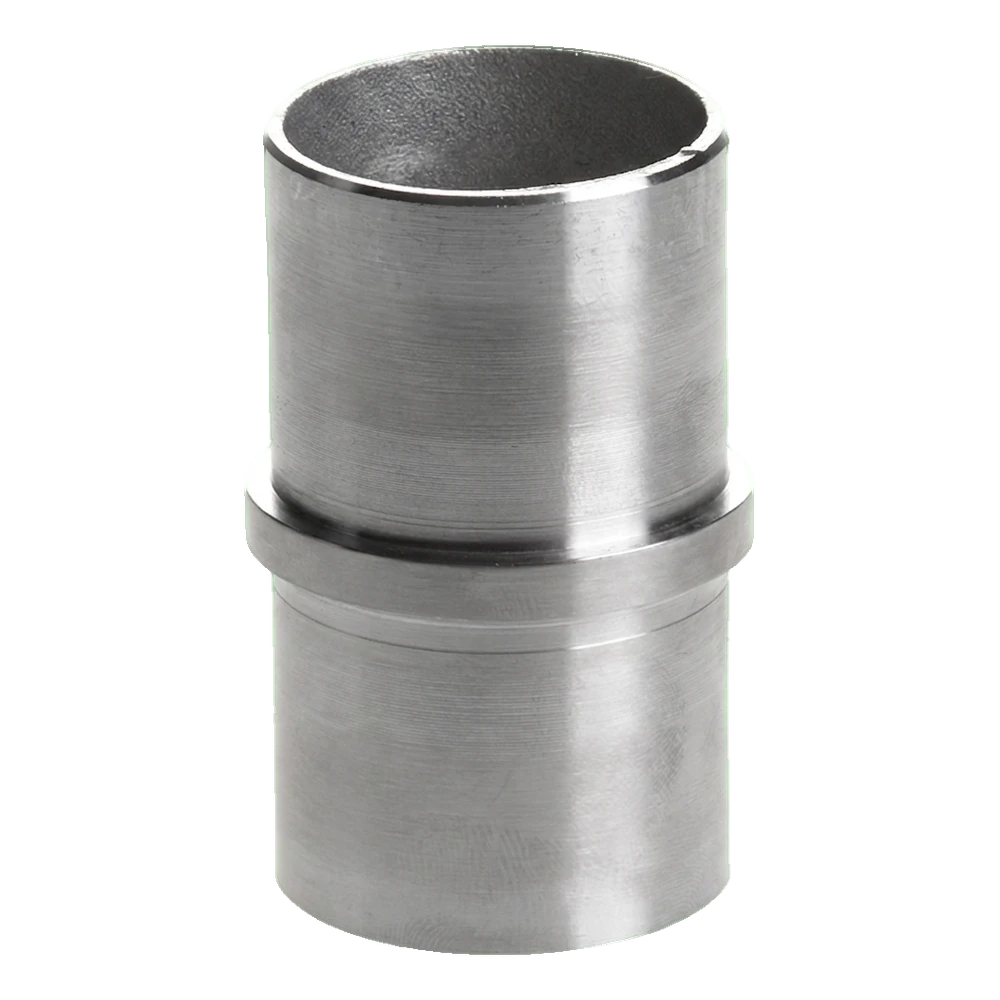

Straight handrail tube connector 48.3mm adhesive-bonded – AISI 304 stainless steel satin
Straight adhesive-bonded connector for handrail tubes with diameter 48.3mm — a key structural element enabling aesthetic and durable connection of balcony, terrace and stair handrail sections. Made from AISI 304 stainless steel with satin finish, ensuring uniform, elegant appearance of the entire balustrade structure.
The connector is installed by adhesive bonding using anaerobic adhesive designed for stainless steel elements. The adhesive bonds upon contact with metal and cures when air supply is cut off, guaranteeing permanent and invisible connection without the need for welding. The central spacer collar with height 5mm serves as an insertion depth limiter, ensuring repeatable and precise positioning of both connected tubes.

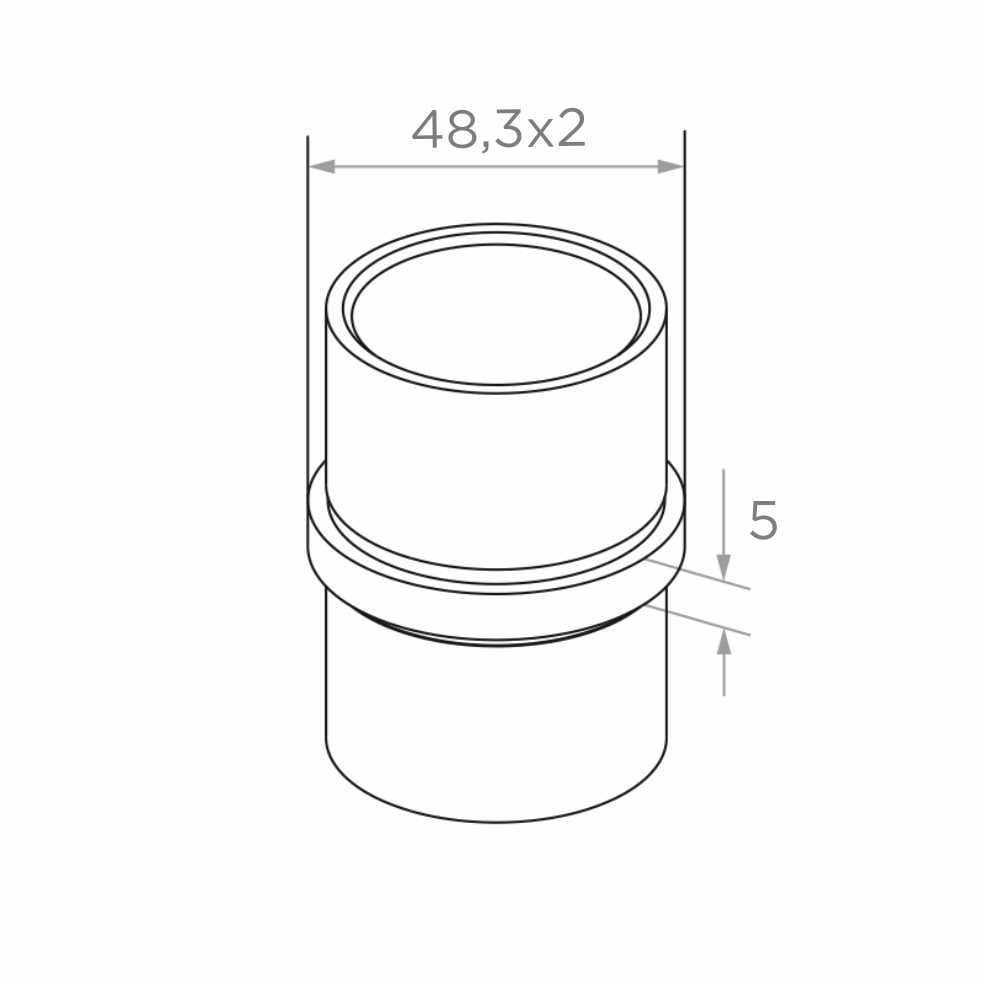

Technical data
- Tube system: 48.3mm
- External tube diameter: 48.3mm
- Tube wall thickness: 2mm
- Spacer collar height (H): 5mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Installation method: adhesive-bonded (anaerobic adhesive)
- Weight: 0.13kg
- EAN: 5901289673143
Application and installation
The connector is designed for building stainless steel balustrades — balcony, terrace and stair handrails. It enables simple, axial connection of two tube sections without visible welds, which significantly speeds up installation and enhances the aesthetics of the finished structure. Adhesive bonding eliminates the need for grinding and polishing welds, allowing installers to save time on site whilst providing clients with smooth, uniform finishing.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
