Straight handrail connector for fi 16 mm tube – AISI 304 stainless steel, satin finish
0
Description

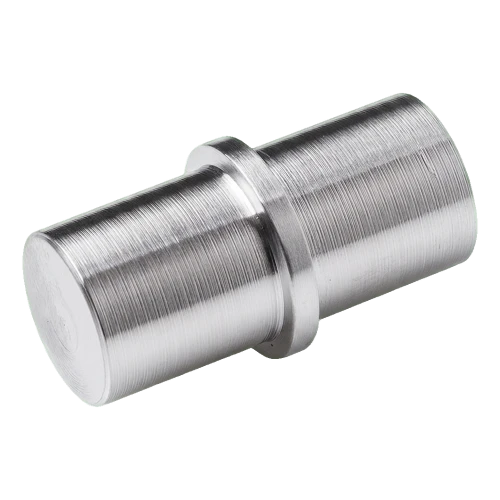

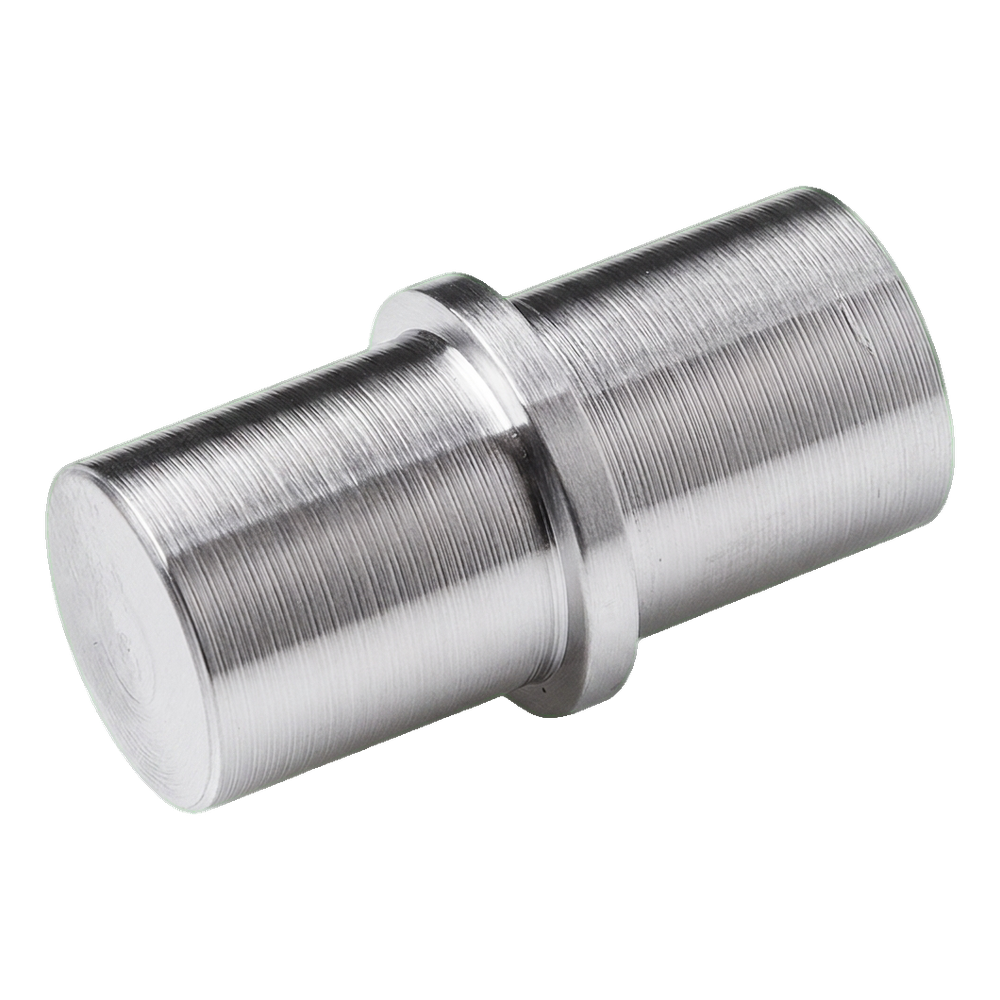

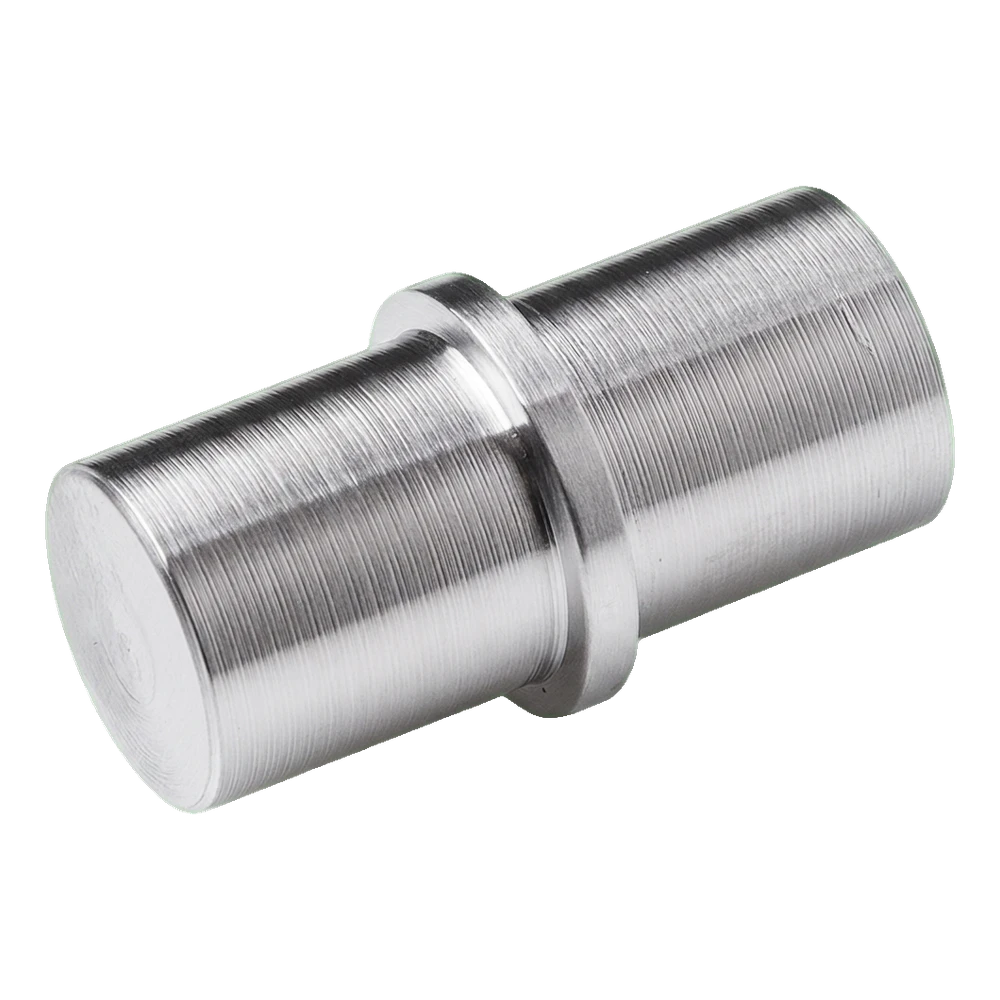

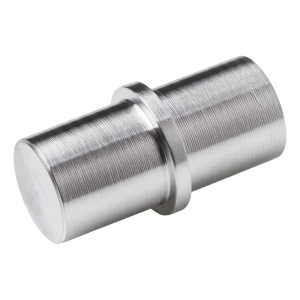

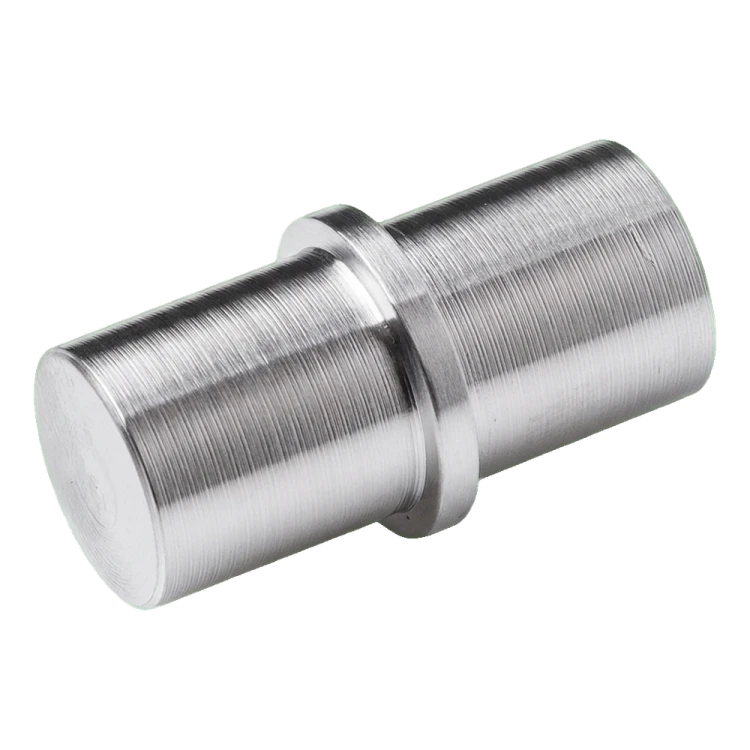

Straight handrail connector for fi 16 mm tube – AISI 304 stainless steel, satin finish
Universal straight connector designed for joining handrail tubes with diameter fi 16 × 1.5 mm. Made from high-quality AISI 304 stainless steel with satin finish, it provides an aesthetic and durable joint for balcony, terrace and stair handrail constructions. The connector is assembled by gluing into the tube using anaerobic adhesive, which bonds upon contact with metal and hardens after cutting off the air supply — this gives you an invisible, permanent connection without the need for welding.
The product features precision manufacturing — the diameter of the inserted part (12.9 mm) is precisely matched to the internal diameter of the 16 × 1.5 mm tube, ensuring secure seating and ease of assembly. The central stop ring with width of 3 mm guarantees repeatable insertion depth and an aesthetic finish of the connection.

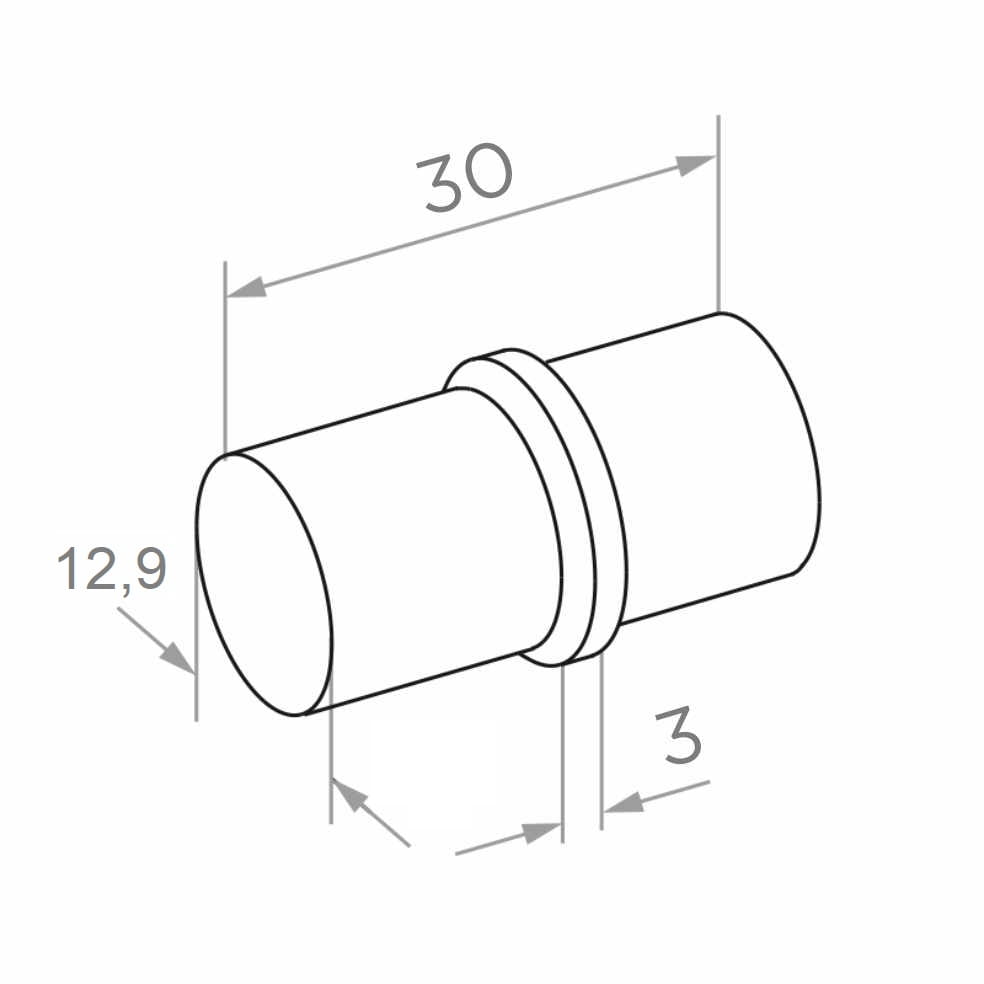

Dimensions and technical data
- Type: straight connector (universal)
- Application: handrail tubes fi 16 × 1.5 mm
- Overall length: 30 mm
- Inserted part diameter: 12.9 mm
- Stop ring width: 3 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Assembly: anaerobic bonding
- Weight: 0.047 kg
- EAN: 5901289673273
The connector is ideal as a component of stainless steel balustrade constructions in residential and commercial projects. The satin finish ensures a uniform appearance with other elements of the balustrade system. Thanks to its compact dimensions and universal application, you can reduce the number of stock items — one connector for many types of installations.
Technical data
| Material | AISI 304 |
| Finish | Satin |
