Straight handrail connector for 42.4x2 mm tube – AISI 304 stainless steel, adhesive-mounted
0
Description

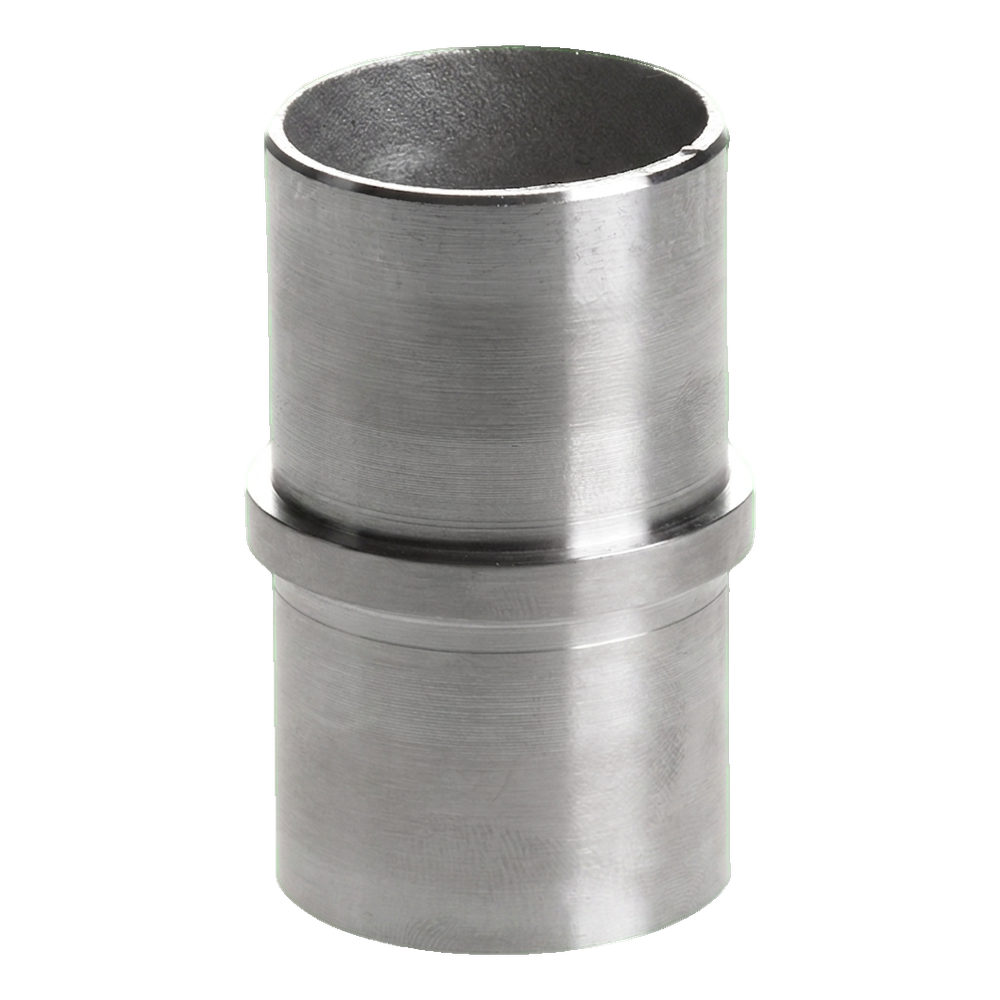

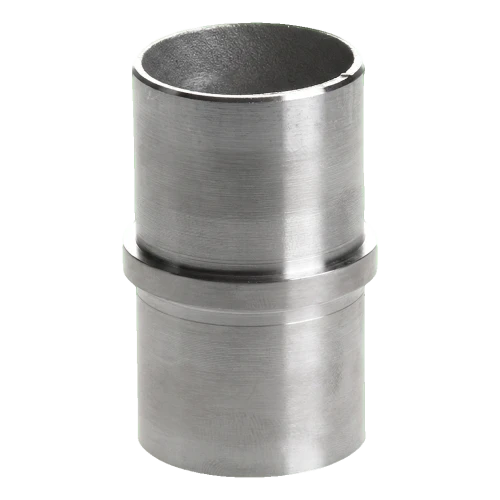

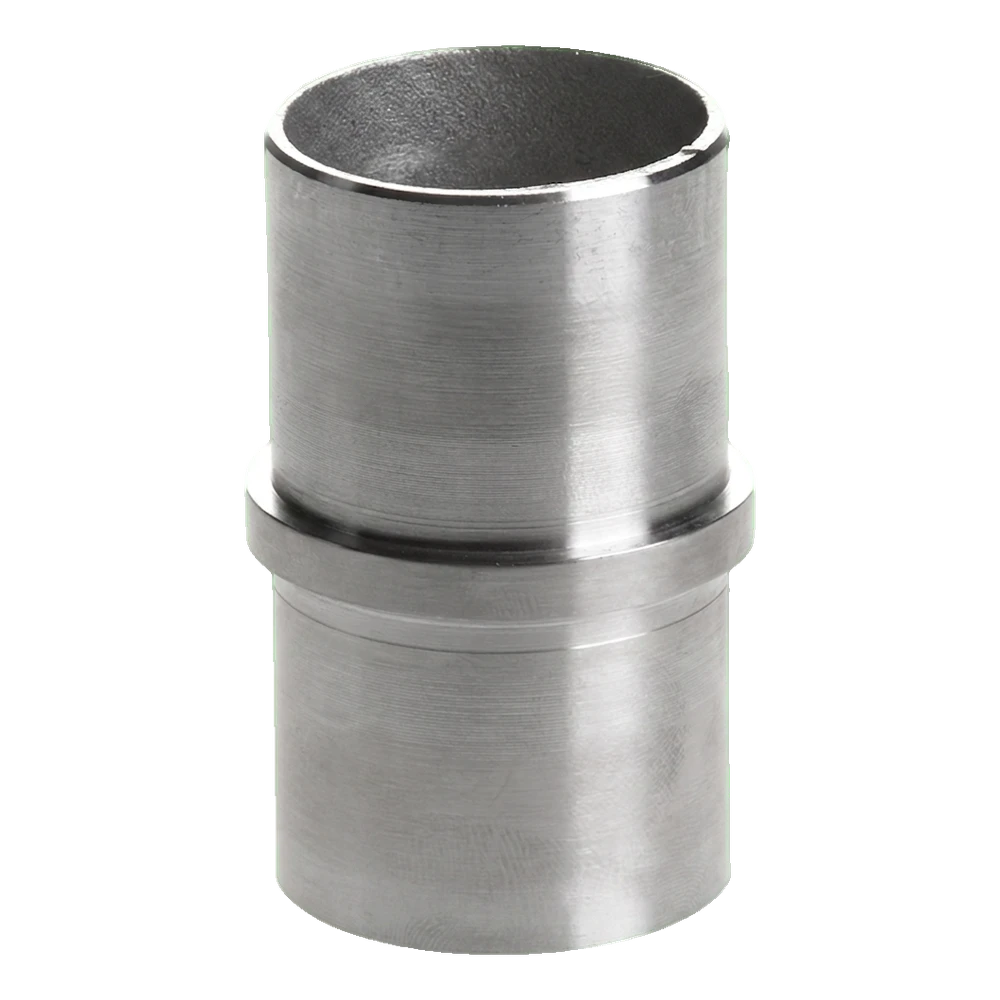

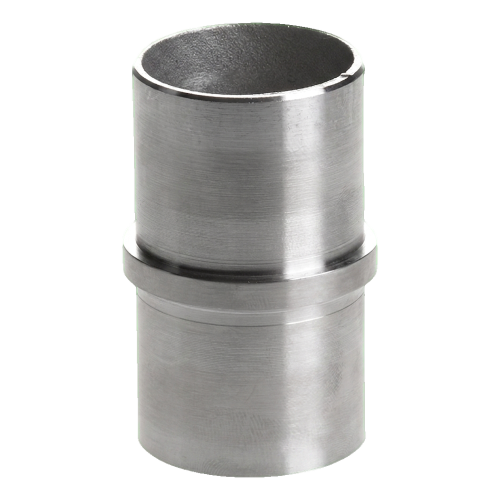

Straight handrail connector for 42.4x2 mm tube – AISI 304 stainless steel, adhesive-mounted
Straight adhesive-mounted connector for round tube 42.4×2 mm — a key structural element of stainless steel balustrades, providing aesthetic and durable connection of two handrail sections. Thanks to the use of anaerobic adhesive mounting, you achieve invisible, clean connections without welding, which significantly speeds up project completion on balconies, terraces and staircases.
The connector is made from high-quality AISI 304 stainless steel with polished finish, guaranteeing corrosion resistance and elegant appearance for years of operation. The central spacer ring (collar) with height of 5 mm remains visible after installation between connected tubes, creating a decorative accent and masking the joint location.
Adhesive mounting — quick and without welding
The connector is mounted using anaerobic adhesive designed for stainless steel. The adhesive bonds upon contact with metal and cures after cutting off air supply, ensuring permanent, reliable connection. This technology eliminates the need for welding on site — you save time and avoid surface finish damage.
Technical parameters
- Type: straight adhesive-mounted connector
- Przeznaczenie: round tube Ø 42.4×2 mm (42.4 system)

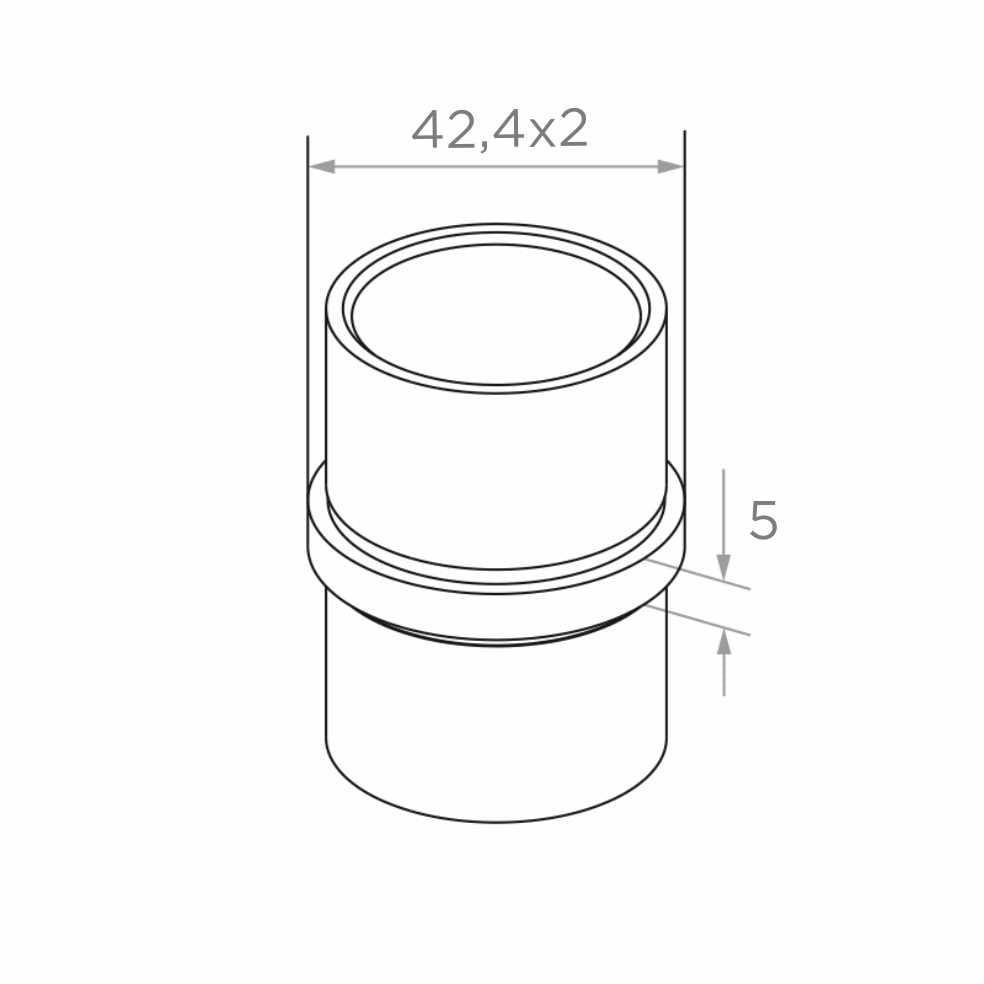

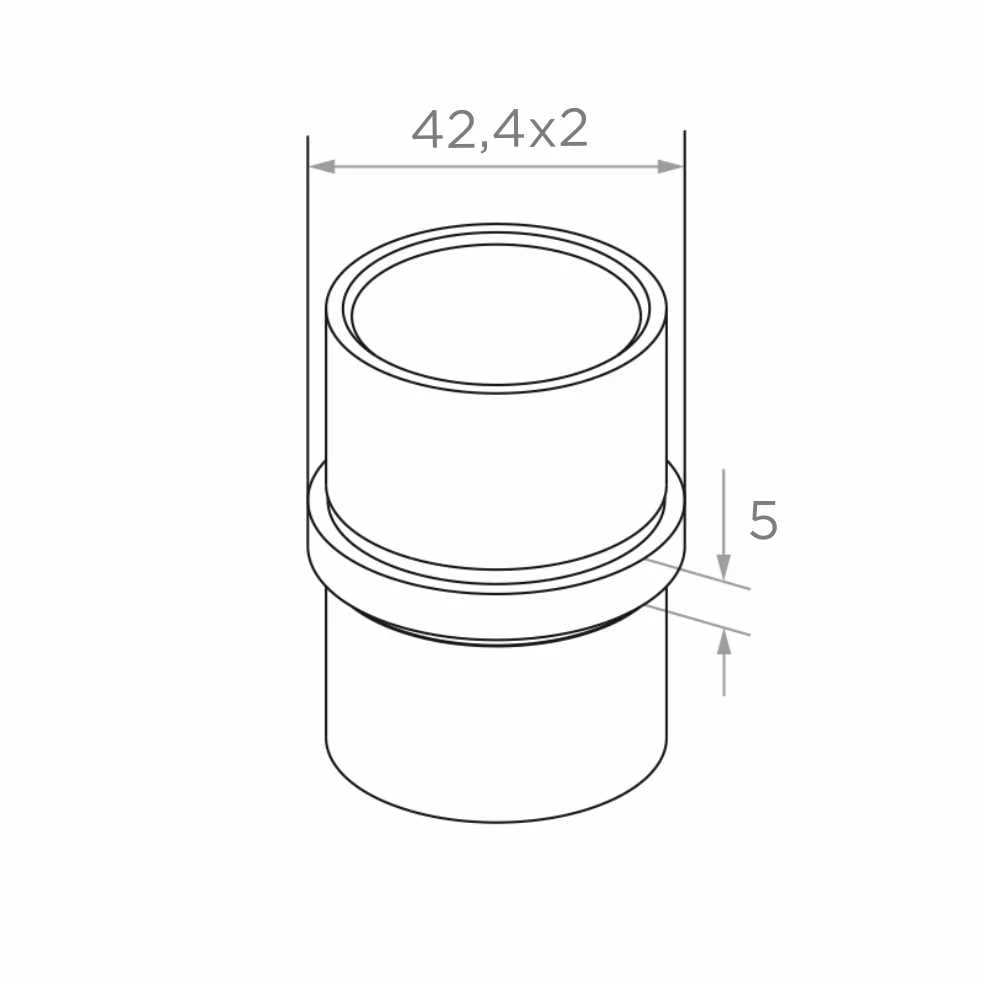

- External diameter of collar: 42.4 mm
- Tube wall thickness: 2 mm
- Collar height (spacer ring): 5 mm
- Material: AISI 304 stainless steel
- Surface finish: polished
- Mounting method: adhesive-mounted (anaerobic adhesive)
- Weight: 0.08 kg
- EAN: 5901289673129
Application
The connector is designed for building stainless steel balustrades — balcony, terrace and stair handrails. It works perfectly wherever straight, linear handrail extension is required without change of direction. Compatible with the complete balustrade system based on Ø 42.4 mm tube.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
