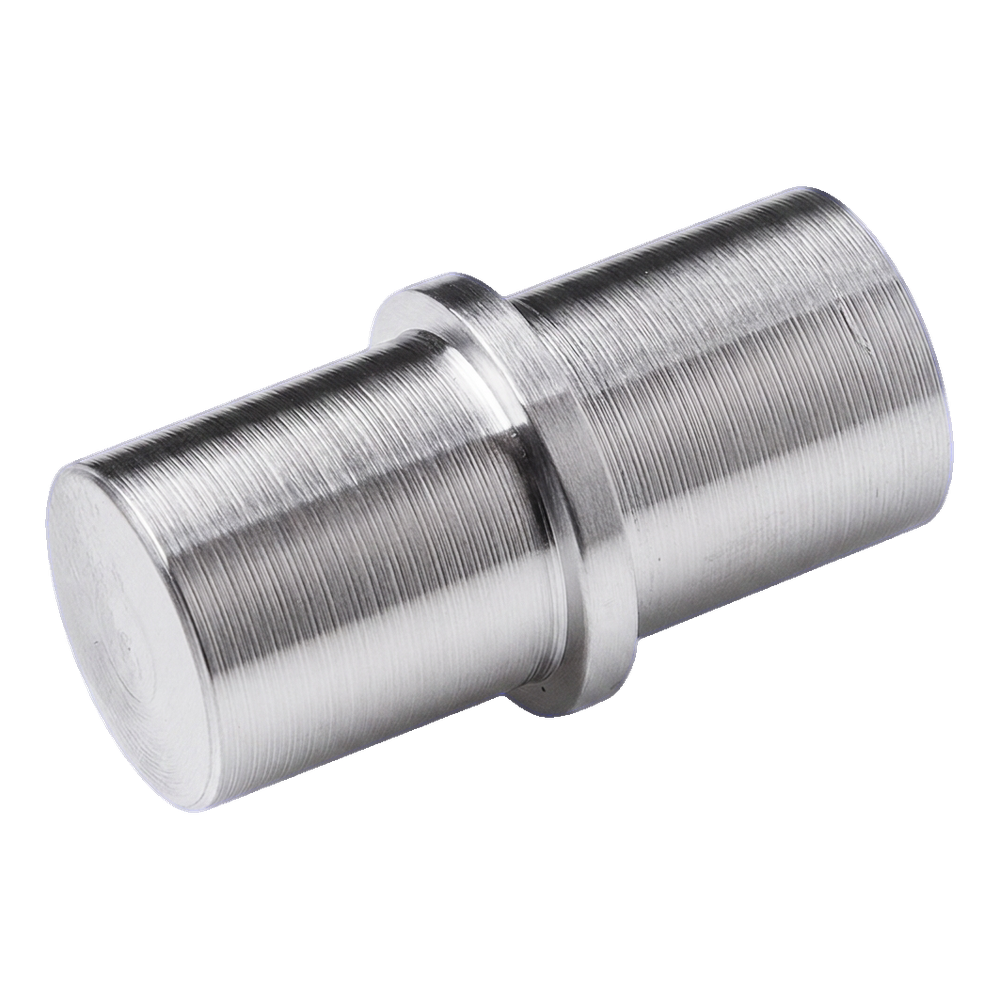

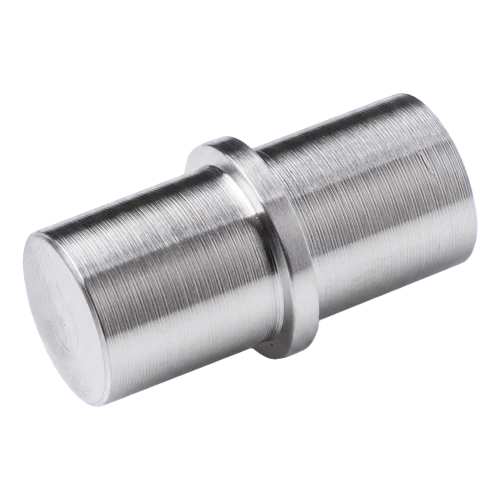

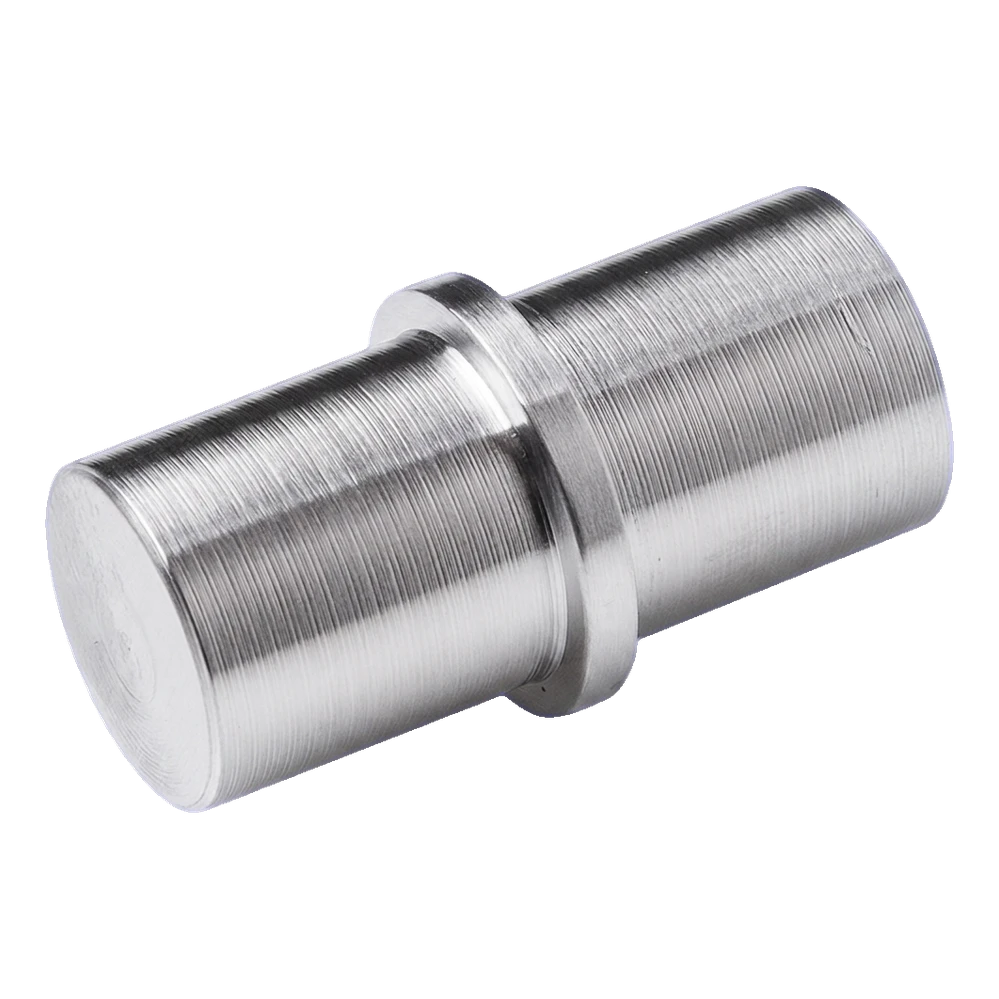

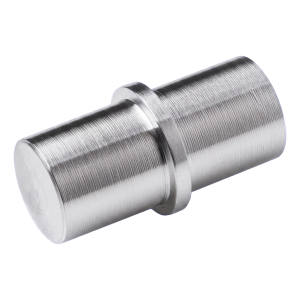

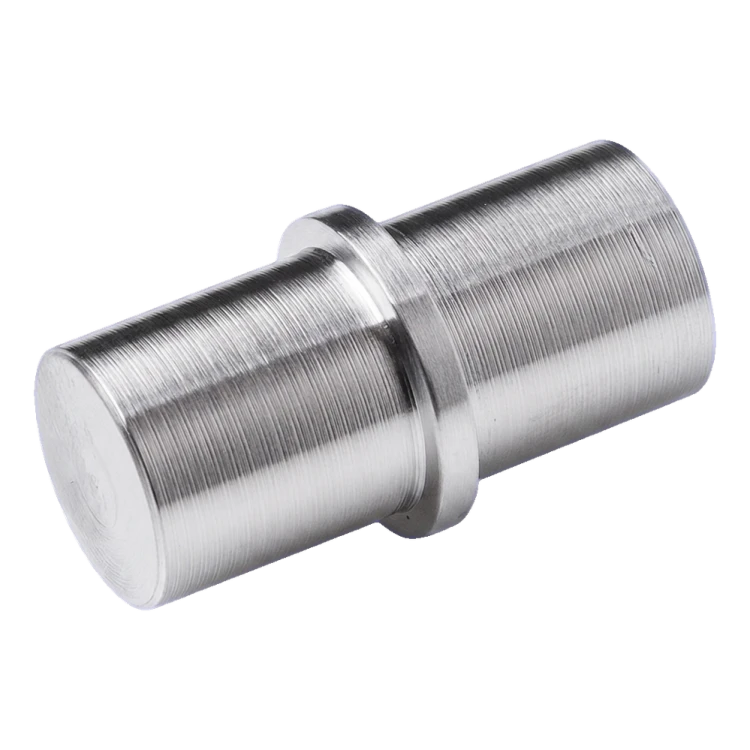

Straight handrail connector for 12 mm diameter tube – stainless steel AISI 304 satin
0
Description
Straight handrail connector for 12 mm diameter tube – stainless steel AISI 304 satin
Universal straight connector for 12 mm diameter tube designed for building stainless steel balustrades — balcony, terrace and staircase. Made from AISI 304 stainless steel in satin finish, it creates an aesthetic and durable connection between handrail sections. Thanks to its compact construction with central spacer ring, the connector ensures precise tube positioning and a neat appearance of the finished balustrade.
The element is installed by gluing method using anaerobic adhesive. This type of adhesive bonds through contact with metal and hardens after cutting off the air supply, guaranteeing a durable and invisible connection without the need for welding. This solution significantly speeds up installation and eliminates thermal processing marks on the handrail surface.

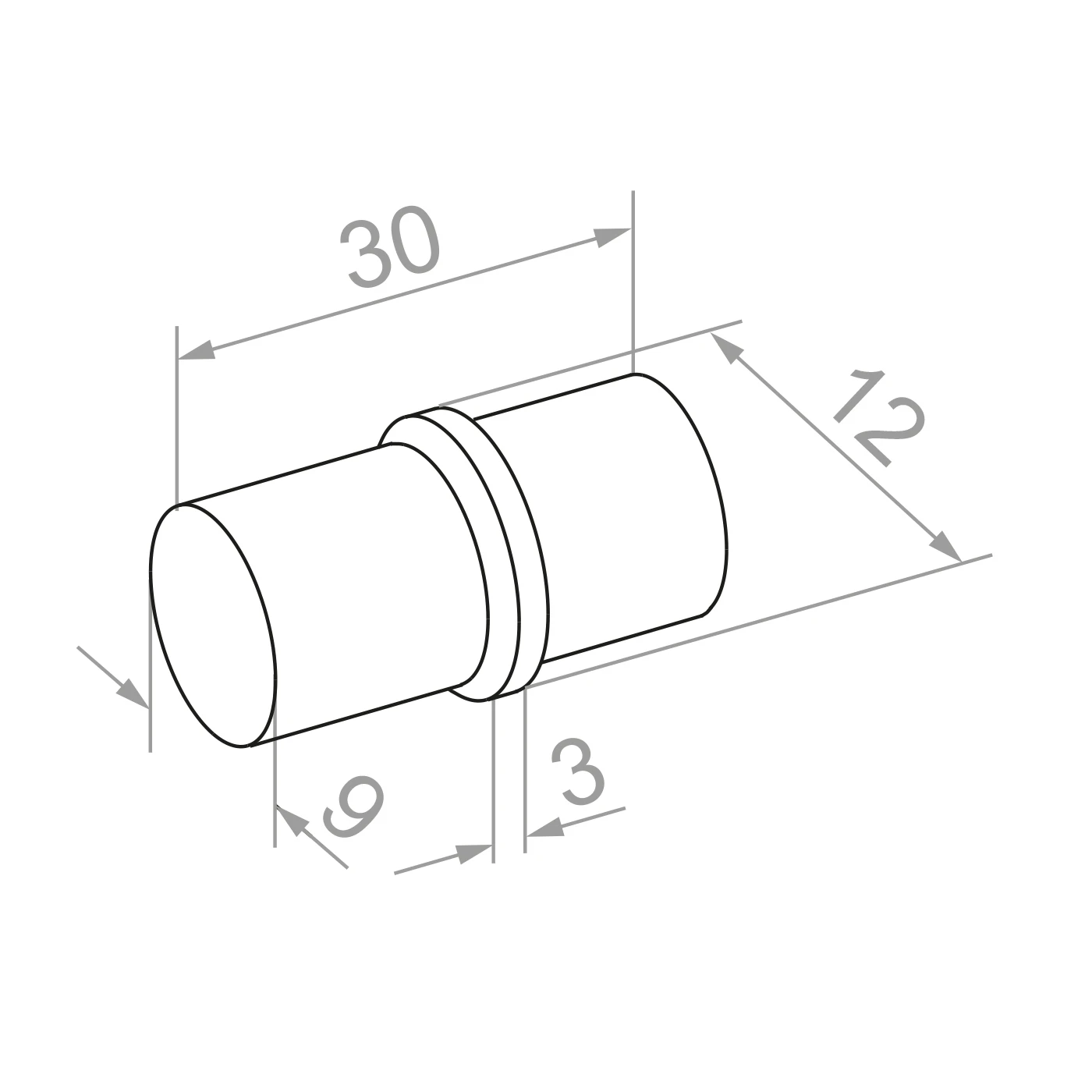

Dimensions and technical parameters
- Overall length: 30 mm
- External diameter (ring): 12 mm
- Insertion part diameter: 9 mm
- Spacer ring width: 3 mm
- Fits tube: 12 × 1.5 mm diameter
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.016 kg
- Connector type: universal, straight
- Installation: gluing with anaerobic adhesive
- EAN: 5901289673266
Application and installer benefits
The connector is designed for professional handrail installation in stainless steel balustrade systems. The 9 mm diameter ends are inserted into the interior of 12 × 1.5 mm diameter tube, and the central ring with 3 mm width serves as spacer and aesthetic finish for the connection point. Universal construction allows application in balcony, terrace, and staircase balustrades. Satin finish from AISI 304 steel ensures high corrosion resistance and consistent appearance with other balustrade system elements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
