Straight adhesive connector for 42.4 mm handrail tube – AISI 304 stainless steel satin
0
Description

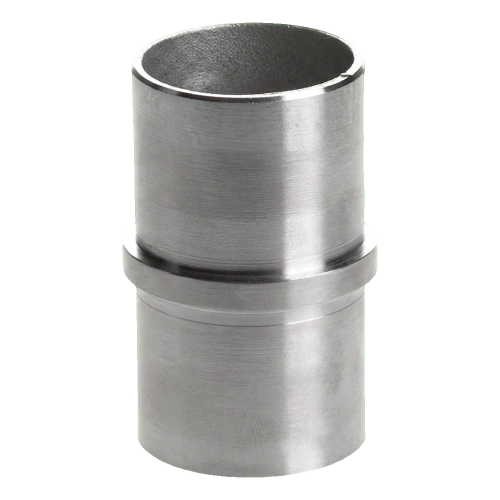

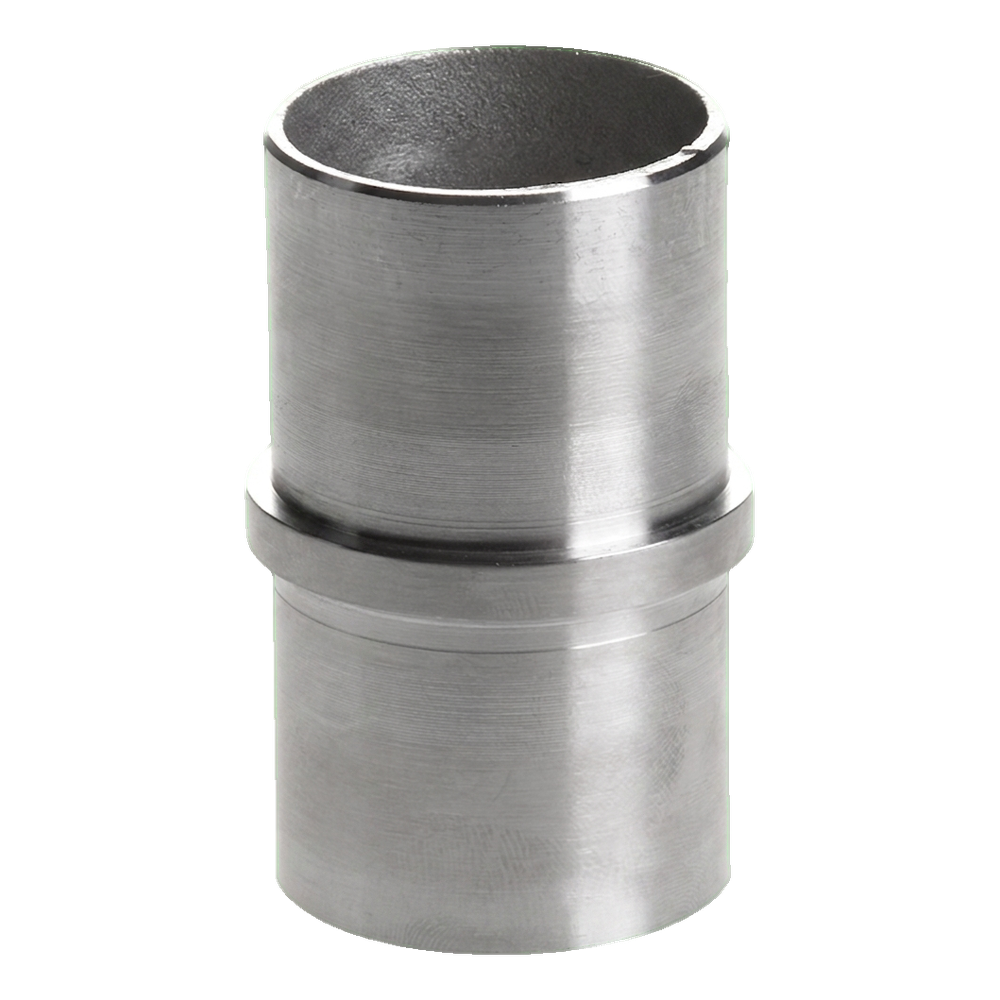

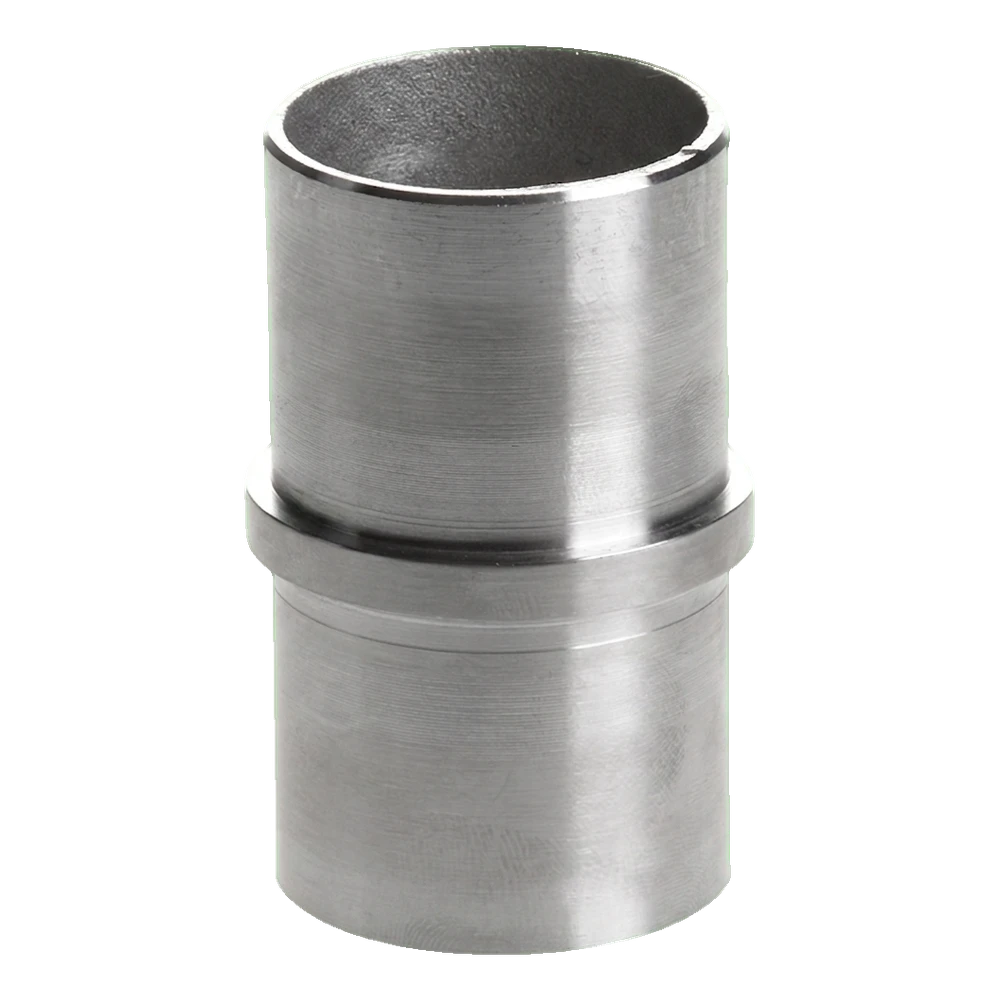

Straight adhesive connector for 42.4 mm handrail tube – AISI 304 stainless steel satin
Straight adhesive connector is a structural element of stainless steel balustrade, designed for permanent connection of two tube sections with diameter 42.4 mm. Thanks to precise manufacturing from AISI 304 steel with satin finish, it ensures aesthetic and solid connection — ideal for stair, balcony and terrace balustrades.
The connector is installed using adhesive method with anaerobic adhesive. The adhesive bonds upon contact with metal and hardens after oxygen supply is cut off, ensuring permanent, inseparable connection without the need for welding. The visible 5 mm high spacer ring after installation creates uniform gap between tubes, giving the balustrade a professional, orderly appearance.

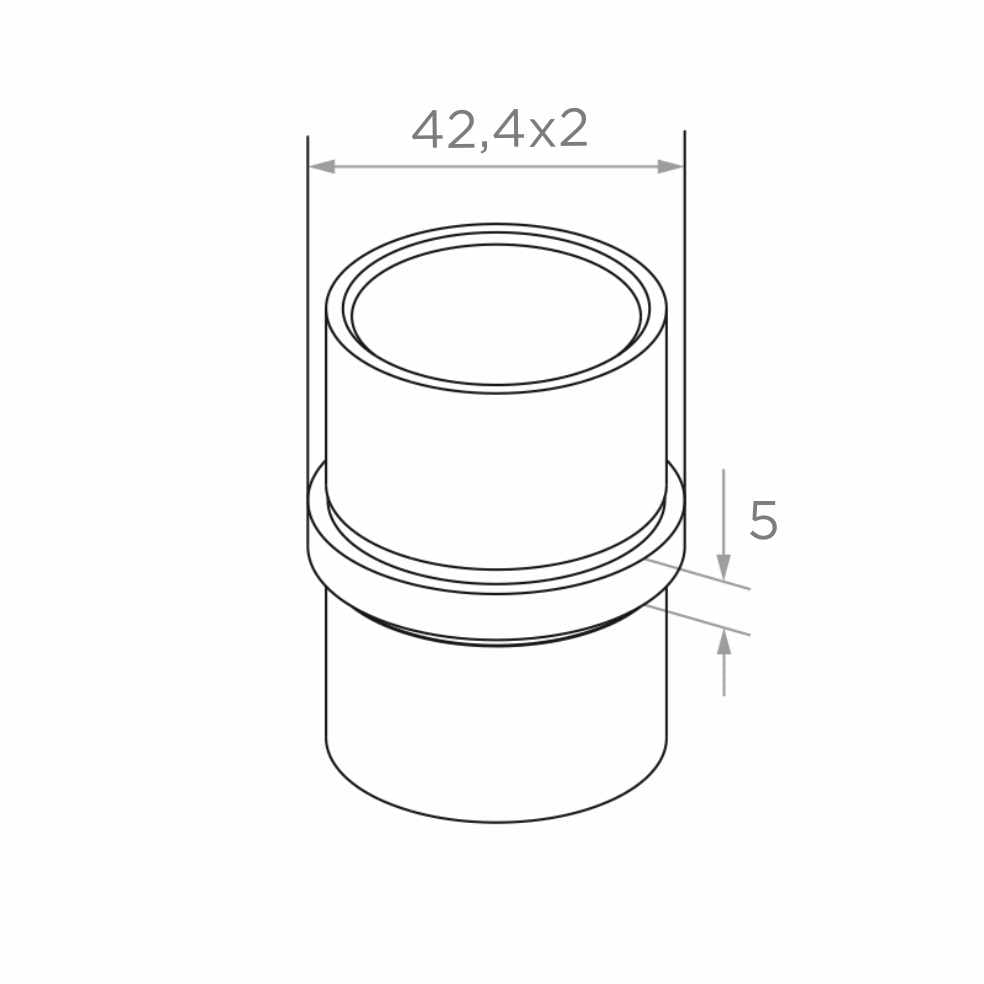

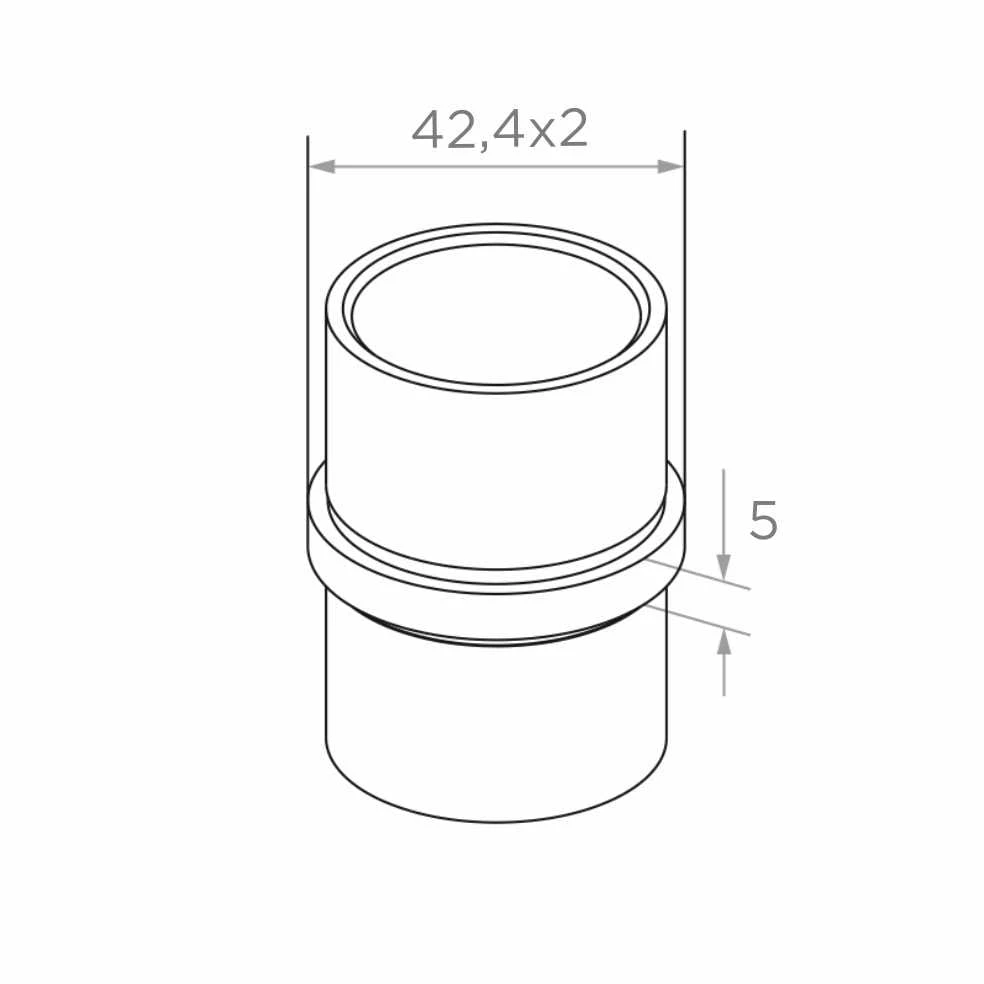

Dimensions and technical parameters
- External diameter: 42.4 mm
- Tube wall thickness: 2 mm
- Spacer ring height: 5 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Installation: adhesive (anaerobic adhesive)
- System: 42.4 mm
- Weight: 0.1 kg
- EAN: 5901289673136
Application and benefits for installer
The straight adhesive connector is designed for balustrade systems based on 42.4 mm round tube — the most popular standard in balustrade constructions. The adhesive installation method eliminates the need for on-site welding, which significantly speeds up implementation and allows maintaining perfect element surface without heat treatment marks. The satin finish of AISI 304 stainless steel guarantees high corrosion resistance and aesthetics suitable for both interior and exterior applications.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
